2nd Generation Specific (1986-1992) 1986-1992 Discussion including performance modifications and technical support sections.

can you put this in an FC without modification?

Thread Tools

Search this Thread

Old Jul 13, 2022 | 10:21 PM
  #1
gorge's Avatar
Thread Starter
Full Member
Tenured Member 10 Years

Joined: Jul 2009
Posts: 186
Likes: 4
From: Australia
can you put this in an FC without modification?


Reply
Old Jul 13, 2022 | 10:42 PM
  #2
dguy's Avatar
Rotary Freak
Tenured Member: 20 Years
Liked
iTrader: (8)

Joined: Apr 2006
Posts: 1,657
Likes: 332
From: sb
Put simply: no.
Reply
Old Jul 14, 2022 | 11:23 AM
  #3
FC3SWhite88's Avatar
Junior Member
Tenured Member: 5 Years
iTrader: (1)

Joined: Dec 2020
Posts: 19
Likes: 3
From: San Diego
YES and NO.

1. You need a Built to APEX "FD to FC OIL RACE PAN" to install the engine. Best one out there today.

2. Then you need a new engine wiring harness to fire it up.

Other option is to replace the front cover with the FC model and use the FC engine harness but need to change the ECM to a S4/5 Adaptronics or Apexi with Banzai harness to fire up the engine.

Reply
Old Jul 14, 2022 | 04:07 PM
  #4
driftxsequence's Avatar
Rotisserie Engine
Tenured Member: 15 Years
Liked
Loved
Community Favorite
iTrader: (8)

Joined: Jan 2007
Posts: 1,944
Likes: 107
From: Wilmington, DE
Originally Posted by FC3SWhite88
YES and NO.

1. You need a Built to APEX "FD to FC OIL RACE PAN" to install the engine. Best one out there today.

2. Then you need a new engine wiring harness to fire it up.

Other option is to replace the front cover with the FC model and use the FC engine harness but need to change the ECM to a S4/5 Adaptronics or Apexi with Banzai harness to fire up the engine.
If you buy anything from B2A expect it to take 3-5 business years. The man is simply unreliable and I would not recommend his business to anyone.
Reply
Old Jul 14, 2022 | 05:43 PM
  #5
j9fd3s's Avatar
Moderator
Community Builder
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Mar 2001
Posts: 31,835
Likes: 3,233
From: https://www2.mazda.com/en/100th/
simply, no. you can buy mounts to put the engine in the car, and use the FC clutch. everything else is not a bolt in, so cooling system, oil lines, intake and intercooler piping, ecu and the wiring....
Reply
Old Aug 3, 2022 | 02:28 AM
  #6
gorge's Avatar
Thread Starter
Full Member
Tenured Member 10 Years

Joined: Jul 2009
Posts: 186
Likes: 4
From: Australia

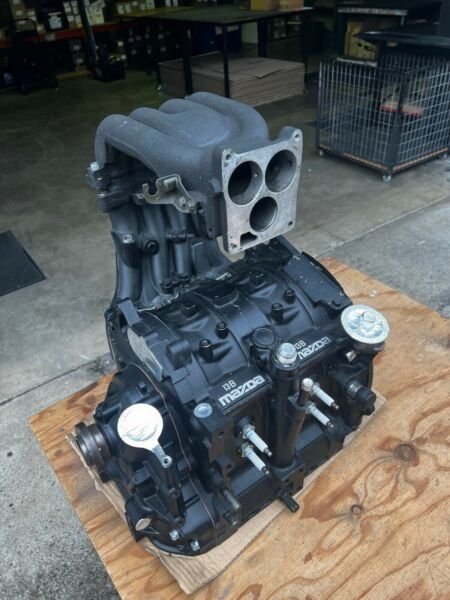

How about this?

Also, it's bridgeported so would I need to upgrade anything else in my car since my car is stock?


Reply
Old Aug 4, 2022 | 08:30 AM
  #7
Cardinell's Avatar
Rotatin'

Joined: Mar 2021
Posts: 383
Likes: 35
From: Virginia
Originally Posted by gorge
How about this?

Also, it's bridgeported so would I need to upgrade anything else in my car since my car is stock?

That looks to be an S4 turbo engine, so yes it will drop in. Depending on your car, you may need to update the rest of the drivetrain to T2 parts. If this engine is bridgeported, you will need a standalone ECU. The stock ECU will not work.
Reply
Old Aug 5, 2022 | 11:39 PM
  #8
gorge's Avatar
Thread Starter
Full Member
Tenured Member 10 Years

Joined: Jul 2009
Posts: 186
Likes: 4
From: Australia

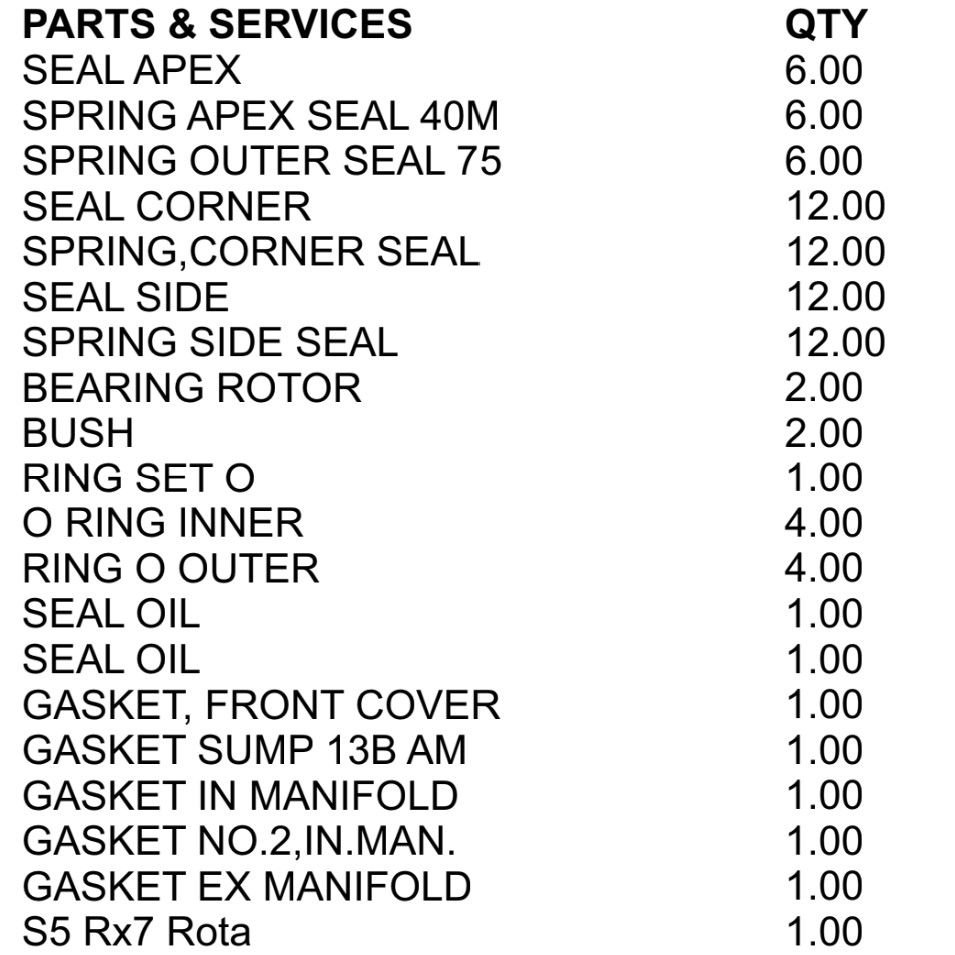

I was alternatively thinking about getting my current engine rebuilt. I got a quote from a local shop for these parts. It's $6000. That doesn't include any labour. Does that sound about right?




Reply
Old Aug 8, 2022 | 09:43 PM
  #9
gorge's Avatar
Thread Starter
Full Member
Tenured Member 10 Years

Joined: Jul 2009
Posts: 186
Likes: 4
From: Australia
Is there a kit that contains all of the above so I can compare prices to the quote I got? Minus the rotor
Reply
Old Aug 9, 2022 | 11:22 AM
  #10
dguy's Avatar
Rotary Freak
Tenured Member: 20 Years
Liked
iTrader: (8)

Joined: Apr 2006
Posts: 1,657
Likes: 332
From: sb
Many of those parts quoted tend to not need to be replaced, or at least only some of them. I personally dont quote those parts on the outset and break up rebuilds into two invoices: Teardown and inspection being one, rebuild/assembly being the other.
Reply
