Bolt size of OEM TII pressure plate bolts
05-03-11, 04:37 PM
#1
Bolt size of OEM TII pressure plate bolts
Does someone know the specs on the bolts that bolt the pressure plate to the flywheel on a OEM s4 Turbo II?
I ordered them from mazdatrix and after a week of waiting they sent me the wrong ones. So I want to source them from a local source.
Thanks in advance
I ordered them from mazdatrix and after a week of waiting they sent me the wrong ones. So I want to source them from a local source.
Thanks in advance
05-03-11, 10:09 PM
#3
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts

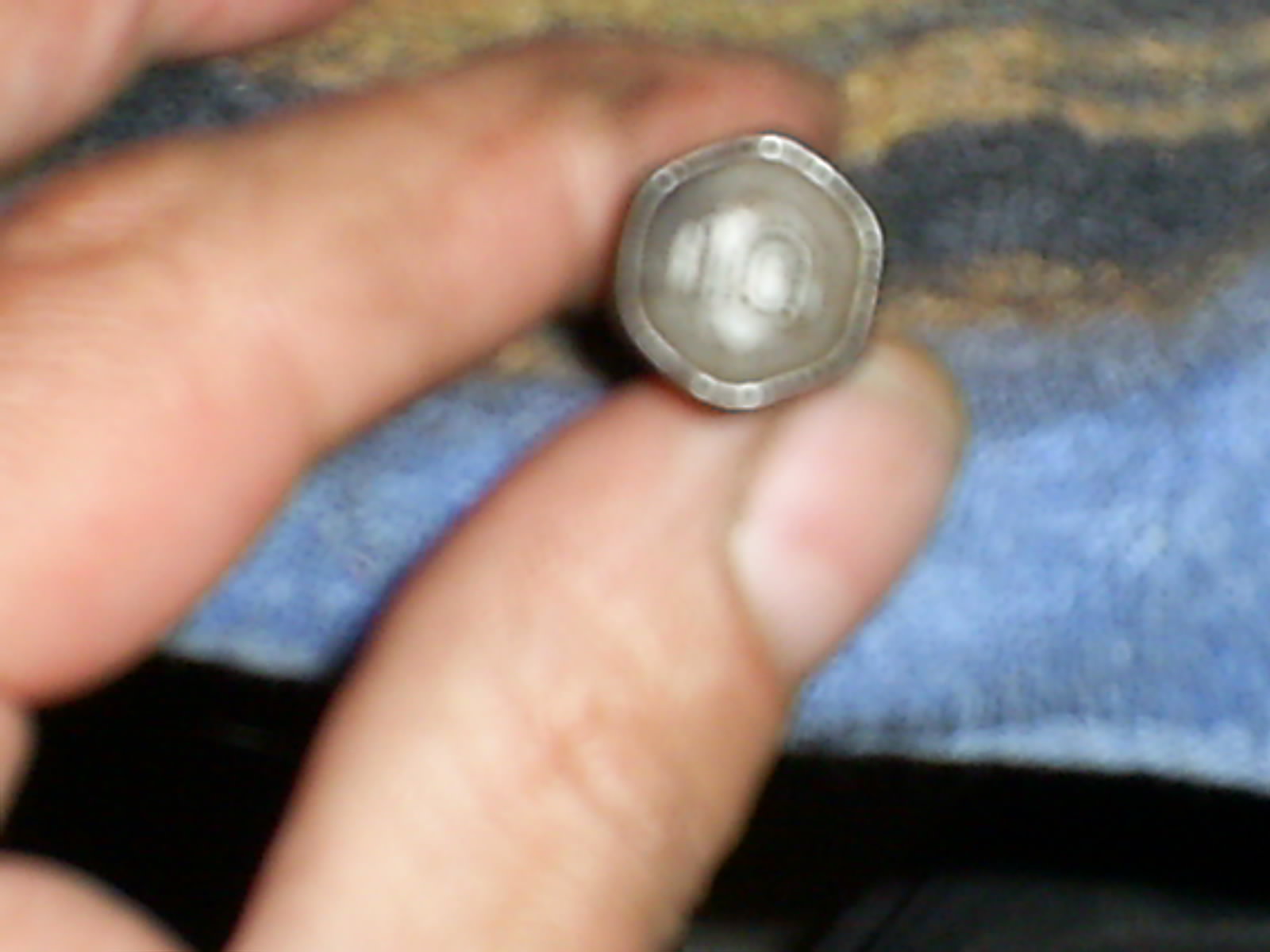

natey..here ya go..a pic of one of the Longer bolts..note the number on top of the head of the bolt
NOTE that some of the bolts used have no thread past a certain point..there are I think 4 shorter bolts that are threaded all the way to the Head..2 are not threaded all the way.So Try not to Force them on if they do not go in all the way..
NOTE that some of the bolts used have no thread past a certain point..there are I think 4 shorter bolts that are threaded all the way to the Head..2 are not threaded all the way.So Try not to Force them on if they do not go in all the way..
05-04-11, 06:12 AM
#7
Can Post Only in New Member Section
iTrader: (2)
Join Date: Jul 2004
Location: Calgary, Canada
Posts: 930
Likes: 0
Received 0 Likes
on
0 Posts
ummm I'd very sure that you're using grade 10 bolts. the stress put on these bolts and the RPM they spin at is something you shouldn't mess around with.
