Anyone running Wheel spacers/adapters with vert bbs

Thread Tools

Search this Thread

Old 01-13-10, 11:02 PM
  #1
Turbo vert

Thread Starter
iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,698
Likes: 0
Received 2 Likes on 2 Posts
Anyone running Wheel spacers/adapters with vert bbs

i was thinking about getting some wheel spacer adapters. i have stock vert bbs. idk what size to go with or dont really have an idea just want them more flush. anyone running this setup.



ps. just seen on tv the red FD autocrossing and all his wheels fall off. its on Most Daring. what a classic
Old 01-14-10, 07:16 AM
  #2
Right near Malloy

iTrader: (28)

Pele's Avatar

Join Date: Dec 1999
Location: Behind a workbench, repairing FC Electronics.
Posts: 7,840
Received 510 Likes on 345 Posts
I run the Vert BBS wheels on my GXL. There is no need for spacers.

I run the stock size tire 205/60R15 on them, mainly for weight and the added tire height also dampens my harsh suspension on the street.



If you're looking to go for a wider tire, you may use late 90's to early 2000's Mustang GT wheels.
I run 225/50R16 R compound tires all around on a set of 2002 Mustang GT wheels. Wheels of this type and vintage are cheap on CraigsList. They have the proper offset to allow you to run a wider tire without rubbing.

They do also have a wider stance and sit more flush with the edge of the fenders. I suspect this is the look you're going for.
Old 01-14-10, 08:46 AM
  #3
rotorhead

iTrader: (3)

arghx's Avatar

Join Date: Aug 2004
Location: cold
Posts: 16,182
Received 429 Likes on 263 Posts
don't try to pull a hella flush deal with those wheels man, it's not going to look right
Old 01-14-10, 08:48 AM
  #4
Turbo vert

Thread Starter
iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,698
Likes: 0
Received 2 Likes on 2 Posts
Hmmm. My post must been misleading. My car is a vert and has vert wheels. I just want to make the wheels more flush with the quarter. just try to push them out more so when its lowerd it looks better. Your last sentance hit the nail on the head. My tire size 215/60
Old 01-14-10, 08:50 AM
  #5
Turbo vert

Thread Starter
iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,698
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by arghx
don't try to pull a hella flush deal with those wheels man, it's not going to look right
hahaha lol no no no. I know. im not trying to pull a hella flush deal just more flush than they are now.
Old 01-14-10, 10:08 AM
  #6
MECP Certified Installer


jjwalker's Avatar

Join Date: Feb 2009
Location: Mesquite, TX-DFW
Posts: 3,176
Likes: 0
Received 2 Likes on 2 Posts
I haven't tried it, but based on what I remember as far as wheel stud length on my vert and fender-tire clearance, I would assume you couldn't use more than a 12mm spacer.

Someone correct me if I am wrong.
Old 01-14-10, 10:52 AM
  #7
My Bick is Digger

iTrader: (3)

Dltreezan's Avatar

Join Date: Oct 2002
Location: Raleigh, NC
Posts: 3,509
Likes: 0
Received 2 Likes on 2 Posts
call rishie at autornd.com
Old 01-14-10, 10:57 AM
  #8
Banned. I got OWNED!!!
iTrader: (2)

Tatakai's Avatar

Join Date: Mar 2006
Location: Seattle
Posts: 575
Likes: 0
Received 0 Likes on 0 Posts
i know what your asking.. most of rx7club is completely null and void when it comes to wheel fitment. i have vert wheels for winter wheels on my fc, but i haven't bought spacers for them yet.

i'd estimate you should be able to fit like a 20mm on the back and a 10-15 in the front. depends on camber/ride height.
Old 01-14-10, 11:26 AM
  #9
1308ccs of awesome

iTrader: (9)

eage8's Avatar

Join Date: Sep 2003
Location: Woodbine, MD
Posts: 6,189
Received 17 Likes on 15 Posts
it's simple...

1. get a tape measure
2. measure the gap between the fender and the top of the tire
3. buy a spacer that size or a little smaller.
Old 01-14-10, 11:36 AM
  #10
Full Member

Yence's Avatar

Join Date: Sep 2008
Location: The Netherlands
Posts: 83
Likes: 0
Received 0 Likes on 0 Posts
15mm front, 25mm rear should do the trick.
Old 01-14-10, 11:55 AM
  #11
My Bick is Digger

iTrader: (3)

Dltreezan's Avatar

Join Date: Oct 2002
Location: Raleigh, NC
Posts: 3,509
Likes: 0
Received 2 Likes on 2 Posts
again if you want a great deal hit rishie up, he is a vendor here and a cool guy and he will get you the best price too.
Old 01-15-10, 12:21 AM
  #12
Turbo vert

Thread Starter
iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,698
Likes: 0
Received 2 Likes on 2 Posts
im going to get ahold of rishie lol see what he has to say. think im going to take a few measurements and see what i come up with
Old 01-15-10, 12:37 AM
  #13
you are missed

iTrader: (2)

nillahcaz's Avatar

Join Date: Dec 2001
Location: St. Louis
Posts: 987
Likes: 0
Received 1 Like on 1 Post
it will look like crap. If you lower the car you run the risk of rubbing unless you put your alignment out of whack, making the car look like ghetto crap.
If you want a more flush look get wider rims. skinny stock tires with spacers look just like that.... skinny stock tires with spacers.
Old 01-15-10, 01:34 AM
  #14
Rx2 > FD

iTrader: (10)

sen2two's Avatar

Join Date: Apr 2005
Location: Florida, Orlando
Posts: 3,359
Likes: 0
Received 8 Likes on 8 Posts
Originally Posted by just startn
im going to get ahold of rishie lol see what he has to say. think im going to take a few measurements and see what i come up with
I have done it... looks much better. I dont remember the size of the adaper though. i think it was 20mm...???

but dont use spacers unless you use longer wheel studs. I always use adapters. much easier and most of the time, safer.
Old 01-15-10, 10:14 AM
  #15
Turbo vert

Thread Starter
iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,698
Likes: 0
Received 2 Likes on 2 Posts
before you post read post #5
Old 01-15-10, 10:17 AM
  #16
Turbo vert

Thread Starter
iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,698
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by sen2two
I have done it... looks much better. I dont remember the size of the adaper though. i think it was 20mm...???

but dont use spacers unless you use longer wheel studs. I always use adapters. much easier and most of the time, safer.
thats what i was thiking. 20 should be good enough. IDK...try somthing lol
Old 01-15-10, 10:18 AM
  #17
Turbo vert

Thread Starter
iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,698
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by sen2two
I have done it... looks much better. I dont remember the size of the adaper though. i think it was 20mm...???

but dont use spacers unless you use longer wheel studs. I always use adapters. much easier and most of the time, safer.
yea no spacers only adapters
Old 01-15-10, 10:56 PM
  #18
Informed Appreciation

iTrader: (1)

Hecubus84's Avatar

Join Date: Oct 2005
Location: Detroit Jr.
Posts: 572
Likes: 0
Received 4 Likes on 2 Posts
S5 TII wheels (same offset as vert wheels iirc) with 20mm spacers in the rear:
The following users liked this post:
re-rx7 (04-28-24)
Old 01-16-10, 09:05 AM
  #19
Turbo vert

Thread Starter
iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,698
Likes: 0
Received 2 Likes on 2 Posts
Well i guess i shouldnt buy spacer we should just trade cars so i have spacers.

seriously.. i think they look ALOT better with the spacers. what size tires?
Old 01-16-10, 09:19 AM
  #20
rotorhead

iTrader: (3)

arghx's Avatar

Join Date: Aug 2004
Location: cold
Posts: 16,182
Received 429 Likes on 263 Posts
buy wider wheels

[/thread]
Old 01-16-10, 09:42 AM
  #21
Senior Member

iTrader: (2)

oinesra's Avatar

Join Date: Jun 2005
Location: Orange Park, FL
Posts: 279
Received 2 Likes on 2 Posts
Originally Posted by arghx
buy wider wheels

[/thread]
That has nothing to do with what he asked dick.



I have 30mm 'adapters' on the back of my car. It sits a lot more flush, with plenty of room, so the risk or rubbing is zero. Sure, they are not vert wheels, but is should be similar.




The before pic in the same spot, you couldn't see the wheel.

p.s. my wheels are from a 91 coupe.
Old 01-17-10, 01:02 AM
  #22
Full Member

iTrader: (3)

MazDan's Avatar

Join Date: May 2007
Location: Vancouver
Posts: 105
Received 2 Likes on 2 Posts

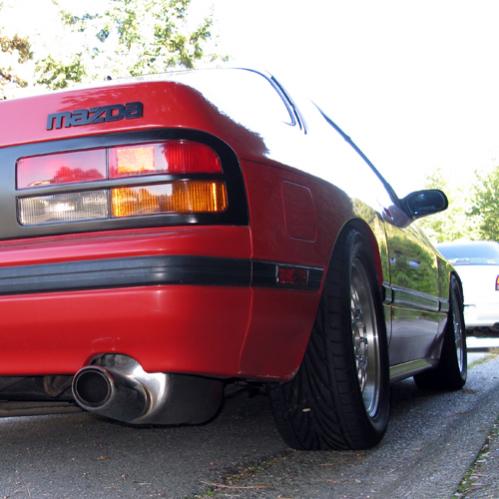

I have vert rims with 25mm spacers up front and 30mm in the rear. The rear is good but the front has occasional rubbing issues. I'm going to get some 20s soon and see if that will work. I'm running 225/50s on the stock bbs, maybe with narrower tires you could get away with the 25s up front?
Attached Thumbnails Anyone running Wheel spacers/adapters with vert bbs-img_2707sm.jpg
Old 01-17-10, 09:34 AM
  #23
Turbo vert

Thread Starter
iTrader: (33)

just startn's Avatar

Join Date: Aug 2005
Location: Elyria, OH
Posts: 2,698
Likes: 0
Received 2 Likes on 2 Posts
Very glade you posted.

1. Wondered if you could smash 225 on the stock bbs's
2. perfect picture to understand the widths and "imagine" yoour own.

Im doing, 20mm rear with 215/60 tire but after seeing your post im re-thiking. 20mm with 225's
Old 05-08-10, 11:27 PM
  #24
Senior Member
iTrader: (3)

Gryffinwings's Avatar

Join Date: Apr 2010
Location: San Diego, CA
Posts: 434
Likes: 0
Received 0 Likes on 0 Posts
I am planning on running spacers with my stock vert BBS meshies, seems like the best way is 5-15mm up front and a 25mm in the rear, and I'll be using the stock size tire, 205/60-15s.
Old 02-23-11, 01:12 AM
  #25
Rotorhead

iTrader: (2)

Sgtbaker's Avatar

Join Date: Sep 2010
Location: Pasadena, CA
Posts: 310
Received 0 Likes on 0 Posts
Originally Posted by Hecubus84
S5 TII wheels (same offset as vert wheels iirc) with 20mm spacers in the rear:
Did you have to install longer studs?
