Anyone cut into their dash to mount a gauge?
#1
Y00s a h000
Thread Starter
Join Date: Jul 2003
Location: Central NJ
Posts: 1,913
Likes: 0
Received 0 Likes
on
0 Posts
Anyone cut into their dash to mount a gauge?
Anyone have pics of where they have mounted their gauges? I'm looking for ideas because it seems that with the auto seatbelts you can't do a-pillar pods, and I don't want to buy one of those expensive ones over the dash that I don't like the look of anyways. I want to keep the clock/emergency light stuff clear though. I was thinking of just cutting a hole in a good place in the dash and cleaning it up a bit so it looks more OEM in there.
#3
Y00s a h000
Thread Starter
Join Date: Jul 2003
Location: Central NJ
Posts: 1,913
Likes: 0
Received 0 Likes
on
0 Posts
Well i've never experimented with it, but can't you pretty much just build it up then sand it down to the shape you want? I'd probably practice a few times then do it, but if its just pretty much like that then I don't see it being too much of a problem after a bit of practice.
#4
Eats, Sleeps, Dreams Rotary
iTrader: (1)
Some have put the gauges where the equalizer resides. Depending on what radio you presently have, it may be an option. I know it's quite a distance, but hang and angle them under the dash below glove box. Not bad if they are the larger gauges. If you ripped out the a/c, create a panel and put them in the center outlet. Just depends on number of gauges and size.
#5
Displacement > Boost
Join Date: Oct 2002
Location: Mississippi
Posts: 3,503
Likes: 0
Received 0 Likes
on
0 Posts

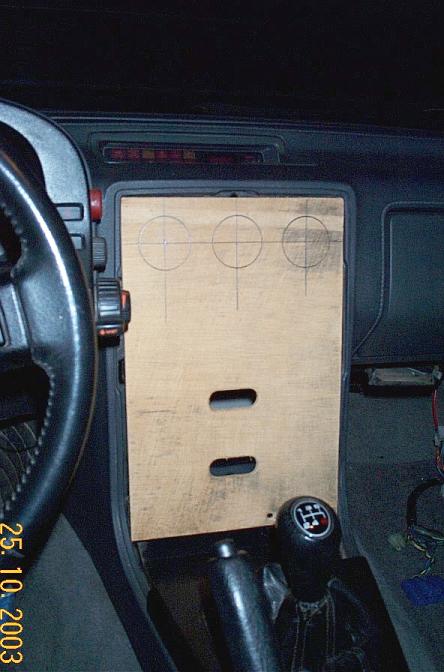

Here is a start on my home built center panel. It was a temporary deal that I want to redo. This pic is w/o the gauges in it (obviously). The final version will be fiberglass and angled to meet the base of the stickshift surround, and the top will be curved above the dashboard in a similar fashion as the instrument bezel.
#6
Full Member
Join Date: Nov 2002
Location: newcastle/england
Posts: 185
Likes: 0
Received 0 Likes
on
0 Posts
3 52mm gauges fit perfectly where the central heater vents are :
i cut a template from alluminium and covered it with black pvc. as you can see in the pic the colour of the pvc is a bit lighter, i've manged to get some which matches the rest of the dash perfectly but havn't got arround to putting it on yet.
i cut a template from alluminium and covered it with black pvc. as you can see in the pic the colour of the pvc is a bit lighter, i've manged to get some which matches the rest of the dash perfectly but havn't got arround to putting it on yet.
Trending Topics
#18
Nurse I need 1300cc's NOW
Originally posted by den
3 52mm gauges fit perfectly where the central heater vents are :
i cut a template from alluminium and covered it with black pvc. as you can see in the pic the colour of the pvc is a bit lighter, i've manged to get some which matches the rest of the dash perfectly but havn't got arround to putting it on yet.
3 52mm gauges fit perfectly where the central heater vents are :
i cut a template from alluminium and covered it with black pvc. as you can see in the pic the colour of the pvc is a bit lighter, i've manged to get some which matches the rest of the dash perfectly but havn't got arround to putting it on yet.
#20
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally posted by jon88se
there are companies in japan that take out the clock/idiot light cluster and replace it with a 3 gauge pod...
there are companies in japan that take out the clock/idiot light cluster and replace it with a 3 gauge pod...
#22
big boost baby
Join Date: Jun 2003
Location: Okinawa, Japan
Posts: 269
Likes: 0
Received 0 Likes
on
0 Posts
very nice
__ DEN__Those gauges in place of the vents looks nice! How long did it take you to make one of those? also I have been looking for the 3-gauge pod insert where the idiot lights are placed. Corksport seems to be advertising them but you cant order them yet~~ anyone know where else you can buy this pod?
#24
i love assembly lube
Join Date: Dec 2003
Location: High Point, NC
Posts: 284
Likes: 0
Received 0 Likes
on
0 Posts
hey, here's some molding im doing to my dash.
here you can see where i molded the cd changer control unit into the ash try flap. i took the cd changer control unit, and only used the front piece for the molding. all i have to do is screw in the back piece, put the **** in, and bam it's done. all i did was cut a hole out in the ash tray flap with a bandsaw and use bondo to fill the space. ive also got duct tape on the clear middle part where the lcd goes.
here i am molding the flap into the main part of this dash panel, the bondo cures blue. after this i sanded/added more coats of bondo/sanded.
here it is close to the final product, the paint is still wet.
This is my first post to the forums, so I hope i fit in and get along well. If you'd like to see my car, go to this link -> My CarDomain Page
here you can see where i molded the cd changer control unit into the ash try flap. i took the cd changer control unit, and only used the front piece for the molding. all i have to do is screw in the back piece, put the **** in, and bam it's done. all i did was cut a hole out in the ash tray flap with a bandsaw and use bondo to fill the space. ive also got duct tape on the clear middle part where the lcd goes.
here i am molding the flap into the main part of this dash panel, the bondo cures blue. after this i sanded/added more coats of bondo/sanded.
here it is close to the final product, the paint is still wet.
This is my first post to the forums, so I hope i fit in and get along well. If you'd like to see my car, go to this link -> My CarDomain Page
