Any SETUP PICS of "Cold Air Intake" For Turbo Models.???
08-22-05, 06:26 PM
#6
always searchin
Join Date: Jan 2004
Location: home of the Airborne, NC
Posts: 409
Likes: 0
Received 0 Likes
on
0 Posts

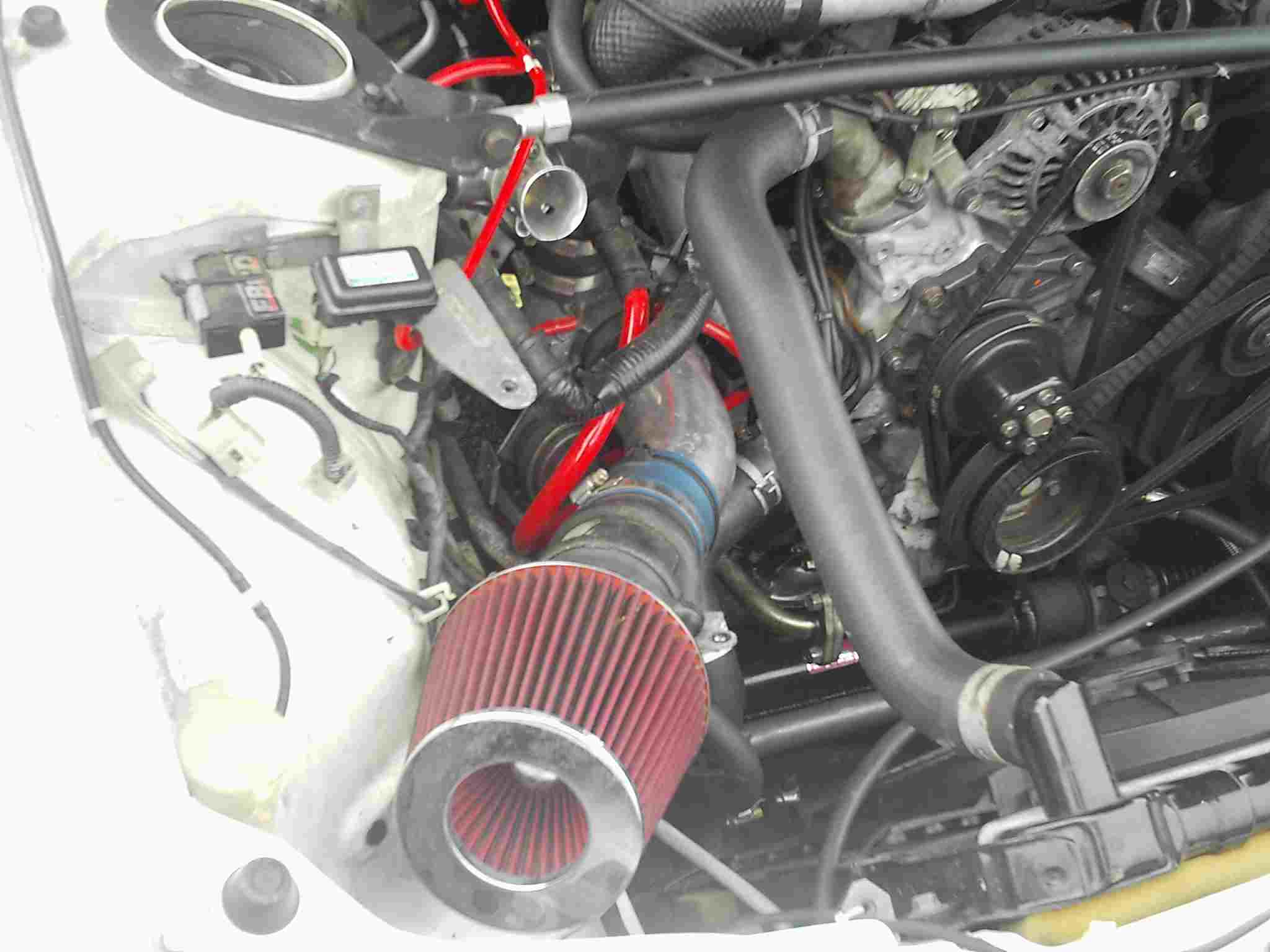

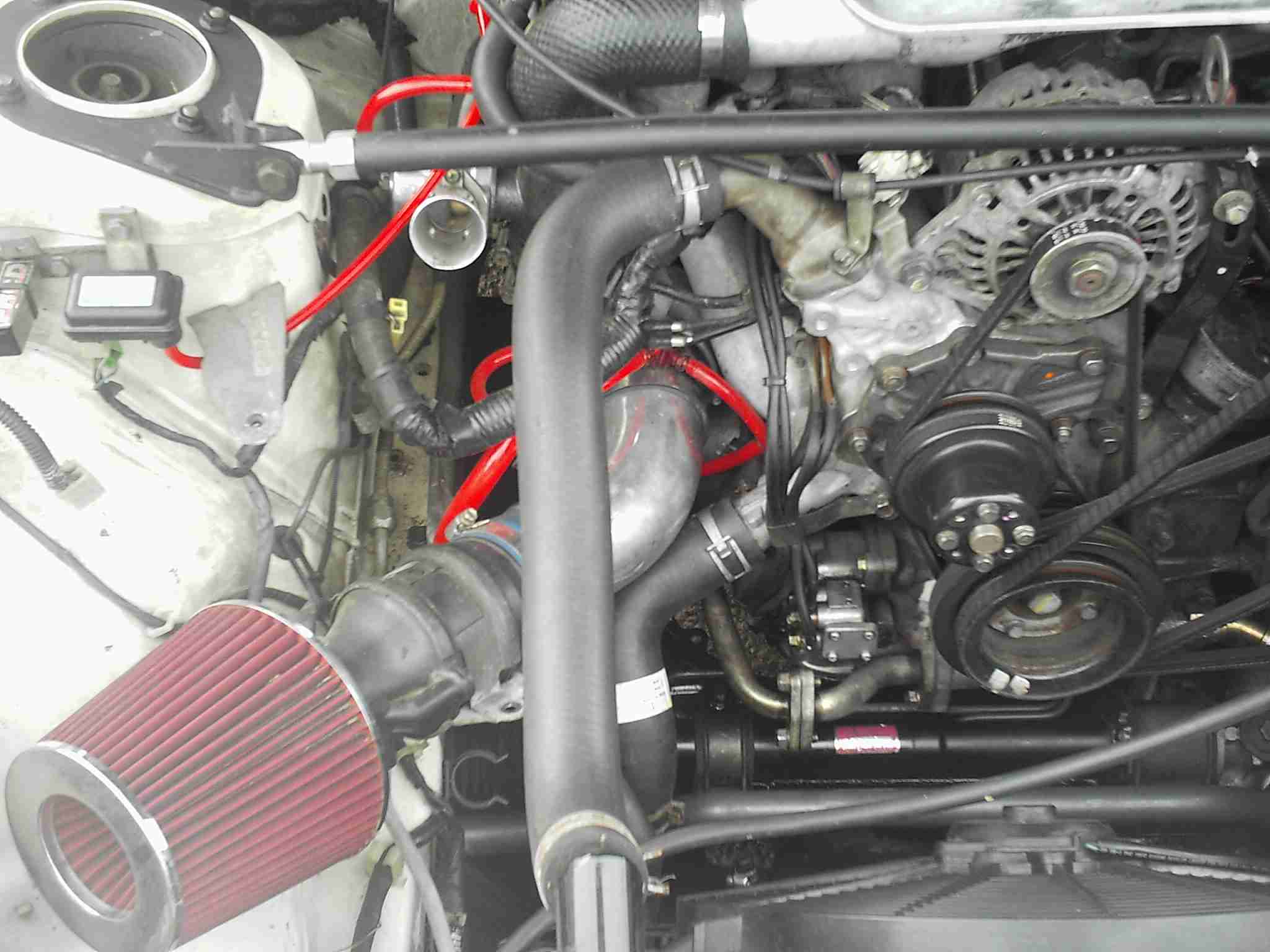

pics

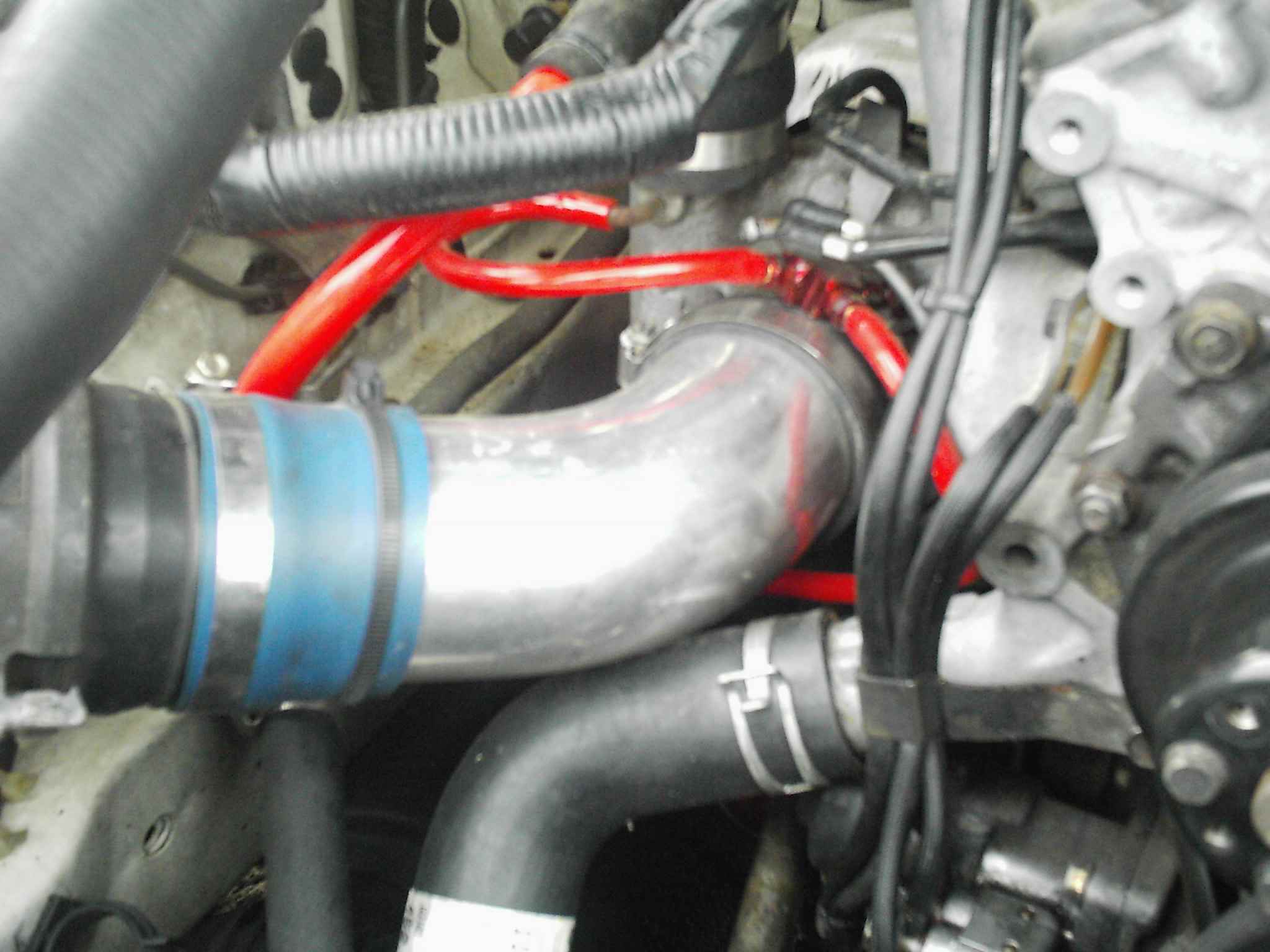

this cost me $40. 92-95 civic intake. not a true "cold air" but there are no harsh bends, it looks better than PVC and is less than half of Banzai racings unit.
Last edited by lnlycrpr; 08-22-05 at 06:28 PM.
Trending Topics
08-22-05, 08:12 PM
#9
Full Member
Join Date: Aug 2005
Location: New Hampshire
Posts: 144
Likes: 0
Received 0 Likes
on
0 Posts
my plans for the intake on my fc n/a
is to run metal tubing down to the stock position and then under the passenger light mechanism and then to where the i think its windshield washer res. and mount the filter infront of the radiator
that should be pretty cool air i will post pics when im done
is to run metal tubing down to the stock position and then under the passenger light mechanism and then to where the i think its windshield washer res. and mount the filter infront of the radiator
that should be pretty cool air i will post pics when im done
08-23-05, 09:16 AM
#11
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 110 Likes
on
93 Posts

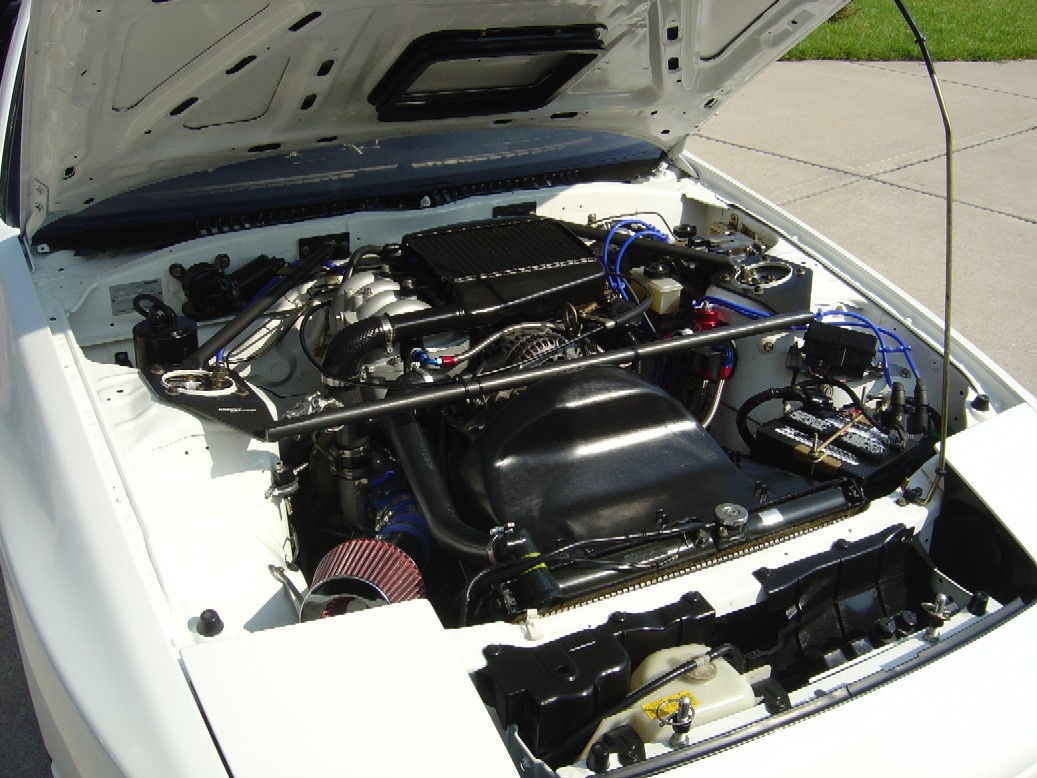

I'm seeing a lot of unshielded metal pipes and unshielded filters in the engine bay pictured here. Measure your intake air temps and you're in for a surprise.
You need to build a cold air box around the filter and shield the intake tube.
You need to build a cold air box around the filter and shield the intake tube.
08-23-05, 10:10 AM
#13
always modding
Join Date: Mar 2005
Location: on a tiny island in the middle of a sea
Posts: 1,667
Likes: 0
Received 3 Likes
on
3 Posts
do your guys Bov's make any sound on the hot side of the IC?
I have a blitz.. it doesn't do anything.... i think the TMIC absorbs most of the airs "shock wave" on it's way back...
or maybe 7psi just isn't enough
I have a blitz.. it doesn't do anything.... i think the TMIC absorbs most of the airs "shock wave" on it's way back...
or maybe 7psi just isn't enough
08-24-05, 04:52 AM
#16
BRAAAAAP pssh BRAAAAAP
iTrader: (11)
Join Date: Mar 2004
Location: cali
Posts: 1,461
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by NZConvertible
The pipe between the AFM and turbo is not a "cold air intake". All the pics shown so far are the exact opposite...
those intakes might be robbing you of power
Last edited by Cosmo_TT; 08-24-05 at 04:55 AM.
08-24-05, 04:54 AM
#17
BRAAAAAP pssh BRAAAAAP
iTrader: (11)
Join Date: Mar 2004
Location: cali
Posts: 1,461
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Aaron Cake
BOVs should never be mounted on the hot side of an intercooler. They should be mounted as close to the throttle body as possible.
wow i was told the opposite
i was told that it needs to be between the turbo and intercooler
not saying thats right or not just thats what i was told
08-24-05, 05:59 AM
#18
Lives on the Forum
Originally Posted by Cosmo_TT
wow i was told the opposite
i was told that it needs to be between the turbo and intercooler
not saying thats right or not just thats what i was told
i was told that it needs to be between the turbo and intercooler
not saying thats right or not just thats what i was told
If the BOV is mounted closer to the turbo, you get "faster" opening of the BOV but you end up with stalled intake charge all the way up to the throttle body.
It takes time and effort to get all that intake charge moving again.
If the BOV is mounted closer to the throttle body, there is less strain against the throttle plates but you need to repressurize that entire intake tract to get boost going again.
So...pick your poison?
-Ted
08-24-05, 07:47 AM
#23
wtf's a piston
Join Date: Mar 2004
Location: Englewood, FL
Posts: 1,717
Likes: 0
Received 0 Likes
on
0 Posts
Isn't cold-air intake where you actually run pipe under the front bumper so you suck all the cold air off the road and in some very bad cases, water from a puddle. Those all look like short ram air pipes (at least thats what AEM calls them :p)
08-24-05, 07:59 AM
#24
Senior Member
Join Date: Jun 2004
Location: Houston
Posts: 655
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by RETed
Oh!
You meant the pipe was from an Accord???
I thought the pic was that of an Accord! :P
Sorry, brain fart!
-Ted
You meant the pipe was from an Accord???
I thought the pic was that of an Accord! :P
Sorry, brain fart!
-Ted
go gets some coffee....and WAKE UP!!!
08-24-05, 08:37 AM
#25
MP T-70 = Fun
Join Date: Dec 2004
Location: Charlotte and WCU
Posts: 1,049
Likes: 0
Received 0 Likes
on
0 Posts
you guys are seriously gonna make me search for you... again. fine..... im gonna start ptting up my paypal addy. I could do like HKS and chanrge $5 just to talk about it.
i found another CAI thread that i searched for someone that didnt..... I searched for CAI and TID. its that easy.
"you can make a full cold air intake for $100 or less.... prolly alot less.
search... hell ill search for you. give me 1 min.
https://www.rx7club.com/showthread.p...5&highlight=cai
there is one of the countless threads... that one has pics. ill find more.
https://www.rx7club.com/showthread.p...8&highlight=cai
thatone is a write up of how to do it. both of those are for a CAI....
if you want a "short ram" then just do the same without cutting. use a shorter pipe. 3" filters and adapters are everywhere on ebay... hell higgi sells one too."
__________________________________________
look guys that was from 1min of searching. this topic has been covered over and over.
Get a few cupplers from autozone. a filter adaper. a piece of 3" pipe with a 30degree bend in it (muffler shop, abs, or import intake). cut to lenght. attach bent pipe to turbo and afm. attach filter adapter to other side of afm.remove washer tank and cut hole. get another piece of pipe with a 45 or 90 degree bend. attach to afm and other end through hole you cut. attach filter to it.
order a fmic piping kit from ebay. they come with enough pipes to make a few CAIs... they are $100. here is one on ebay now:
http://cgi.ebay.com/ebaymotors/3-Int...95587551QQrdZ1
its your car... its not that hard to do. no one on here can make an exact parts list for you to take to home depot. Getting dirty and learning about your car is the fun part. Getting in there lets you see how everyting works so next time when you need an answer it will make more sense knowing where the part is.
have fun and dont cut any wires.... please. As much as we all like "what does this wire go to" threads... just take your time.
sleeperfc
i found another CAI thread that i searched for someone that didnt..... I searched for CAI and TID. its that easy.
"you can make a full cold air intake for $100 or less.... prolly alot less.
search... hell ill search for you. give me 1 min.
https://www.rx7club.com/showthread.p...5&highlight=cai
there is one of the countless threads... that one has pics. ill find more.
https://www.rx7club.com/showthread.p...8&highlight=cai
thatone is a write up of how to do it. both of those are for a CAI....
if you want a "short ram" then just do the same without cutting. use a shorter pipe. 3" filters and adapters are everywhere on ebay... hell higgi sells one too."
__________________________________________
look guys that was from 1min of searching. this topic has been covered over and over.
Get a few cupplers from autozone. a filter adaper. a piece of 3" pipe with a 30degree bend in it (muffler shop, abs, or import intake). cut to lenght. attach bent pipe to turbo and afm. attach filter adapter to other side of afm.remove washer tank and cut hole. get another piece of pipe with a 45 or 90 degree bend. attach to afm and other end through hole you cut. attach filter to it.
order a fmic piping kit from ebay. they come with enough pipes to make a few CAIs... they are $100. here is one on ebay now:
http://cgi.ebay.com/ebaymotors/3-Int...95587551QQrdZ1
its your car... its not that hard to do. no one on here can make an exact parts list for you to take to home depot. Getting dirty and learning about your car is the fun part. Getting in there lets you see how everyting works so next time when you need an answer it will make more sense knowing where the part is.
have fun and dont cut any wires.... please. As much as we all like "what does this wire go to" threads... just take your time.
sleeperfc
Last edited by sleeperfc; 08-24-05 at 08:40 AM.
