i just want to know what size intercoolers people are going with height,length,thickness on FC's???

and what size piping are you using? any probs with turbo lag?

how did you route the piping and how much chopping if any?

please help me out im looking to do this next week and want to get it all ordered oh pics would be VERY much appreciated.

thanks guys



Try searching thats what I did befor I went at it and lookeda t evryones and got ideas.

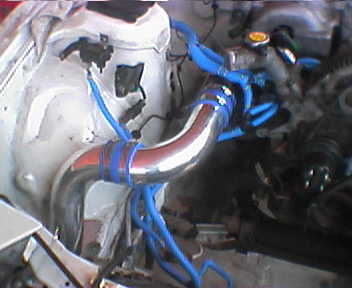

Size of the FMIC is dependant on where you want to place it and how much car you want to cut up. I used 3in piping the whol way. Made for one heck of a headach I would not sugest it on the cold side unless you have no PS. As well 3in required me to relocate battory and coil pack however made enugh room for a dry ice box. IC I used the core is 15.5" x 11.5" x 3" Overall lenght is 22.5" If I did this again I would go with the greddy and put it in the front over the bumper brace and cut my bumper all up for it. This one wehre I paced it required no cutting minimal relocation stuff effort but sacrafices cooling. I sugest this thread and this method the most thow. https://www.rx7club.com/showthread.p...+reinforcement



I just bought the greddy kit. Well worth it.

http://www.formula7racing.com/vert2.jpg



I have piping you can come over, and copy. if you want, Buy a spearco/Ebay Bar and plate FMIC, and fab the piping. Total cost ~350.00 AND, it will be more durable than the Greddy(not as shiney though ). Carl 707-696-2705 BTW, all you have to do, is come over, and work, and I can set you up with everything you need

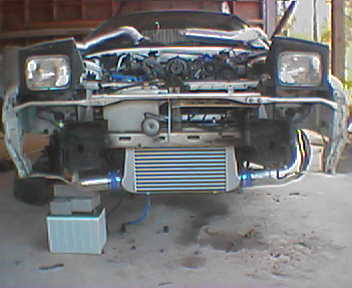

is your car being supported by a battery with bricks stacked on top of if?



LMAO I know it looks like that dont it. No there is 4 jack stands under it. The battory and bricks is holding up the IC piping wile I was doing test fits and meshurments. The wheels were off b/c I was sending the brakes to oreilys for a core deposit on new ones and I had to get the wheel well and wheels off to get the bumper off and all.



another intercooler thread!!!!!!!!!!!!!!!!!!!!!!!!!



i did a search and couldn't find what i was looking for at all but i think ill take carl up on his offer to copy his, looks like i just need to get an intercooler and get my *** up there.lol

oh carl what are the dimensions roughly on your intercooler so i know i dont buy anything too large. thanks -mike
