89 Vert - I can only find 2 fuel injectors!
89 Vert, owned since new. Haven't driven it in 5 or 6 years so thought a good starting point would be to get the FIs serviced. According to both the 86-89 Haynes and the factory manual it is supposed to have two pairs of injectors. I pulled off the TB assembly and fuel rail on the top right of the engine so getting those two out was easy. However, for the life of me I can't find the other ones. The pics in the Haynes manual do not look like my engine and the factory manual isn't helpful either.

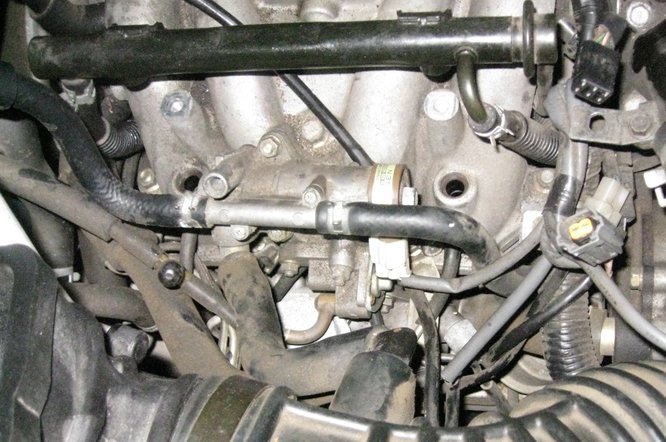

Here's a pic of the right side of the engine:
Here's a pic of the right side of the engine:
You'll need to pull the upper intake manifold in order to get at the primary injectors they are fit directly on the block below the intake manifold I recommend downloading a FSM
GL Rikk
GL Rikk
Rotorhead
Joined: Feb 2001
Posts: 9,136
Likes: 39
From: Charlottesville, Virginia, USA
See this link for manuals:
Foxed.ca - Mazda RX-7 Manuals
Be sure to order a new lower-to-upper intake manifold gasket for this project.
Foxed.ca - Mazda RX-7 Manuals
Be sure to order a new lower-to-upper intake manifold gasket for this project.
Joined: Sep 2005
Posts: 25,581
Likes: 136
From: Smiths Falls.(near Ottawa!.Mapquest IT!)
LOL I just saw a video of the same situation on YouTube
http://youtube.com/XJTXBYs3QmA
http://youtube.com/XJTXBYs3QmA
