87 Turbo Coolant Diagrams

Hey, I was just wondering if anyone has any or no where I can find diagrams for the cooling system for my rotary...

Thanks!

Reply Like

05-03-07, 07:18 AM

My5ABaby

Rotaries confuse me

iTrader: (7)

Join Date: May 2006

Location: Murfreesboro, TN

Posts: 4,219

Likes: 0

Received 3 Likes on 3 Posts

FSM which can be linked in the FAQ.

Reply Like

05-03-07, 09:12 AM

MidnightOwl

2 Rotors, 1 Turbo

Join Date: Feb 2004

Location: Atlanta, GA

Posts: 1,099

Likes: 0

Received 0 Likes on 0 Posts

www.rx7city.com, click on tech and blammo, FSM in pdf format.

Reply Like

05-03-07, 12:15 PM

HAILERS

Join Date: May 2001

Location: FORT WORTH, TEXAS,USA

Posts: 20,563

Likes: 0

Received 21 Likes on 19 Posts

Attached Thumbnails

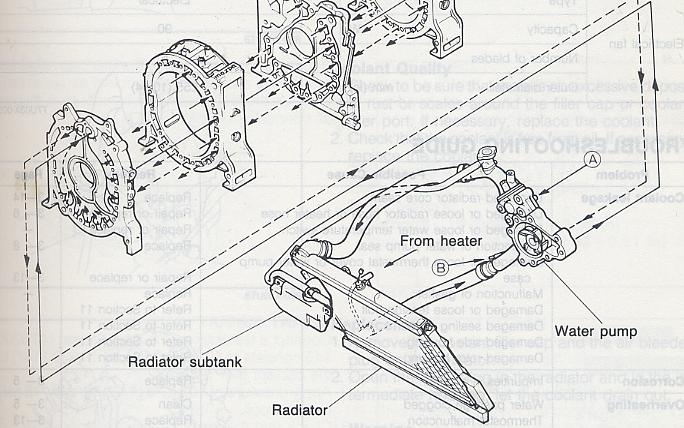

87 Turbo Coolant Diagrams-coolantone.jpg

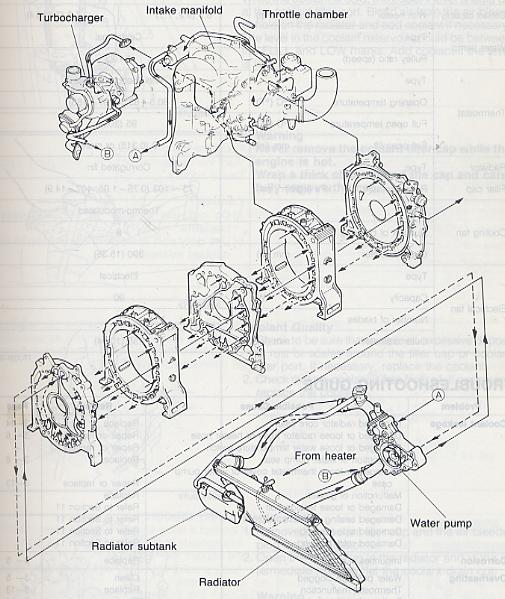

87 Turbo Coolant Diagrams-coolanttwo.jpg

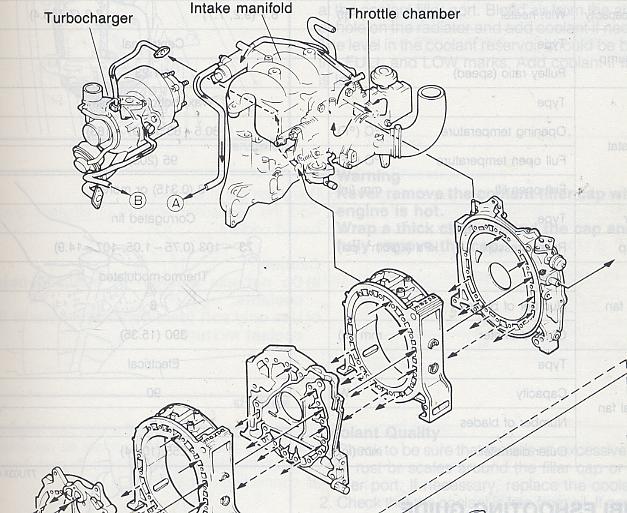

87 Turbo Coolant Diagrams-coolantthree.jpg

Reply Like

05-03-07, 12:15 PM

My5ABaby

Rotaries confuse me

iTrader: (7)

Join Date: May 2006

Location: Murfreesboro, TN

Posts: 4,219

Likes: 0

Received 3 Likes on 3 Posts

You're too nice Hailers.
