87 na wiring help injector/emission
ok so I was trying to get pictures but camera would not focus at all and I gave up
I have some wires I'm trying to figure out what they are... they are all cut and go to/around the injectors, the colors are faded so I may be off on shades but pretty sure they are correct.
- light green/red and brown/yellow - believe to be rear secondary
- light green and black/white - believe it's front primary
- single solid black with shielding - 02 sensor
now the ones I'm really not sure about
- brown/green and brown black
- green/white and brown/black
- brown/red and black
any help is appreciated these wires are all right by each other, I'm really just trying to figure out injectors... I have the wiring diagram for the year but the colors don't match?
I have some wires I'm trying to figure out what they are... they are all cut and go to/around the injectors, the colors are faded so I may be off on shades but pretty sure they are correct.
- light green/red and brown/yellow - believe to be rear secondary
- light green and black/white - believe it's front primary
- single solid black with shielding - 02 sensor
now the ones I'm really not sure about
- brown/green and brown black
- green/white and brown/black
- brown/red and black
any help is appreciated these wires are all right by each other, I'm really just trying to figure out injectors... I have the wiring diagram for the year but the colors don't match?
#2
Moderator
iTrader: (1)
Light Green/White is the front secondary injector.
Light Green/Black is the rear primary injector.

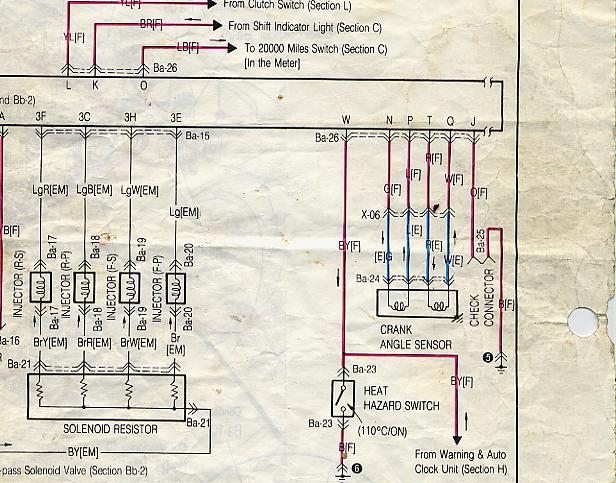

As far as the Brown wires are concerned consult the link, but they each supply voltage to the injectors so their respective order is not really relevant.
https://www.rx7club.com/attachments/...lackyellow-jpg
Light Green/Black is the rear primary injector.
As far as the Brown wires are concerned consult the link, but they each supply voltage to the injectors so their respective order is not really relevant.
https://www.rx7club.com/attachments/...lackyellow-jpg
Last edited by satch; 01-14-14 at 08:45 PM.
