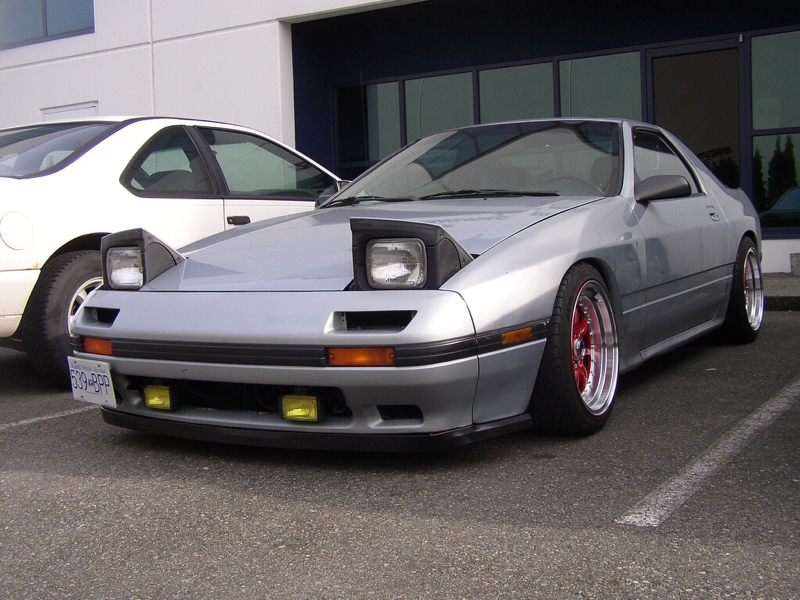

Specs are 17x9.5 +11 17x10.5 +11 work rezax



<a href="http://s177.photobucket.com/user/andy-civic/media/Mobile%20Uploads/2014-10/18AF8F51-312B-4F8E-A83E-BC1A85037487_zpssv4l0elt.jpg.html" target="_blank"><img src="http://i177.photobucket.com/albums/w237/andy-civic/Mobile%20Uploads/2014-10/18AF8F51-312B-4F8E-A83E-BC1A85037487_zpssv4l0elt.jpg" border="0" alt=" photo 18AF8F51-312B-4F8E-A83E-BC1A85037487_zpssv4l0elt.jpg"/></a>



bringing this thread back from the dead...I have the same exact specs as this car..what tire size did you run and could you have ran larger?

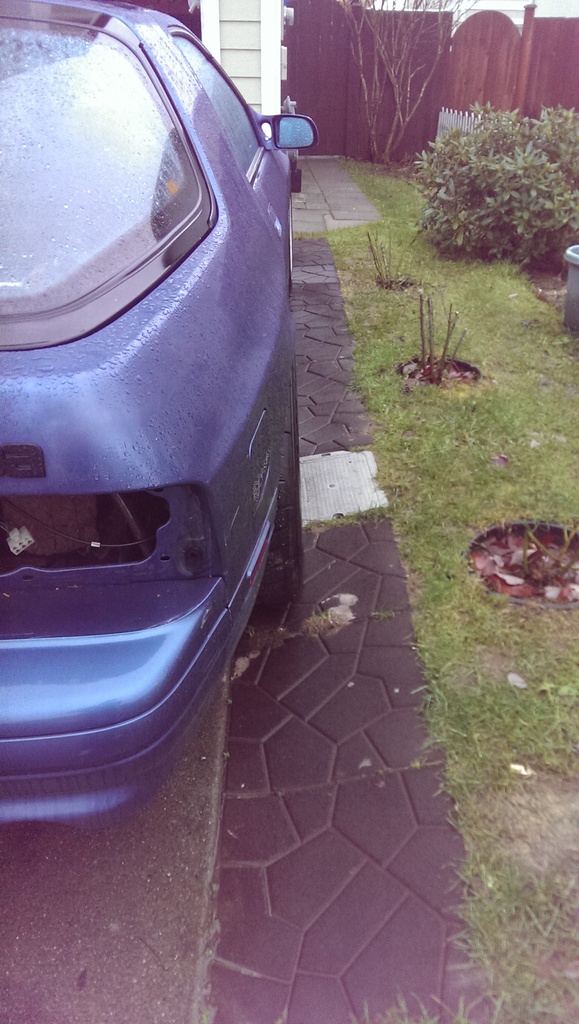

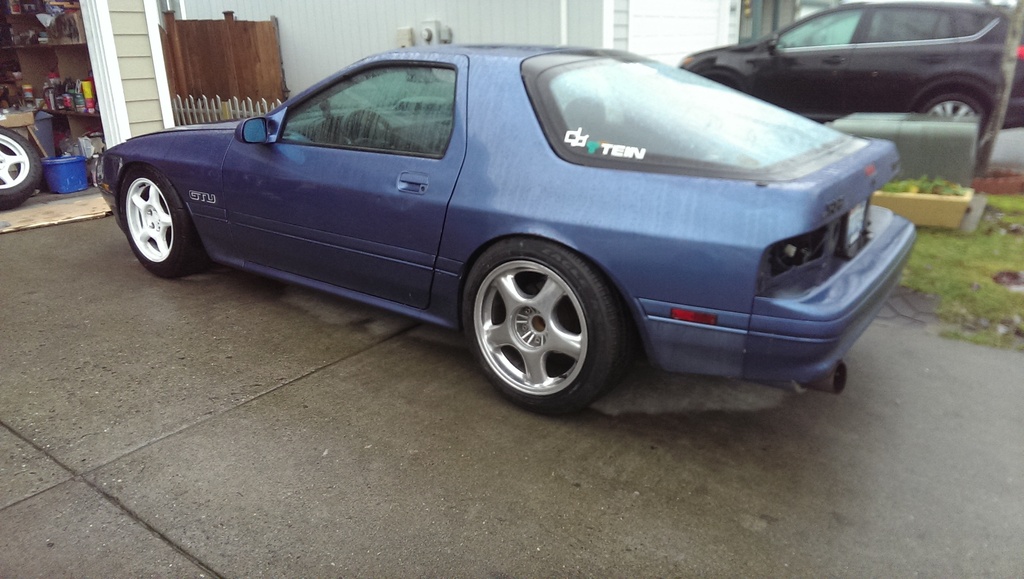

front fits perfectly with a little camber but i had to raise it to this height to be able to park in my backyard.




17x9.5 +18 215 45 Front 17x10 +18 225 45 rear



Some functional fitment on my FC3S Turbo II

F: 17 x 9.0J +22 / 235/40 Toyo R888s
R: 17 x 10J +18 / 255/40 Toyo R888s



damn i shouldve did 9 in the front. Nice car



AEZ wheels 17x8.5 +13 square



16x8 and 16x9 +33 Work Equip 05
5mm spacer up front



Is this with stock fenders?

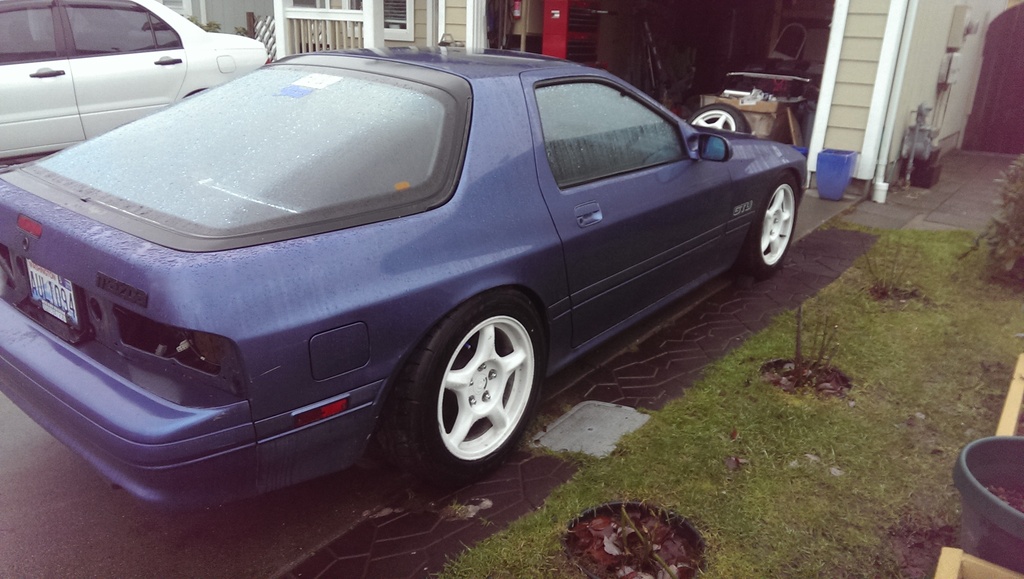

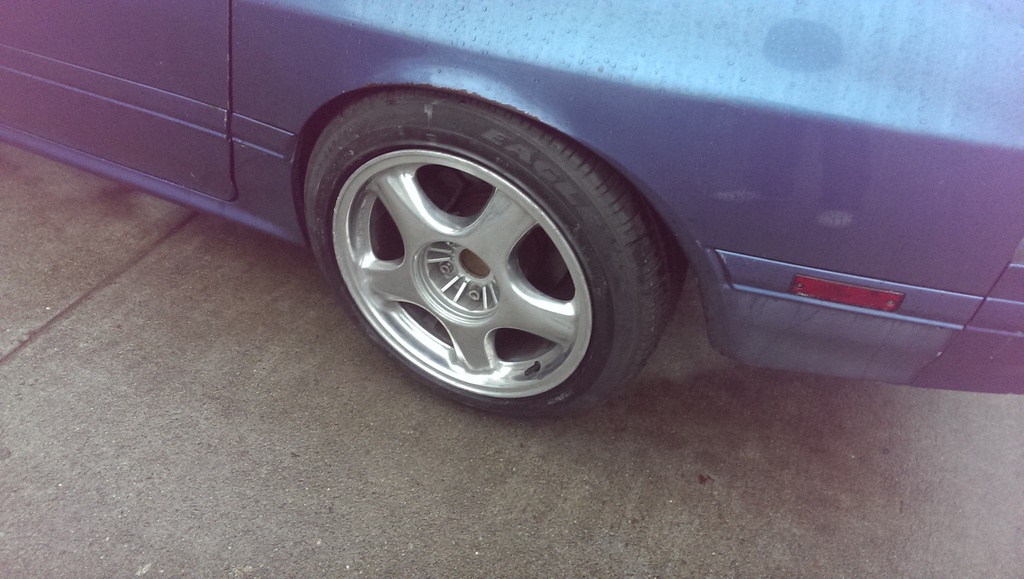

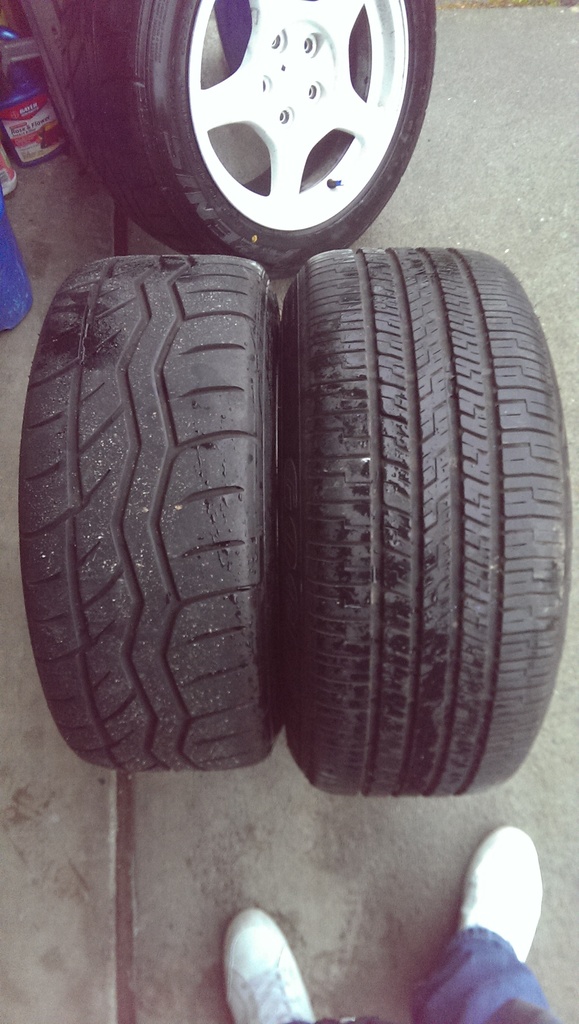

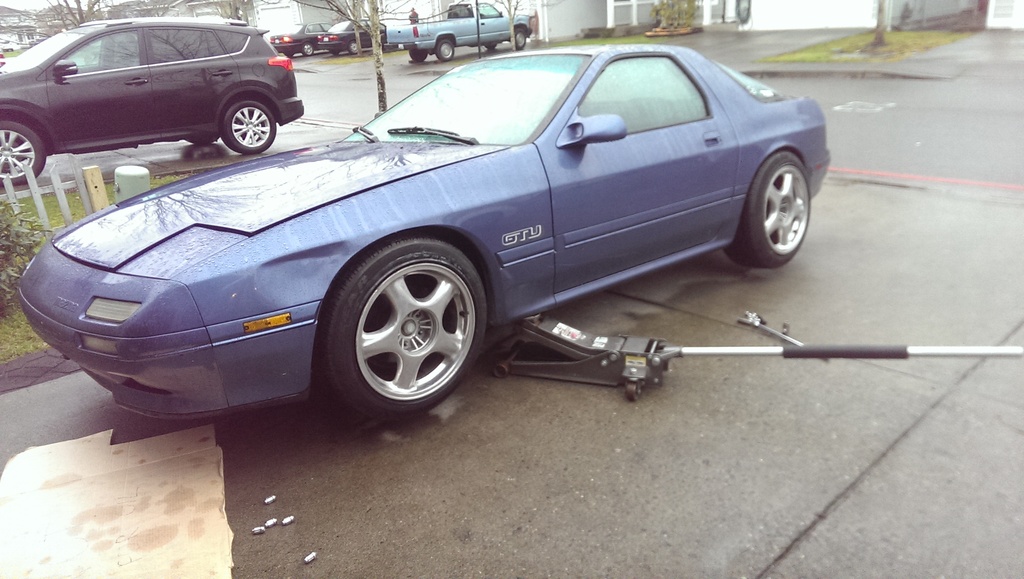

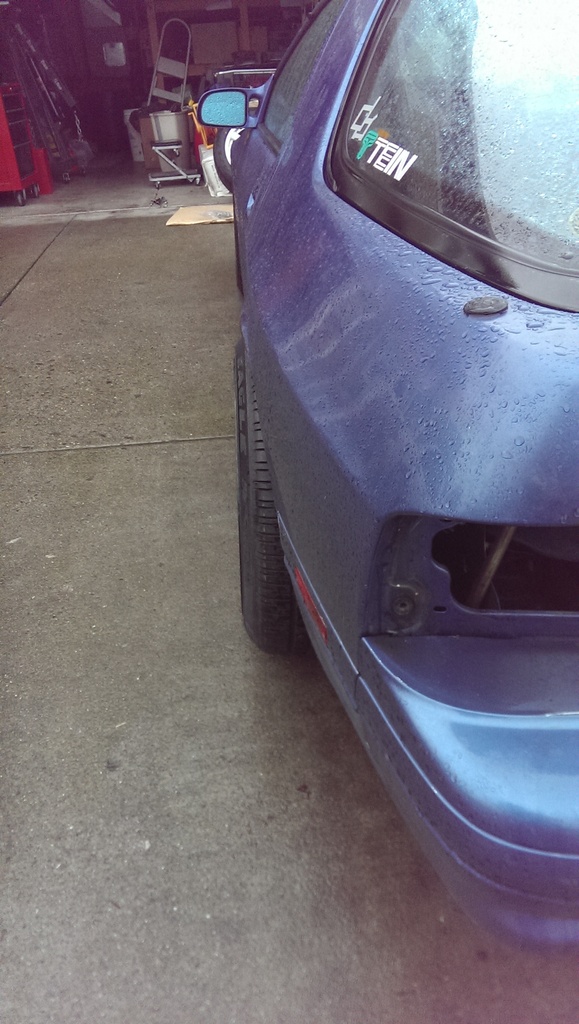

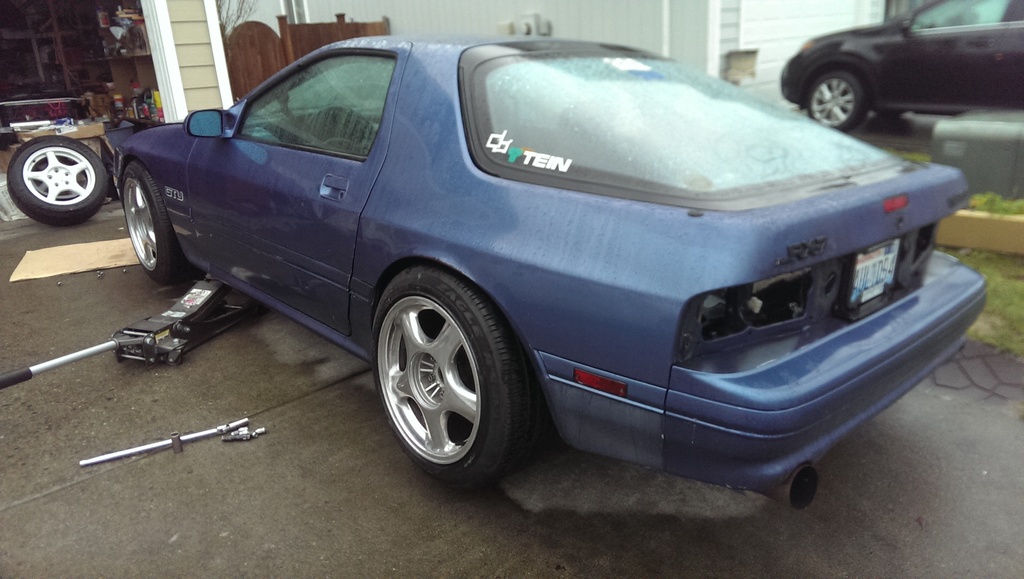

Here is me trying on Supra TT wheels. Size is 17x9.5 with 225/50 "stretched". Currently have FD wheels with same tire size and a 25mm spacer in front and 50mm in the rear. Just ordered new spacers for the front with correct HC diameter. Will upload more pics when they come in. BTW anyone else seen TT wheels on FC? Just want to get a taste of how they look. I plan on plasti dipping them white and probably doing wide over fenders.



16x7.5 +40

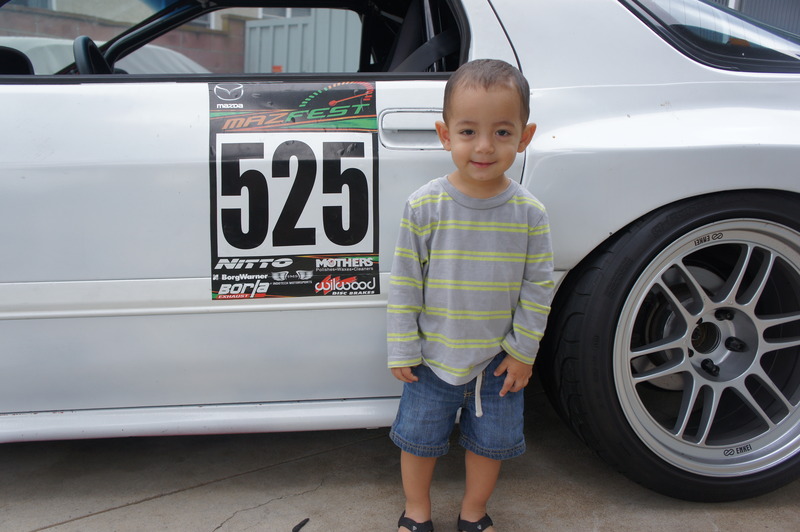

Enkei RPF1 (F) 17x10 +18 5x114.3
BFGoodrich T/A G-Force KDW (F) 255/40/17
Circuit Sports +15mm Hubcentric Spacers

Enkei RPF1 (R) 18x10.5 +15 5x114.3
BFGoodrich T/A G-Force KDW (R) 275/35/18
WheelMate 1.5" Hubcentric Adaptors



G35 rears on the front 17x8 +33 235/40
Adan VS6 on the rear 17x7 +30 225/45

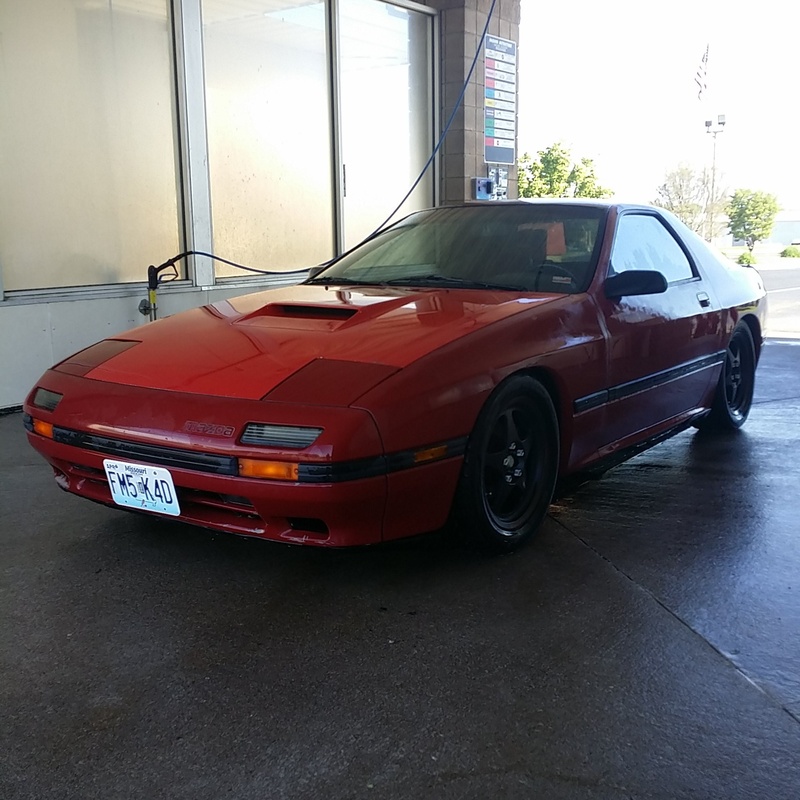

17x9 +25 all around. 215/45/17. stock ride height with kyb agx's...for now. should be a perfect fit on coils



attempting to save this page...

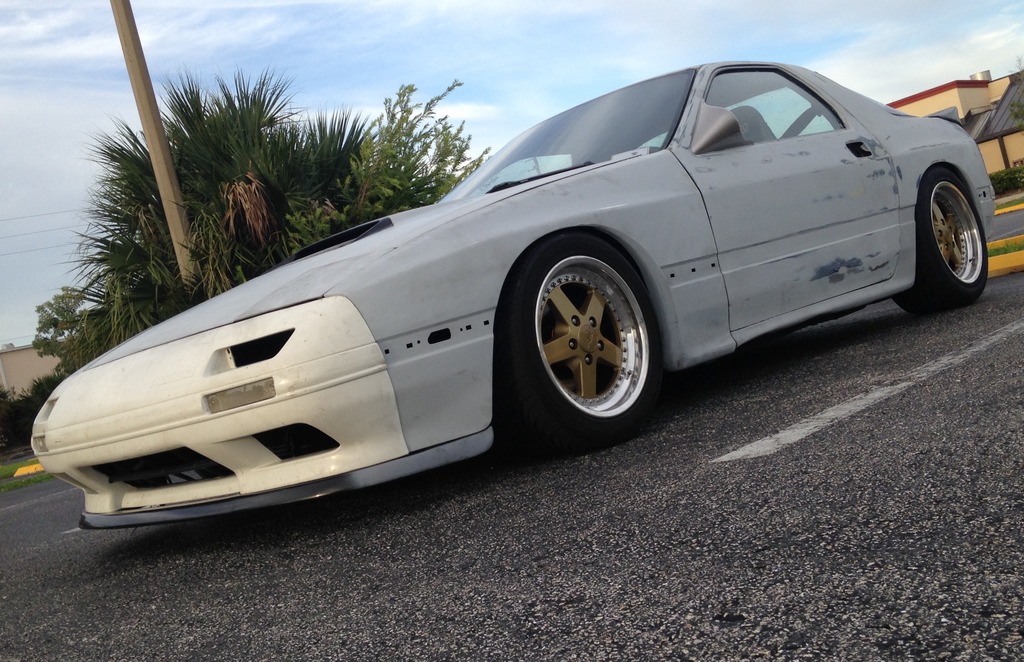

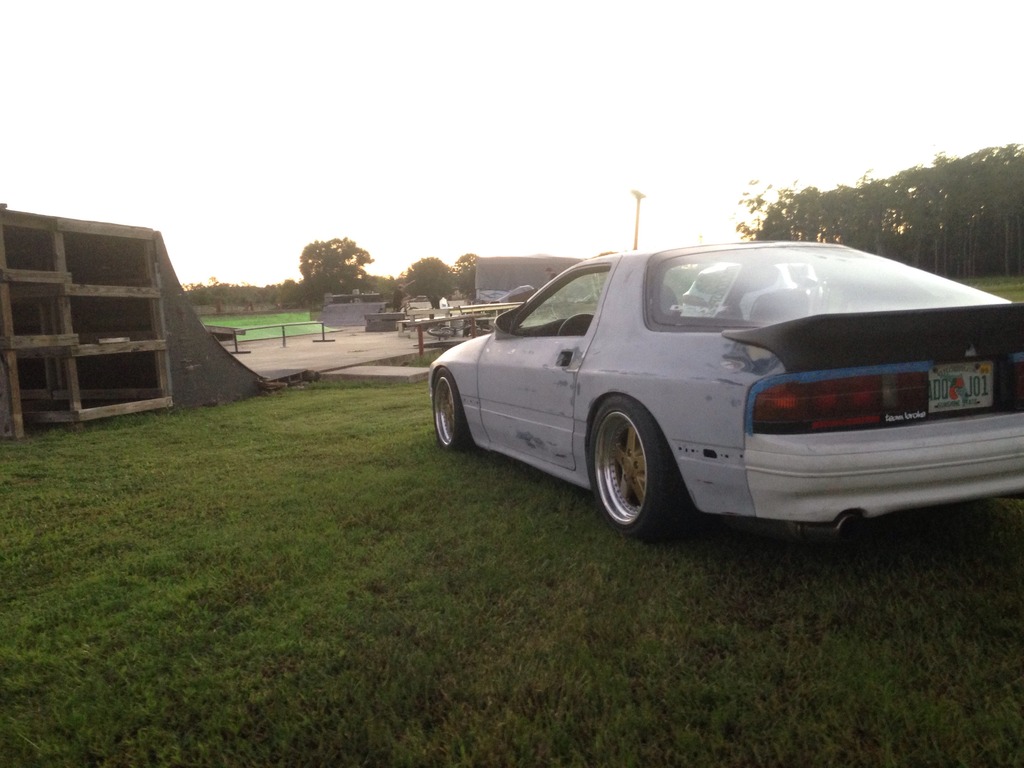

18x9.5 +11 bbk face for r32 gtr brakes
18x9.5 +10 max lip face



Is there a specific reason you went for 17" front and 18's in the rear?

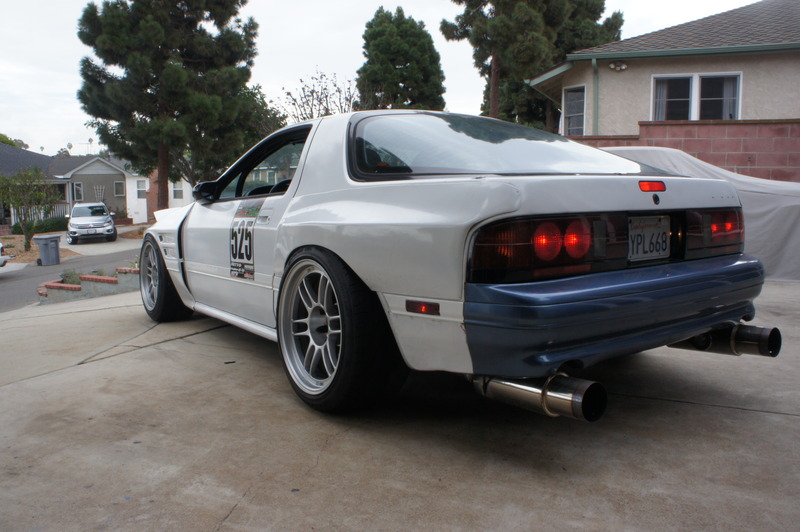

Enkei RPF-1 17x9 +22 w/ 255/40R17 Dunlop Direzza ZII on all four corners. Shine Auto front fenders and pulled rear fenders.



Any details on that lexan rear hatch?



Don't want to derail the thread too much but it's an Optic Armor 1/8" window on the stock frame with two 1/8" aluminum straps. I used black vinyl wrap around the edges for a stock look. The panel comes pre-moulded and over-sized so it had to be trimmed along the edges. It's supposed to have a protective coating but time will tell. I'd estimate the whole assembly is around 20 lb. It'll sucker punch you in the jaw with the stock supports if you aren't paying attention when opening it.



Thanks very much! I have been looking for one since they stopped being offered by Percy's.

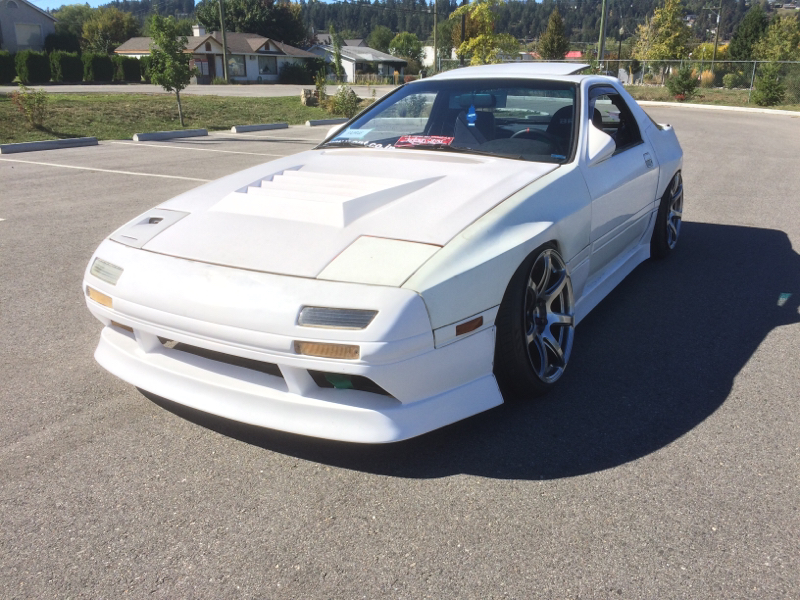

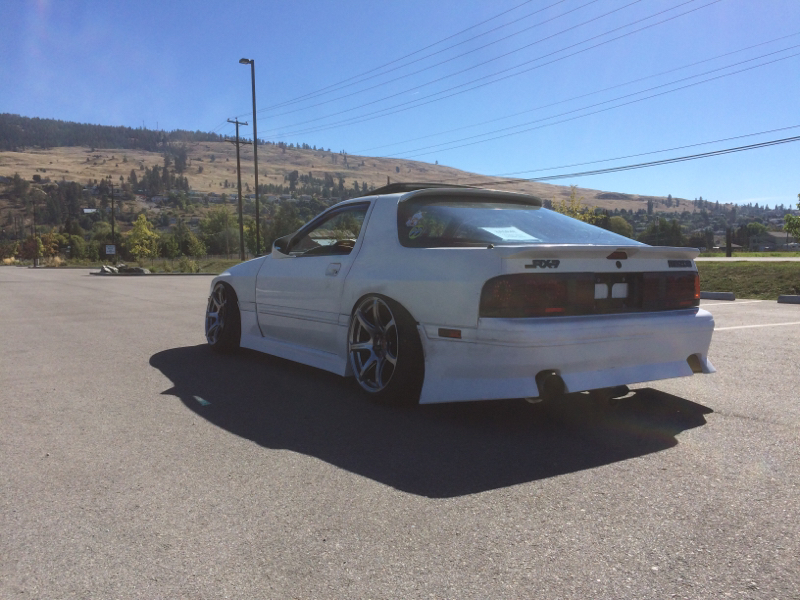

New setup:
F: Work T7R 18x9.5-3(15mm spacer) 215/40/18 with a Foresight 30mm wide fender and -9 degrees of camber (PBM flca)
R: Work T7R 18x9.5-3(15mm spacer) 215/45/18
with Foresight 35mm wide fender and -3 degrees of camber



Which of these sizes be ok on a stock body fc vert? And which would need some modification or spacers/fender roll?

15x8 +6
15x8 -19
16x8 0

Thanks!



15x8 +6 and 16x8 0 would fit fine on stock fenders. 15x8 -19 would need the fender lip rolled and possibly a bit of a pull.

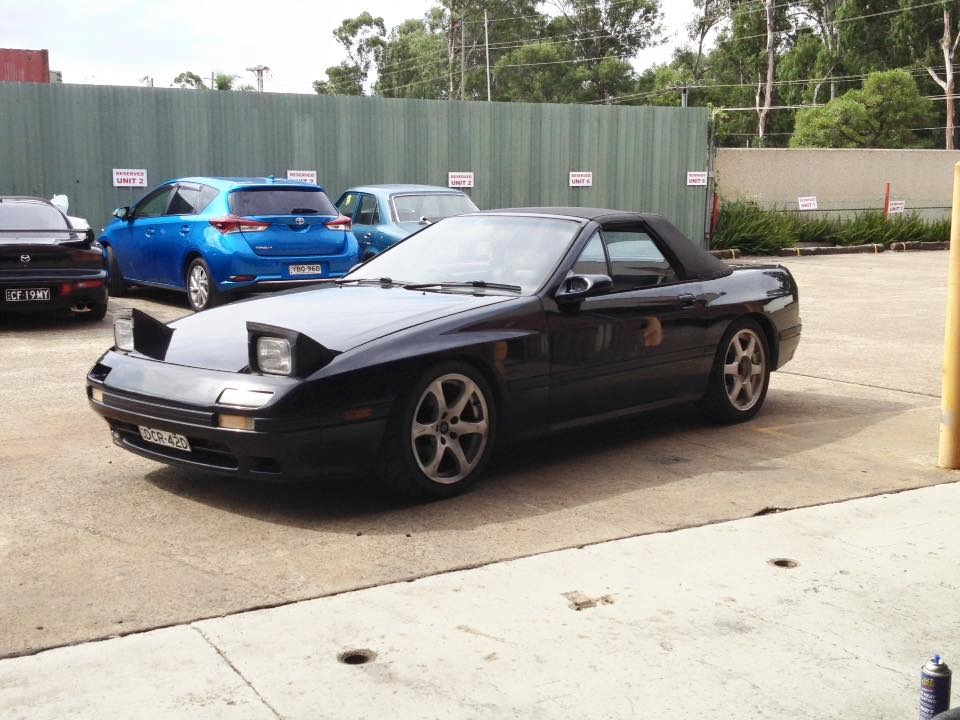

This is my old car with 16x8 0 on stock fenders for reference
