Pic request aftermarket seats
#1
Junior Member
Thread Starter
Join Date: Jun 2012
Location: Vermont
Posts: 40
Likes: 0
Received 0 Likes
on
0 Posts
Pic request aftermarket seats
I searched around for a little bit and couldn't find a thread already going so to the repost police that are going to flame me, please just link me to the thread that already exists.
I am trying to price out a vert FC build I have coming up (hopefully) and was wondering which seats you guys like, dislike, have fitment issues with roll cages (while wearing helmets too) and things like that. Like the title says I would like to see pics of how they look as well.
Thanks guys ,
-Mike
I am trying to price out a vert FC build I have coming up (hopefully) and was wondering which seats you guys like, dislike, have fitment issues with roll cages (while wearing helmets too) and things like that. Like the title says I would like to see pics of how they look as well.
Thanks guys ,
-Mike
#2
Yankle My Wankel
I know its not a vert, but I've got a Sparco Sprint JR in my FC, and I love it. Holds just right, driving position is great (a tad lower than stock, a bit harder to see the end of the hood at stop lights, but I have a good idea where it ends), only real downfall is that they don't recline, so the bolsters are quite high, and getting in and out is a tad trouble sum, but I'm a skinny guy so I manage, just slide the seat back whenever I get in or out. I just used the stock seat rails, and some 3/4" square tubing and boxed it up to give me the correct fitment. One concern is height. FC has a low roof, and racing seats are much taller than stock, even with my lower seating position, they'res really only an inch and a half from the top of the seat to the headliner, so cages can be a tight fit.
Don't have any photos of how it sits now, this photo is just a mock up on the stock rails without the extra tubing, only one side could be bolted to the floor because it's narrower. Even in this pic it's pretty close to the roof, so add another inch almost of height to it.
Don't have any photos of how it sits now, this photo is just a mock up on the stock rails without the extra tubing, only one side could be bolted to the floor because it's narrower. Even in this pic it's pretty close to the roof, so add another inch almost of height to it.
#4
Yankle My Wankel
The stock rails won't bolt up without modding them. I moved the bolt holes closer together, and I made 2 cross members out of the 3/4" square tube, bolted the seat to the cross member, and the cross member to the rail.
Trending Topics
#12
Oooohh Aaaahh
iTrader: (2)
Join Date: May 2010
Location: Kelowna BC
Posts: 200
Likes: 0
Received 0 Likes
on
0 Posts

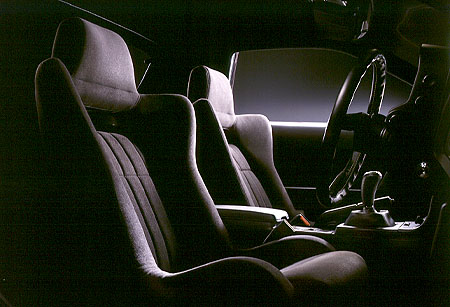

They are from a JDM Infini IV, a special edition FC sold in japan. There was only 600 Infini IV's produced I belive so the seats are rare, and expensive. I think there is a set for sale in california https://www.rx7club.com/2nd-generation-rx-7-1986-1992-parts-194/infini-iv-seats-1001002/
#13
Senior Member
iTrader: (1)
Join Date: May 2007
Location: Georgia
Posts: 387
Likes: 0
Received 0 Likes
on
0 Posts
http://3.bp.blogspot.com/_y0Vb_H3hYO..._1720052_n.jpg I got this form a Japan a while back old school bride lol bolts right up to fc rails sits low but I am tall
#24
Eats, Sleeps, Dreams Rotary
iTrader: (2)
I bought it off my friend and he included the side mounts, I'm just using the stock rails. My wheel is a 340mm Nardi, haven't had any problems hitting it (I'm about 5' 10"). I do some drifting and never had an issue. As far as other option, not really I got this for a really good deal. Ironically I'm considering selling it to get something a little newer/better condition.
#25
Banned. I got OWNED!!!
iTrader: (2)
Join Date: Dec 2011
Location: Albuquerque
Posts: 156
Likes: 0
Received 0 Likes
on
0 Posts
I don't have any pictures at the moment, but I have a Sparco Rev (older style Evo) and it fits amazing with a helmet. I've had it in three cars and never had any issues with the different cage setups. I'm 6'1, my buddy is 6'2 and we both have had plenty of helmet clearance.
