Few pics of my 2yr project
#1
Canadian Boost
Thread Starter
iTrader: (3)
Join Date: Nov 2005
Location: Ottawa, Canada
Posts: 868
Likes: 0
Received 0 Likes
on
0 Posts
Few pics of my 2yr project
Here are some pics of my car on cardomain. Its taken me 2 yrs of paycheck to paycheck and i am almost there. The car should be running soon i hope. Still have many little things to do.
Let me know what you think or if you have any advice.
http://www.cardomain.com/ride/2327466
Let me know what you think or if you have any advice.
http://www.cardomain.com/ride/2327466
#6
Senior Member
Join Date: Jul 2006
Location: Fredericksburg VA
Posts: 303
Likes: 0
Received 0 Likes
on
0 Posts
Is that big bracket the new tranny mount? I have done AT to MT swaps before and all you need to use is a L shaped bracket about 8-10 inches long. I usually just cut two pices off of a old bed frame i have. (the ends that hold up the box spring) and then drill holes for the M/t and the A/T. You will see that it extents the reach of the mount and maintains a OEM look.
#7
Canadian Boost
Thread Starter
iTrader: (3)
Join Date: Nov 2005
Location: Ottawa, Canada
Posts: 868
Likes: 0
Received 0 Likes
on
0 Posts
do you have any pics of it? the thing is that i have already made the mount and its ll welded in. i tried to use the old mounts but i couldn't figure it out. I see now what you saying, would have been so much easier.
when i started this mount i searched and asked, but i got the same "cut the old mounts out and weld them back in." Its been done now.
thanks for the tid bit of info.
when i started this mount i searched and asked, but i got the same "cut the old mounts out and weld them back in." Its been done now.
thanks for the tid bit of info.
Trending Topics
#8
Senior Member
Join Date: Jul 2006
Location: Fredericksburg VA
Posts: 303
Likes: 0
Received 0 Likes
on
0 Posts

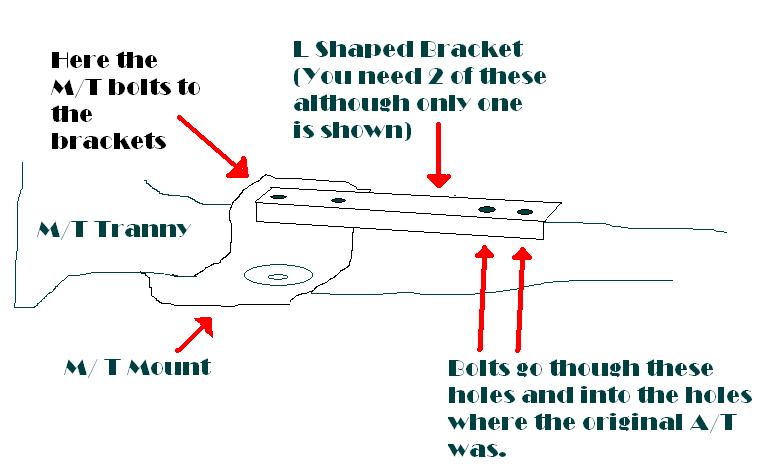

Dont have any pics but hope this diagram works for you. I made it in paint in like 2 seconds! Also for future searches ill add a few words. manual transmission conversion automatic to manual at to mt a/t to m/t
#9
Canadian Boost
Thread Starter
iTrader: (3)
Join Date: Nov 2005
Location: Ottawa, Canada
Posts: 868
Likes: 0
Received 0 Likes
on
0 Posts
thats what i had figured when you explained it. But i have spent enough time making this one and i like now thats it complete (update on the page) it works for me. but thanks for the drawing. looks good.
