Asianbob's FC build
Well here is the build. I arrived here in Okinawa on Aug. 18th, 2010. After a little while of getting settled in I started searching for a car. I looked at quite a few R32 GTR's, Silvias, FD's, and Chasers. After a week of looking the I noticed that all the cars we were looking for were everywhere around here, but there was one car that I haven't really noticed...The FC3S. So I started the hunt for an FC. I finally found one in pretty good condition so I picked it up. It was bought on Sep. 1, 2010. The car was white and had a few mods on it here and there. Here is the list of mods that were on the car when I bought it.
-Kenwood Head Unit
-Kenwood Rear Speakers
-Cyberstork gauge cluster
-Cusco Lower Frame Brace
-HKS SMF Air Filter
-SS Brake lines front only
-Some Blown Cusco Coilovers
-Cusco Rear Strut Bar
-Front Strut Bar
-Fujitsubo Exhaust
-Ganador CF look mirrors
-Aero Front Bumper
-RE Amemiya Rear Spats
-RE Amemiya Spoiler
-Some White Bent Enkei Circlar GTA's in 17's
Then there was also a little damage here and there, and here's the list of that
-Cracked bondo on the passenger door
-Driver side rear spat was cracked and scraped to hell
-Cracked front aero

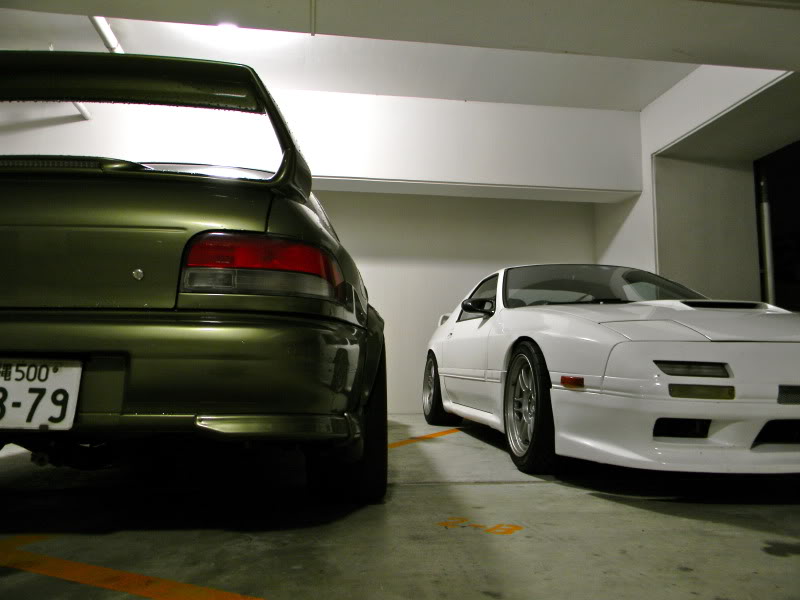

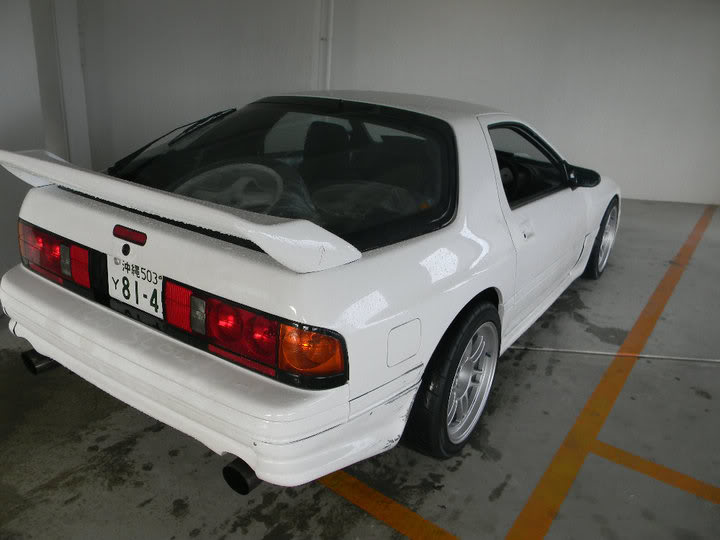

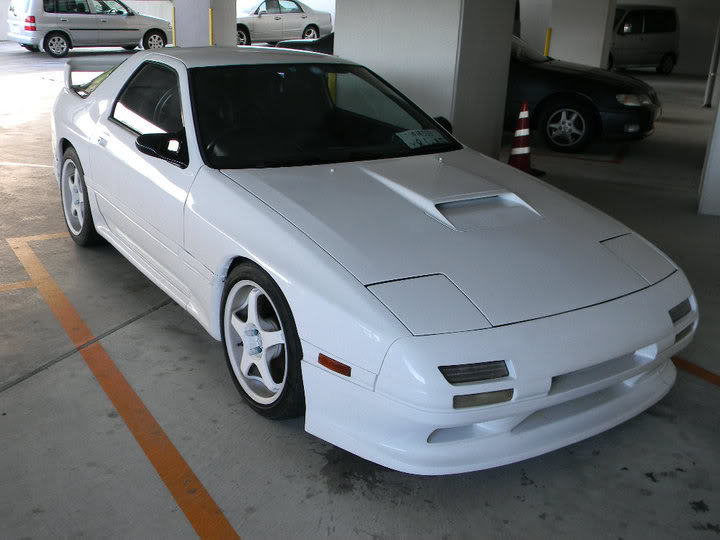

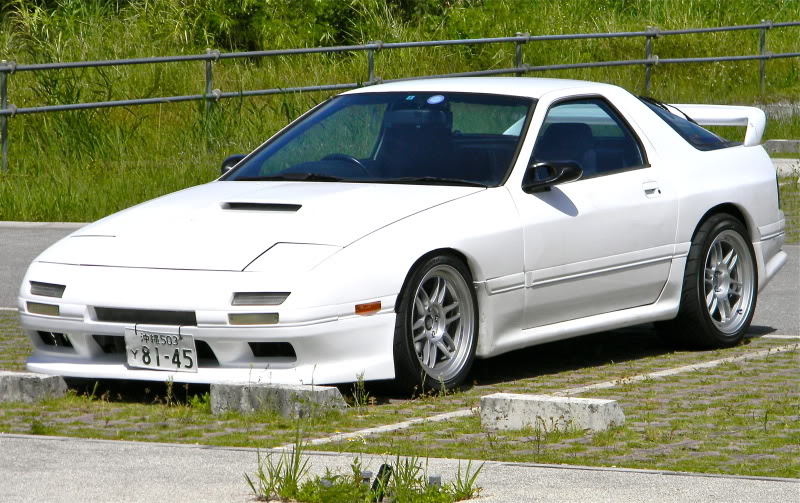

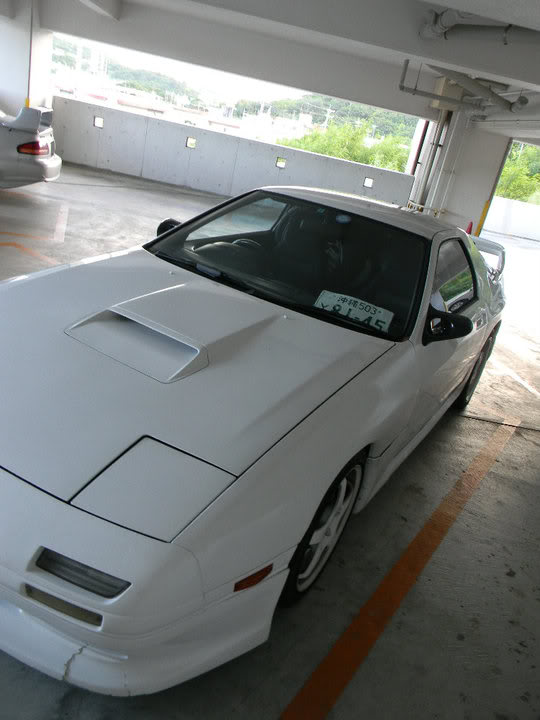

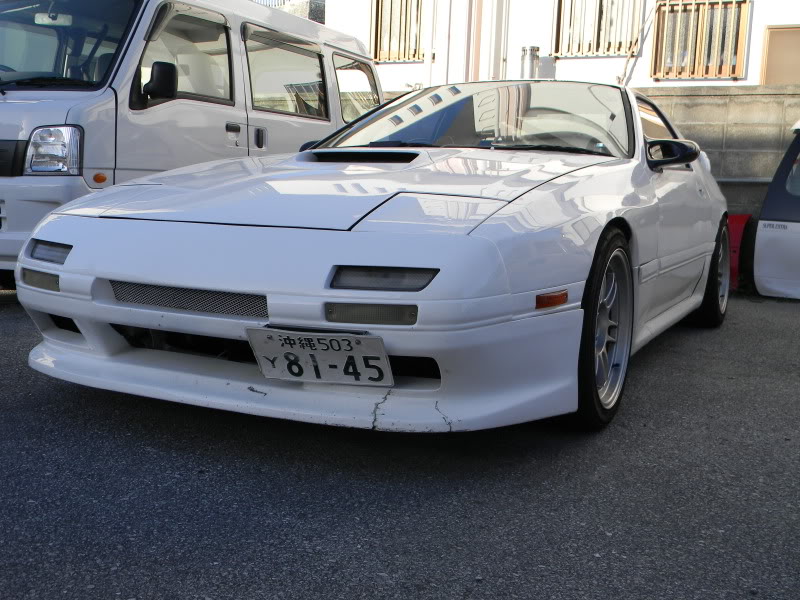

And here are some pics of the car when i first got it
Here is the list of current mods now on the car:
-Sep. 17, 2010 - Enkei RPF1's 17x9 +22 front, 17x10 +18 rear, Advan AD08's 235/40/17 front, 255/40/17 rear
-Oct. 12, 2010 - JIC coilovers, Attain KSP air diversion panel
-Oct. 15, 2010 - C's shortstroke shifter, with Razo shift **** (for now)
-Oct. 16, 2010 - Infini bucket seats version 3 with Schroth harnesses
-Oct. 17, 2010 - Downpipe and some test pipe
-Oct. 18, 2010 - Wedsport SC Brake pads & Endless Brake Fluid
-Oct. 25, 2010 - Defi Water Temp & Boost gauges
-Oct. 26, 2010 - Defi Oil Temp & Oil Pressure gauges, Oil Sandwich Plate
-Nov. 2, 2010 - HKS Turbo Timer Type-1
-Nov. 10, 2010 - Roll Cage
-Nov. 18, 2010 - Works Bell Rapfix Quick Release
-Nov. 20, 2010 - Paint, ERC spoiler
-Dec. 12, 2010 - Blue Aluminum Lug Nuts
-Dec. 14, 2010 - Alpine Rear Speakers and Kenwood front dash speakers
-Dec. 28, 2010 - Attain Exhaust
-Jan. 16, 2011 - Super Now Tie Rod Ends
-Kenwood Head Unit
-Kenwood Rear Speakers
-Cyberstork gauge cluster
-Cusco Lower Frame Brace
-HKS SMF Air Filter
-SS Brake lines front only
-Some Blown Cusco Coilovers
-Cusco Rear Strut Bar
-Front Strut Bar
-Fujitsubo Exhaust
-Ganador CF look mirrors
-Aero Front Bumper
-RE Amemiya Rear Spats
-RE Amemiya Spoiler
-Some White Bent Enkei Circlar GTA's in 17's
Then there was also a little damage here and there, and here's the list of that
-Cracked bondo on the passenger door
-Driver side rear spat was cracked and scraped to hell
-Cracked front aero
And here are some pics of the car when i first got it
Here is the list of current mods now on the car:
-Sep. 17, 2010 - Enkei RPF1's 17x9 +22 front, 17x10 +18 rear, Advan AD08's 235/40/17 front, 255/40/17 rear
-Oct. 12, 2010 - JIC coilovers, Attain KSP air diversion panel
-Oct. 15, 2010 - C's shortstroke shifter, with Razo shift **** (for now)
-Oct. 16, 2010 - Infini bucket seats version 3 with Schroth harnesses
-Oct. 17, 2010 - Downpipe and some test pipe
-Oct. 18, 2010 - Wedsport SC Brake pads & Endless Brake Fluid
-Oct. 25, 2010 - Defi Water Temp & Boost gauges
-Oct. 26, 2010 - Defi Oil Temp & Oil Pressure gauges, Oil Sandwich Plate
-Nov. 2, 2010 - HKS Turbo Timer Type-1
-Nov. 10, 2010 - Roll Cage
-Nov. 18, 2010 - Works Bell Rapfix Quick Release
-Nov. 20, 2010 - Paint, ERC spoiler
-Dec. 12, 2010 - Blue Aluminum Lug Nuts
-Dec. 14, 2010 - Alpine Rear Speakers and Kenwood front dash speakers
-Dec. 28, 2010 - Attain Exhaust
-Jan. 16, 2011 - Super Now Tie Rod Ends
05-31-11, 05:41 AM
#2
JDM rotary
Thread Starter
Join Date: Oct 2010
Location: Okinawa
Posts: 88
Likes: 0
Received 0 Likes
on
0 Posts

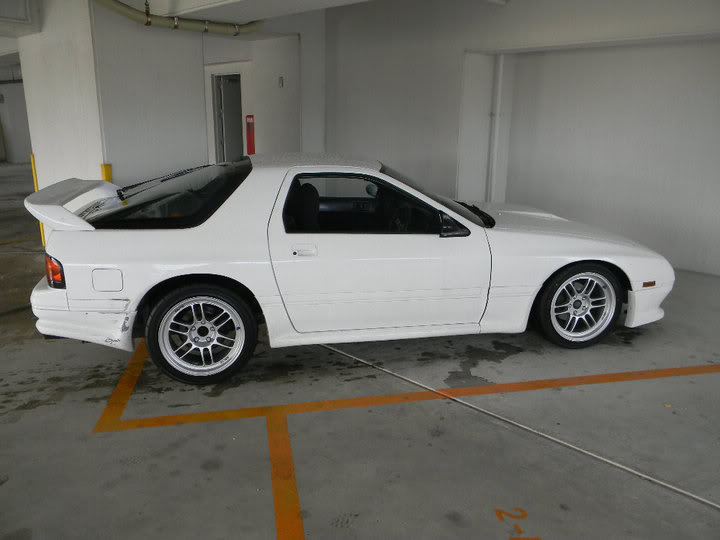

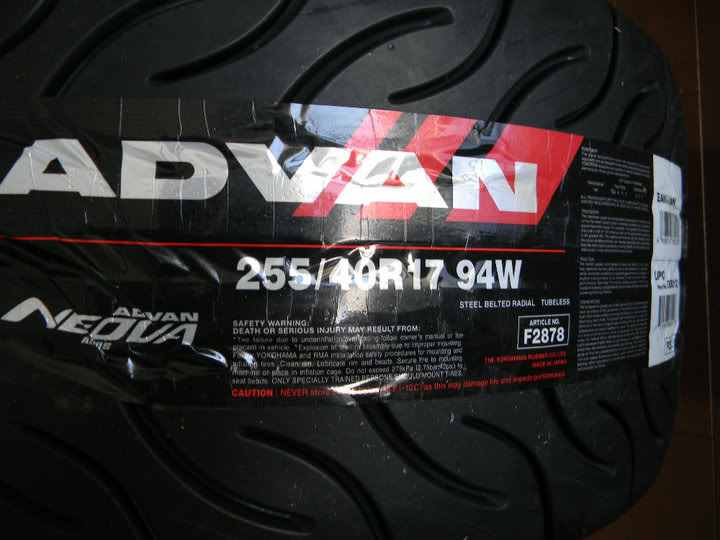

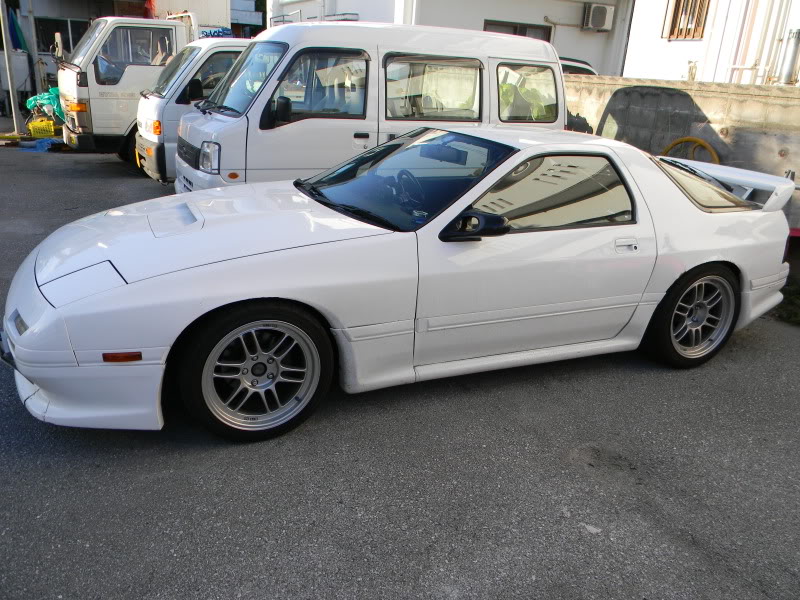

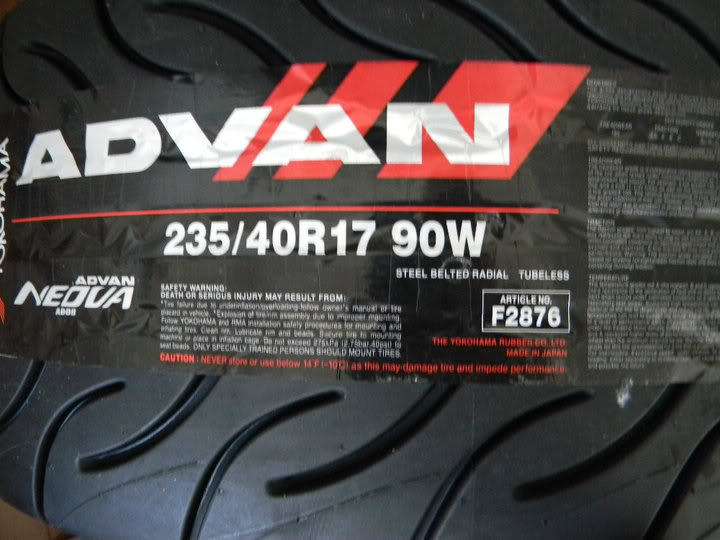

Since the wheels were so bent out of shape and the tires were bald like no other I decided I might as well buy some new wheels and tires so I ordered a set of Enkei RPF1's 17x9 +22 front and 17x10 +18 rear along with Advan AD08 tires 235/40/17 front and 255/40/17 rear.

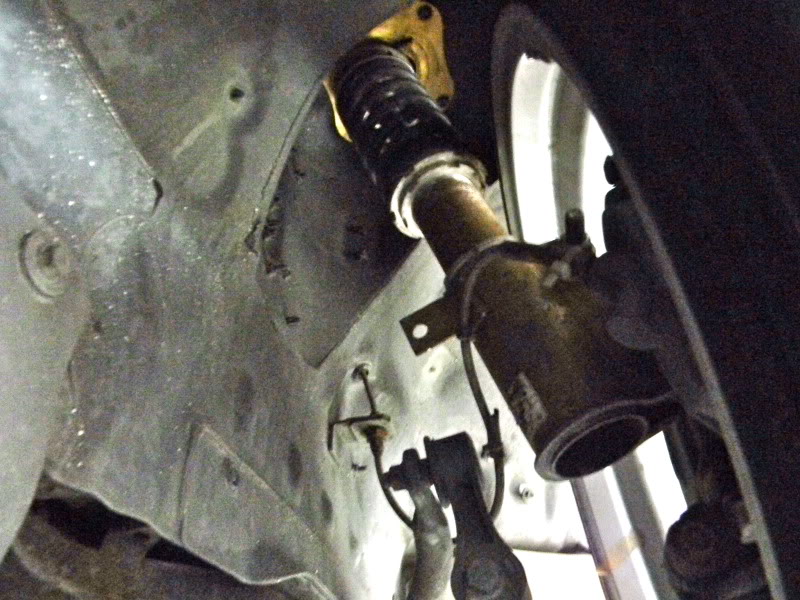

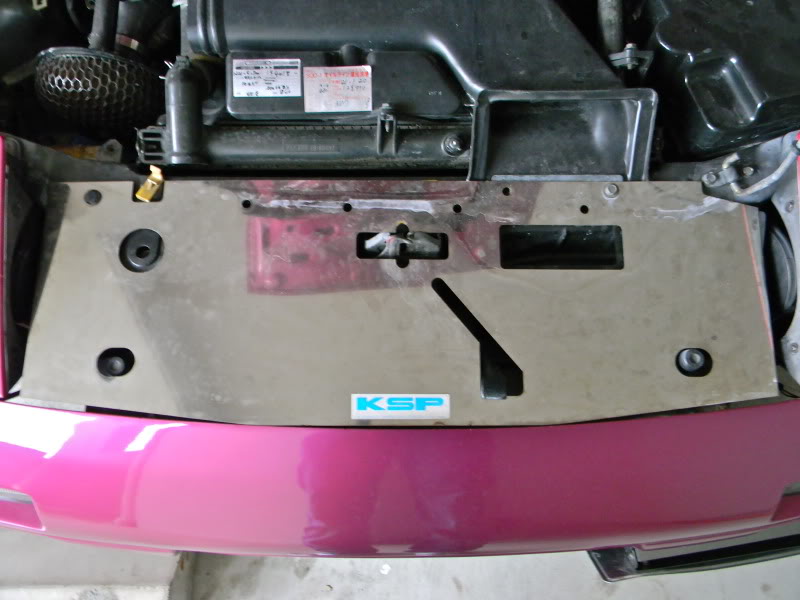

I then needed some coilovers since the Cusco's were blown so I picked up a set of JIC coilovers and on the same day picked up a KSP air diversion panel
I came across a C's short shifter that was a freebie so I threw that on
I then needed some coilovers since the Cusco's were blown so I picked up a set of JIC coilovers and on the same day picked up a KSP air diversion panel
I came across a C's short shifter that was a freebie so I threw that on
Last edited by asianbob; 05-31-11 at 06:02 AM.
05-31-11, 05:43 AM
#3
JDM rotary
Thread Starter
Join Date: Oct 2010
Location: Okinawa
Posts: 88
Likes: 0
Received 0 Likes
on
0 Posts

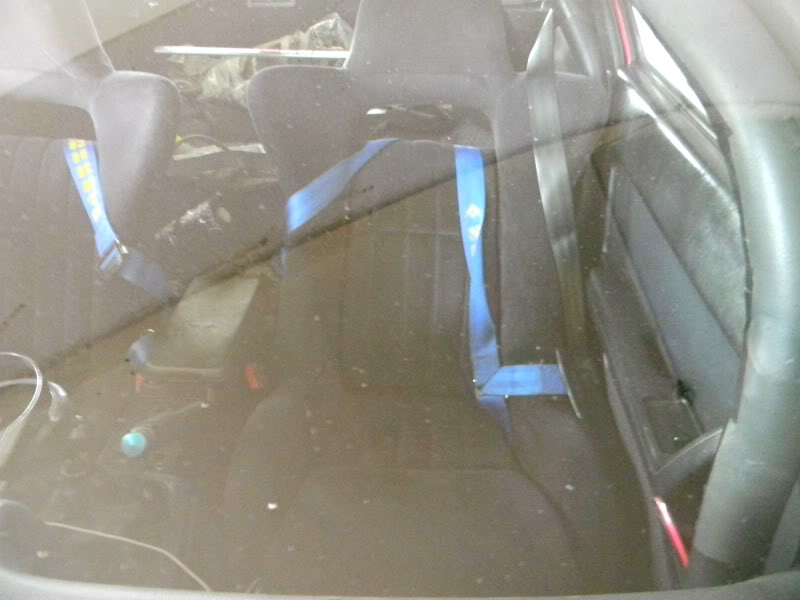

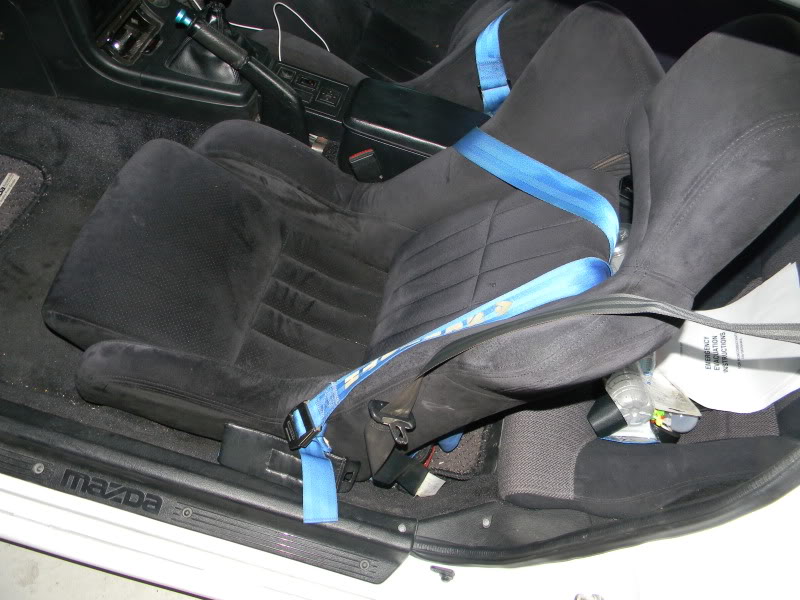

A day later I installed the Infini bucket seats and Schroth harnesses

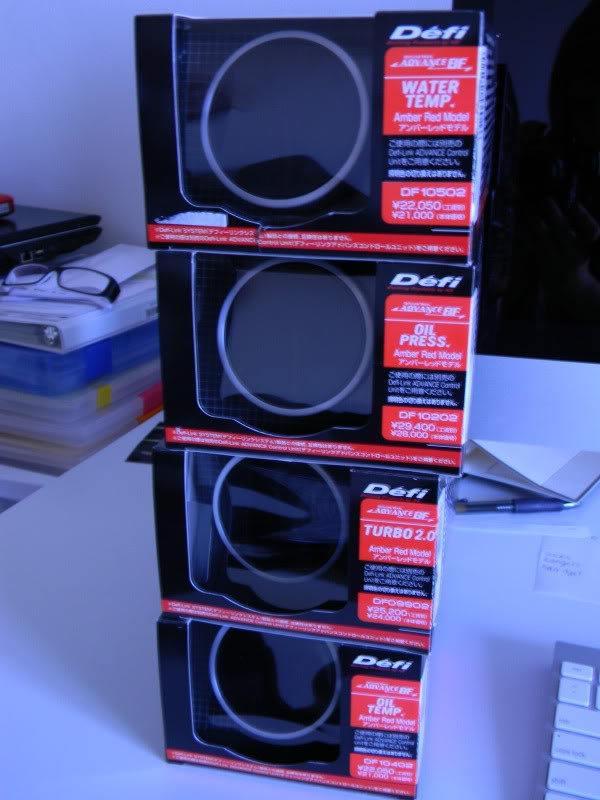

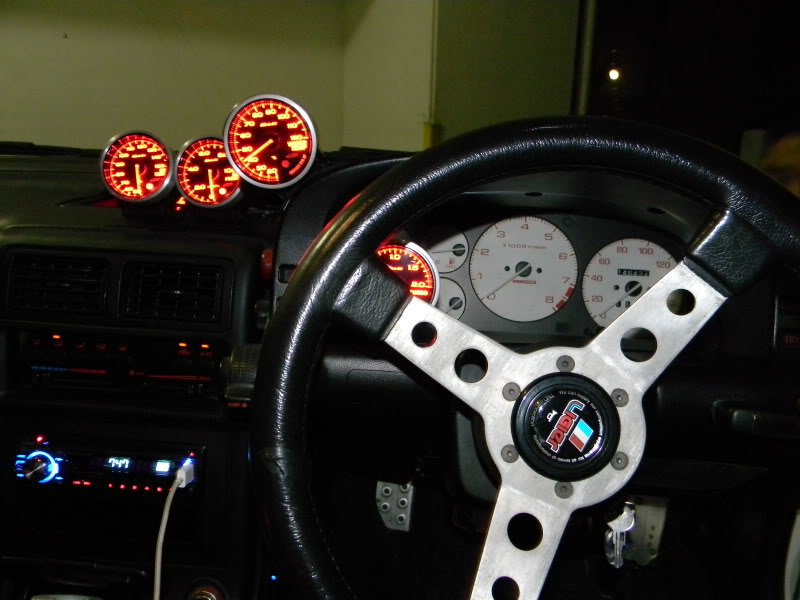

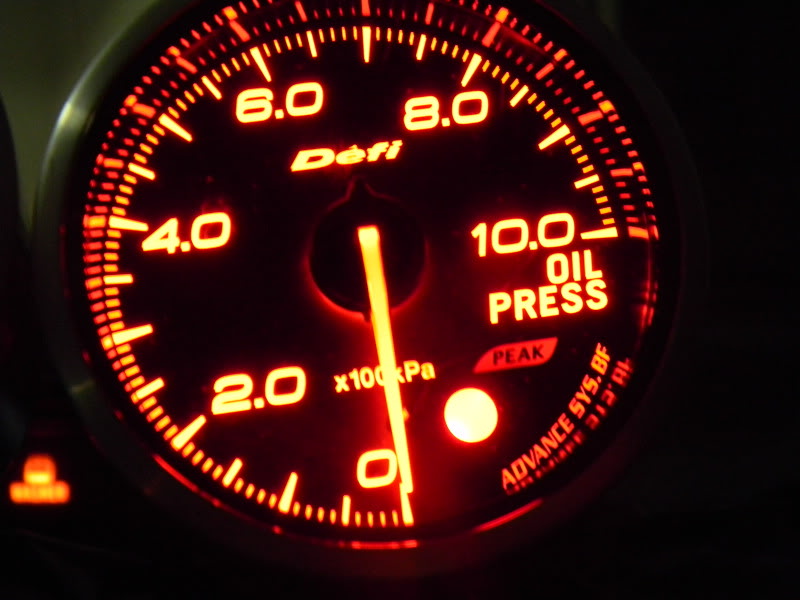

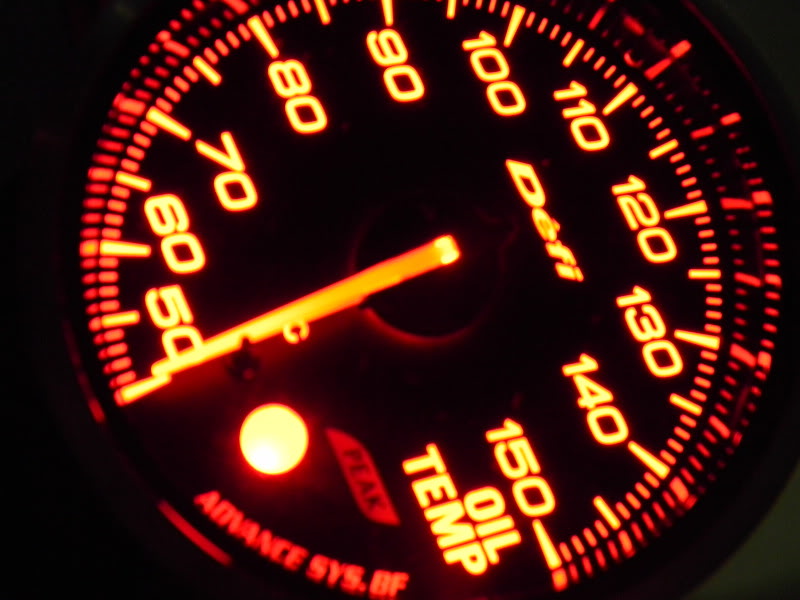

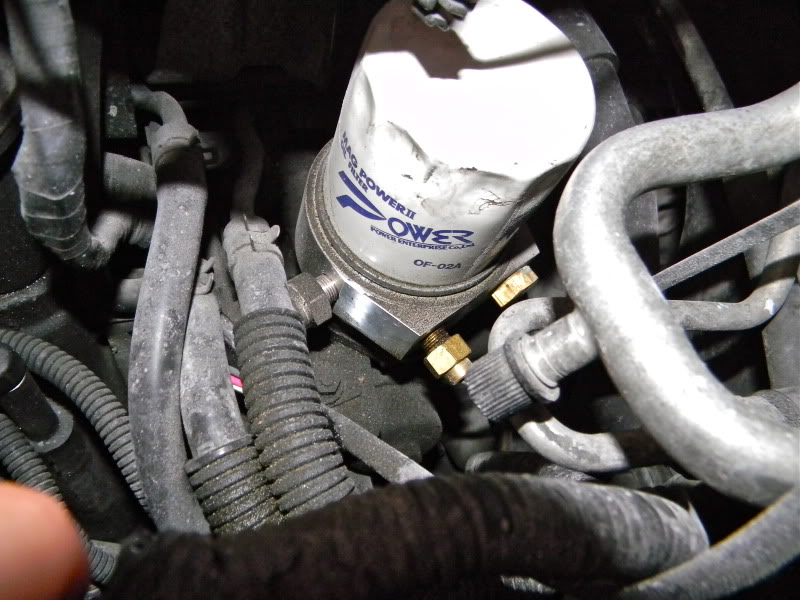

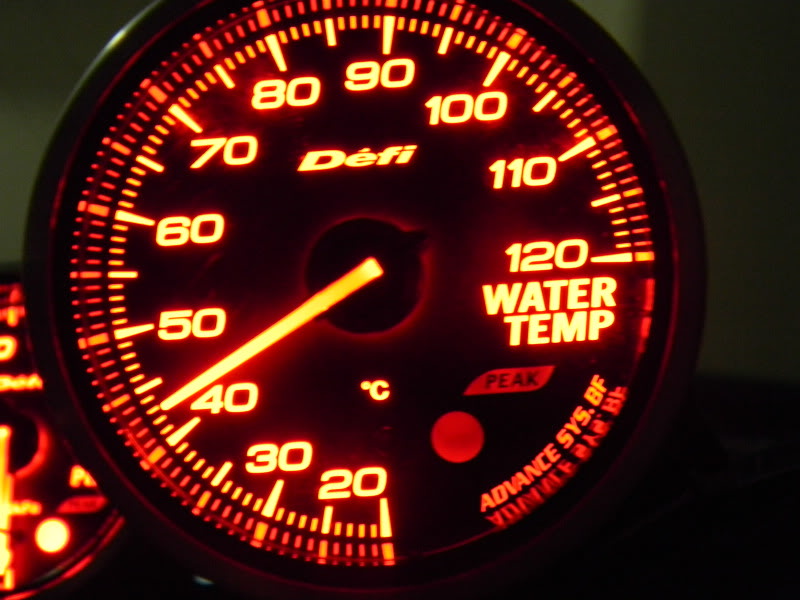

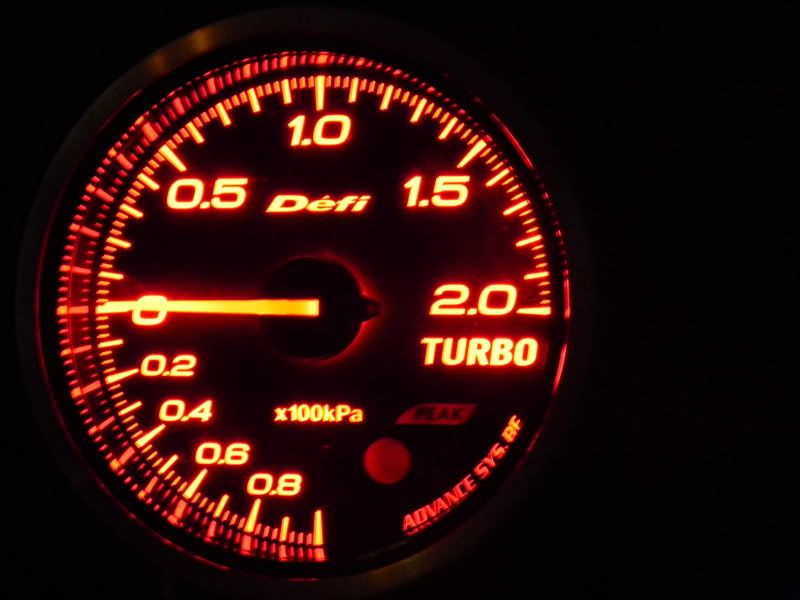

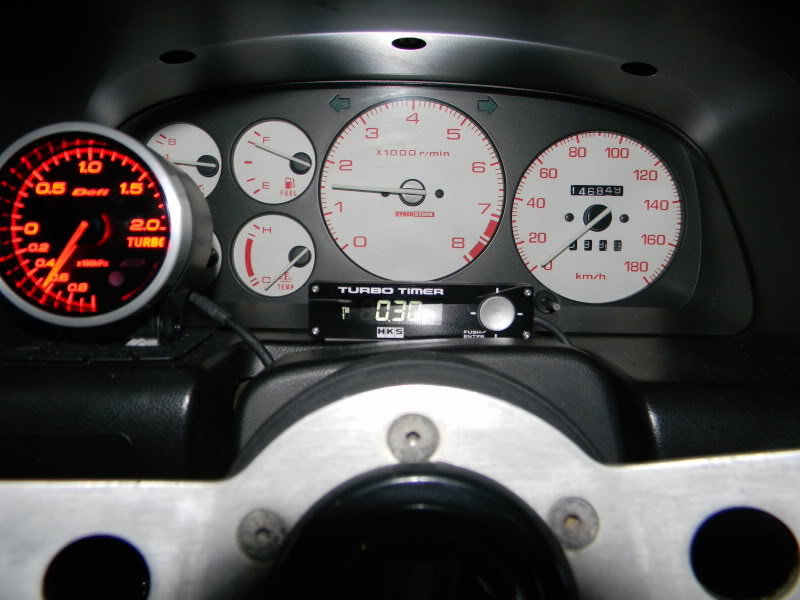

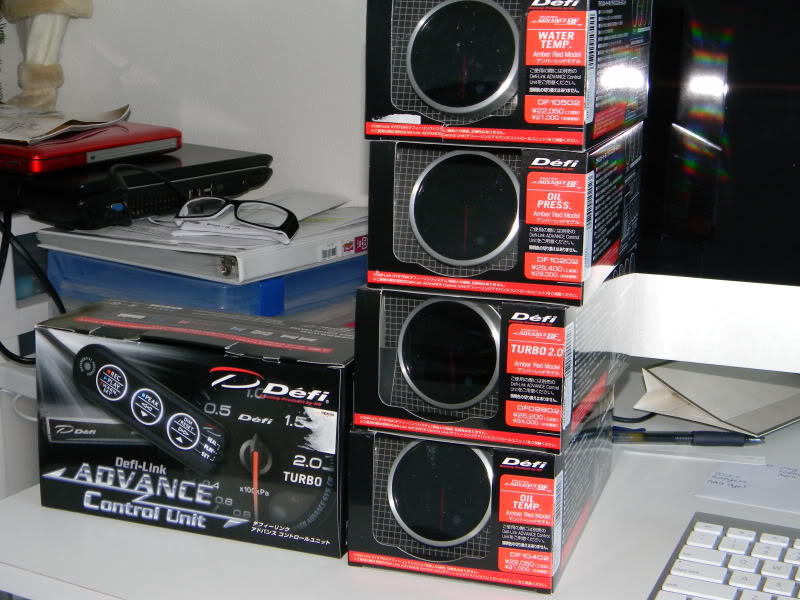

Being it's a rotory I figured I'd buy some safety things like gauges, so I picked up some Defi's with the controller, oil sandwich plate, and an HKS Type-1 turbo timer
Being it's a rotory I figured I'd buy some safety things like gauges, so I picked up some Defi's with the controller, oil sandwich plate, and an HKS Type-1 turbo timer
05-31-11, 05:45 AM
#4
JDM rotary
Thread Starter
Join Date: Oct 2010
Location: Okinawa
Posts: 88
Likes: 0
Received 0 Likes
on
0 Posts

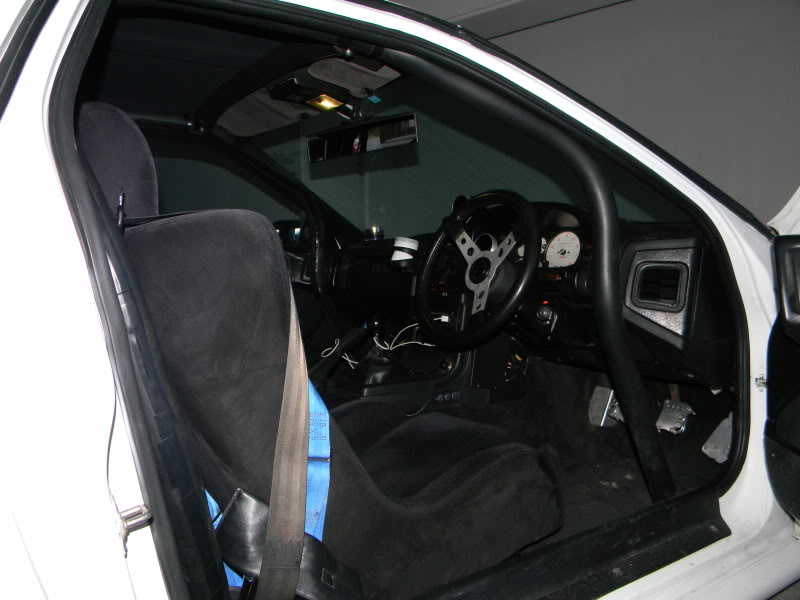

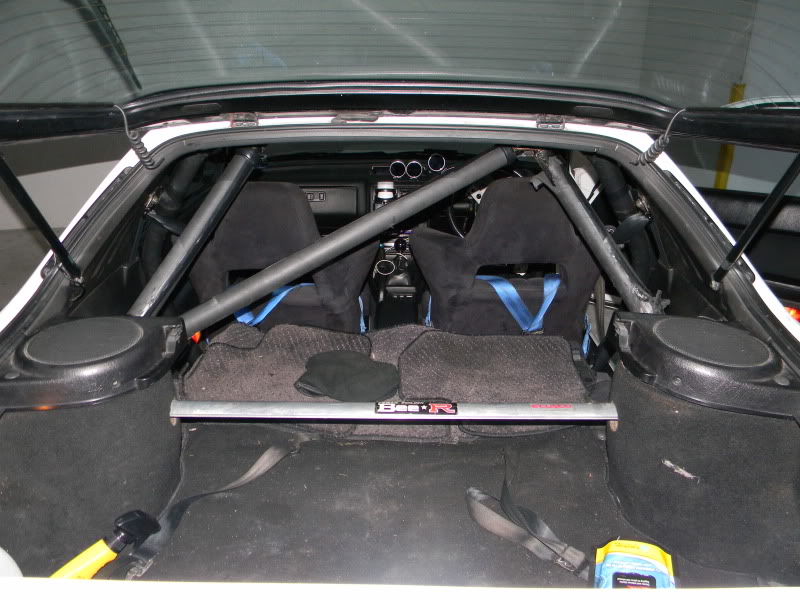

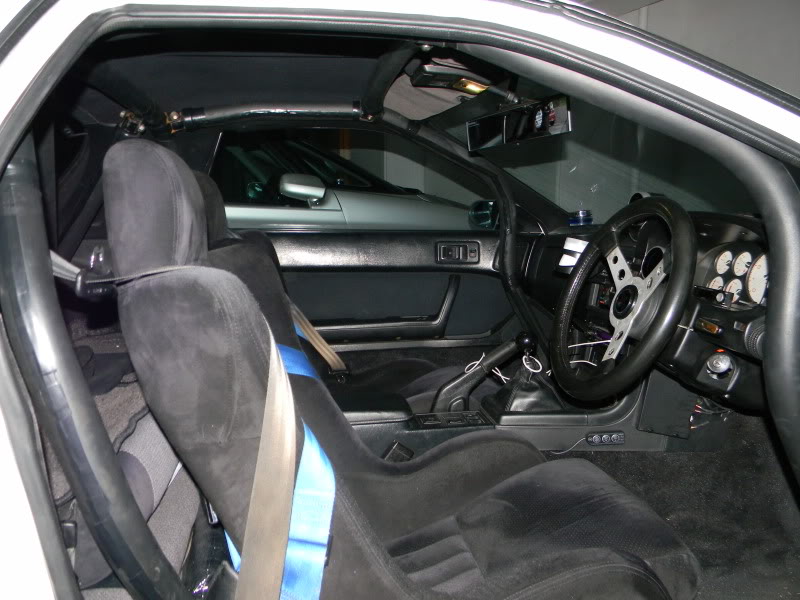

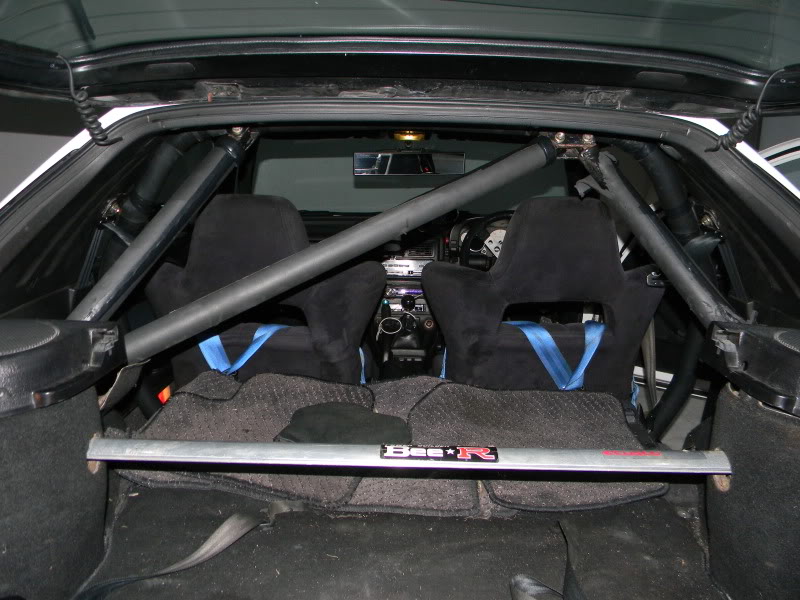

Since driving get's a little intense I went ahead and installed a roll cage

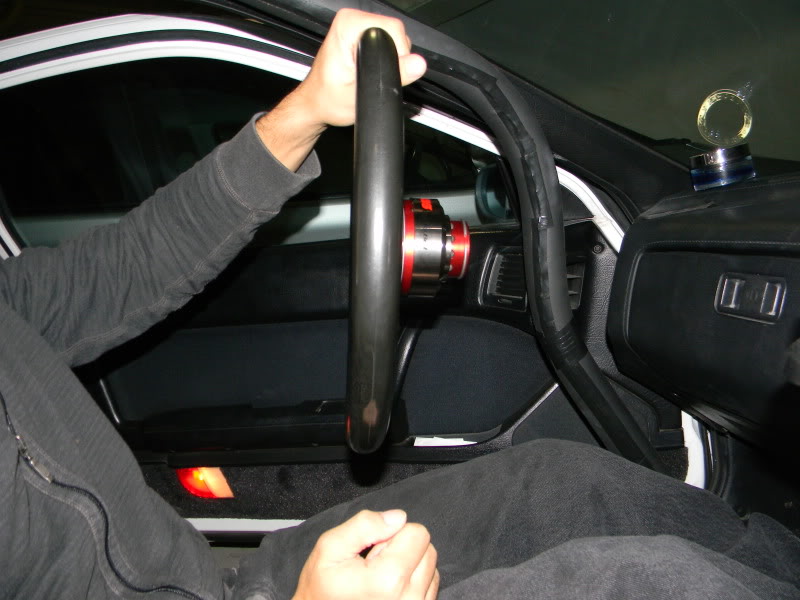

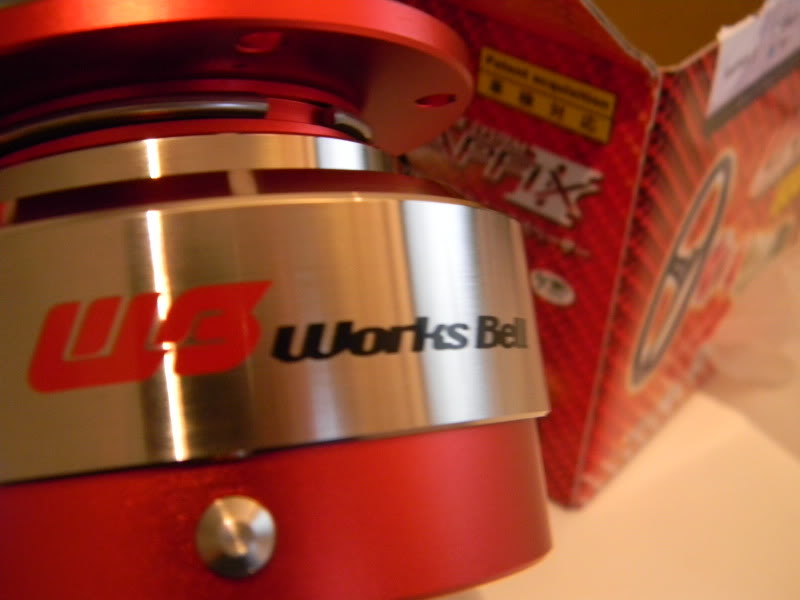

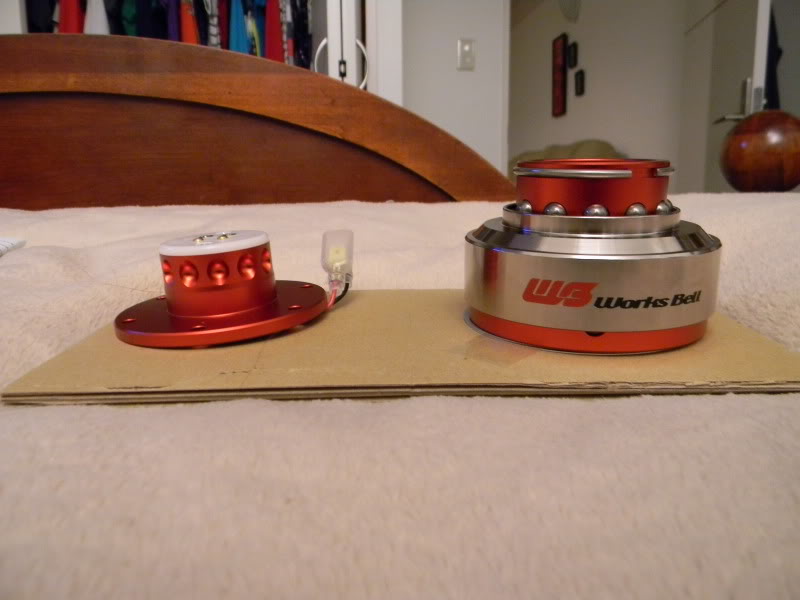

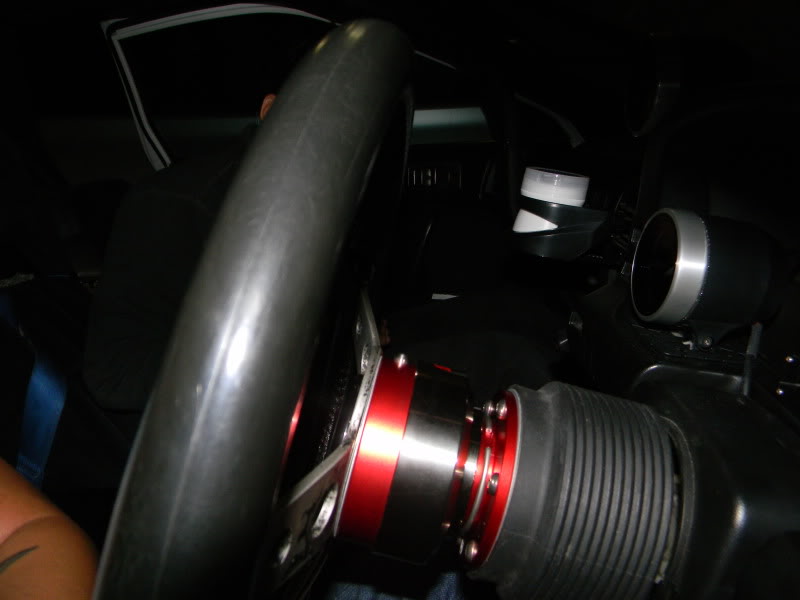

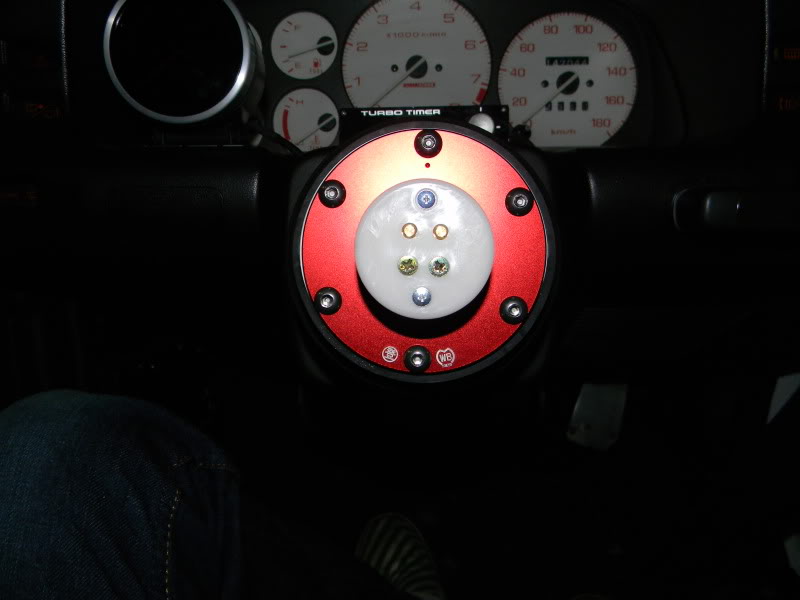

Getting in and out became a pain in the *** so a quick release was in store to ease the process, so I bought a Works Bell Rapfix II quick release and luckily my car already had a Works Bell hub
Getting in and out became a pain in the *** so a quick release was in store to ease the process, so I bought a Works Bell Rapfix II quick release and luckily my car already had a Works Bell hub
05-31-11, 05:49 AM
#5
JDM rotary
Thread Starter
Join Date: Oct 2010
Location: Okinawa
Posts: 88
Likes: 0
Received 0 Likes
on
0 Posts

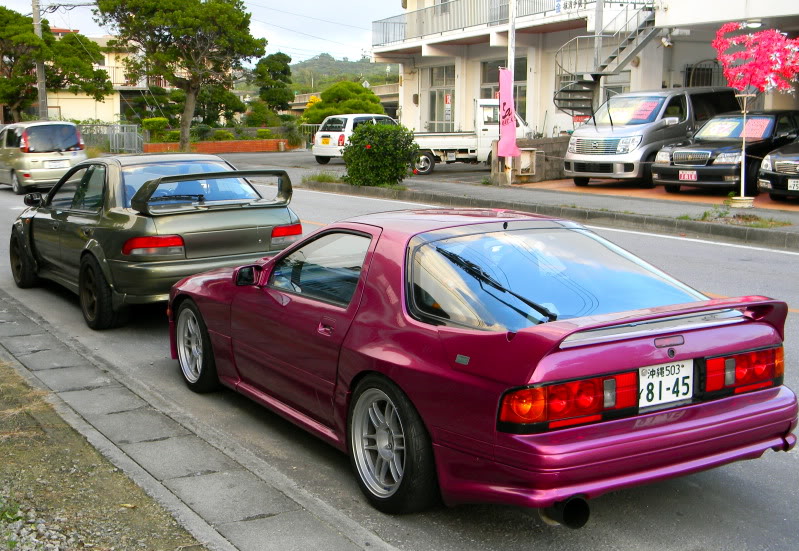

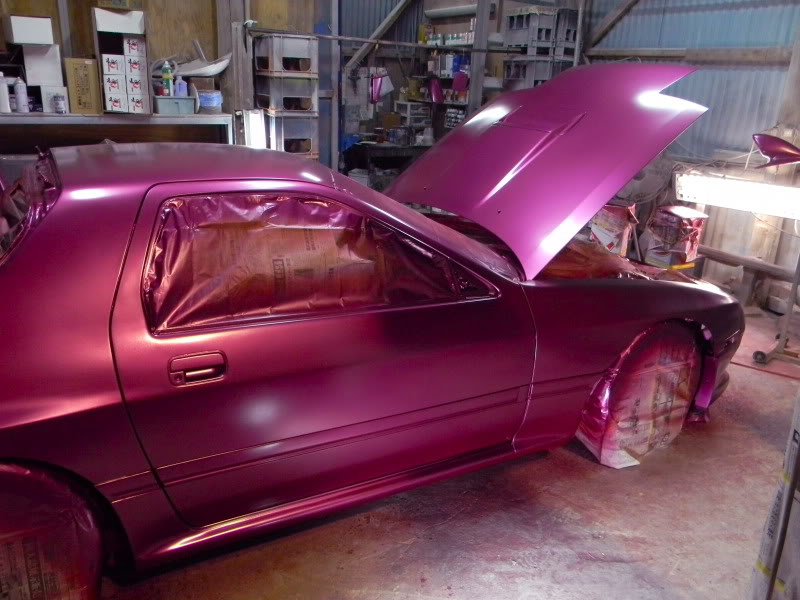

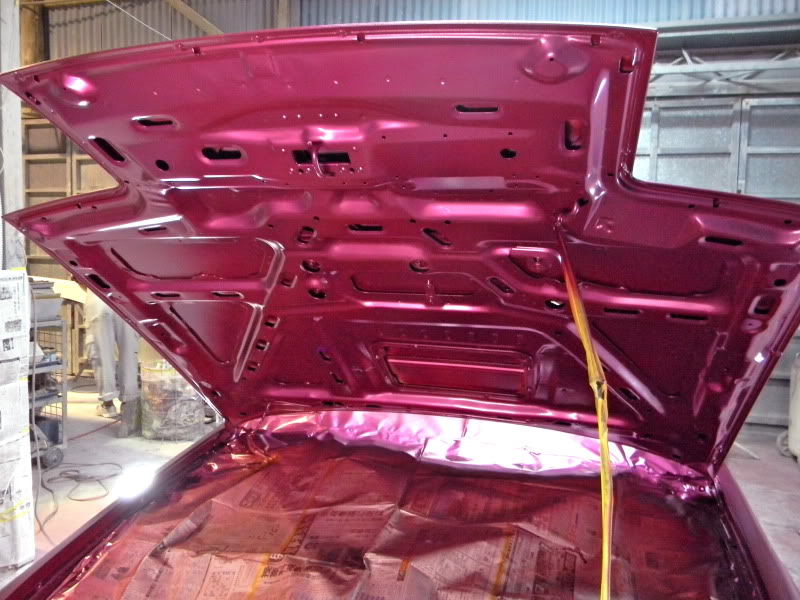

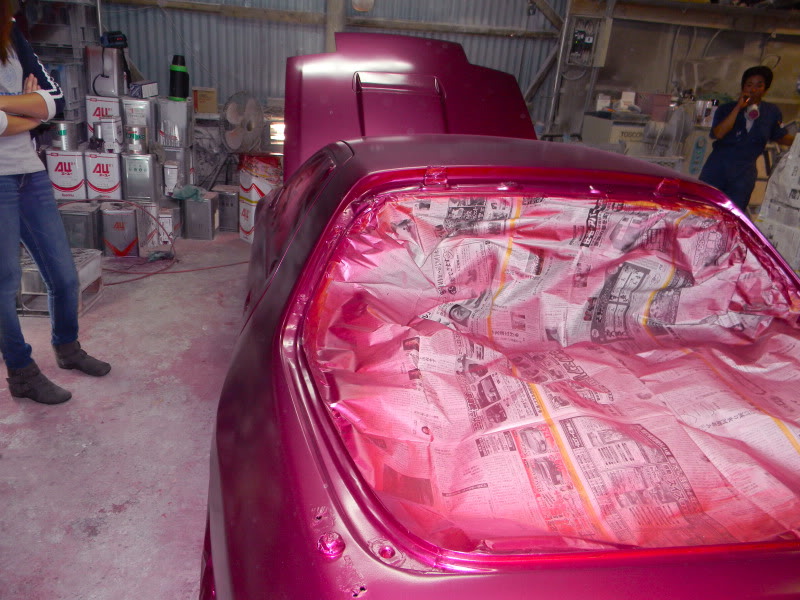

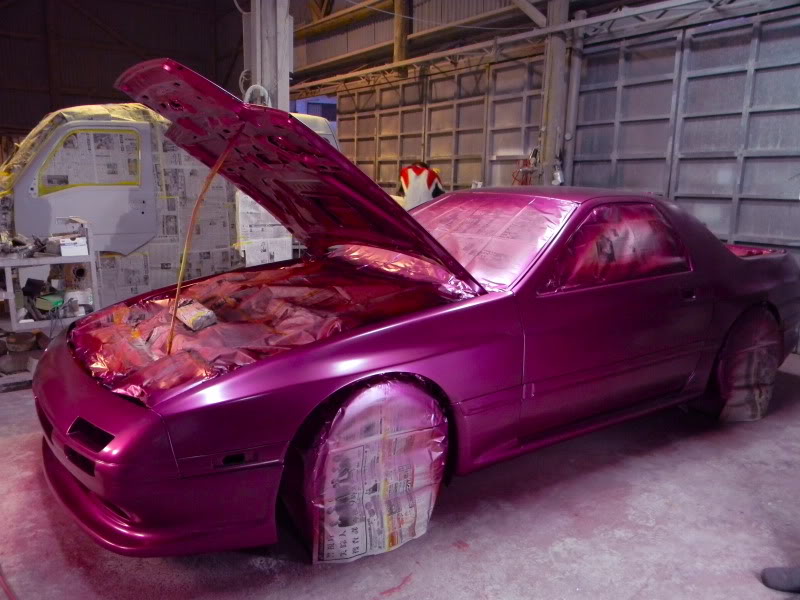

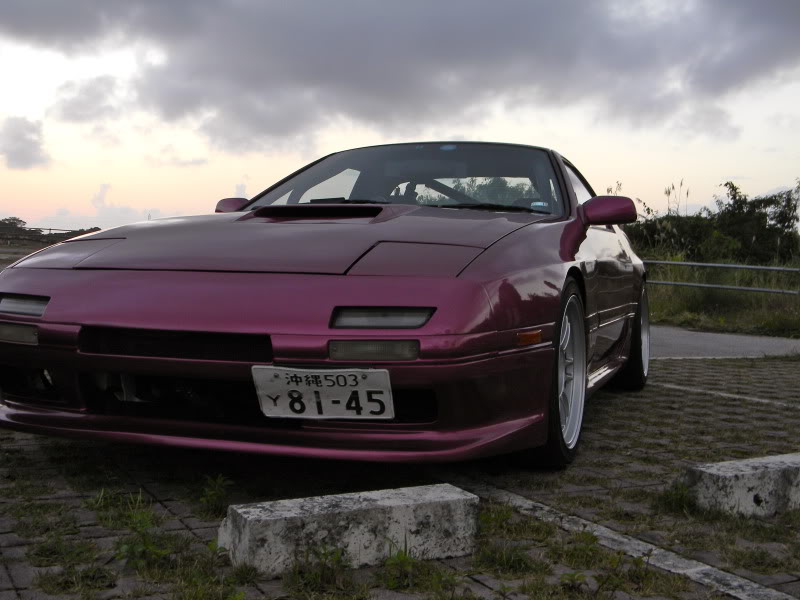

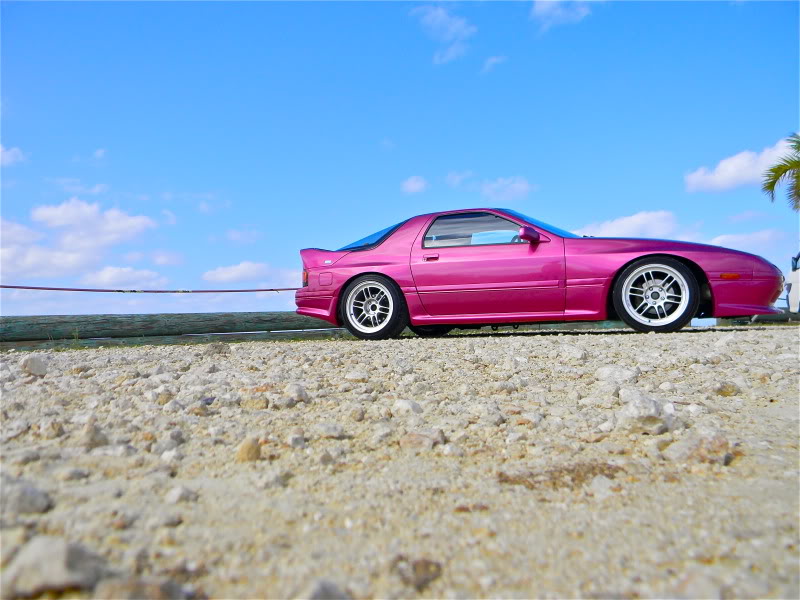

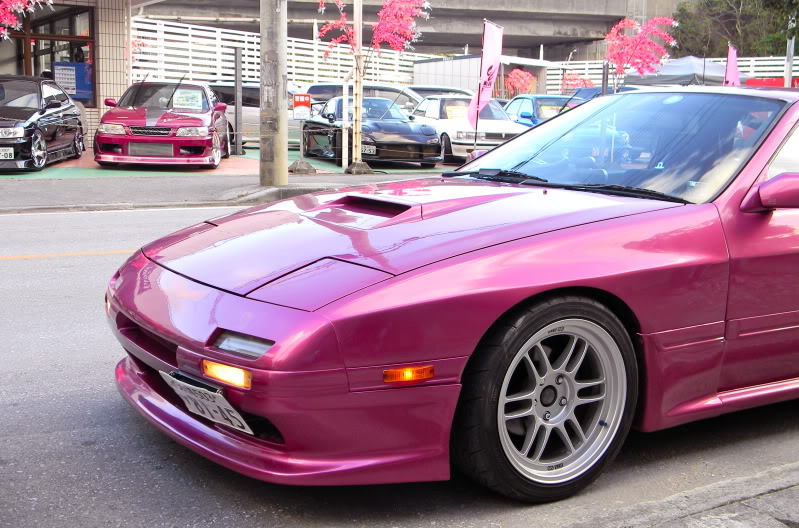

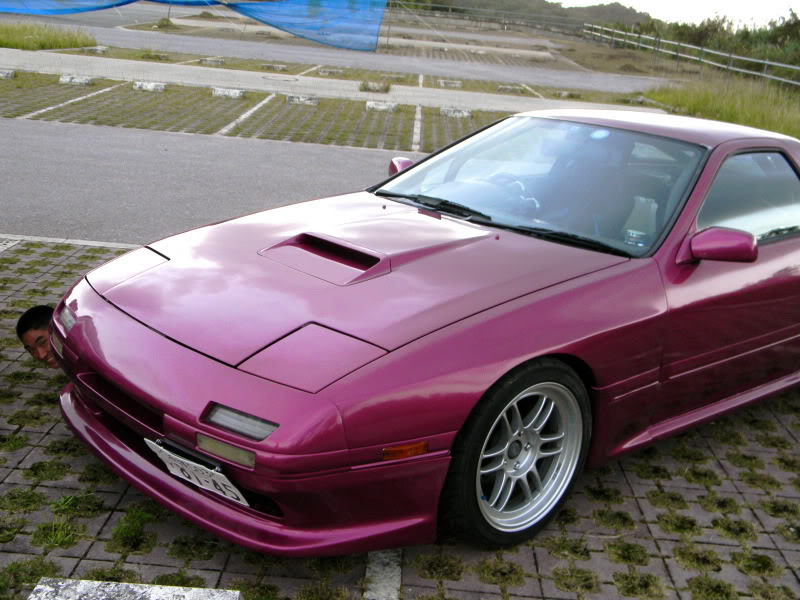

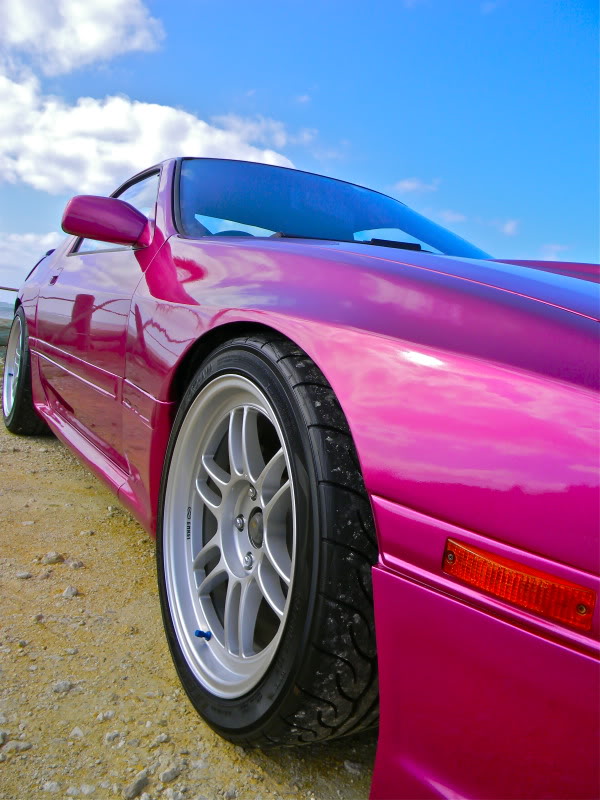

After all of that I decided that it was time to fix the damage on the body, get some fender pulling done, and change the color to something with a little more pop

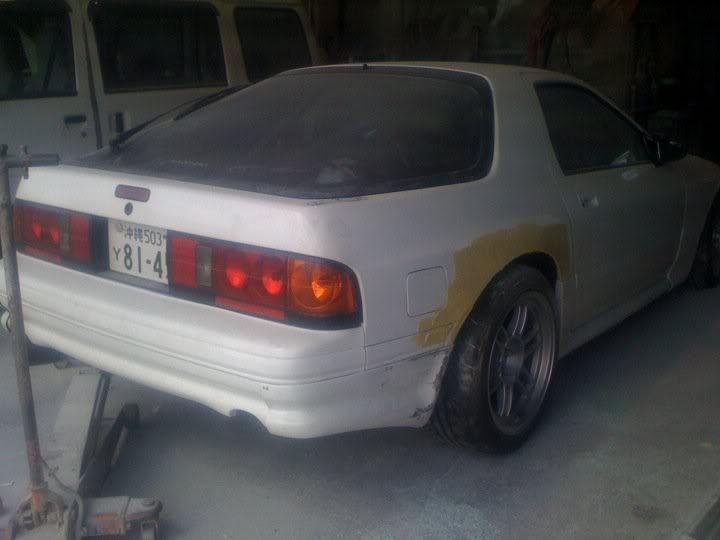

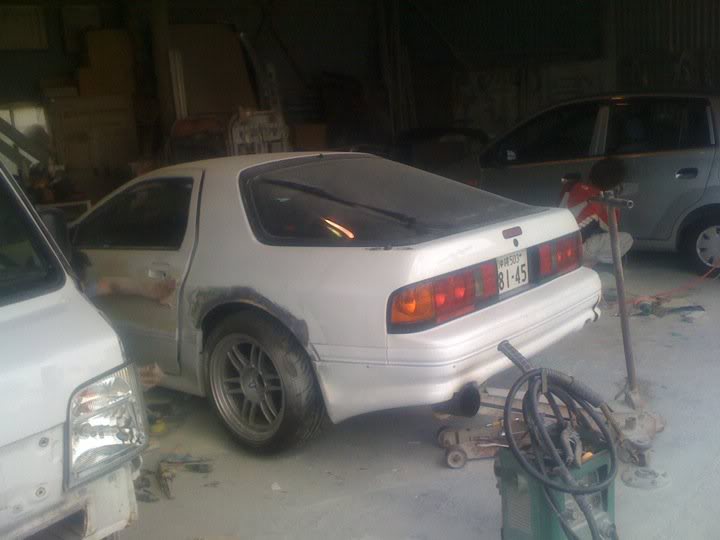

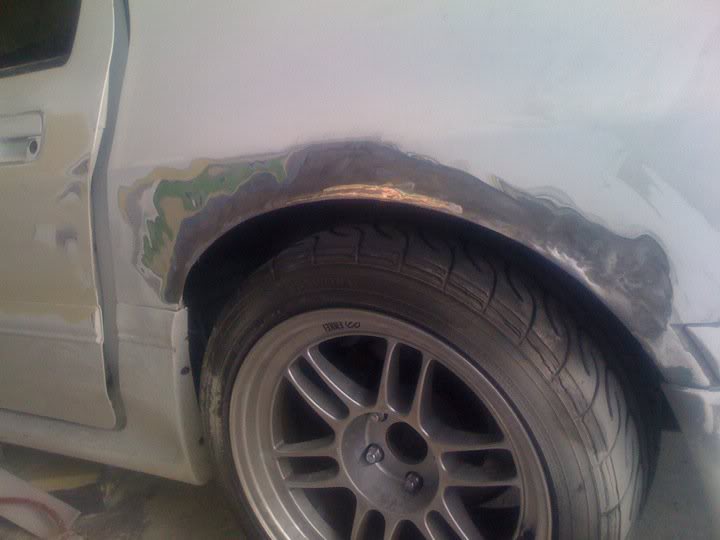

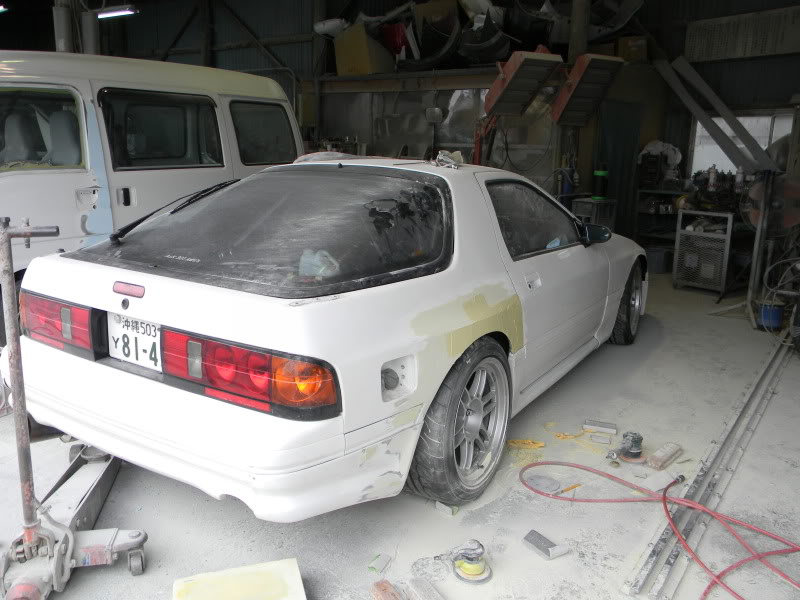

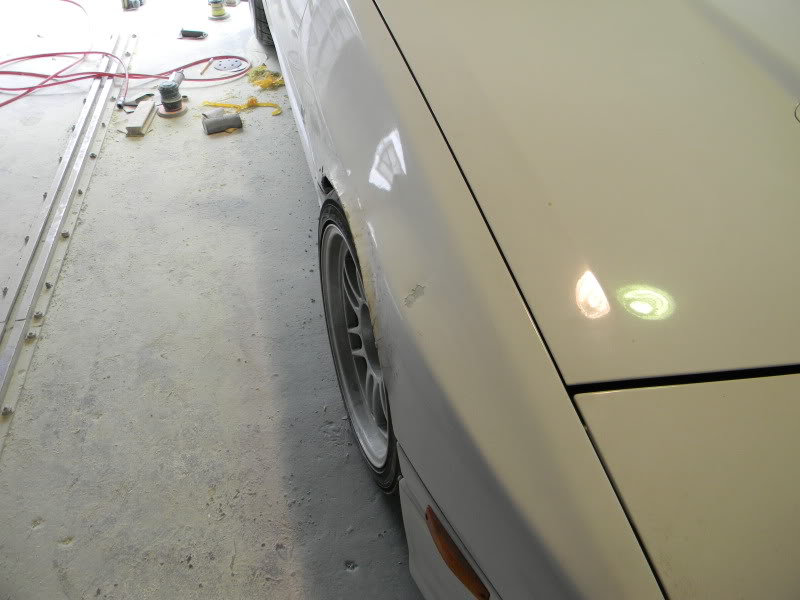

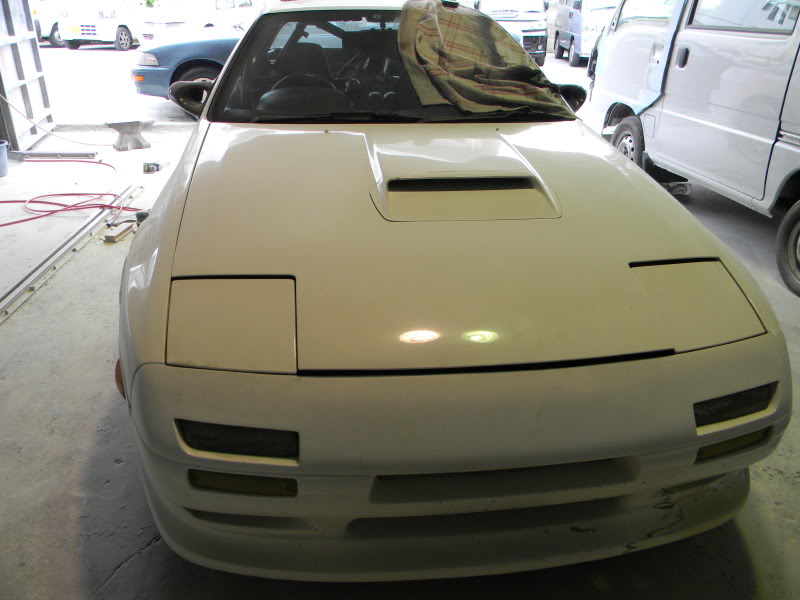

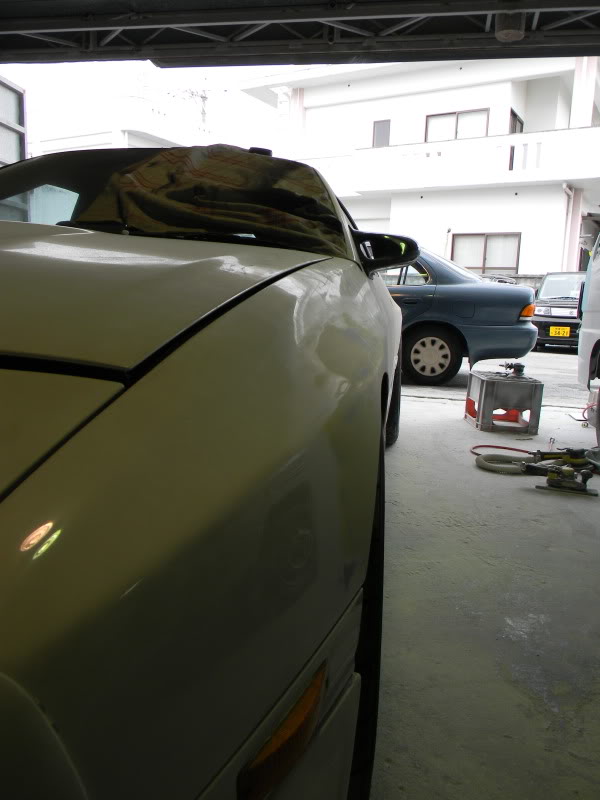

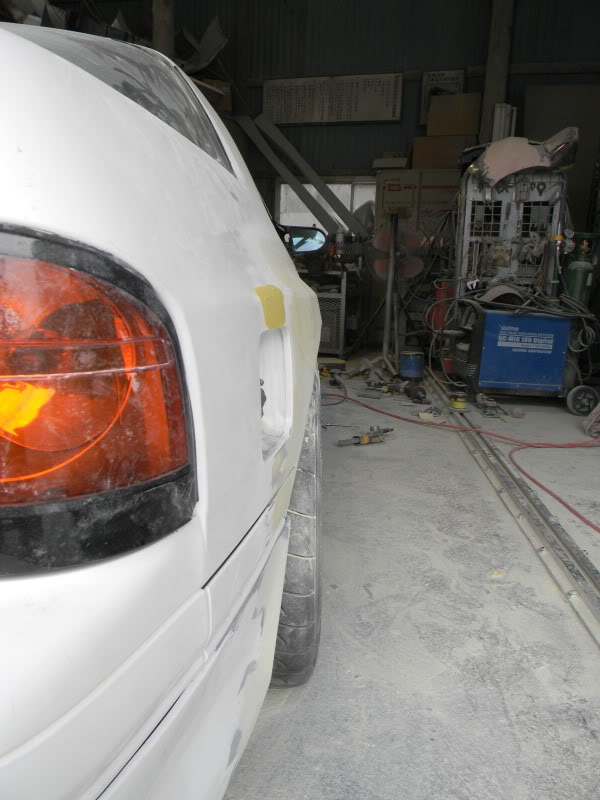

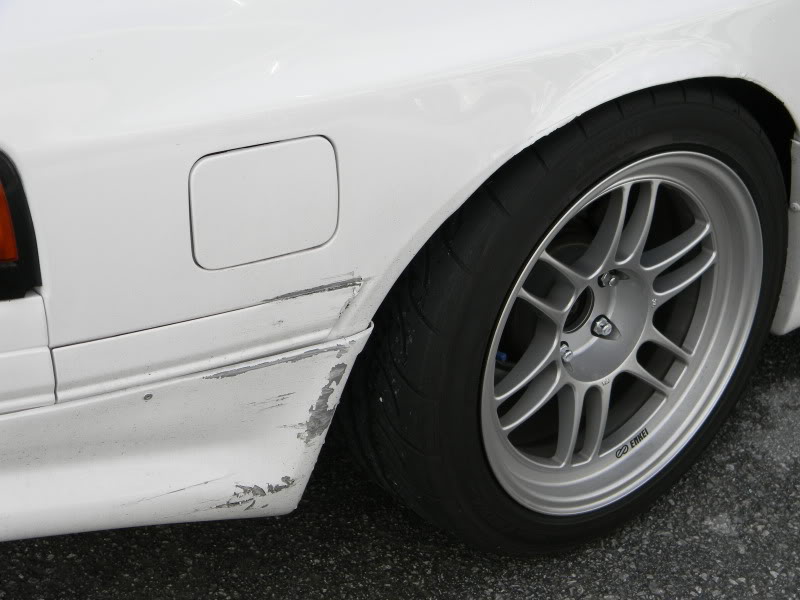

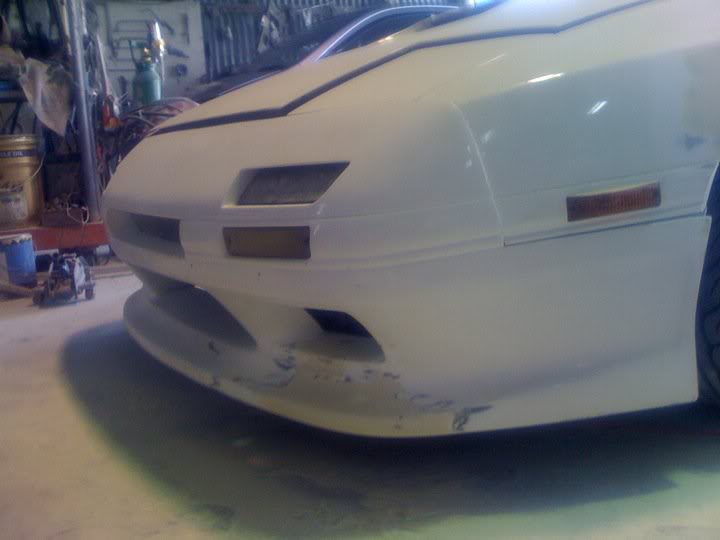

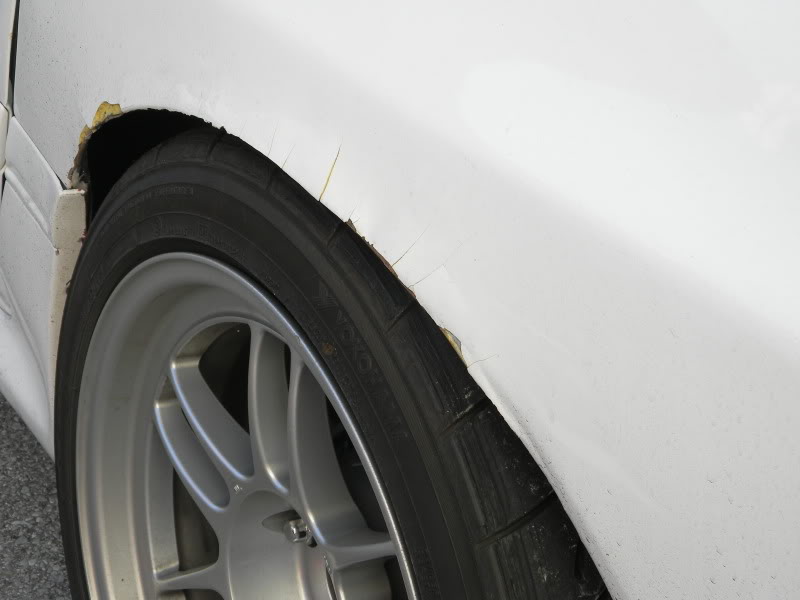

pics of damage before repair and paint

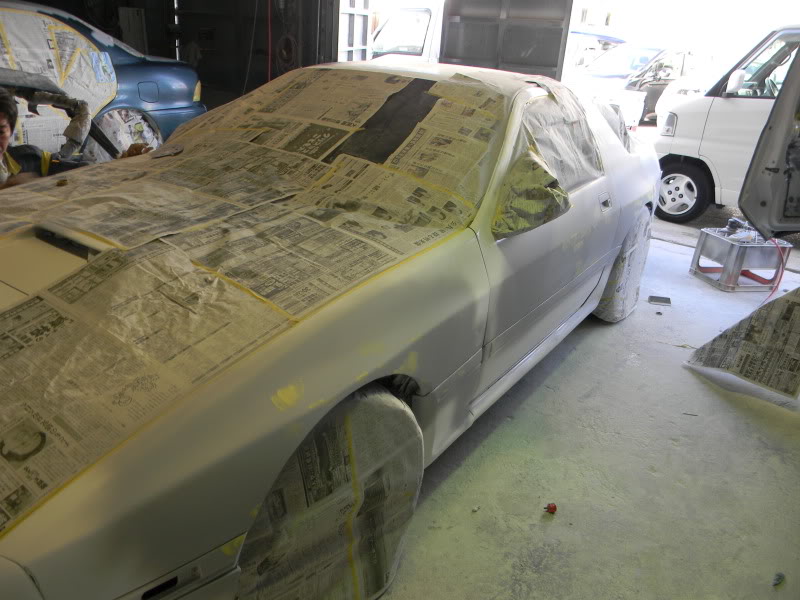

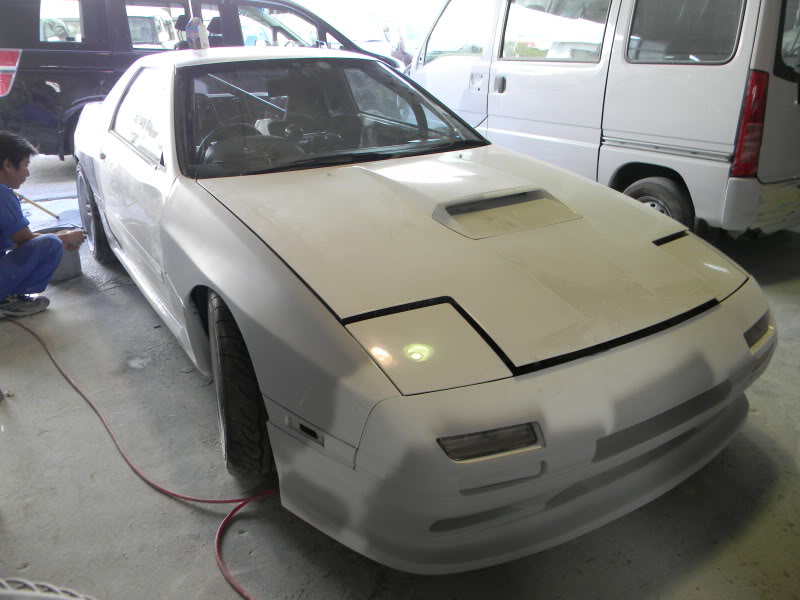

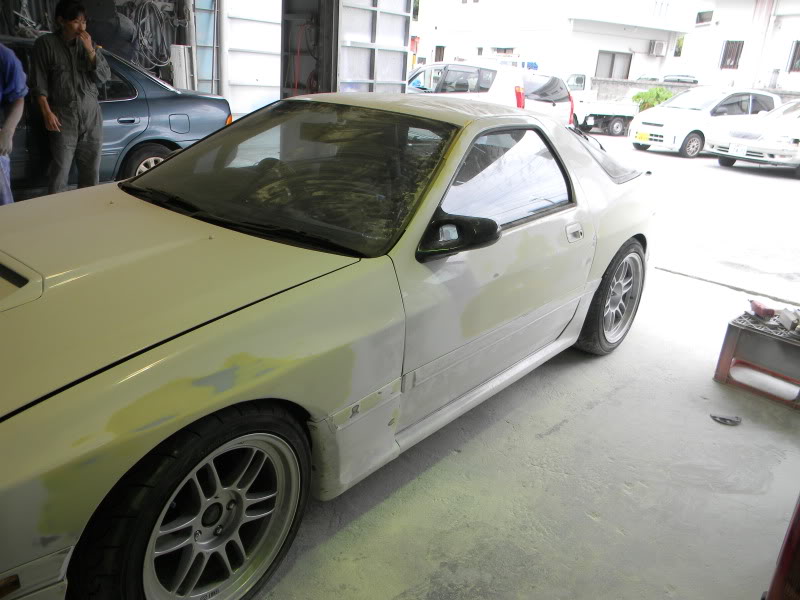

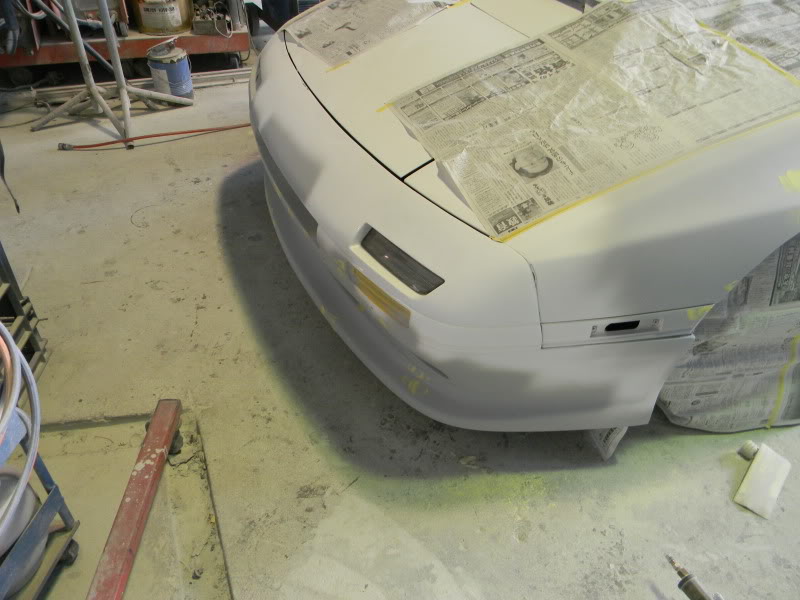

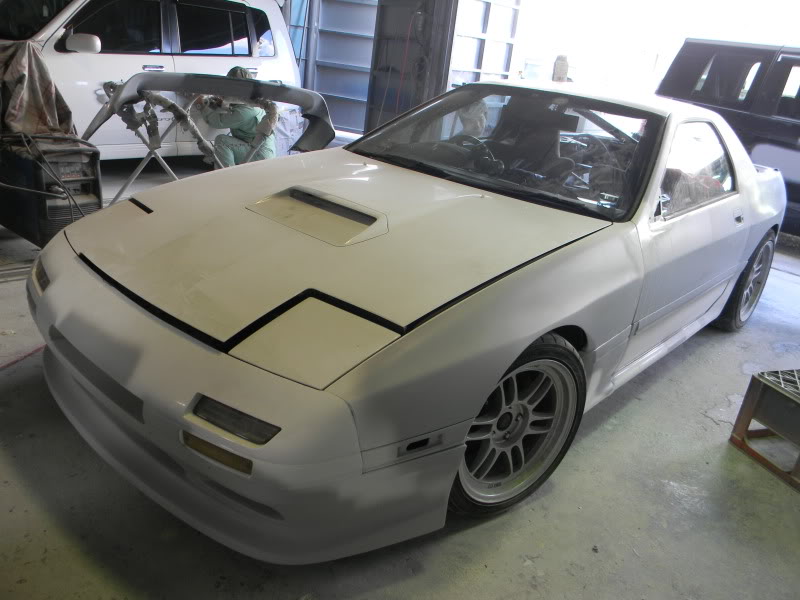

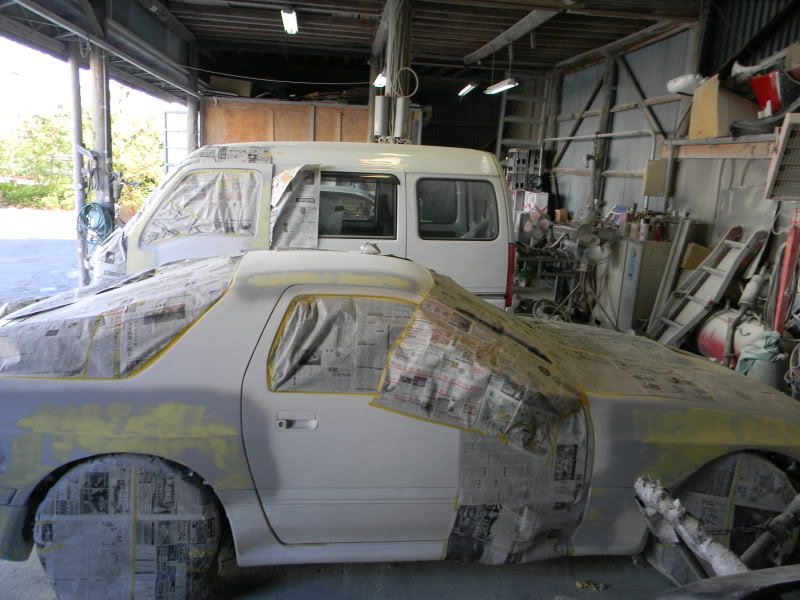

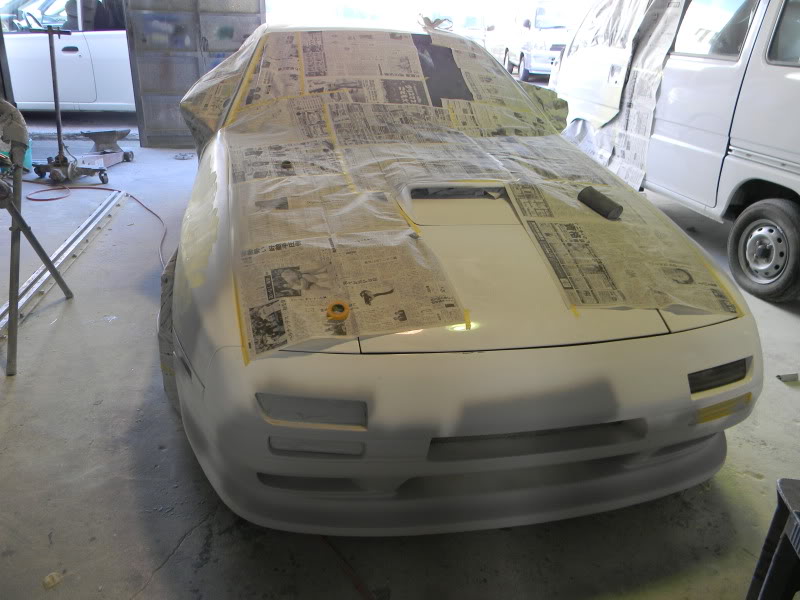

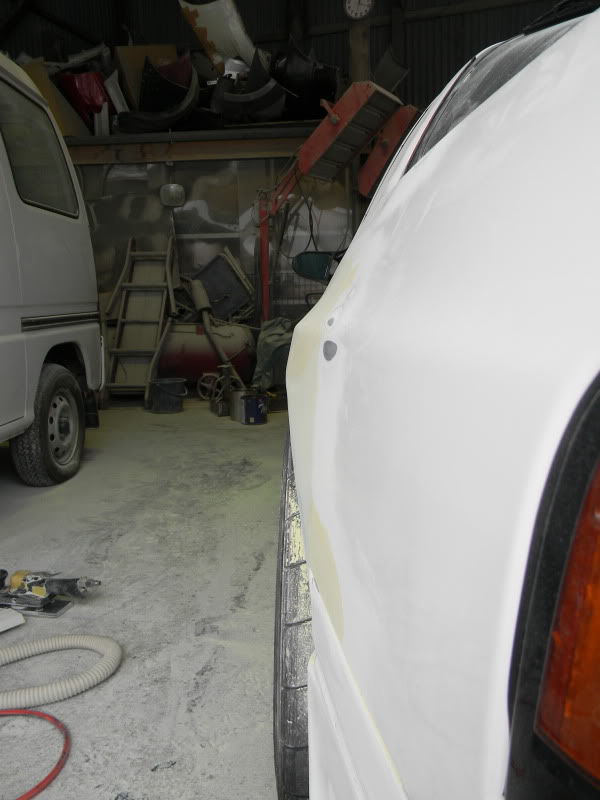

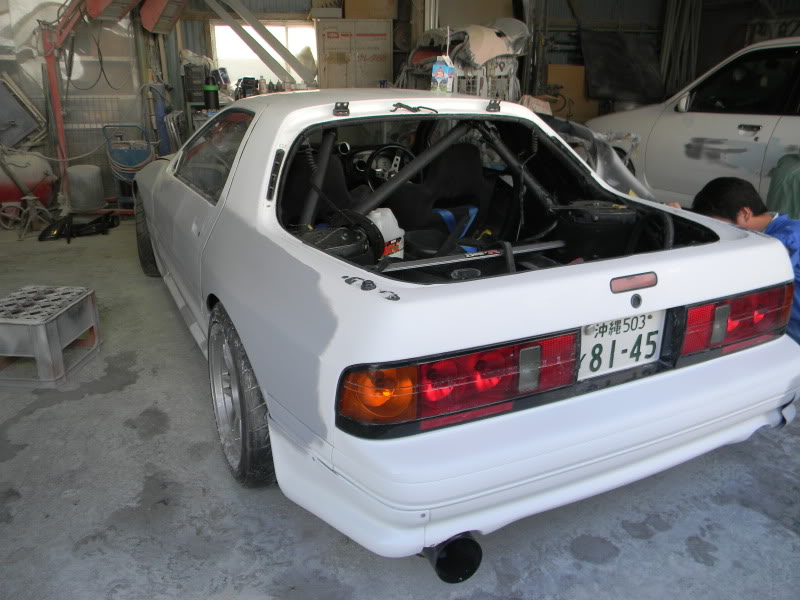

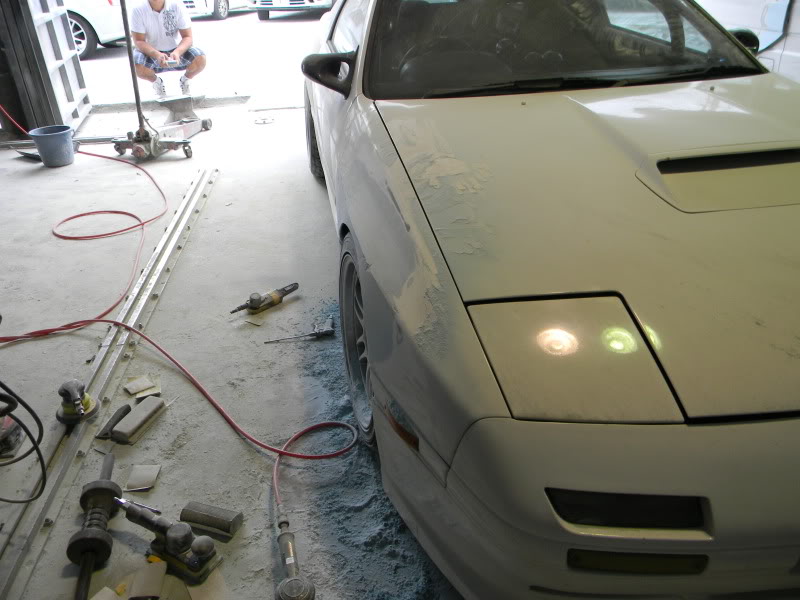

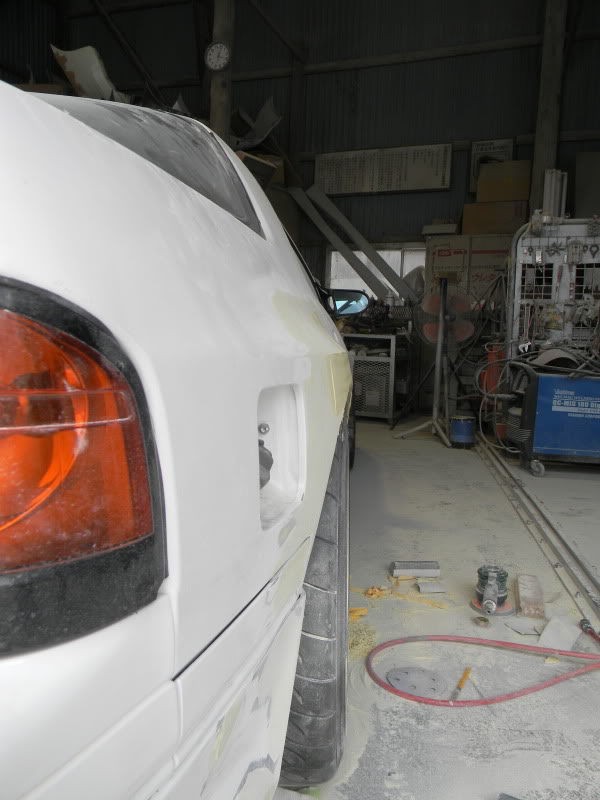

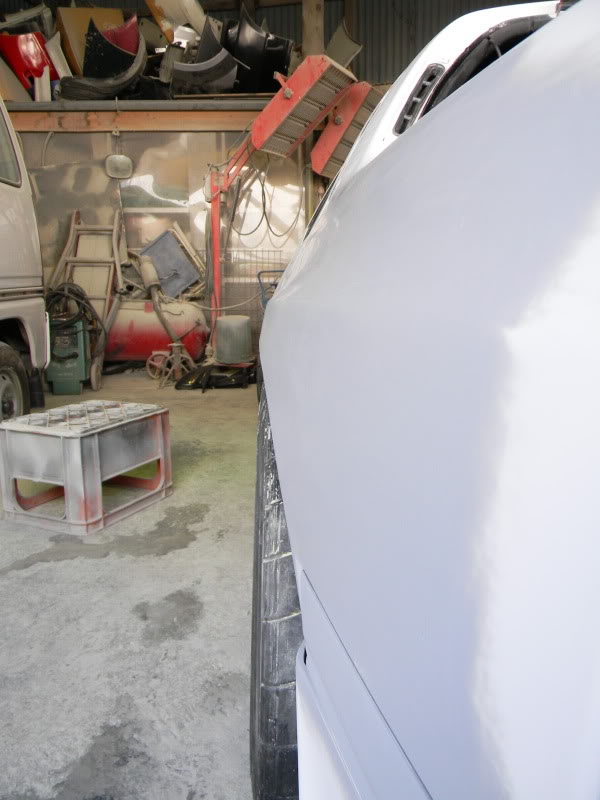

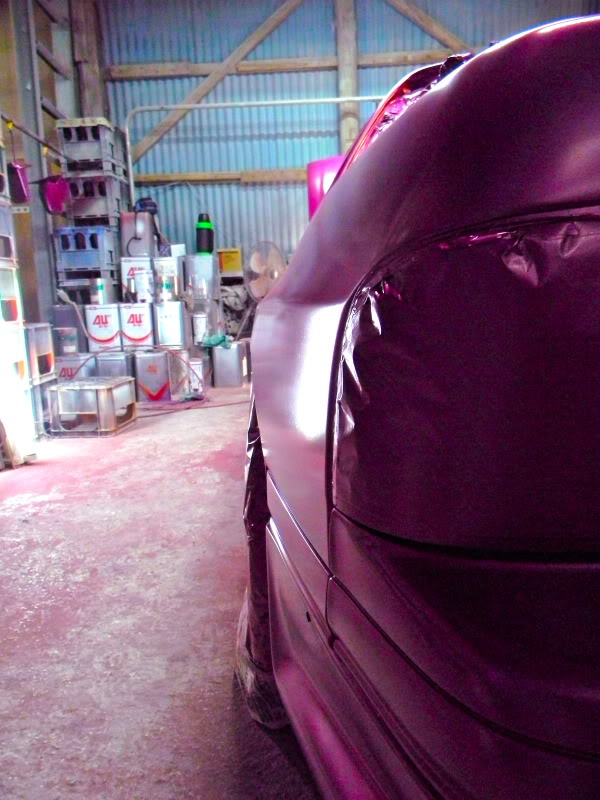

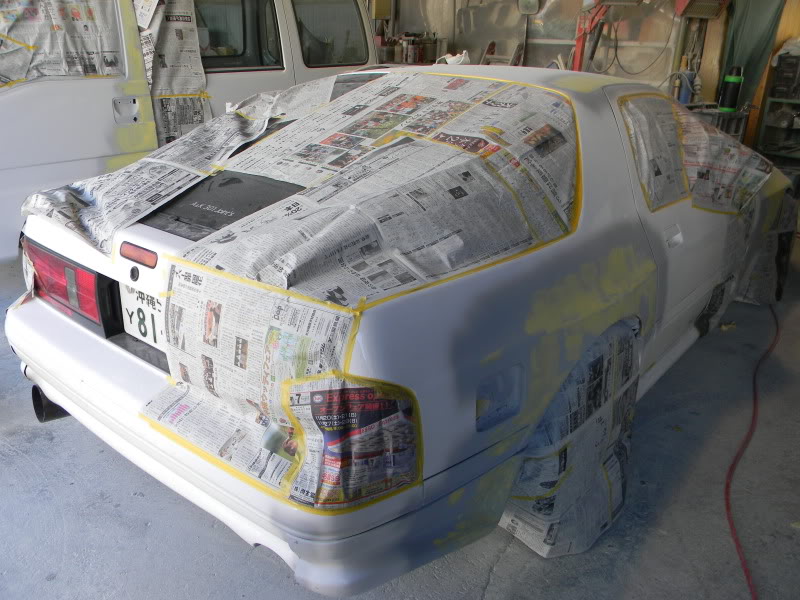

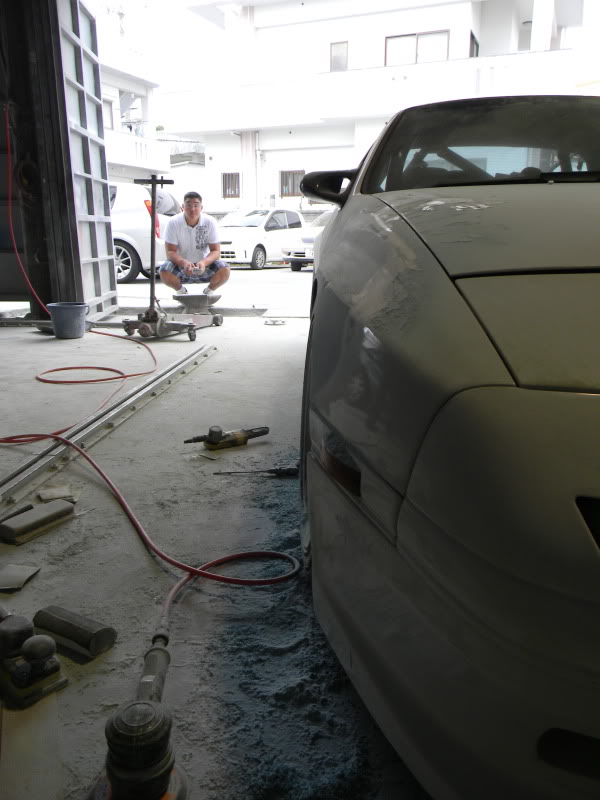

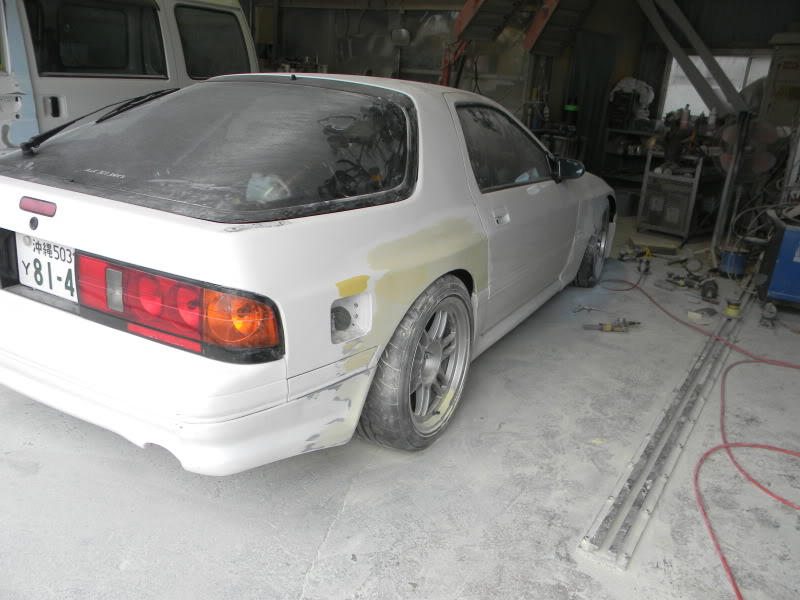

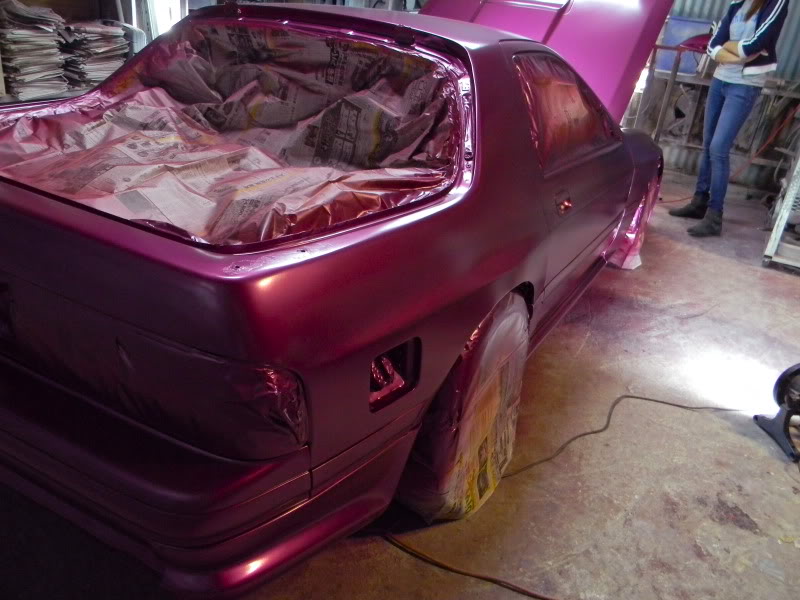

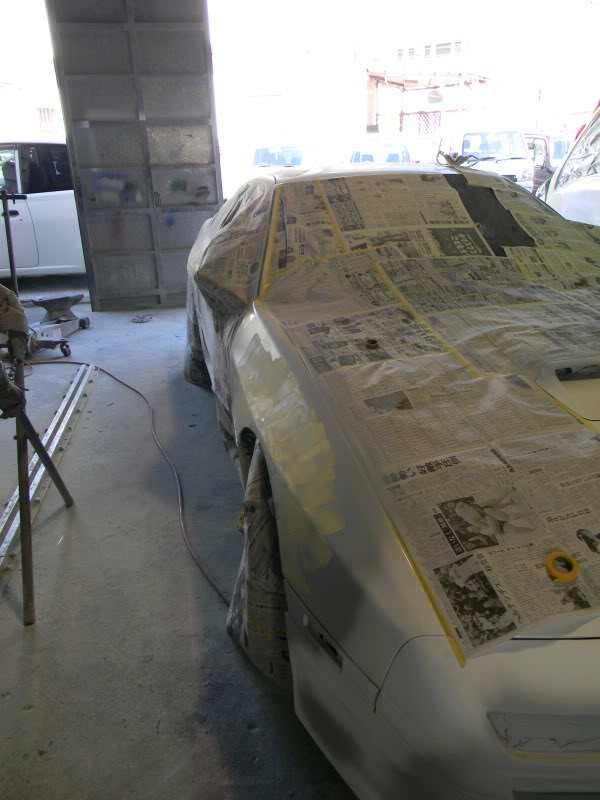

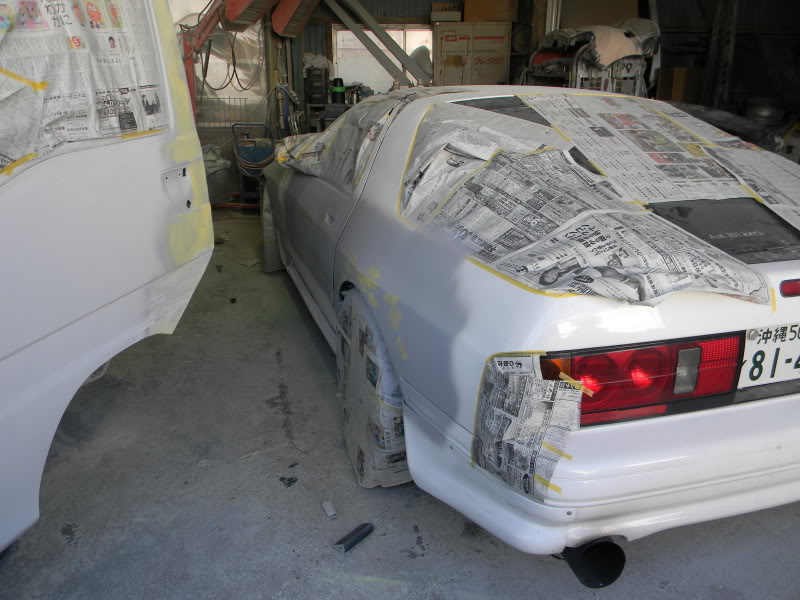

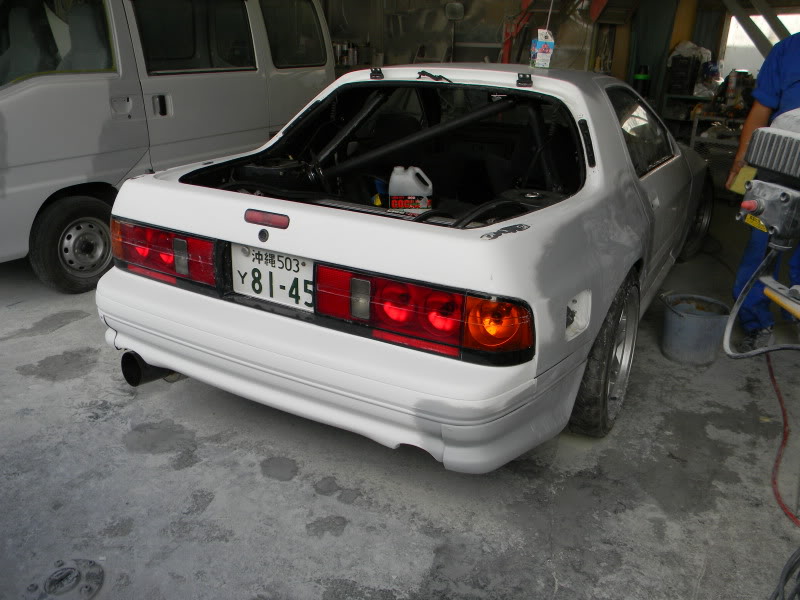

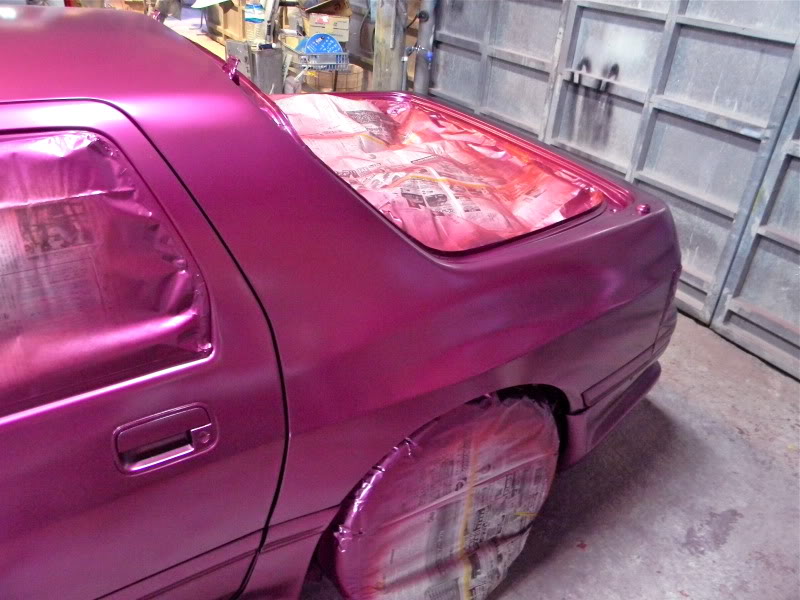

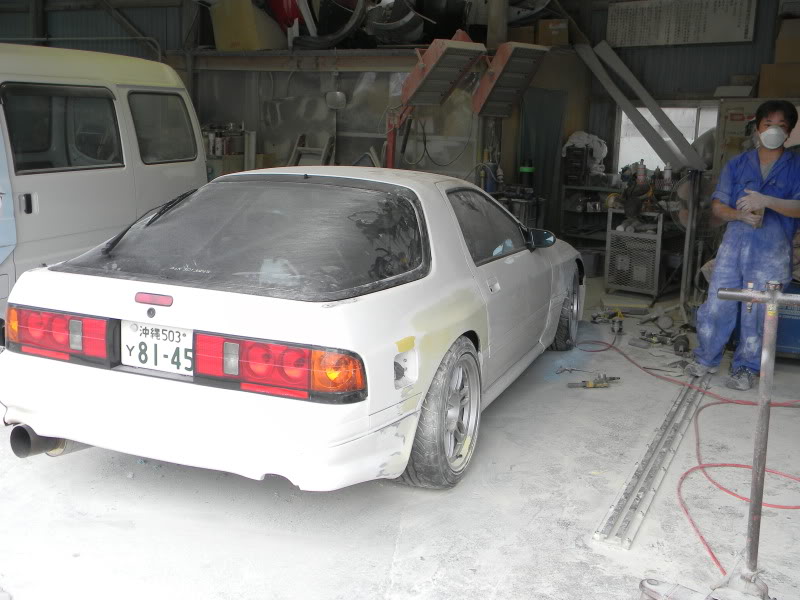

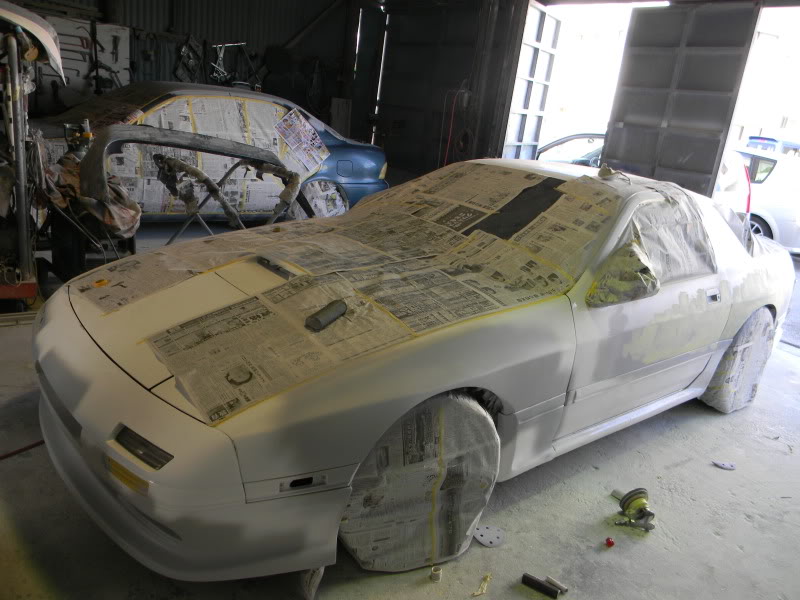

pics of the body work process
pics of damage before repair and paint
pics of the body work process
Trending Topics
05-31-11, 06:01 AM
#10
JDM rotary
Thread Starter
Join Date: Oct 2010
Location: Okinawa
Posts: 88
Likes: 0
Received 0 Likes
on
0 Posts

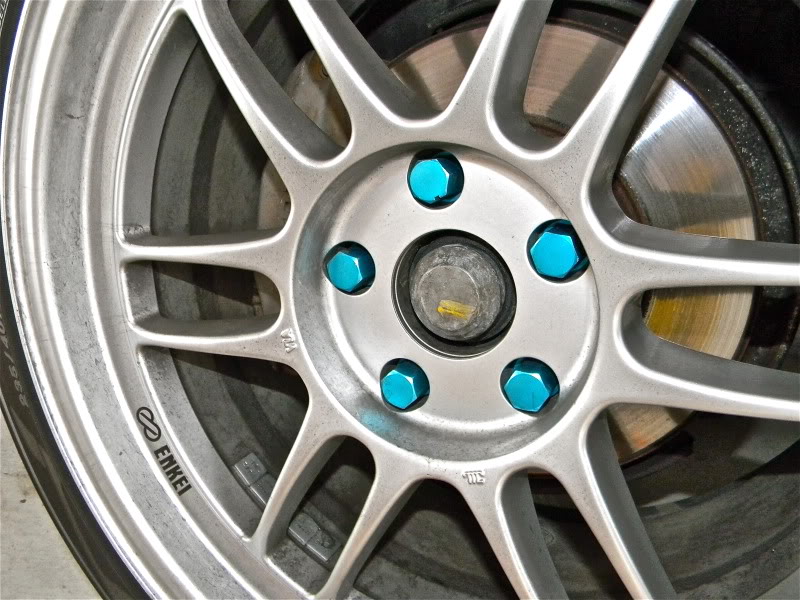

Sweet blue aluminum lug nuts compliments from a friend

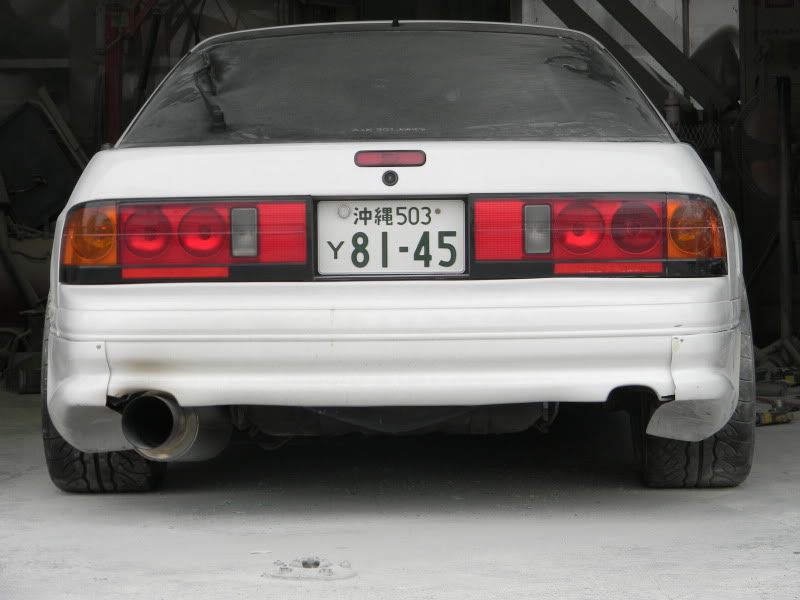

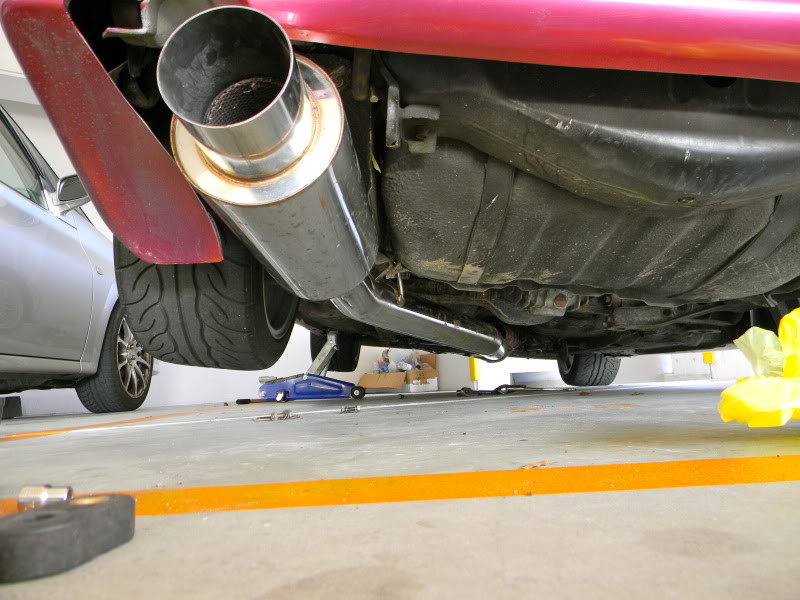

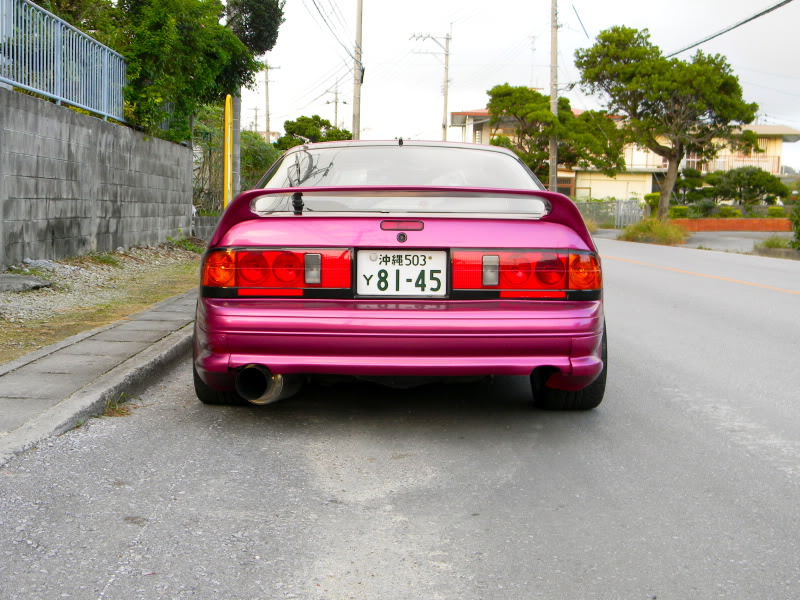

I got sick of the old exhaust so I went to Upgarage and picked up this Attain exhaust for 70 bucks haha gotta love Japan

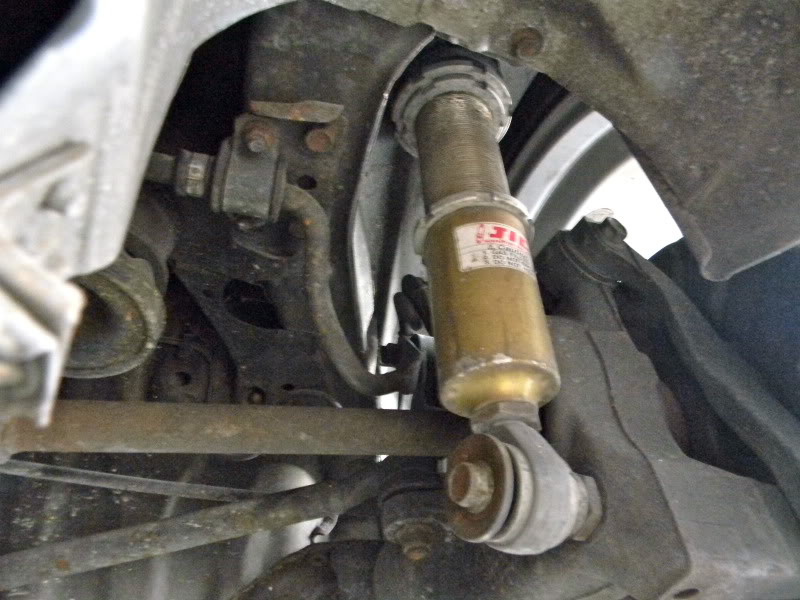

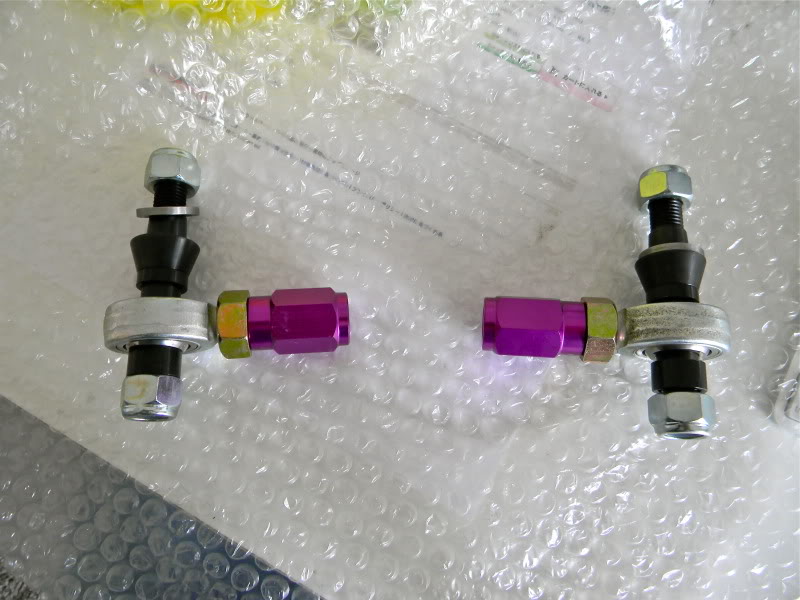

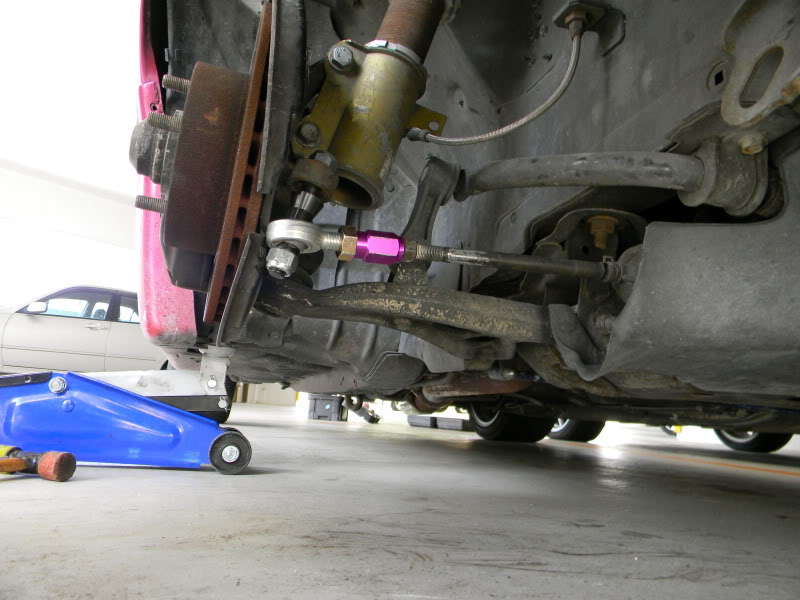

And the last thing was some Super Now tie rod ends
I got sick of the old exhaust so I went to Upgarage and picked up this Attain exhaust for 70 bucks haha gotta love Japan
And the last thing was some Super Now tie rod ends
05-31-11, 06:44 AM
#14
Love the paint color. Suprised you didn't paint the mirrors and throw them back on. What are plans for the motor?
I'm trying to get back to Japan myself. Should find out in the next couple of weeks if I get Korea or not and and hopefully the follow on that I want.
I'm trying to get back to Japan myself. Should find out in the next couple of weeks if I get Korea or not and and hopefully the follow on that I want.
05-31-11, 05:18 PM
#23
JDM rotary
Thread Starter
Join Date: Oct 2010
Location: Okinawa
Posts: 88
Likes: 0
Received 0 Likes
on
0 Posts

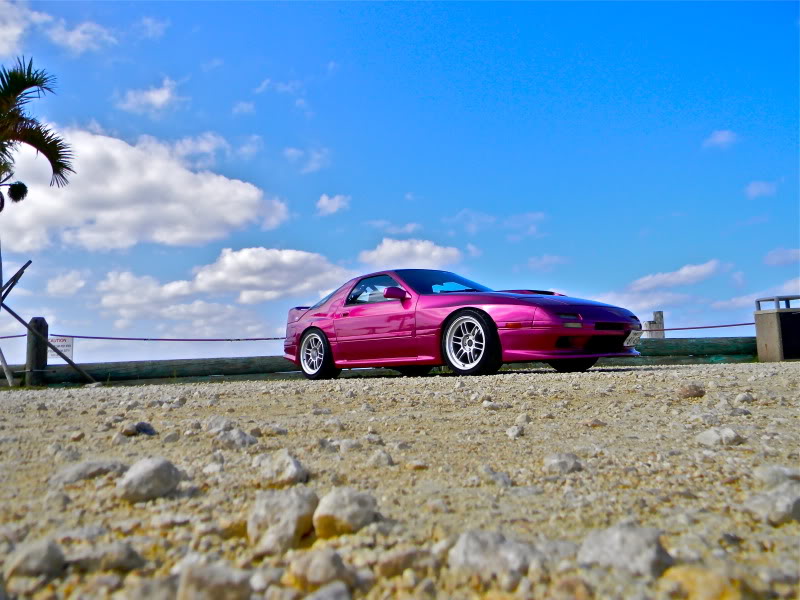

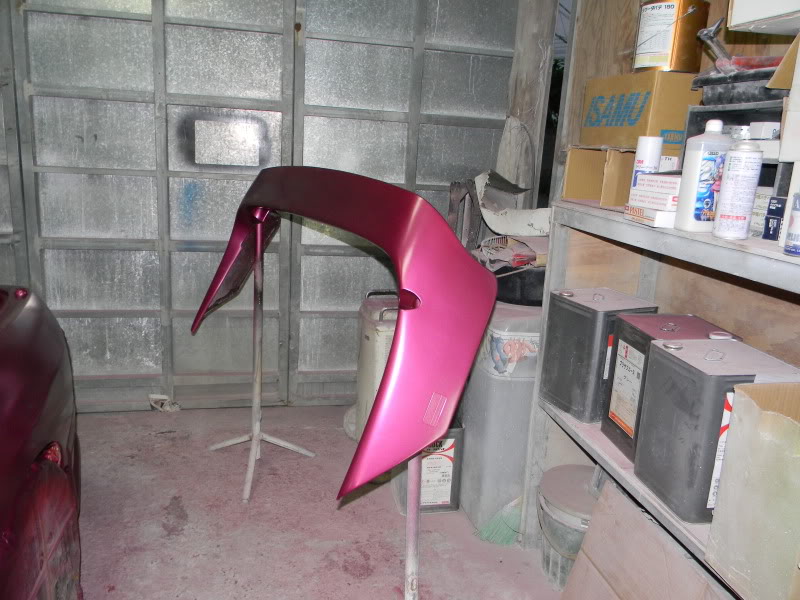

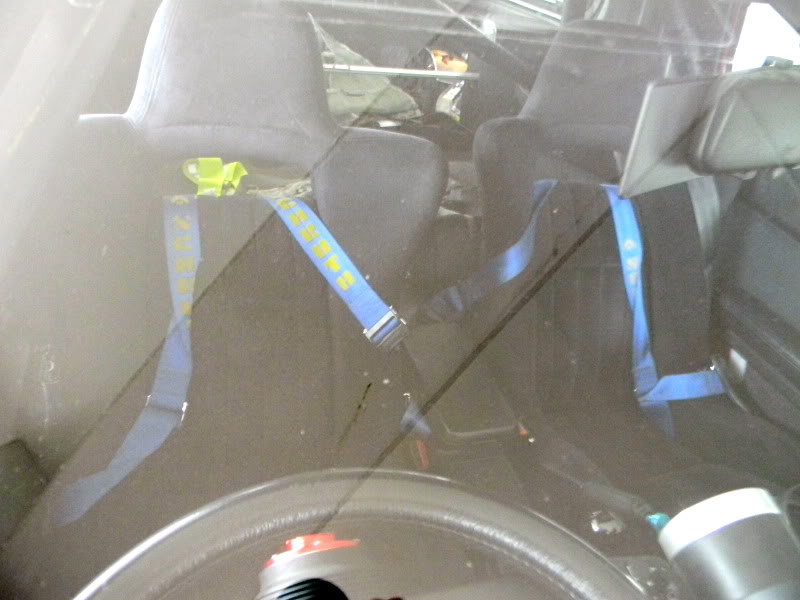

Thanks everyone. You may not like the purple but to each his/her own and it's not your everyday color which is why i went with it. the harnesses are bolted to eye bolts, soon to be replaced with takata harnesses. The wing is by ERC not Erebuni, but it is the same style. I bought it off of a friend for 80 bucks. Here is the link to ERC's website.
http://www.erc-rotary.com/parts/parts-fc3s.htm
The site is in Japanese just so you know.
As for the motor unfortunately I'm saying bye-bye to the rotary...I know STUPID and it's not an rx-7 anymore blah blah blah. It still runs just fine FYI but I'm going the 1JZ route. No one here does swaps on FC's or FD's here. Actually I've only seen 6 FC's since I've been here. But none the less a 1JZ will be done. I already have the motor and picked up a R154 tranny for 500 bucks. It would have been done already but for personal reasons the build stopped for awhile. (I'm going through a divorce). Anyways I just recently started getting back into the project so it should be done pretty soon. Right now I'm still driving it with the 13B still in it. Whenever I have time probably next weekend I'll start tearing it down.
http://www.erc-rotary.com/parts/parts-fc3s.htm
The site is in Japanese just so you know.
As for the motor unfortunately I'm saying bye-bye to the rotary...I know STUPID and it's not an rx-7 anymore blah blah blah. It still runs just fine FYI but I'm going the 1JZ route. No one here does swaps on FC's or FD's here. Actually I've only seen 6 FC's since I've been here. But none the less a 1JZ will be done. I already have the motor and picked up a R154 tranny for 500 bucks. It would have been done already but for personal reasons the build stopped for awhile. (I'm going through a divorce). Anyways I just recently started getting back into the project so it should be done pretty soon. Right now I'm still driving it with the 13B still in it. Whenever I have time probably next weekend I'll start tearing it down.
