what is this part called
11-11-17, 08:24 PM
#2

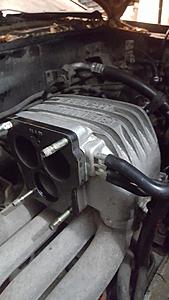

its essentially a gasket, but there are many other names for it too
but its also a spacer as it has ports for vacuum
http://www.atkinsrotary.com/store/In...-Body-Spacers/
but its also a spacer as it has ports for vacuum
http://www.atkinsrotary.com/store/In...-Body-Spacers/
11-11-17, 08:35 PM
#3
Junior Member
Thread Starter
Join Date: Nov 2017
Location: slurms mckenzies factory
Posts: 14
Received 0 Likes
on
0 Posts
its essentially a gasket, but there are many other names for it too
but its also a spacer as it has ports for vacuum
Mazda Throttle Body Spacers
but its also a spacer as it has ports for vacuum
Mazda Throttle Body Spacers
11-11-17, 11:58 PM
#5
rotorhole
the upper plenum chamber, since the non turbo cars actually have 3 intake manifolds pieces.

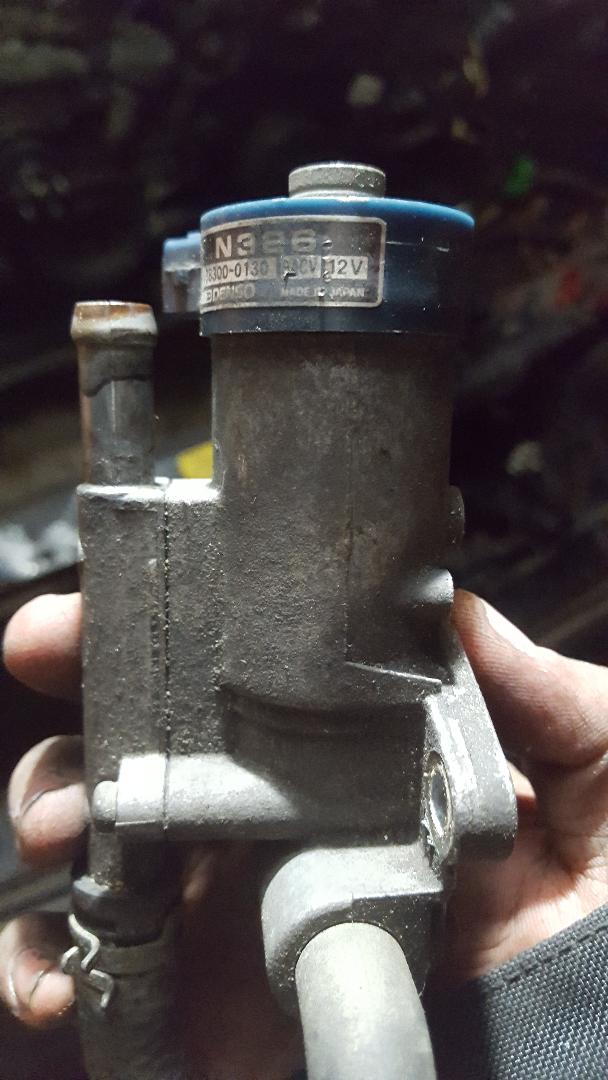

the second item is your BAC, bypass air control valve, it controls base idle to a small degree.
the second item is your BAC, bypass air control valve, it controls base idle to a small degree.
The following users liked this post:
grunkalunka (11-12-17)
11-12-17, 06:38 AM
#7
The upper plenum is actually called the "dynamic chamber". It stores pressure waves and at higher rpm's allows the stored pressure into the engine for a supercharging effect via the 5th and 6th ports. This is why its critical to have the ports clean and operational and the of course the port actuators working properly. If the system is not working properly, the engine will be sluggish in the upper RPM range and will feel like it underpowered.
