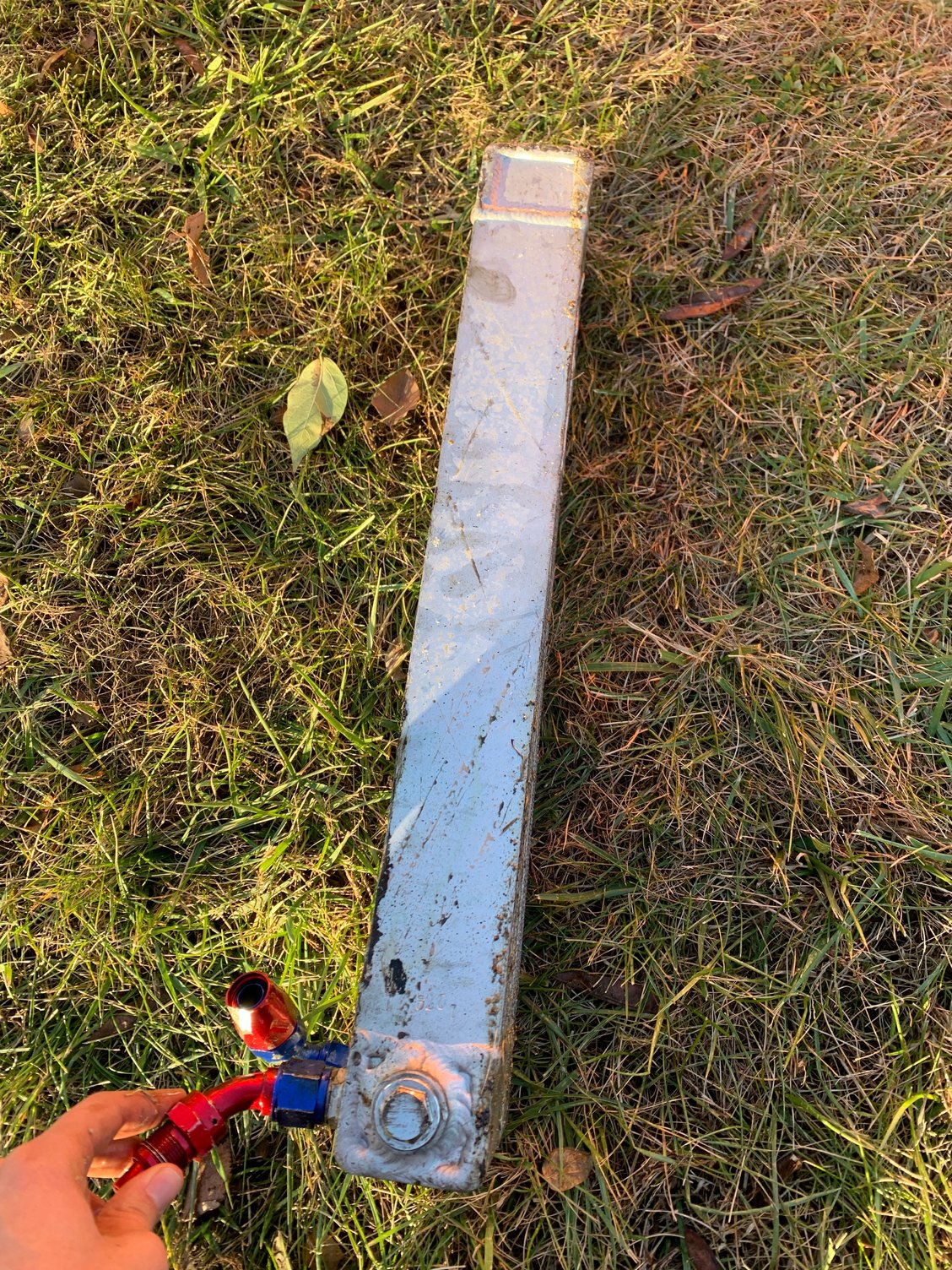

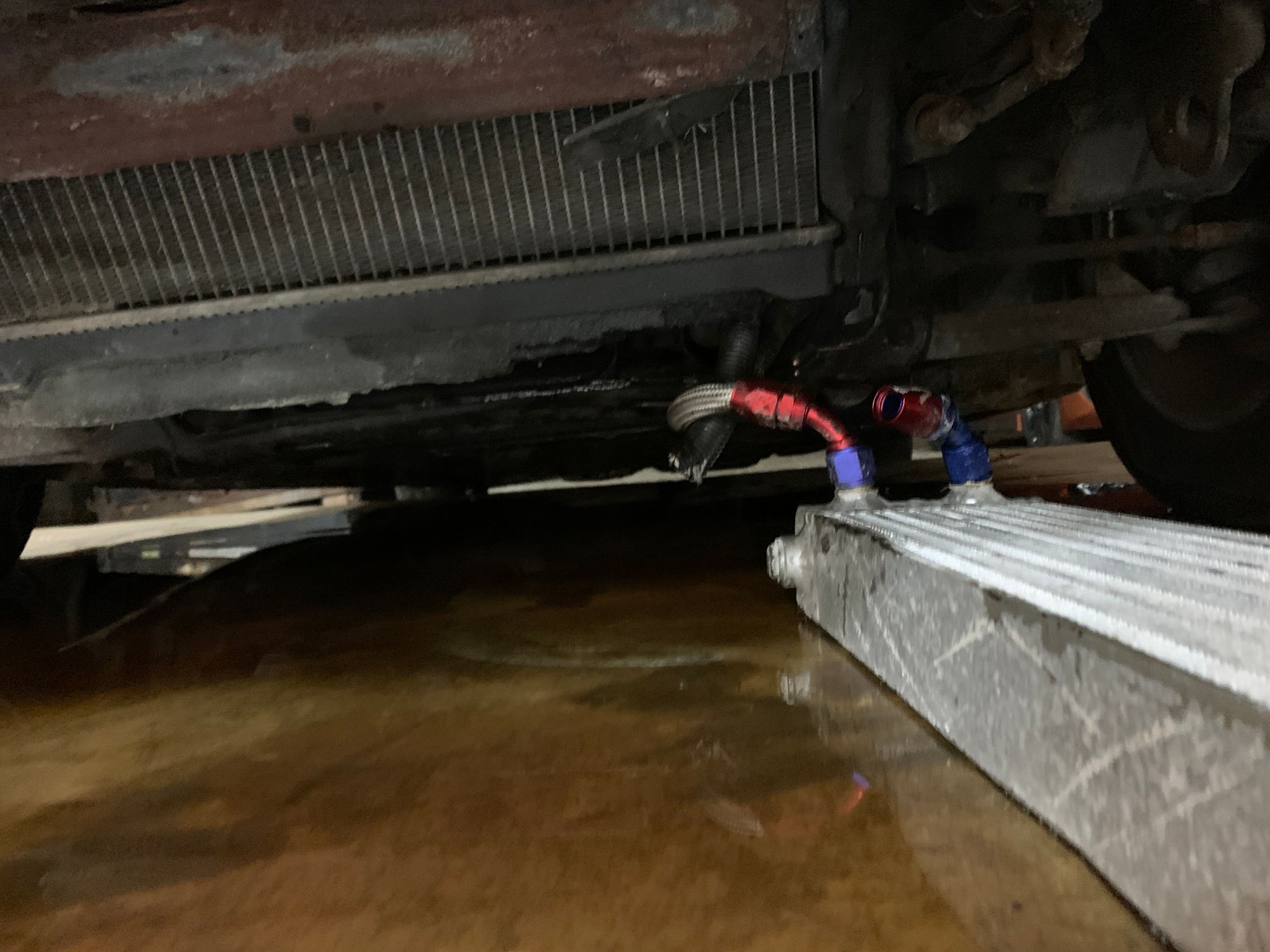

I just recently bought this fc vert and it already had a aftermarket oil cooler installed. However when they installed it they put it way too low and I snapped off the brackets and broke some lines when pulling into our shop. I'd like to put on what they had but I cant figure out what brand it is. It looks like it could be the same one they have on cxracing and rotarty-works but those are for the fb and older with a 13b swap. I'm not sure if I do get that cooler if the lines would be long enough since its a different gen but If anyone else has any ideas on what it could be or what you guys think is good for oil coolers I'd love some help.



Thats and original Mazda oil cooler with aftermarket lines. It appears to be one from an 84-85 GSL-SE. The FC oil coolers are a bit different in the location where the lines thread on. I recommend getting a stock FC oil cooler and lines. You can sell that one for a few bucks to someone that needs one. The aftermarket lines are hit and miss on the original oil coolers.
