Miata Transmission Into NA FC-Results!
#52
IT LIVES!!
Thread Starter
Join Date: Apr 2005
Location: Manhattan Beach, CA
Posts: 466
Likes: 0
Received 0 Likes
on
0 Posts

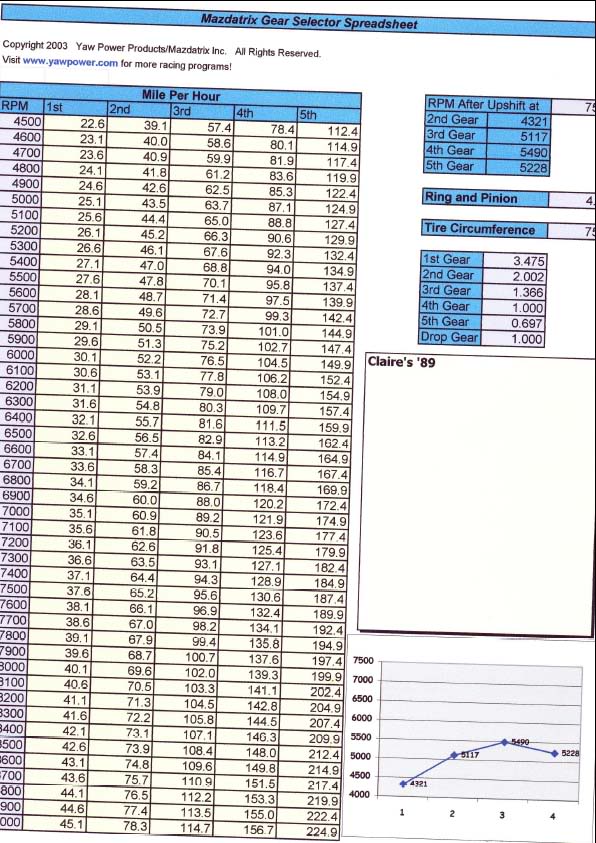

ok, for comparisson purposes, here are the charts showing the ratios and difference between the two gearboxes. these charts are specific to my car
stock
miatabox
stock
miatabox
#57
IT LIVES!!
Thread Starter
Join Date: Apr 2005
Location: Manhattan Beach, CA
Posts: 466
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by TurboIIGuy
wow.....congrats......It's about damn time......Is the fender still in need of repair or did you put that other one on yet???
#60
IT LIVES!!
Thread Starter
Join Date: Apr 2005
Location: Manhattan Beach, CA
Posts: 466
Likes: 0
Received 0 Likes
on
0 Posts
Heres the specs for the 8:
Gear Type 6 Speed Manual
Final Drive
4.44:1
1st Gear Ratio 3.76:1
2nd Gear Ratio 2.27:1
3rd Gear Ratio 1.65:1
4th Gear Ratio 1.19:1
5th Gear Ratio 1.00:1
6th Gear Ratio 0.84:1
and for various models of the miata:
94-97 5-speed 12.86:1 7.74:1 5.45:1 4.10:1 3.34:1
99+ 5-speed 13.5:1 8.12:1 5.72:1 4.30:1 3.50:1
6-speed* 14.7:1 8.87:1 6.43:1 4.91:1 3.91:1 3.30:1
Mazdaspeed 15.4:1 9.30:1 6.75:1 5.15:1 4.10:1 3.46:1
as you can see, the ratios are fairly different. im not sure how much power the mazdaspeed box can handle
Gear Type 6 Speed Manual
Final Drive
4.44:1
1st Gear Ratio 3.76:1
2nd Gear Ratio 2.27:1
3rd Gear Ratio 1.65:1
4th Gear Ratio 1.19:1
5th Gear Ratio 1.00:1
6th Gear Ratio 0.84:1
and for various models of the miata:
94-97 5-speed 12.86:1 7.74:1 5.45:1 4.10:1 3.34:1
99+ 5-speed 13.5:1 8.12:1 5.72:1 4.30:1 3.50:1
6-speed* 14.7:1 8.87:1 6.43:1 4.91:1 3.91:1 3.30:1
Mazdaspeed 15.4:1 9.30:1 6.75:1 5.15:1 4.10:1 3.46:1
as you can see, the ratios are fairly different. im not sure how much power the mazdaspeed box can handle
#63
Right near Malloy
iTrader: (28)
Join Date: Dec 1999
Location: Behind a workbench, repairing FC Electronics.
Posts: 7,835
Received 502 Likes
on
340 Posts
I've been doing homework on this same swap for my 1st gen (That may soon be a 1.5 gen.)
First, some links for anyone else interested:
All the gear ratios ANYONE would ever need: http://members.ij.net/mrmazda/tranchrt.txt
5th gear interchange chart: http://members.aol.com/solomiata/Mia...terchange.html
SoloMiata drivetrain interchange guide: http://members.aol.com/solomiata/Drivetrain.html
Regearing Mazda transmissions: http://www.angelfire.com/darkside/de...nsmission.html
Miata VS RX-7 input shaft comparison: http://myweb.cableone.net/currie/tom/RX7/trans.html
I was wondering how the new 1st gear felt on launch.
My stock 1st is 3.6:1 (Though I'm upgrading the rear end from 3.9:1 to 4.3:1)
FC stock 1st is 3.4:1
Miata is 3.1:1... Seems like you'd lose a bit of torque there... Something the rotary has not much of.
I want to get the 5th gear out of an S5 N/A for the highway.
First, some links for anyone else interested:
All the gear ratios ANYONE would ever need: http://members.ij.net/mrmazda/tranchrt.txt
5th gear interchange chart: http://members.aol.com/solomiata/Mia...terchange.html
SoloMiata drivetrain interchange guide: http://members.aol.com/solomiata/Drivetrain.html
Regearing Mazda transmissions: http://www.angelfire.com/darkside/de...nsmission.html
Miata VS RX-7 input shaft comparison: http://myweb.cableone.net/currie/tom/RX7/trans.html
I was wondering how the new 1st gear felt on launch.
My stock 1st is 3.6:1 (Though I'm upgrading the rear end from 3.9:1 to 4.3:1)
FC stock 1st is 3.4:1
Miata is 3.1:1... Seems like you'd lose a bit of torque there... Something the rotary has not much of.
I want to get the 5th gear out of an S5 N/A for the highway.
#65
IT LIVES!!
Thread Starter
Join Date: Apr 2005
Location: Manhattan Beach, CA
Posts: 466
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Pele
I've been doing homework on this same swap for my 1st gen (That may soon be a 1.5 gen.)
First, some links for anyone else interested:
All the gear ratios ANYONE would ever need: http://members.ij.net/mrmazda/tranchrt.txt
5th gear interchange chart: http://members.aol.com/solomiata/Mia...terchange.html
SoloMiata drivetrain interchange guide: http://members.aol.com/solomiata/Drivetrain.html
Regearing Mazda transmissions: http://www.angelfire.com/darkside/de...nsmission.html
Miata VS RX-7 input shaft comparison: http://myweb.cableone.net/currie/tom/RX7/trans.html
I was wondering how the new 1st gear felt on launch.
My stock 1st is 3.6:1 (Though I'm upgrading the rear end from 3.9:1 to 4.3:1)
FC stock 1st is 3.4:1
Miata is 3.1:1... Seems like you'd lose a bit of torque there... Something the rotary has not much of.
I want to get the 5th gear out of an S5 N/A for the highway.
First, some links for anyone else interested:
All the gear ratios ANYONE would ever need: http://members.ij.net/mrmazda/tranchrt.txt
5th gear interchange chart: http://members.aol.com/solomiata/Mia...terchange.html
SoloMiata drivetrain interchange guide: http://members.aol.com/solomiata/Drivetrain.html
Regearing Mazda transmissions: http://www.angelfire.com/darkside/de...nsmission.html
Miata VS RX-7 input shaft comparison: http://myweb.cableone.net/currie/tom/RX7/trans.html
I was wondering how the new 1st gear felt on launch.
My stock 1st is 3.6:1 (Though I'm upgrading the rear end from 3.9:1 to 4.3:1)
FC stock 1st is 3.4:1
Miata is 3.1:1... Seems like you'd lose a bit of torque there... Something the rotary has not much of.
I want to get the 5th gear out of an S5 N/A for the highway.
wow, thanks for the info i havent tried launching the car yet, when i took it to willow, we started from a parade lap. ill try to get a feel for that in the next few days. for street driving, its a lot less difficult than we thought it would be.
#66
is The Whoopieschnootz
Join Date: Apr 2005
Location: Asheville NC
Posts: 700
Likes: 0
Received 0 Likes
on
0 Posts
Here's some information I got from some rough calculations. It's shift points, and mph for (your car with) 4.3 gears. I threw your data into excel (I plan on a high revving motor and a miatabox with 4.3 would be great) and got this.
7000 | 37.2 | 63.4 | 89.3 | 116.1 | 138.3
7500 | 39.9 | 68.0 | 95.7 | 124.4 | 148.2
8000 | 42.6 | 72.5 | 102.1| 132.7 | 158.1
9000 | 47.9 | 81.6 | 114.9| 149.2 | 177.8
10000| 53.3 | 90.6 | 127.8| 165.8 | 197.6
If anyone else wants any numbers (shift points to-from, other RPMs, other rear ends) just PM me.
7000 | 37.2 | 63.4 | 89.3 | 116.1 | 138.3
7500 | 39.9 | 68.0 | 95.7 | 124.4 | 148.2
8000 | 42.6 | 72.5 | 102.1| 132.7 | 158.1
9000 | 47.9 | 81.6 | 114.9| 149.2 | 177.8
10000| 53.3 | 90.6 | 127.8| 165.8 | 197.6
If anyone else wants any numbers (shift points to-from, other RPMs, other rear ends) just PM me.
#67
IT LIVES!!
Thread Starter
Join Date: Apr 2005
Location: Manhattan Beach, CA
Posts: 466
Likes: 0
Received 0 Likes
on
0 Posts
the charts i provided are calculated with a shift point of 7500rpm, for track use. it would be interesting to see one calculated for street use lol.
one thing i would like to point out is the change in the upshift from 2nd to 3rd. with the stock box, i would shift into 3rd at 7500rpm, and it would barely be inside my powerband, at times it would even be boggy. with the miatabox, im well inside my power band when i shift to 3rd. for me, that is a big advantage.
one thing i would like to point out is the change in the upshift from 2nd to 3rd. with the stock box, i would shift into 3rd at 7500rpm, and it would barely be inside my powerband, at times it would even be boggy. with the miatabox, im well inside my power band when i shift to 3rd. for me, that is a big advantage.
#68
Passing life by
The mx5 trany is not very strong. It will snap at 250hp and 235ftlbs or so. If you are under that and playing sounds like its a sweet swap. I wish I had a first gear that long its about useless in a T FC.
#69
Right near Malloy
iTrader: (28)
Join Date: Dec 1999
Location: Behind a workbench, repairing FC Electronics.
Posts: 7,835
Received 502 Likes
on
340 Posts
Originally Posted by iceblue
The mx5 trany is not very strong. It will snap at 250hp and 235ftlbs or so. If you are under that and playing sounds like its a sweet swap. I wish I had a first gear that long its about useless in a T FC.
It's only as good as any other N/A tranny.
I figure so long as you're not doing drag launches on 8 inch wide slicks, with a turbo or v6 or better you should be okay.
#70
IT LIVES!!
Thread Starter
Join Date: Apr 2005
Location: Manhattan Beach, CA
Posts: 466
Likes: 0
Received 0 Likes
on
0 Posts
update!
on friday, james was kind enough to let me drive his '89 GTU with stock motor and trans, for comparrisson purposes. even in a straight line i could feel a big difference. the gears in my FC feel substantially shorter in comparrisson to the stock setup. id like to have more time to compare the two setups, ideally on a track, but that probably wont happen.
car feels great!
car feels great!
#71
Full Member
Join Date: Jul 2005
Location: columbus oh
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by RXgirl7
on friday, james was kind enough to let me drive his '89 GTU with stock motor and trans, for comparrisson purposes. even in a straight line i could feel a big difference. the gears in my FC feel substantially shorter in comparrisson to the stock setup. id like to have more time to compare the two setups, ideally on a track, but that probably wont happen.
car feels great!
car feels great!
ok i need a bit of clarification...the miata box has longer gears..meaning its more geared toward a higher top speed... wouldnt this make u slightly slower in acceleration but have a higher top speed?? when u say shorter u make me think it would accelerate faster, but the gear ratios are saying you would accelerate slower...hmm am i missing somehting?
#72
IT LIVES!!
Thread Starter
Join Date: Apr 2005
Location: Manhattan Beach, CA
Posts: 466
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by zerogrips13
ok i need a bit of clarification...the miata box has longer gears..meaning its more geared toward a higher top speed... wouldnt this make u slightly slower in acceleration but have a higher top speed?? when u say shorter u make me think it would accelerate faster, but the gear ratios are saying you would accelerate slower...hmm am i missing somehting?
#74
IT LIVES!!
Thread Starter
Join Date: Apr 2005
Location: Manhattan Beach, CA
Posts: 466
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by one sick 7
1st = long
4th - 5th = short
for autoX purposes. good ****, Claire.
4th - 5th = short
for autoX purposes. good ****, Claire.
y'all are welcome to putter around the block at the saturday meet.
