WJM ROTARIES

I have just started a 20B RX8 conversion for a customer .1week in and have a fair bit done all ready .Old useless renesis engine removed ,all exhaust system, radiator and oil cooler and all other bits and pieces under hood .

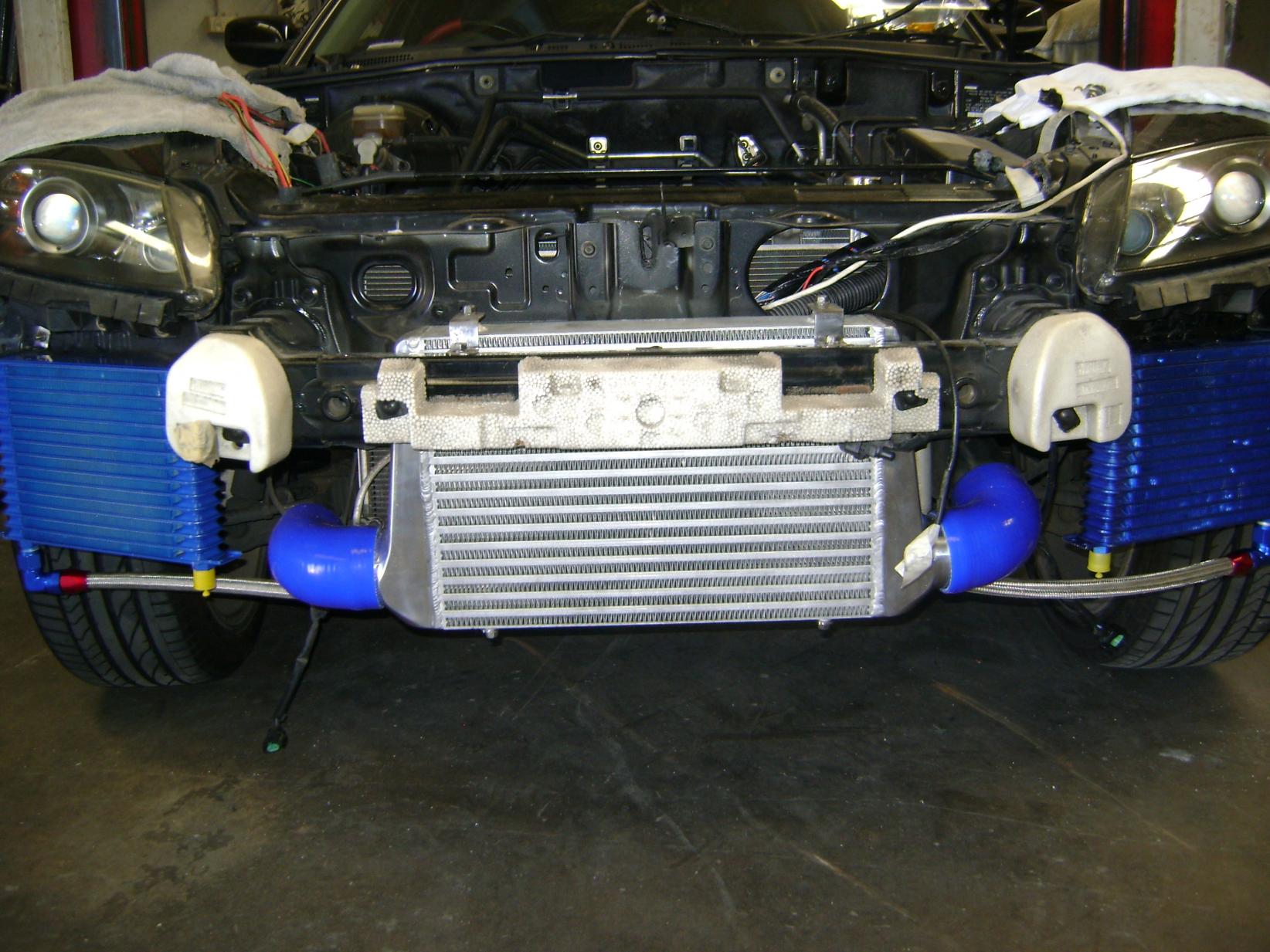

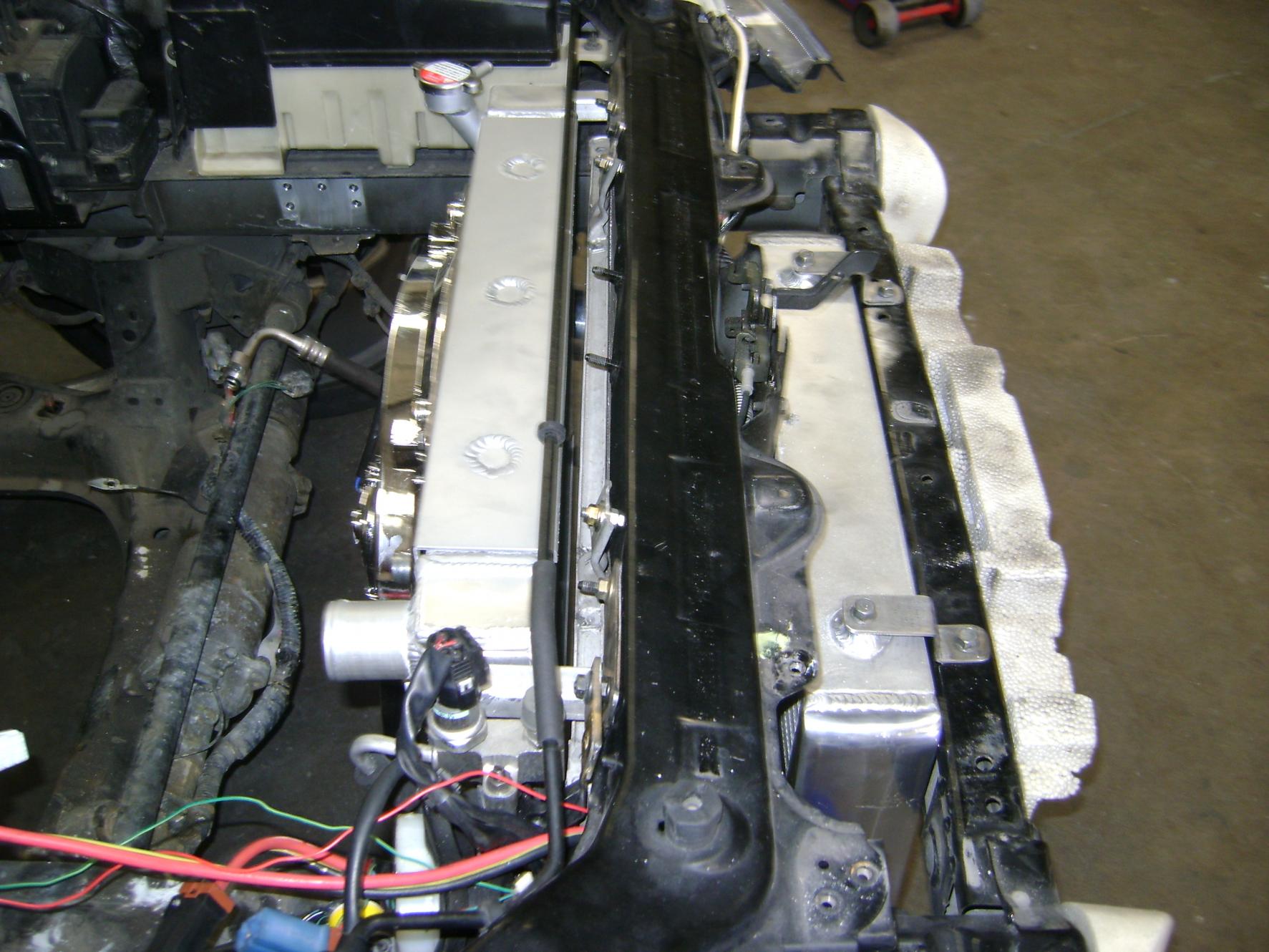

I have fitted new radiator and front mount intercooler and re fitted the air conditioner condenser and re routed the pipes
I will keep you updated as more gets done

FwkUiWN

iTrader: (1)

great thread already. I have a turbo 8 that I would like to swap a n/a 20b into at some point next year. I love the turbo renny but I have always been fascinated with the 3rotor. Hopefully you document the ins&outs well enough for me to know if should really undertake this myself or send it off. Planning on using the stock instrument panel? It's my understanding that some of the little things like the maf sensor must be maintained for the canbus system to operate corerctly. I'm assuming you know a t2 flywheel and cosmo counterweight will work if you are retaining the stock rx8 transmission. 1st series trans is a little weaker than the 2nd series rx8. It seems like some modification will need to be done on the turbo manifold side where you might have to trim a bit off the chassis for fitment and adjusting/adding to the steering knuckle. Of course, you probably already know all these things. Good luck with the build and I'll be keeping a close eye on this one

bumpstart

thinks that resi clutch slave is also going to clash on the 20b rear plate /oil filter

WJM ROTARIES

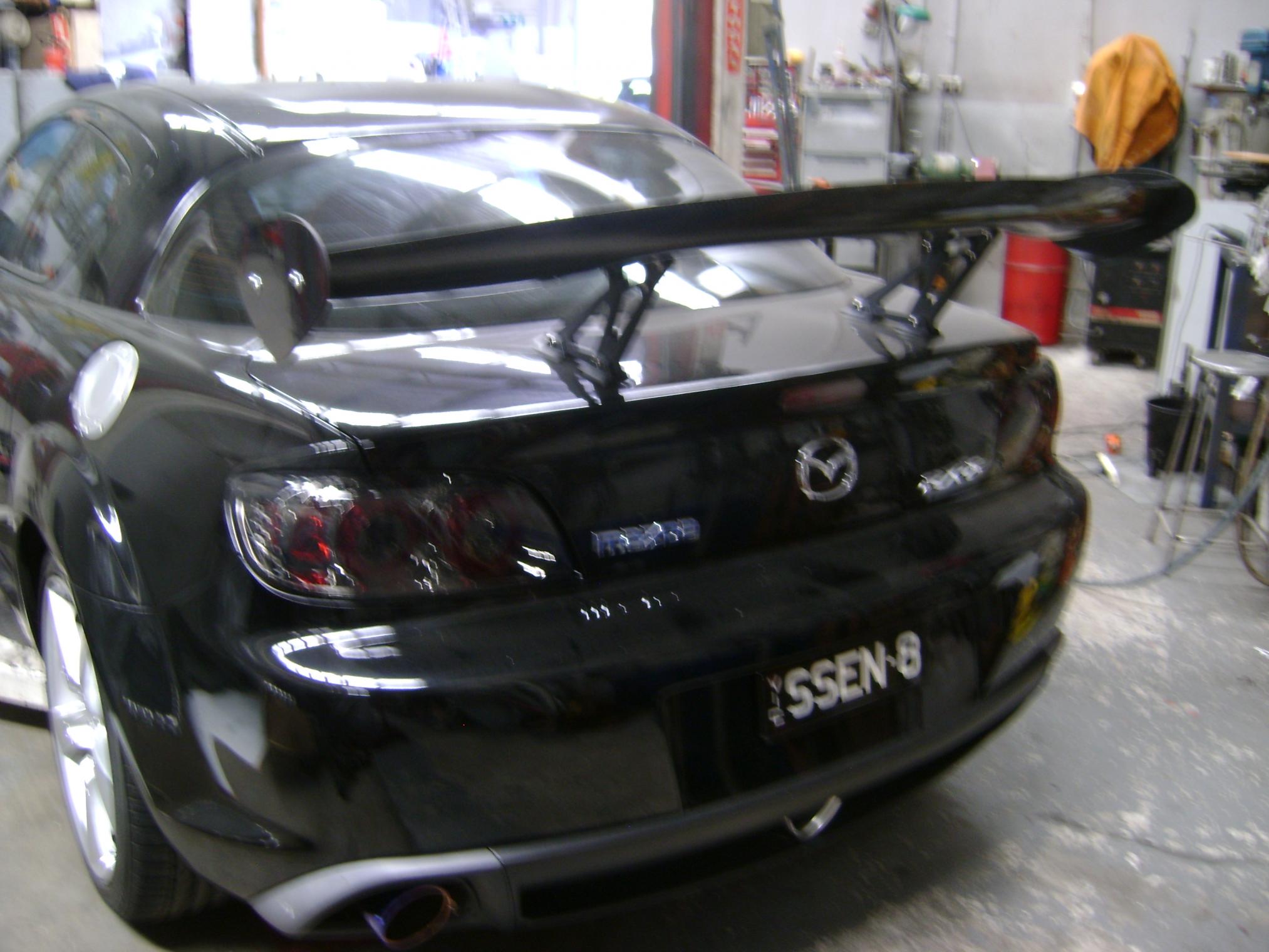

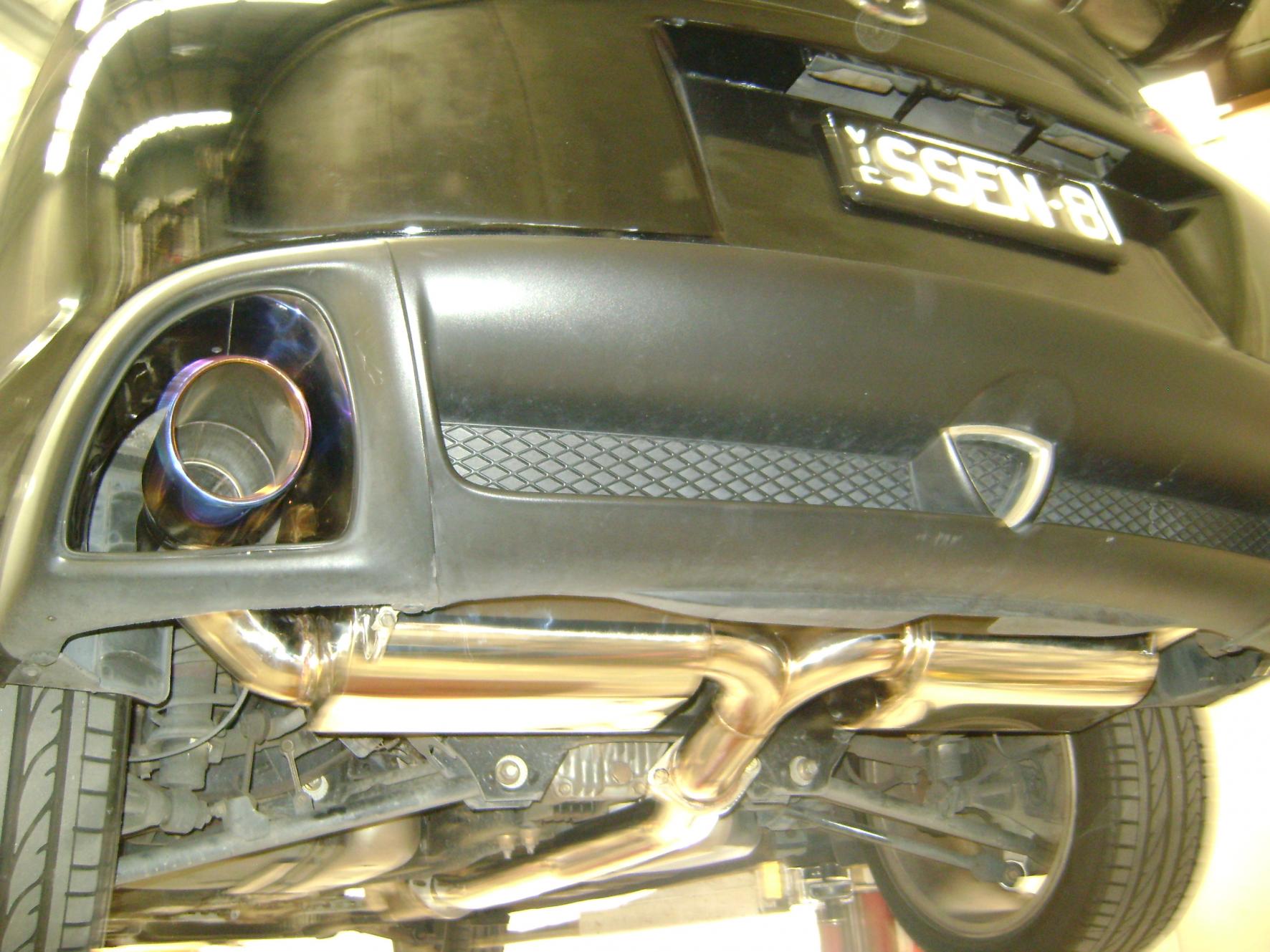

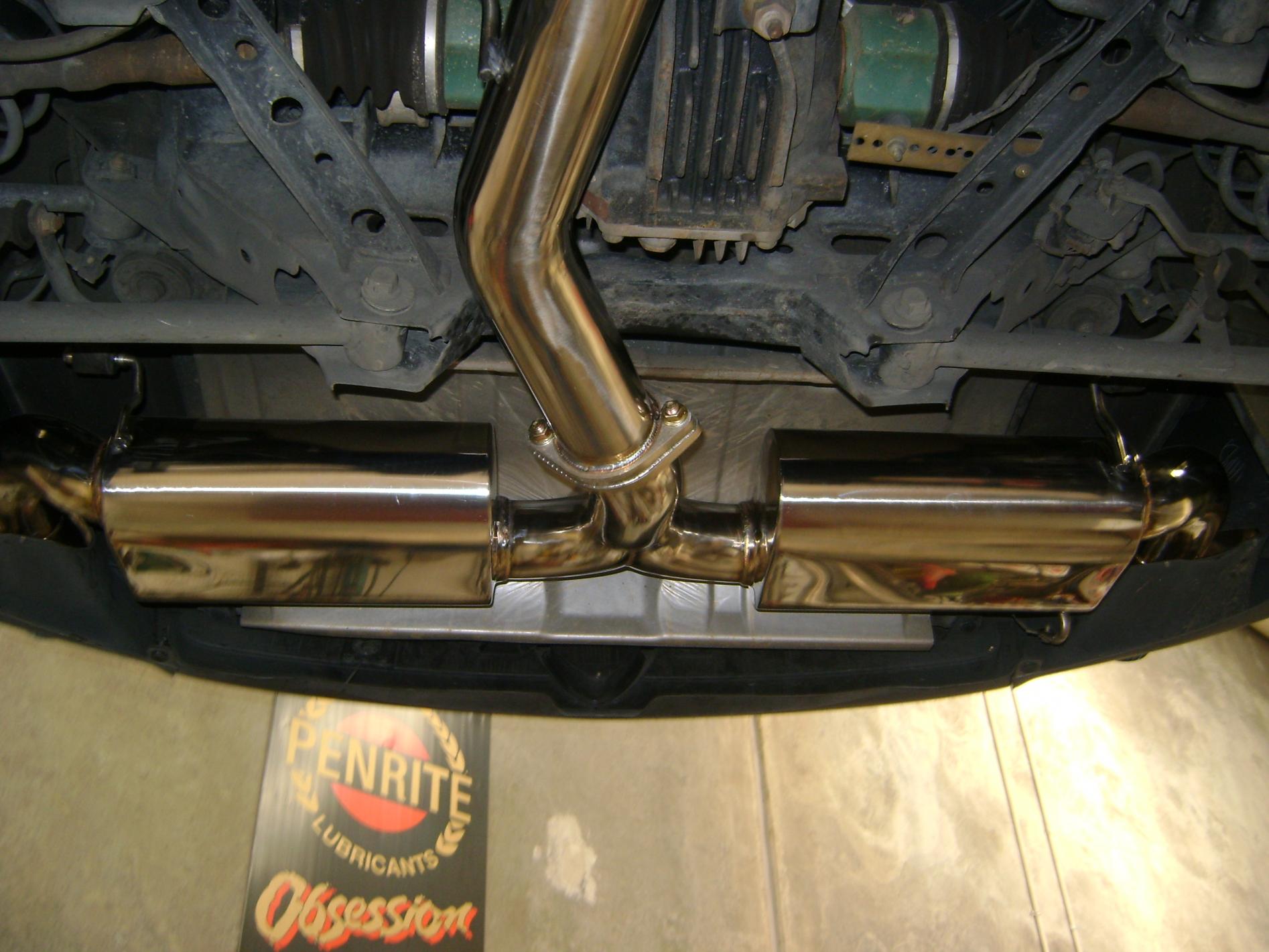

Have done a little more ,fitted rear exhaust system to car

WJM ROTARIES

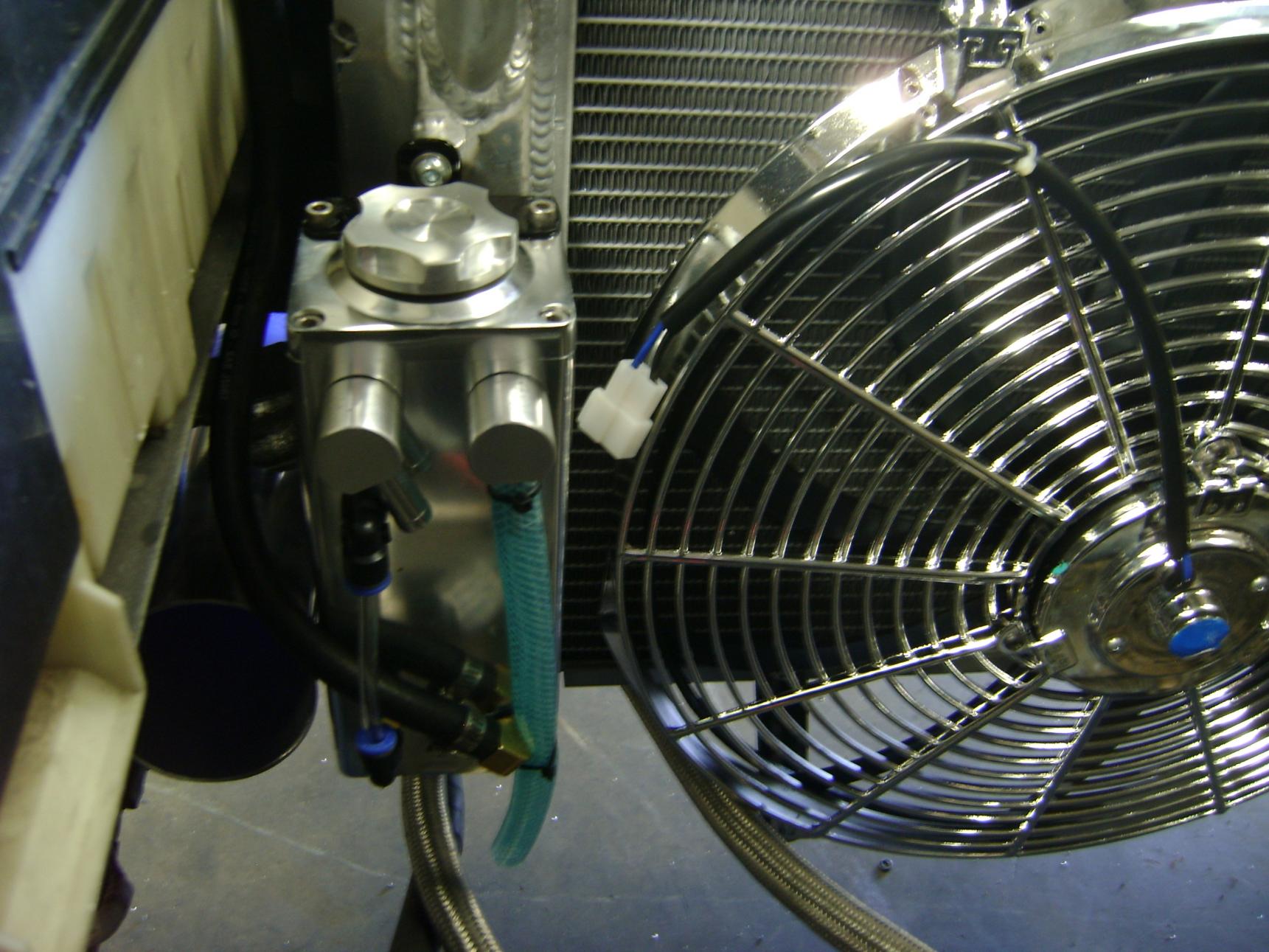

A few more parts fitted today 2 new oil coolers and braided oil lines and mounted the new radiator recovery tank

WJM ROTARIES

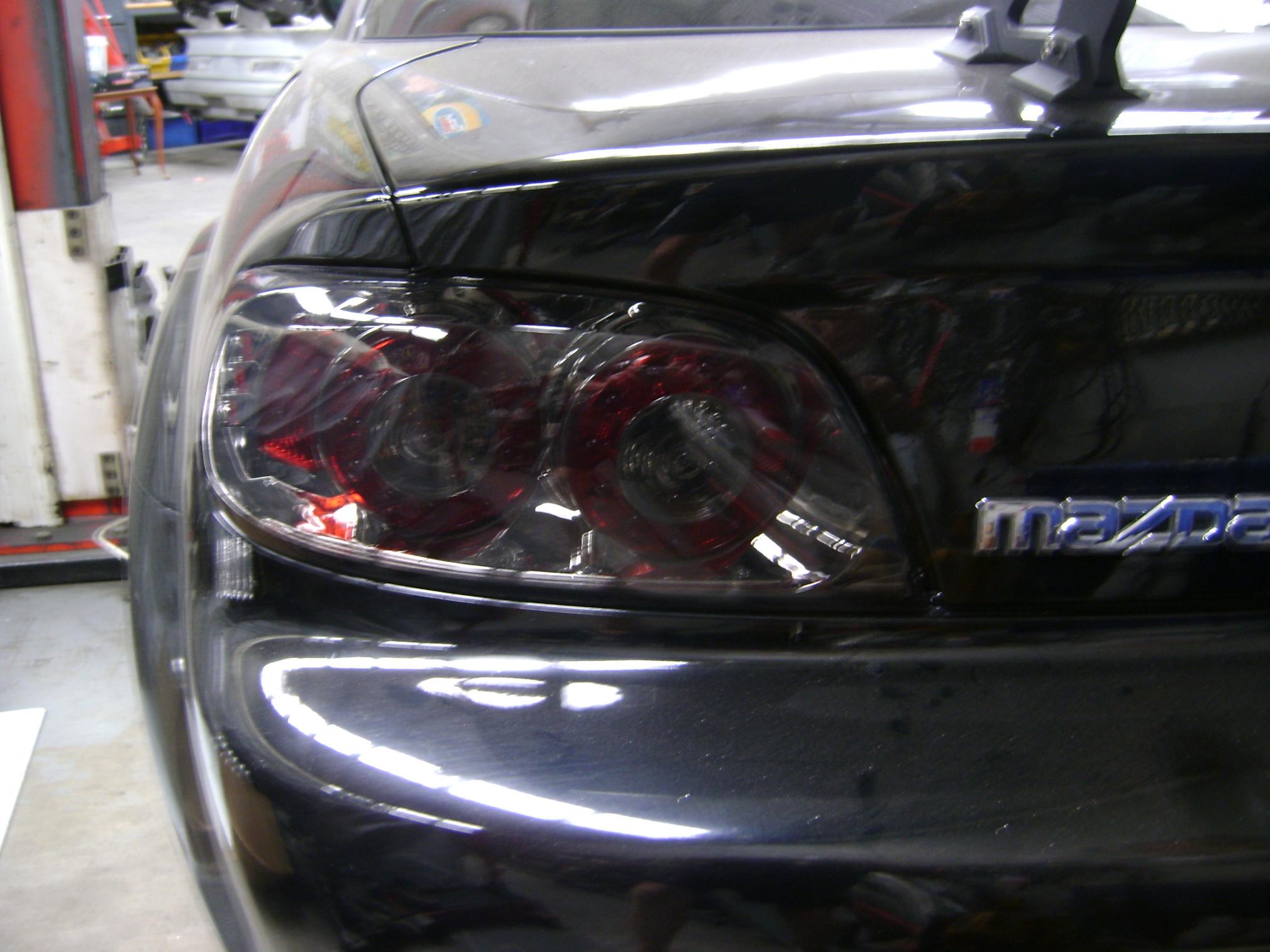

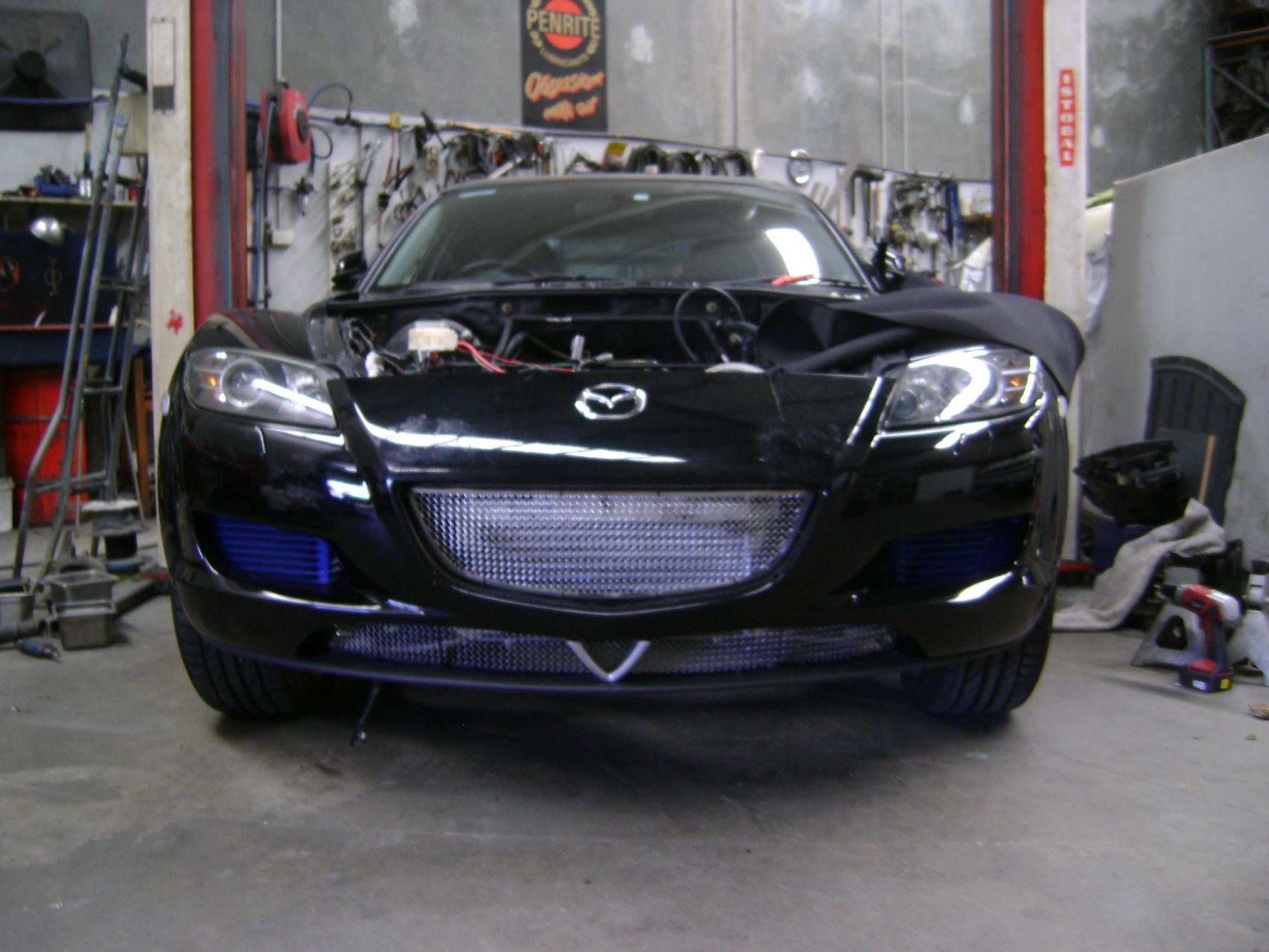

More bits fitted to car ,Mesh grills fitted ,& new LED tail lamps with shaded lenses

FwkUiWN

iTrader: (1)

thanks for the updates.looking forward to seeing what you do next

SiNfidelity

Not sure bout that, I'm using the xtreme block off on mine for filter relocation, and the clutch slave does bolt up, tho u do have to bend the fluid pipe a little for clearance.

SiNfidelity

Another Aussie build here too. Progress slower tho, on a budget lol n inexperienced
20b rx8 - RX8Club.com

FwkUiWN

iTrader: (1)

I follow your build on 8club Sin.... looking good.

WJM ROTARIES

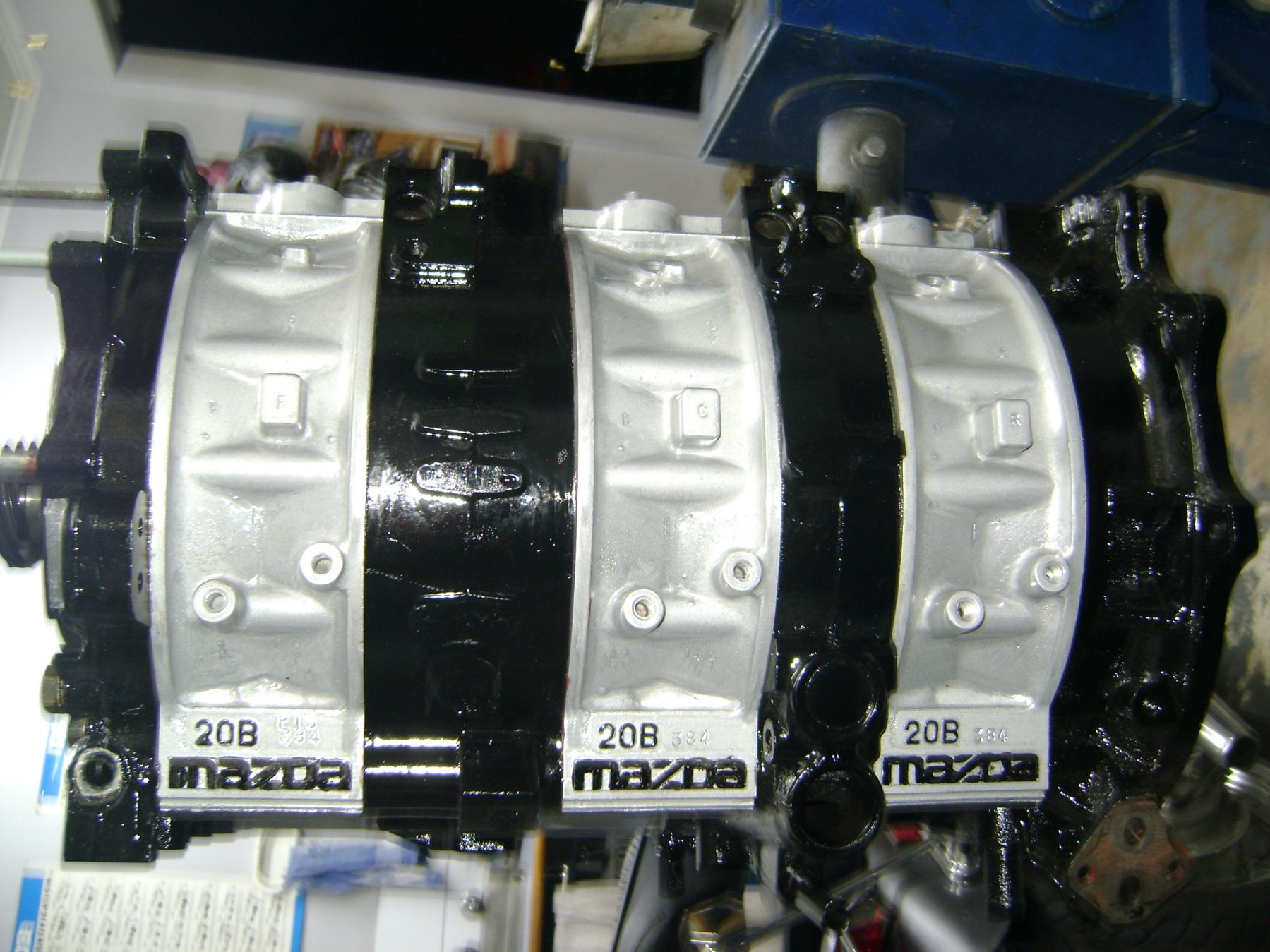

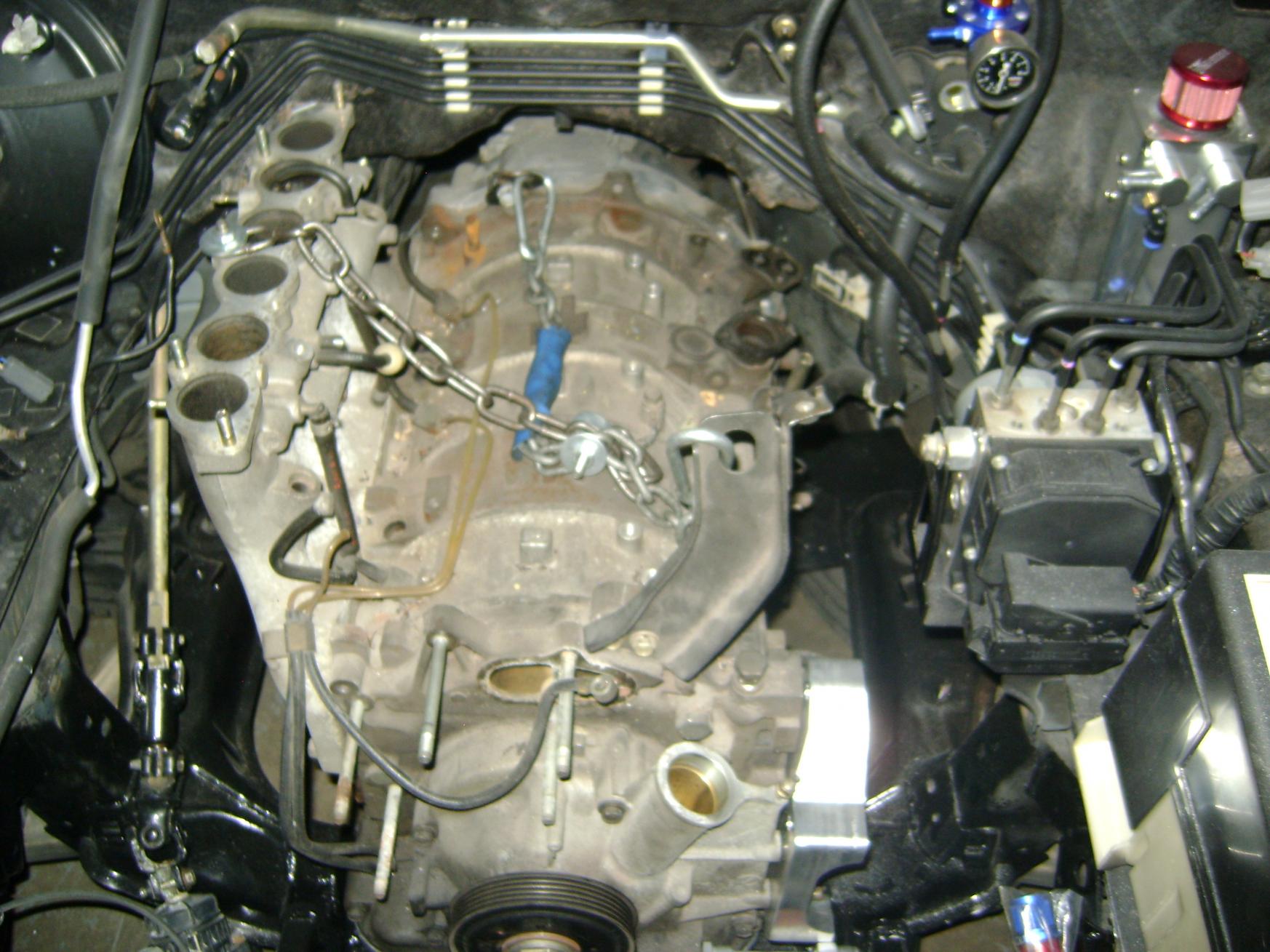

Have been a bit slow lately , But finally got the motor in and mounts made and assembled his motor

SiNfidelity

Oooohhh man, don't tease!! More pics n info please?? Haha

WJM ROTARIES

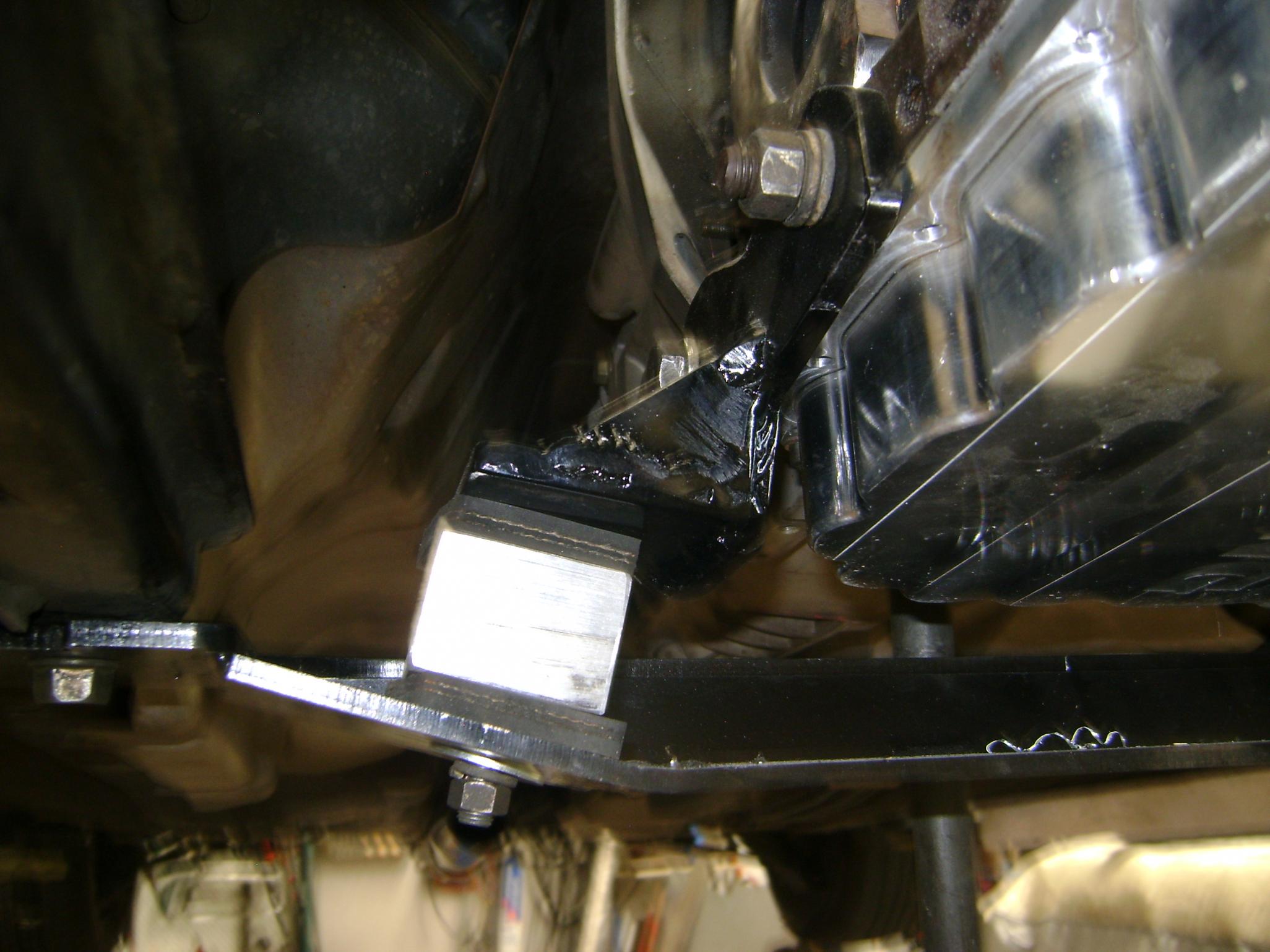

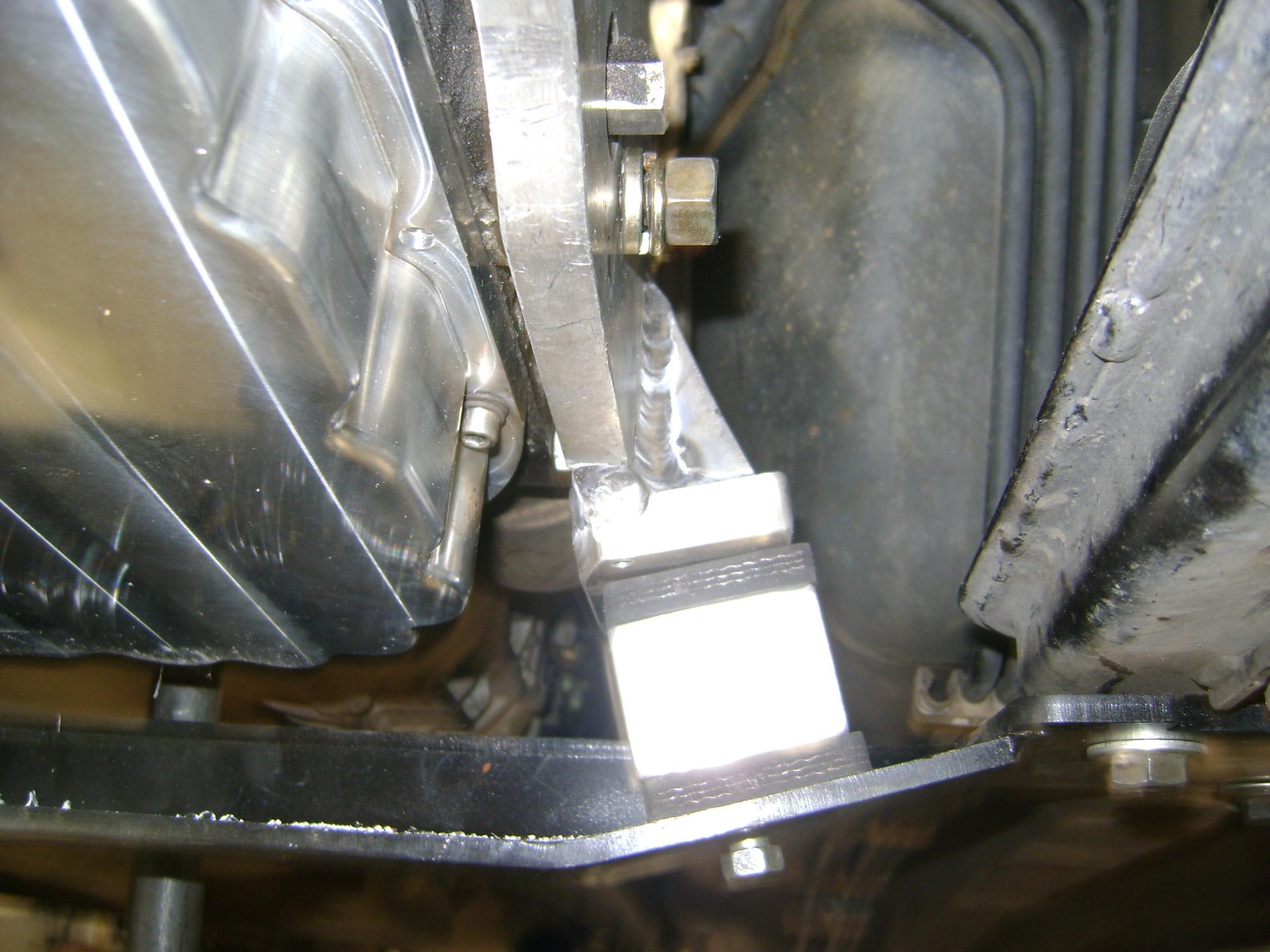

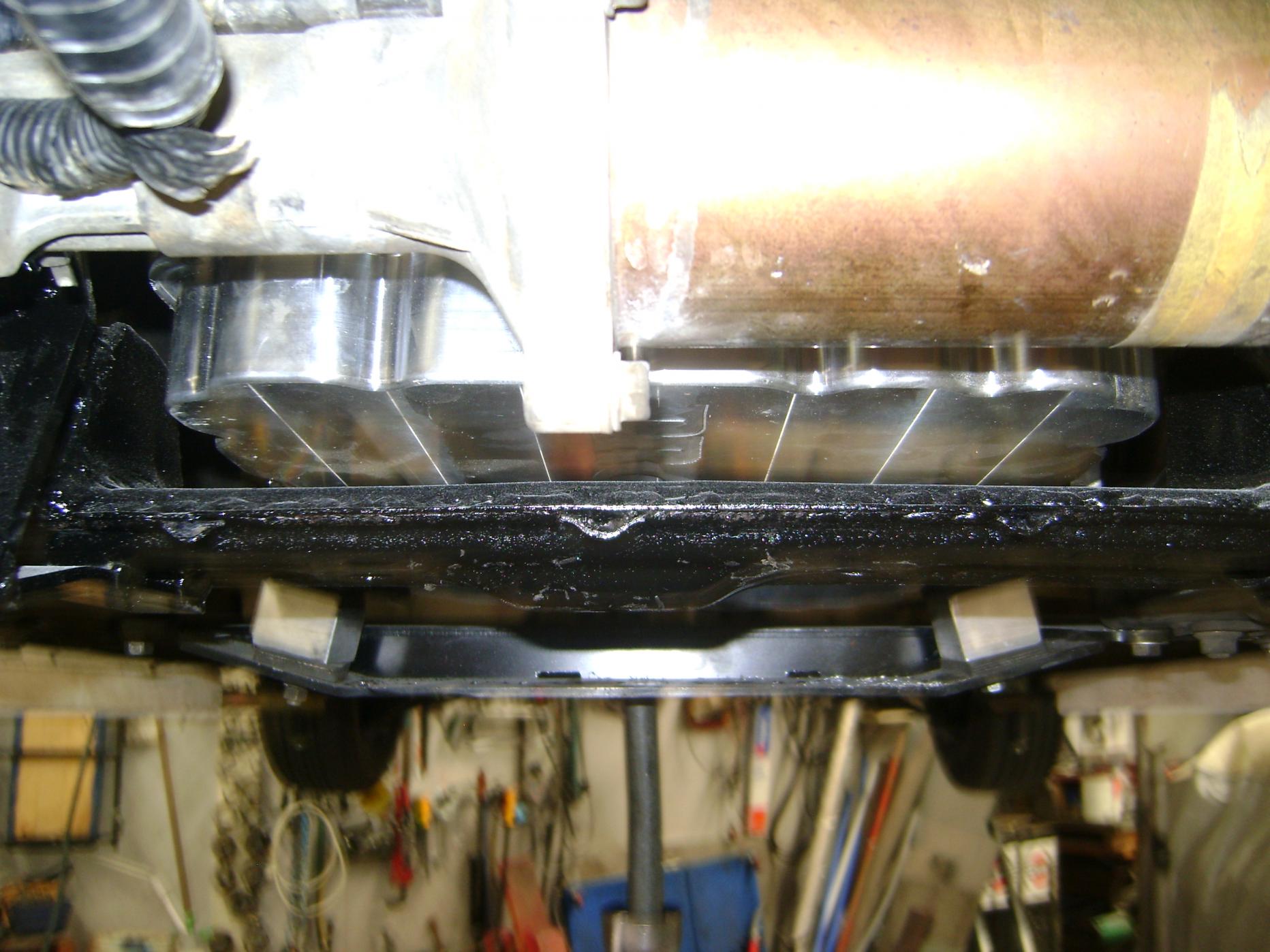

Engine mounts all finished and sump on and fits well

SiNfidelity

U make the sump?

What are the dimensions?

I need to change mine too.

SiNfidelity

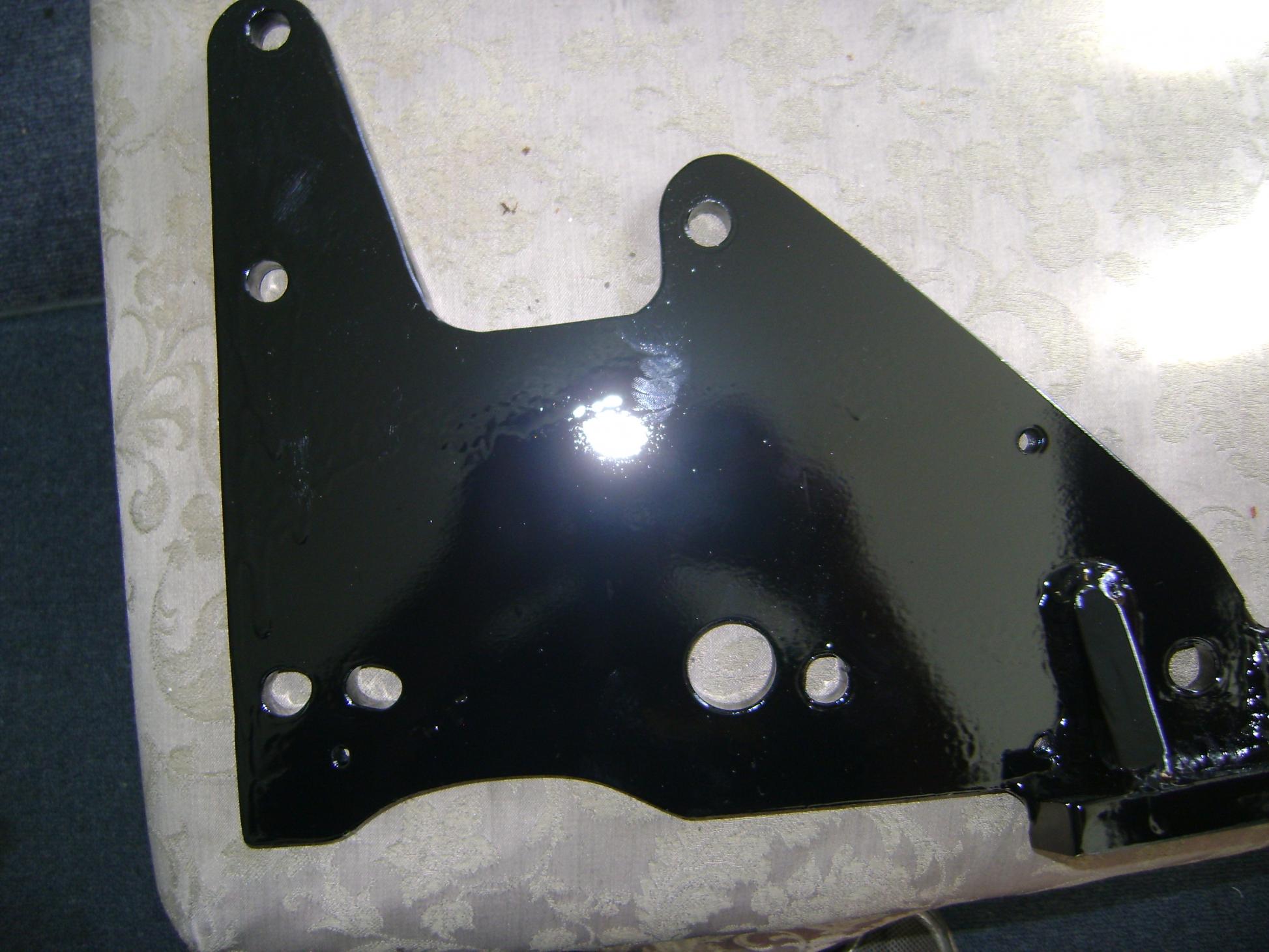

And why you go so HUGE with the passenger side engine bracket for the mount? Extra strength for the motor,? Like external bracing

WJM ROTARIES

Yes is part of my external dowling system

t-von

iTrader: (8)

I have a similar oil sump (not as pretty as yours though). You'll love the added oil capacity. With my twin 25 row oil coolers, my capacity is now 10 quarts. These engines need alot of cooling so this added capacity really helps keep the temps in check. .

SiNfidelity

Did u purchase ur sump or build it? I'm looking for an inexpensive option for mine. I need it to be shallower where it's deep and deeper where it's shallow, so basically a flat level bottom- no valleys and mountains lol.

Did u use brand name coolers or cheapie universal? I was goin to use twin setrabs but they're costly and there's so many universal cheapie so around I wonder if ANY of them are actually ok quality?

WJM ROTARIES

The sump was made by another rotary builder here in Australia .I used cheaper coolers that are good quality

t-von

iTrader: (8)

I built mine. My engine is moved back and lowered in the fd so the stock oil pan was about 2" from the ground. This was when I had stock tires and lowered suspension. Didn't take long for me to scrape it on a test drive. New sump has 1/2" plate with 2" sump. It's not perfect and leaks at the flange so I still need to tweak it some. To me, heat exchangers are heat exhangers. As long as they hold the pressure and have lots of fins, and have proper ducting, they should work just fine. Coolers I just bought some cheapie black 25 row coolers off ebay. My radiator is a cheapie 3 row off a 2nd gen Supra. It makes a Koyo look like a little boy. They've held up so far.

SiNfidelity

Thanks tvon n wjm.

Do either of u know the exact order for the omp lines to connect to the housings?

WJM ROTARIES

Does not matter there is no order usually where they all fit neatly

SiNfidelity

Damn I want that sump. Grrr. Sooo expensive.

SiNfidelity

How's the progress?

Curious about what rx8 factory sensors u will retain?

Knock, engine water temp, oil pressure etc. I'm unsure whether to use Rene sensors, 20b or aftermarket sensors for this purpose.

I'll have external gauges anyway but I need the rx8 ECU to function properly too.

WJM ROTARIES

I was going to use the reni sensors but owner has pulled the pin on car so looks like I am not going to finish job
