New manifold pics

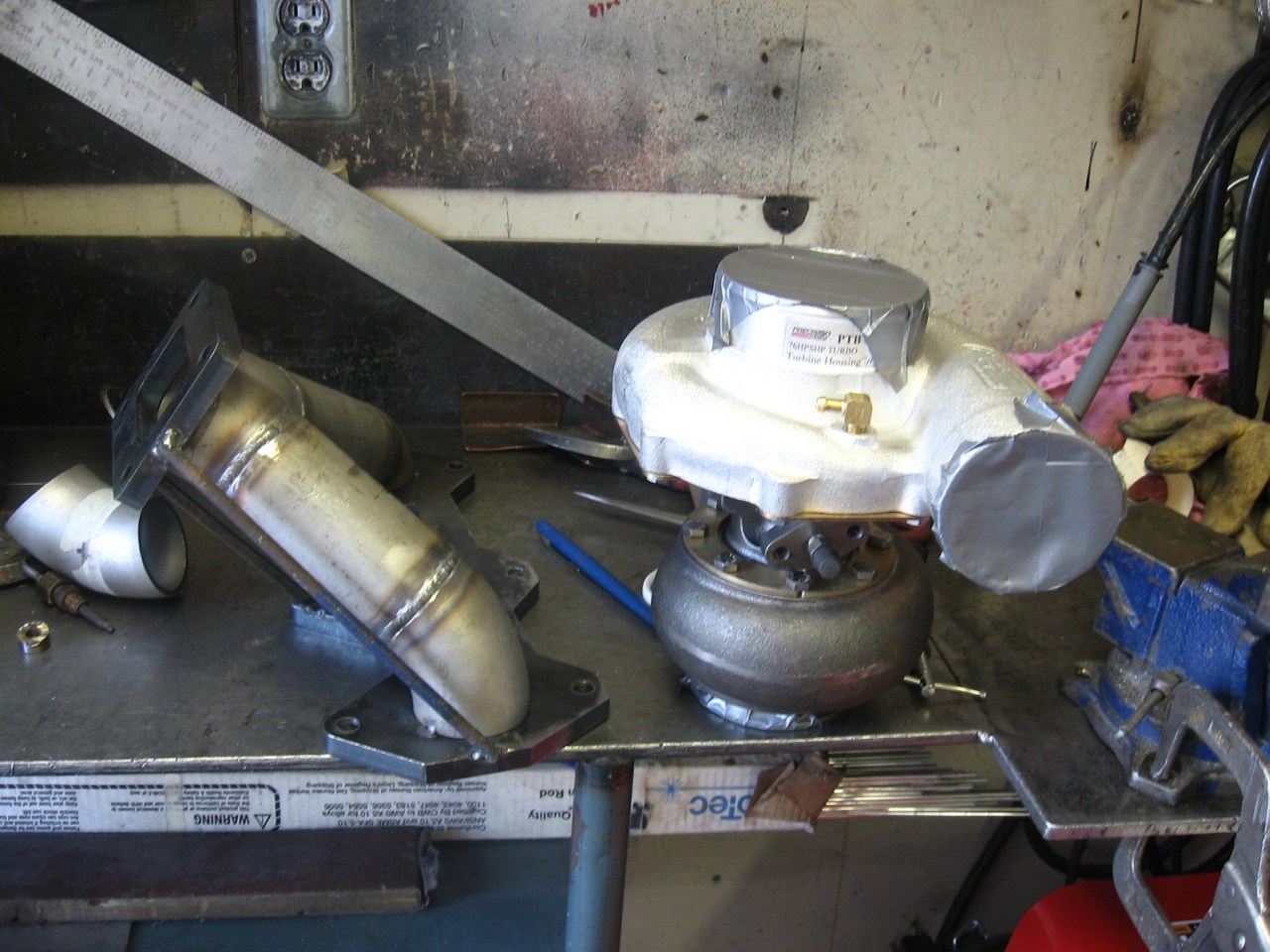

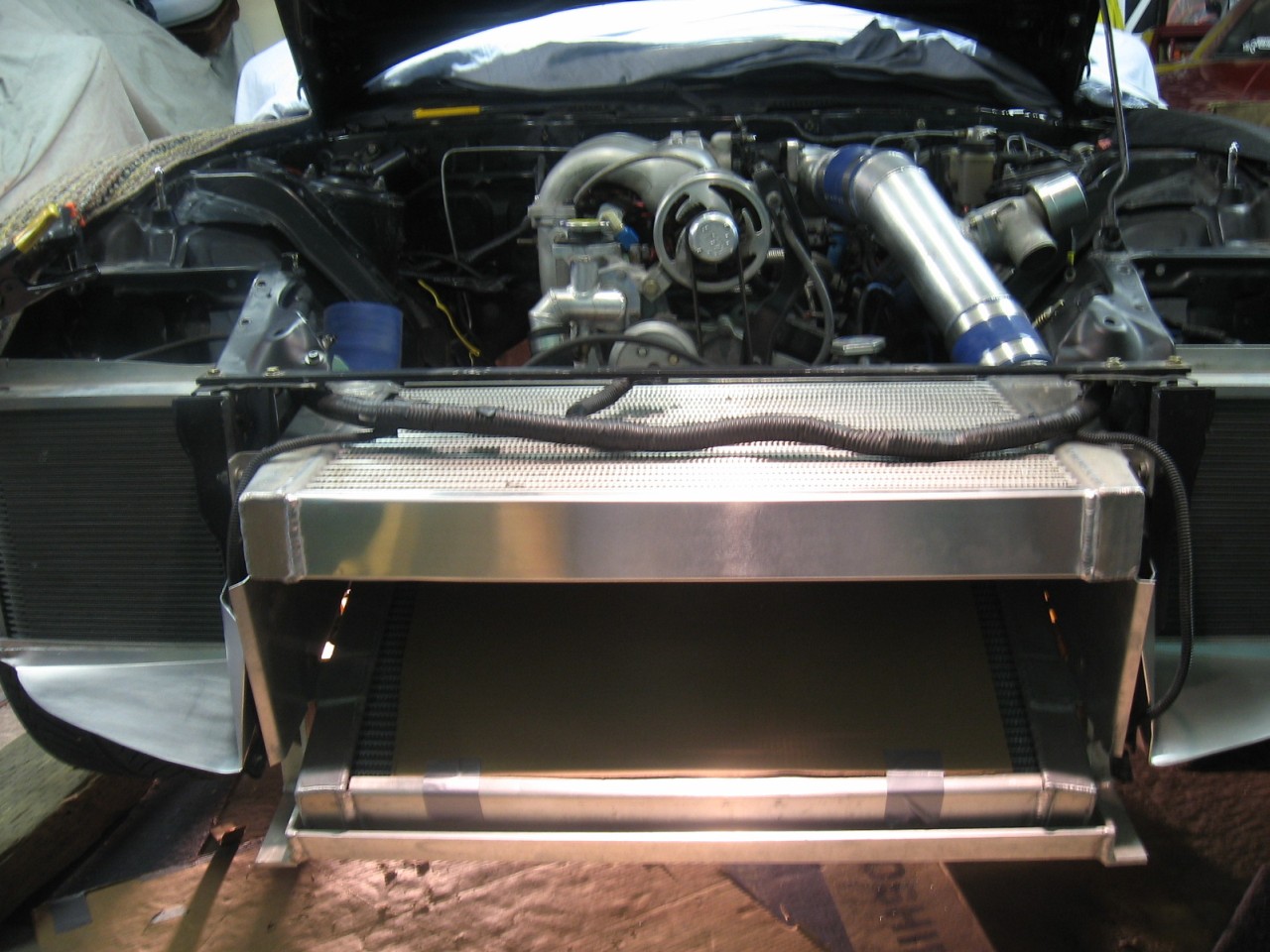

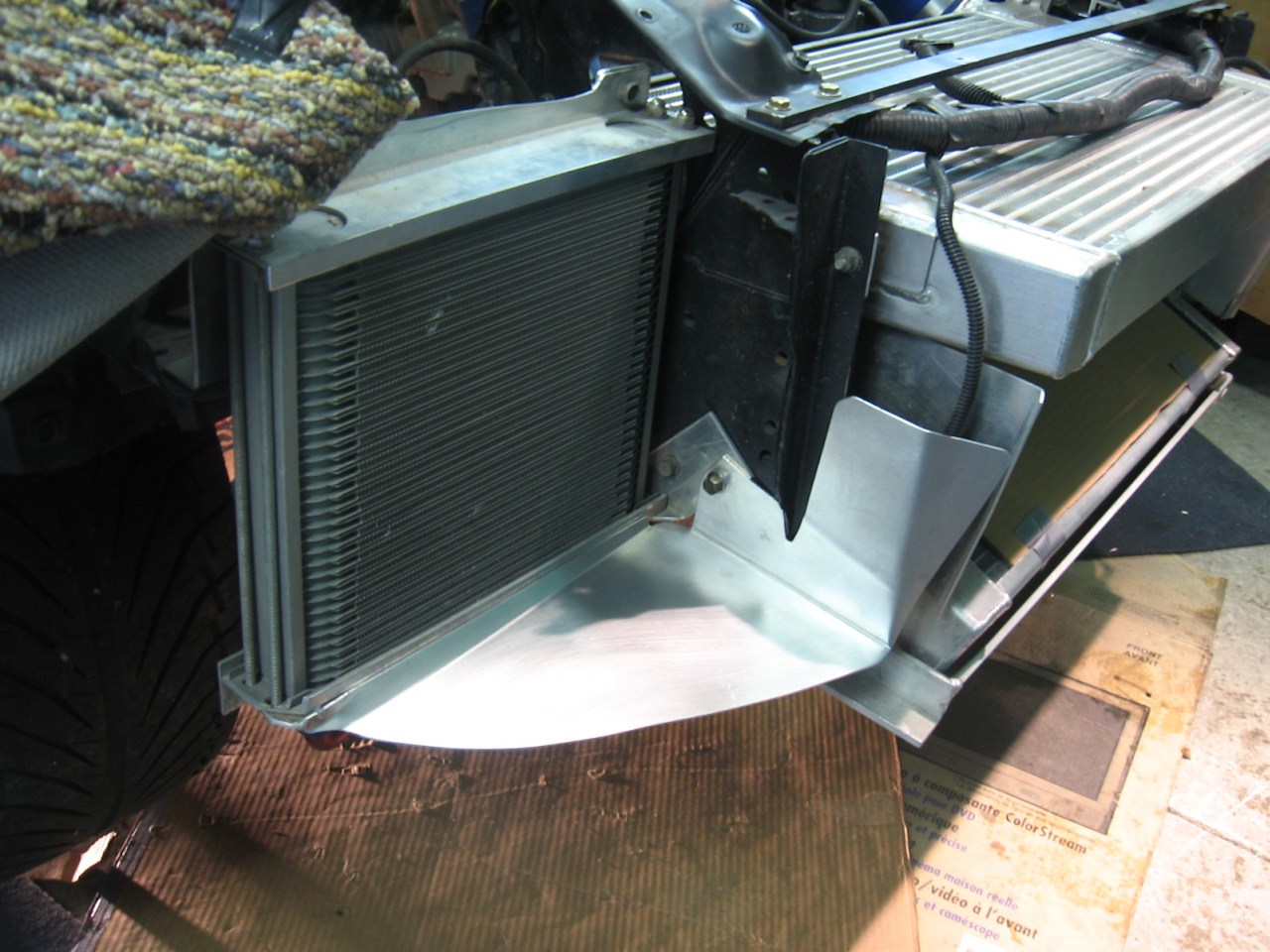

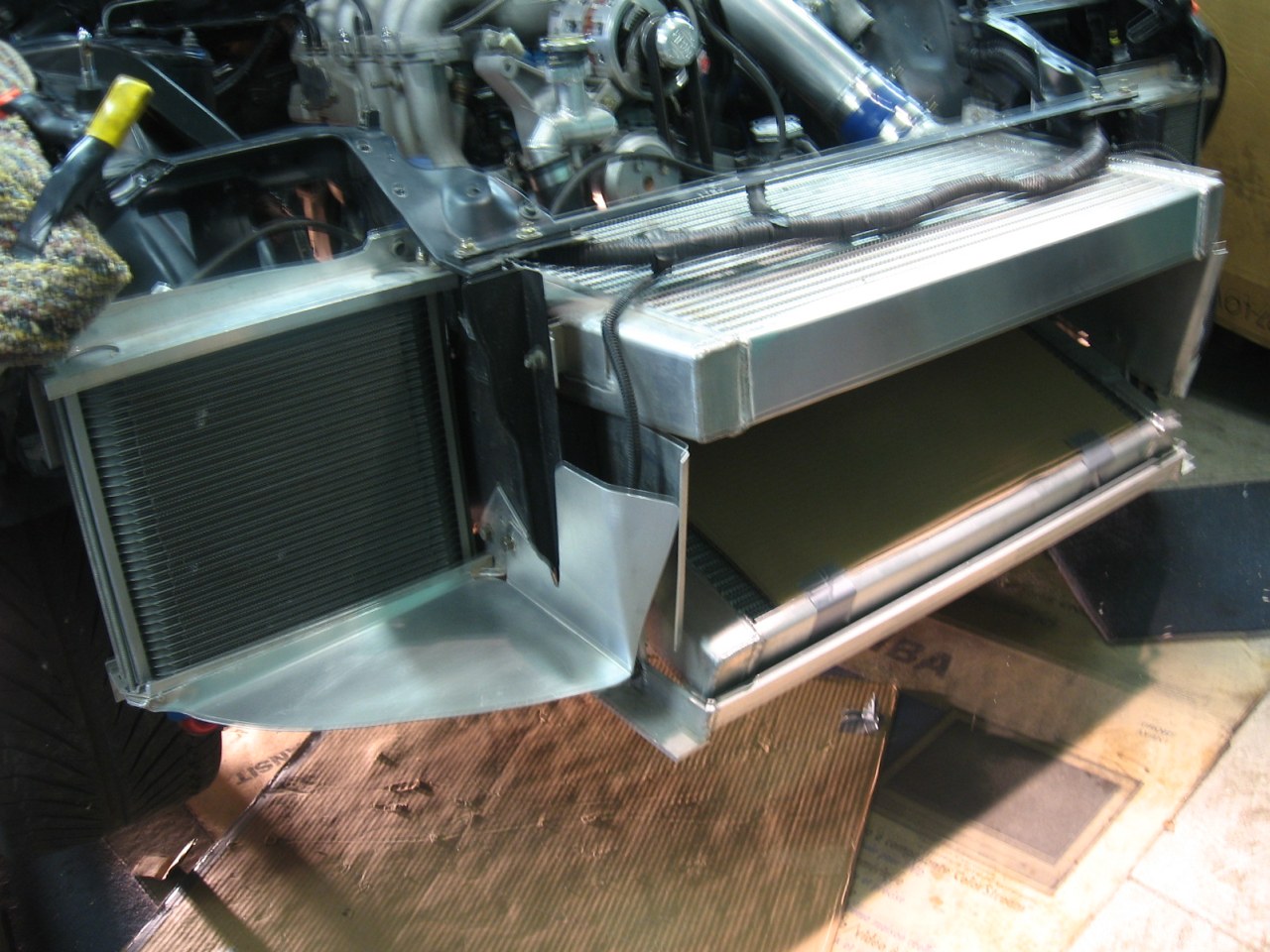

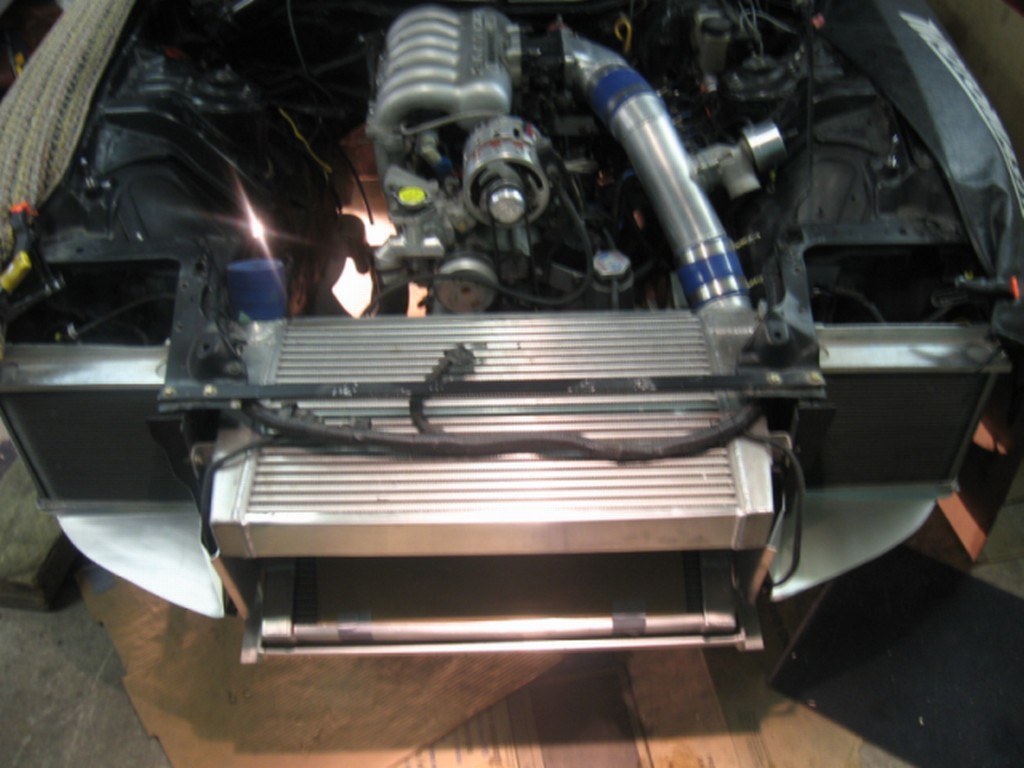

After my previous turbo failed (modified T78) replaced it with a Presicion T76, unfortunitely it did not fit on my existing manifold. Here are a few pics of the new manifold being build and some new venting for the oil coolers.
Attached Thumbnails New manifold pics-new-manifold-pics-001.jpg   New manifold pics-new-manifold-pics-002.jpg   New manifold pics-new-manifold-pics-003.jpg   New manifold pics-new-manifold-pics-008.jpg   New manifold pics-new-manifold-pics-004.jpg

Reply
Old Dec 8, 2008 | 11:36 PM
  #2
black93RX7's Avatar
Thread Starter
20BFD
Tenured Member 10 Years

Joined: Sep 2002
Posts: 506
Likes: 1
From: Winnipeg

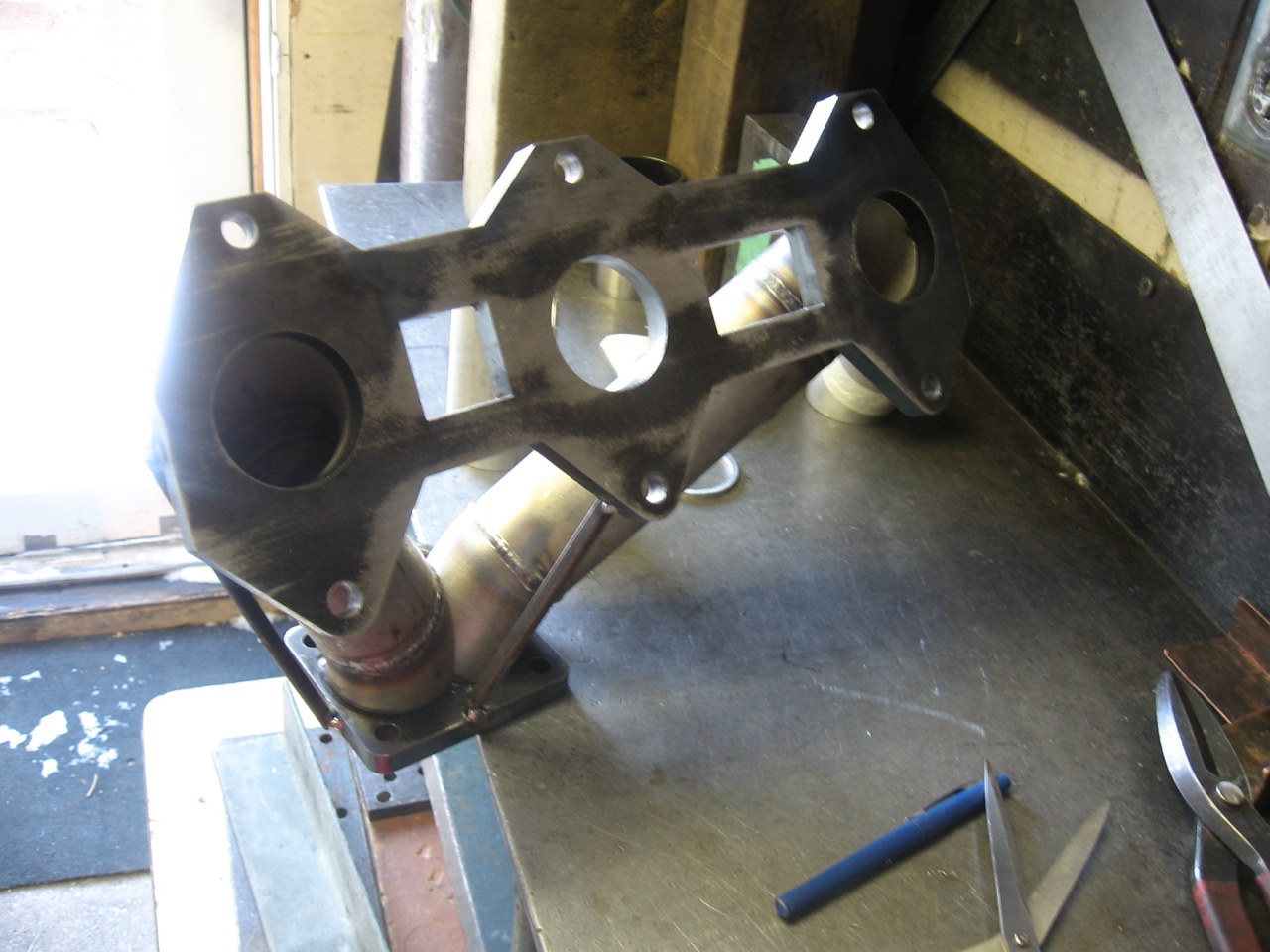

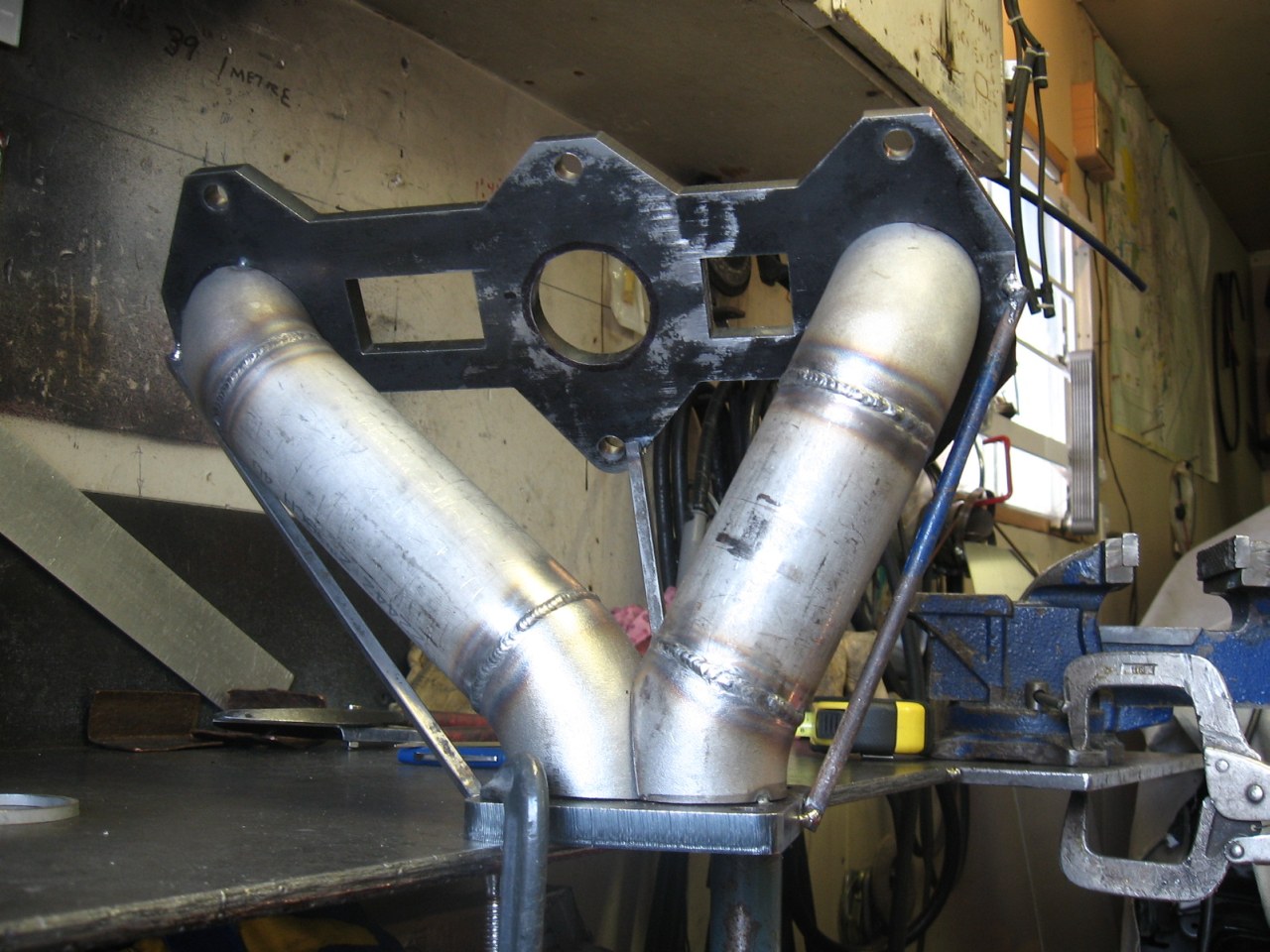

Few more, obviously alot more to do with the maniflod.
Attached Thumbnails New manifold pics-new-manifold-pics-006.jpg   New manifold pics-new-manifold-pics-007.jpg
Reply
Old Dec 10, 2008 | 12:33 AM
  #3
induetime's Avatar
LagLess

Joined: Oct 2008
Posts: 2
Likes: 0
From: Phoenix, AZ
Wow

That looks great. I am looking forward to seeing how this project turns out.
