Need This Information Concerning Timing Mark

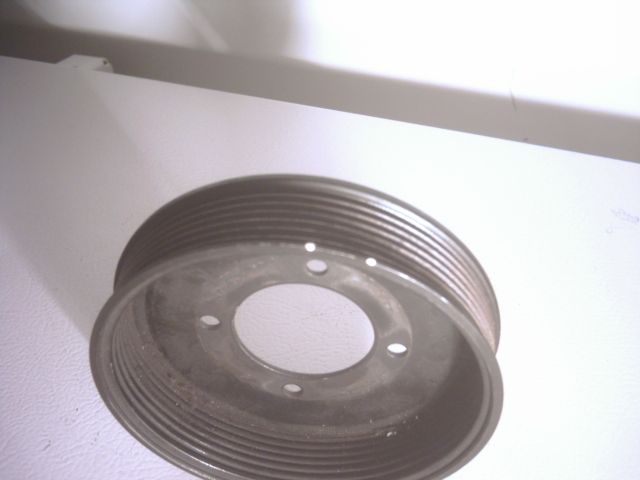

Hi, the 2 mark on 20B shaft pulley is 0° for Leading and 0° for trailing, or the first mark i see (left) is 5° ATDC for Leading and the second is 20° ATDC for trailing?
Microtech recommend put 5°ATDC, is with Leading or Trealing side?
Thanks

Attached Thumbnails

Need This Information Concerning Timing Mark-timing-mark.jpg

Apr 11, 2005 | 08:04 AM

RETed

Lives on the Forum

Joined: Feb 2001

Posts: 26,664

Likes: 22

From: n

5-degrees ATDC is the right side mark, and it's for the front leading.

-Ted

Apr 11, 2005 | 11:28 AM

teachermechanic

Thread Starter

Senior Member

iTrader: (4)

Joined: Oct 2002

Posts: 513

Likes: 1

From: east Québec

Quote:

Originally Posted by RETed

5-degrees ATDC is the right side mark, and it's for the front leading.

-Ted

Thanks for this information..................
