Matt's NA 20B PP build

Hello All,

I have recently purchased (for a pretty good deal) a Racing Beat built P-Port 20B. I'm pretty sure I'll be putting in an Rx-8 but I am going to get it running on the ground before I buy the chassis I'll be putting it into to. Right now my plan is design and build everything myself for the fun of doing it. This is will be a long project, but I should make slow constant progress in the design and testing of parts. I plan to build a test stand for the engine soon so that I can start assembling parts for it.

Current Engine Specs:
Racing Beat peripheral port housings
Lightweight FD rotors
Ceramic apex seals
Racing beat water jacket mod
Balanced rotating assembly


Parts Plan:
MFR drysump
Adaptronic M6000 ECU
Custom Slide throttle
*potential* Variable length Air horns
5.5" flywheel & clutch
EWP setup



Should be FUN!



Pics:









Last edited by highnitro12187; 05-28-17 at 12:30 AM.
highnitro12187 is offline
Old 05-27-17, 05:09 PM
  #2
Full Member

Join Date: Jun 2007
Location: chch
Posts: 195
Likes: 0
Received 0 Likes on 0 Posts
Great to see another build underway. I take it you got this direct from Racing Beat?

I'm suprised to see that they PP'ed a long crank 20b, seems almost a wasy of a thick center plate. Also I see you have an fd Front cover on it. I take it you intend on running the fd Reluctor and crank sensors?
You might want to confirm that the crank pulley hub is an FD one, I cant see the locking pin on the front which makes me think it may be a 20b one.

This will giving you timing issues down the track if it isn't resolved.

https://www.rx7club.com/20b-forum-95...quest-1091664/

Most of what you need to know is in the above thread.
hsmidy is offline
Old 05-27-17, 10:14 PM
  #3
Spankin' the Wank
Thread Starter
iTrader: (21)

highnitro12187's Avatar

Join Date: Dec 2007
Location: Dallas, Texas
Posts: 535
Received 2 Likes on 2 Posts
Originally Posted by hsmidy View Post
Great to see another build underway. I take it you got this direct from Racing Beat?

I'm suprised to see that they PP'ed a long crank 20b, seems almost a wasy of a thick center plate. Also I see you have an fd Front cover on it. I take it you intend on running the fd Reluctor and crank sensors?
You might want to confirm that the crank pulley hub is an FD one, I cant see the locking pin on the front which makes me think it may be a 20b one.

This will giving you timing issues down the track if it isn't resolved.

https://www.rx7club.com/20b-forum-95...quest-1091664/

Most of what you need to know is in the above thread.
I actually bought this engine from a guy who had it built 8 years ago, it has never ran. The engine was for sale on ebay for months and I watched the price drop as time went on. After awhile I contacted the seller and made on an off ebay deal.

I noticed right after buying it that it had the FD front cover and not an FD hub. I have already purchased an FD pulley hub/pulley and timing ring to match the rest of the setup. I do plan on buying the FFE kit, if the drysump front cover will allow for its use.
highnitro12187 is offline
Old 05-27-17, 10:37 PM
  #4
Spankin' the Wank
Thread Starter
iTrader: (21)

highnitro12187's Avatar

Join Date: Dec 2007
Location: Dallas, Texas
Posts: 535
Received 2 Likes on 2 Posts
I drew up a quick exhaust flange in Solidworks and 3D printed a sample to check fit. Part fit fine, I think I will thin it out a bit. I am debating between running 3 single flanges and 1 flange with 3 ports. Less weight and cheaper material cost with 3 single flanges. I have not really came up with any benefits of a long 3 port flange.

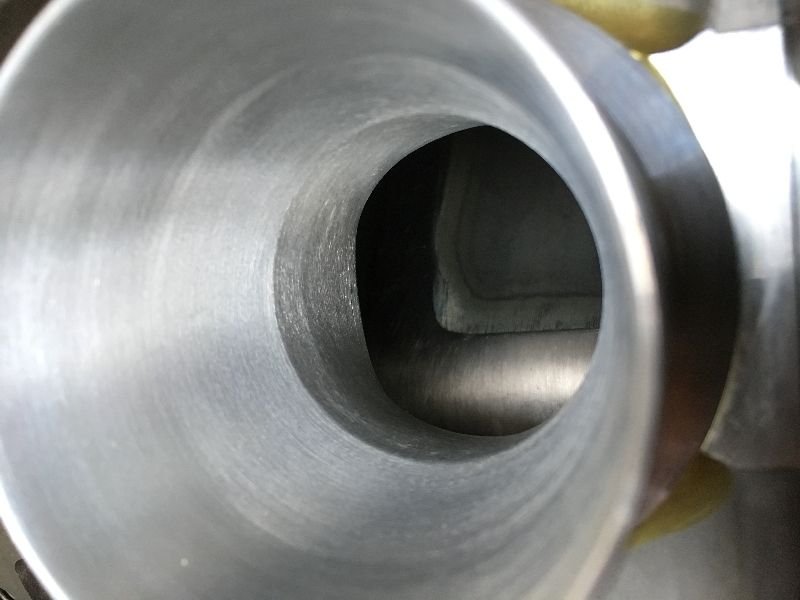

Also took some detailed port pictures today. Seems like RB did a great job with the port work.












highnitro12187 is offline
Old 05-28-17, 08:42 PM
  #5
Rotor Head Extreme
iTrader: (8)

t-von's Avatar

Join Date: Apr 2002
Location: Midland Texas
Posts: 6,707
Likes: 0
Received 10 Likes on 8 Posts
What up Matt? Glad to see you got your engine!
t-von is offline
Old 05-28-17, 10:16 PM
  #6
Rotary Enthusiast
iTrader: (7)

Join Date: Jul 2002
Location: Va
Posts: 1,203
Likes: 0
Received 2 Likes on 2 Posts
I thought about sending that guy a really low offer, but resisted. How much did you get off his asking price if you don't mind me asking?

Chip has a group buy for a really nice exhaust flange. Save yourself the trouble and give him a call...
Mdessouki is offline
Old 05-29-17, 04:09 PM
  #7
Spankin' the Wank
Thread Starter
iTrader: (21)

highnitro12187's Avatar

Join Date: Dec 2007
Location: Dallas, Texas
Posts: 535
Received 2 Likes on 2 Posts
Originally Posted by t-von View Post
What up Matt? Glad to see you got your engine!
Hey Trey, hope to see you put up a build thread soon!


Originally Posted by Mdessouki View Post
I thought about sending that guy a really low offer, but resisted. How much did you get off his asking price if you don't mind me asking?

Chip has a group buy for a really nice exhaust flange. Save yourself the trouble and give him a call...
I've seen the Chip flange, it is a nice piece but I want to build every part of this that I can, since it will be cheaper and a good learning experience for me. I'll be buying a CNC mill somewhat soon so that I can do all the work in house for cost of materials.

I only offered 10% less than his asking price as it was/is a great deal in general. I have receipts for over 13k just from Racing beat, not including cost of the engine in the first place.
highnitro12187 is offline
Old 05-30-17, 11:14 AM
  #8
Rotary Enthusiast
iTrader: (7)

Join Date: Jul 2002
Location: Va
Posts: 1,203
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by highnitro12187 View Post
Hey Trey, hope to see you put up a build thread soon!




I've seen the Chip flange, it is a nice piece but I want to build every part of this that I can, since it will be cheaper and a good learning experience for me. I'll be buying a CNC mill somewhat soon so that I can do all the work in house for cost of materials.

I only offered 10% less than his asking price as it was/is a great deal in general. I have receipts for over 13k just from Racing beat, not including cost of the engine in the first place.
I was going to offer 66% of his asking to see if he would bite. Glad I get to see the build...
Mdessouki is offline
Old 06-08-17, 12:26 PM
  #9
Rotor Head Extreme
iTrader: (8)

t-von's Avatar

Join Date: Apr 2002
Location: Midland Texas
Posts: 6,707
Likes: 0
Received 10 Likes on 8 Posts
Yea, I know an actual build thread is long over due but the project keeps morphing. Getting ready to pull the engine so I can build version 2 of my intake. Hopefully this one doesn't look like some hack job. Seeing if I can get enough done before Sevenstock this year. Gonna upgrade to the Haltech Elite as well.
t-von is offline
Old 06-08-17, 05:45 PM
  #10
Spankin' the Wank
Thread Starter
iTrader: (21)

highnitro12187's Avatar

Join Date: Dec 2007
Location: Dallas, Texas
Posts: 535
Received 2 Likes on 2 Posts
Originally Posted by t-von View Post
Yea, I know an actual build thread is long over due but the project keeps morphing. Getting ready to pull the engine so I can build version 2 of my intake. Hopefully this one doesn't look like some hack job. Seeing if I can get enough done before Sevenstock this year. Gonna upgrade to the Haltech Elite as well.
At least your too busy working on the car to make a thread..... I can't wait to see your new setup. I'm hoping that I can go to sevenstock this year, it won't be in my 20B powered car though.
highnitro12187 is offline
Old 11-19-17, 08:32 PM
  #11
Spankin' the Wank
Thread Starter
iTrader: (21)

highnitro12187's Avatar

Join Date: Dec 2007
Location: Dallas, Texas
Posts: 535
Received 2 Likes on 2 Posts
Decided to tear the engine down and see whats inside........









highnitro12187 is offline
Old 11-20-17, 02:47 AM
  #12
Junior Member

Join Date: Nov 2017
Location: Washington
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts
Lucky guy.

Last edited by GoodfellaFD3S; 12-17-17 at 08:56 PM.
USMC REPU is offline
Old 11-20-17, 02:48 AM
  #13
Junior Member

Join Date: Nov 2017
Location: Washington
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts
I Like it, Nice 20b.
USMC REPU is offline
Old 12-13-17, 07:37 PM
  #14
Spankin' the Wank
Thread Starter
iTrader: (21)

highnitro12187's Avatar

Join Date: Dec 2007
Location: Dallas, Texas
Posts: 535
Received 2 Likes on 2 Posts
I picked up a MFR drysump setup today from a local guy. Came off of a formula mazda 13B-MSP. It is pretty much new with only break-in dyno time. I'll tear it all down in the next couple days, inspect everything and clean it up.


highnitro12187 is offline
Old 12-17-17, 04:04 PM
  #15
Spankin' the Wank
Thread Starter
iTrader: (21)

highnitro12187's Avatar

Join Date: Dec 2007
Location: Dallas, Texas
Posts: 535
Received 2 Likes on 2 Posts
I took apart the oil pump assembly as far as I easily could, everything looks great inside. I cleaned out all the residual oil and added some fresh assembly lube to the gears. Now it sitting on my ready to go parts shelf.


highnitro12187 is offline
Old 12-17-17, 08:58 PM
  #16
Original Gangster/Rotary!

iTrader: (206)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,999
Received 138 Likes on 111 Posts
Dude, some serious eye candy. The coolant passage work near the spark plugs made me raise my eyebrows

I like the fact that you set the parts on towels, make sure they're resting nice and comfortably
GoodfellaFD3S is offline
Old 12-18-17, 06:15 PM
  #17
Spankin' the Wank
Thread Starter
iTrader: (21)

highnitro12187's Avatar

Join Date: Dec 2007
Location: Dallas, Texas
Posts: 535
Received 2 Likes on 2 Posts
Originally Posted by GoodfellaFD3S View Post
Dude, some serious eye candy. The coolant passage work near the spark plugs made me raise my eyebrows

I like the fact that you set the parts on towels, make sure they're resting nice and comfortably
I do love the coolant passage work racing beat did on these housings. I can't wait to be able to record all the temp data for this engine and "maybe" see how effective all these "little" mods are.

I'm paranoid about scratching things or parts rolling into each other, the towels prevent this. When I do a final clean on the parts I'll seal them in plastic until they get assembled, they still we be resting on towels though haha. A comfortable engine is a happy engine
highnitro12187 is offline
Old 01-04-18, 03:28 PM
  #18
Full Member
iTrader: (1)

EllaMoto's Avatar

Join Date: Apr 2011
Location: Netherlands
Posts: 68
Likes: 0
Received 0 Likes on 0 Posts
Who cnc'd those rotors?
Looks similar to the work i have seen from chip when it comes to the oil gallery's.
You have got yourself a sweet engine!
EllaMoto is offline
Old 01-04-18, 04:46 PM
  #19
Spankin' the Wank
Thread Starter
iTrader: (21)

highnitro12187's Avatar

Join Date: Dec 2007
Location: Dallas, Texas
Posts: 535
Received 2 Likes on 2 Posts
Originally Posted by EllaMoto View Post
Who cnc'd those rotors?
Looks similar to the work i have seen from chip when it comes to the oil gallery's.
You have got yourself a sweet engine!

According to the invoice I got with the engine it says Racing Beat machined them. Thank

I will probably be trading these rotors with a gentlemen who has a set of 3 S5 NA lightweight rotors. Still working out the details but I'd love to go high comp.

Matt
highnitro12187 is offline
Old 01-10-18, 09:25 AM
  #20
Rotary Enthusiast
iTrader: (7)

Join Date: Jul 2002
Location: Va
Posts: 1,203
Likes: 0
Received 2 Likes on 2 Posts
I have a NA set (three) of rotors that were balanced by Roger Mandeville that I may part with if your deal falls through. PM me if interested.

Thanks,
Mike
Mdessouki is offline
Old 05-17-18, 09:28 PM
  #21
Full Member

Join Date: Jan 2010
Location: Southend-On-Sea
Posts: 62
Received 4 Likes on 4 Posts
Nice thread this, great engine!

any updates?
tomCTR is offline
Old 05-19-18, 11:00 AM
  #22
Spankin' the Wank
Thread Starter
iTrader: (21)

highnitro12187's Avatar

Join Date: Dec 2007
Location: Dallas, Texas
Posts: 535
Received 2 Likes on 2 Posts
Originally Posted by tomCTR View Post
Nice thread this, great engine!

any updates?
Right now I've been working on slowly doing all the mods needed to run the drysump on the engine. I've drilled and tapped the bearing oil feed holes in the front and center iron. My wife and I will be buying a house in the next few months so most updates will come after that as I've been waiting for my new garage before getting too deep on this project. I'll probably have the engine reassembled in the next month or two as I don't want to move with it in pieces (too risky).

Matt
highnitro12187 is offline
Old 05-19-18, 01:10 PM
  #23
Junior Member

Join Date: Jun 2017
Location: Orlando, Fl
Posts: 10
Likes: 0
Received 2 Likes on 2 Posts
Looking forward to seeing this running and getting your opinion on the MFR unit!
calichase is offline
Old 06-03-18, 01:32 PM
  #24
Rotor Head Extreme
iTrader: (8)

t-von's Avatar

Join Date: Apr 2002
Location: Midland Texas
Posts: 6,707
Likes: 0
Received 10 Likes on 8 Posts
Originally Posted by highnitro12187 View Post
Right now I've been working on slowly doing all the mods needed to run the drysump on the engine. I've drilled and tapped the bearing oil feed holes in the front and center iron. My wife and I will be buying a house in the next few months so most updates will come after that as I've been waiting for my new garage before getting too deep on this project. I'll probably have the engine reassembled in the next month or two as I don't want to move with it in pieces (too risky).

Matt
Hey Matt seems they went all out on your engine. To further bullet proof, I would highly recommend sending your rotory housings to Chips Motorsports so he can install those PP block off plates since you already have everything apart. Eventually that epoxy will start to leak over enough heat cycles due to expansion differences of the epoxy and aluminum. That's been my biggest problem with my setup. With his plates, you won't ever have to worry about the engine drinking coolant.
t-von is offline
Old 06-04-18, 07:43 AM
  #25
Spankin' the Wank
Thread Starter
iTrader: (21)

highnitro12187's Avatar

Join Date: Dec 2007
Location: Dallas, Texas
Posts: 535
Received 2 Likes on 2 Posts
Originally Posted by t-von View Post
Hey Matt seems they went all out on your engine. To further bullet proof, I would highly recommend sending your rotory housings to Chips Motorsports so he can install those PP block off plates since you already have everything apart. Eventually that epoxy will start to leak over enough heat cycles due to expansion differences of the epoxy and aluminum. That's been my biggest problem with my setup. With his plates, you won't ever have to worry about the engine drinking coolant.
I have thought about sending them his way, but I honestly think the racing beat housings will hold up better since the P port sleeves are threaded in and have an Oring seal on it. The engine will probably come apart after I get it running for a high comp rotor swap, so worst case I'll do it down the road. If I start doing all of the "might as well while I'm in here" stuff I'll be another 10k in the hole too quick. haha.

Matt
highnitro12187 is offline
