shifti

I have a question to you guys that have the 20b Xcessive lower intake manifold.
The thing i need an answer to is if the xcessive lower LIM moves the UIM forward or backward compered to the stock one?
I had the xcessive 13b LIM on my 13b and it moved the UIM forward. I'am planing to move my 20b as far back as possible so i need to know if it moves the UIM.

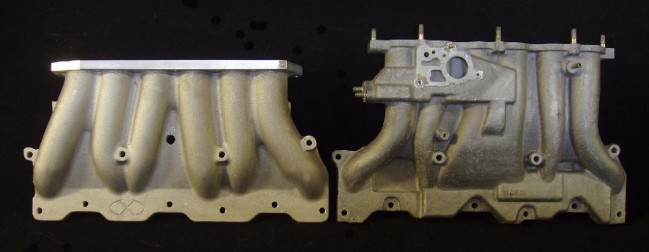

posting a picture of the two.

stickmantijuana

iTrader: (1)

It sits lower if you buy the low profile one, but doesn't move it forward or backward

shifti

Thank you.

t-von

iTrader: (8)

The lower the lim sits, the more room the uim has around the tranny tunnel "since the tunnel tappers back".

shifti

You read my mind t-von,
I was hoping to get the engine just behind the steering rack so i can lower it to the same higth the stock 13b is sitting.
So the 38mm lower xcessive intake will help since the firewall tapers back around the tunnel like you say.
I have been looking at your thread and you must have moved the engine even further back?
If my mesurements are correct i have to move the engine back 13cm to clear the rack.

t-von

iTrader: (8)

My engine sits 1/8" behind the rack and 2" lower than the factory 13b. It's so low that the oil outlet fitting on the front cover is 1/4" above the rack U mount straps.

RedDream

iTrader: (1)

Tvon and stickmantijuana,
If you dont mind sharing, What is the drivetrain angle on your setups? Would you guys know how many degrees back the stock rx8 and rx7 drivetrains are aligned?

stickmantijuana

iTrader: (1)

I tried to keep it at 3-5 degrees. Truth is, I don't think it matters. It would depend on your chassis strength and the more importantly how you measure it. It's hard to measure it. The casings aren't square. OEM rubber coated frame is hard to get straight edge on. Just eyeball it straight using stock mounting holes as index. If you need that 5hp extra that would come from the perfect chassis flex at particular torque output which would line up your transmission and differential perfectly, just turn up the boost half a psi.

t-von

iTrader: (8)

I have no idea also. Now considering that I'm using a shortened PPF, my engine is more level than the factory 13b since it sits lower in the engine bay. Right now my engine is out of the car as I'm doing more test fitting of my T56 and building the shifter mount.

hsmidy

Driveline angle or drive shaft working angle?

RedDream

iTrader: (1)

Driveline angle as a whole. It's a general question of engine positioning vs chassis room as the taper in the back on the rx8 make it extra interesting when putting a 20b.

chino_rx3

iTrader: (3)

reviving old threads. i’m looking to purchase a lower intake for my 20b i’m going NA with some custom ITb and stock ports . I want to go all stock NA in my built and built some cool itbs . I know there’s a company that sells the entire kit but trying to save where i can .
any info i will appreciate
