stickmantijuana

iTrader: (1)

could you guys help me identify what these are? #1-#7 arefrom the pictures.
1.
2.
3.
4.
5.
6.
7.

for #5, I think it goes to the heater but I was wondering how some of the 20b blocks have AN-fitting there instead of the hose fitting I have in the picture. Does it screw off? or do I need to cut it then tap it?

thanks much and happy holidays!

Japan2LA

iTrader: (256)

could you guys help me identify what these are? #1-#7 arefrom the pictures.

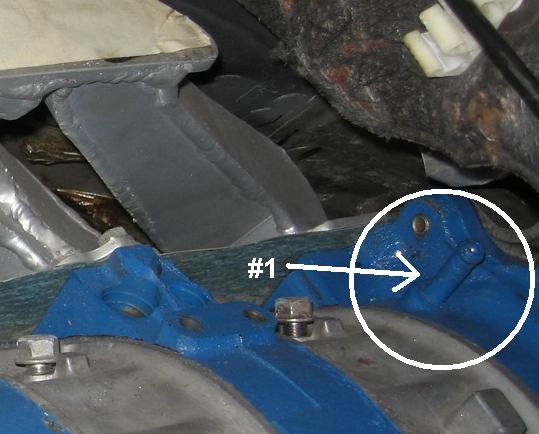

1. water/coolant feed nipple to stock TB

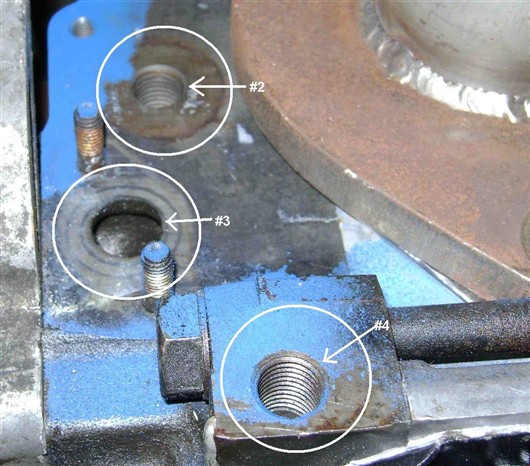

2. Oem 20B engine mount bracket threaded hole
3. rear OEM turbo oil drain return hole
4. Oem 20B engine mount bracket threaded hole

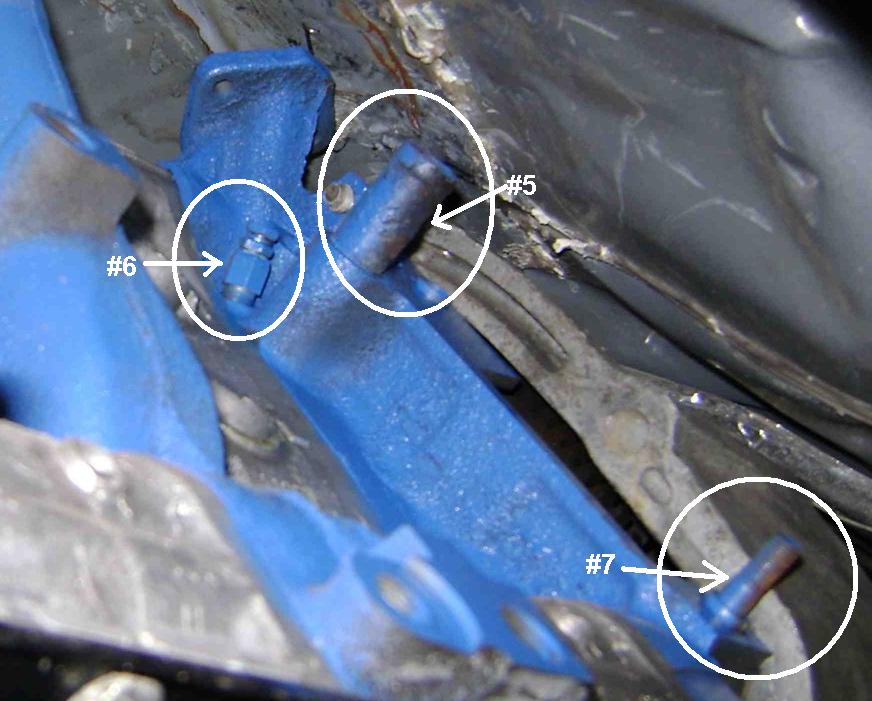

5. water/coolant nipple to heater core
6. oil pressure sensor
7. Lower auto starter mount stud

stickmantijuana

iTrader: (1)

awesome thanks!

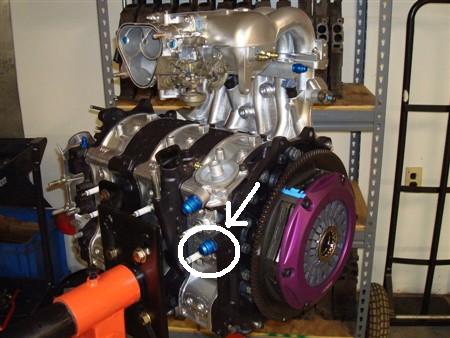

for the hose fitting going to the heater, how do some of you have AN-fitting instead of the hose fitting? do I need to cut it off then tap it? attached a pic of what i'm talking about.

i'll get to work in the meanwhile
