whats tis black connector for?
#2
carb whisperer
#4
Senior Member
iTrader: (1)
There is also an 8-pin connector with all 8 wires which goes to the heater/AC control module.
Does the fan for the heater work?

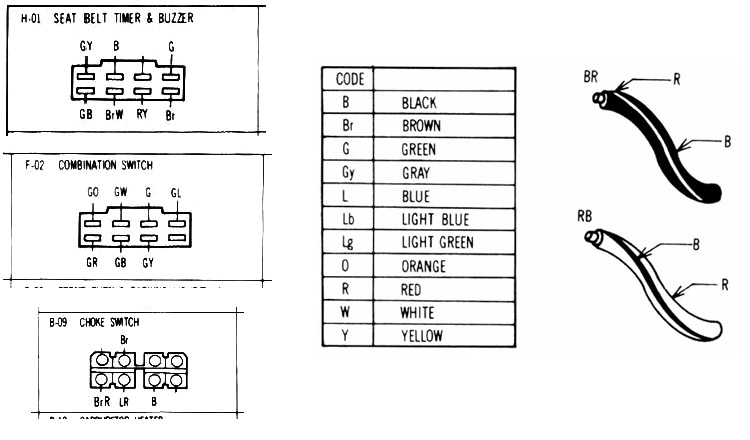

You might want to download the wiring diagram pdf for your year.
Follow the link in the 2nd post from the top in the forum to download your FSM's (Factory Service Manuals).
Does the fan for the heater work?
You might want to download the wiring diagram pdf for your year.
Follow the link in the 2nd post from the top in the forum to download your FSM's (Factory Service Manuals).
#5
Senior Member
Thread Starter
Join Date: Jul 2015
Location: Melbourne Australia
Posts: 302
Likes: 0
Received 0 Likes
on
0 Posts
yea fan for the heater works, but a/c was taken out before I brought the car maybe that's why its not connected to anything.
there all LHD manuals, is the wiring the same as RHD just the other way around?
there all LHD manuals, is the wiring the same as RHD just the other way around?
