What am I missing Here

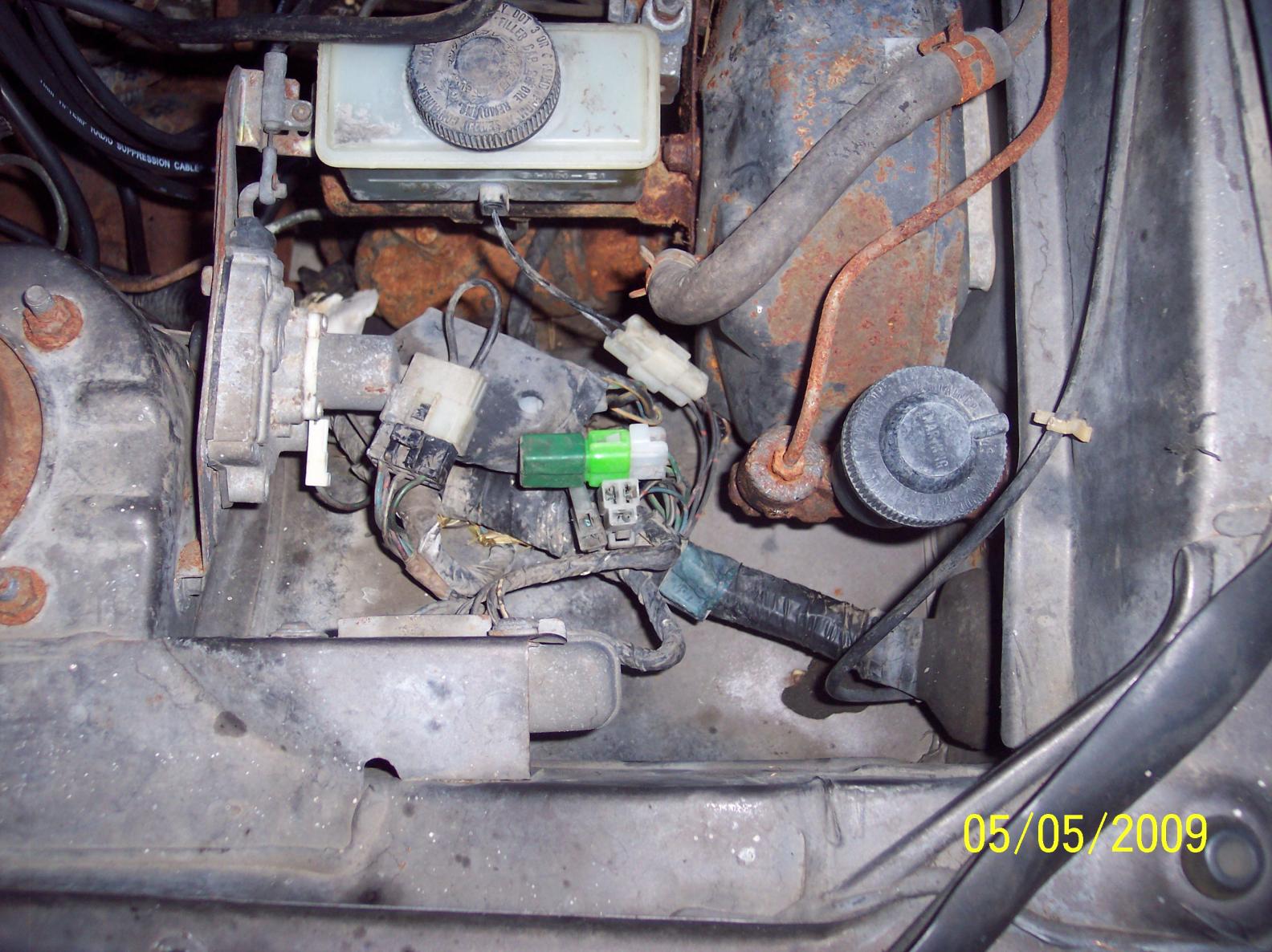

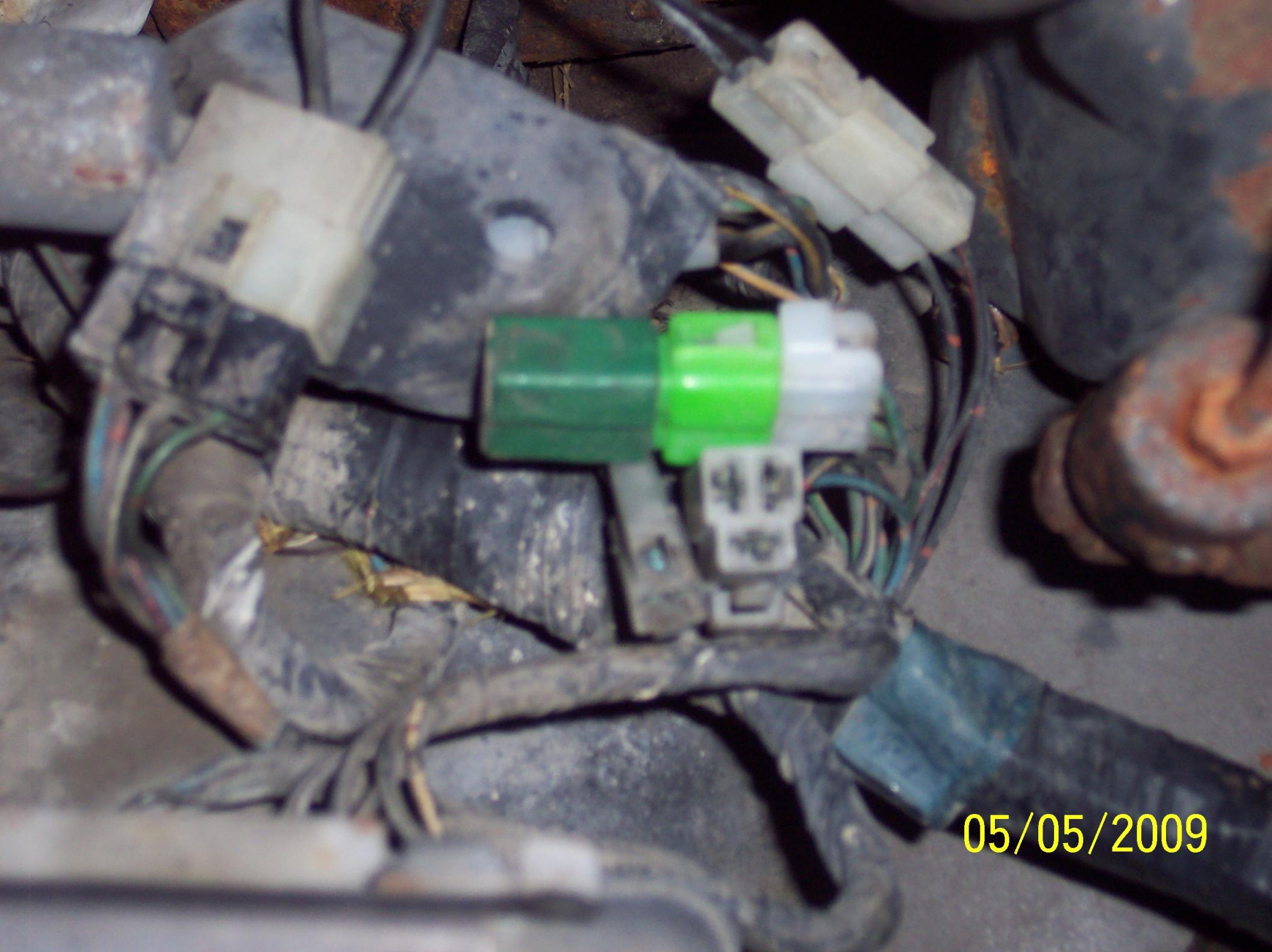

in the photos I have what I think is 2 missing fuse's but I stink at wiring diagrams and have not had any luck with the manual. Any body here that whats to chime in please do so as to what size the one green one is a 25 It on a 1985 rx-7 GS
05-05-09, 09:04 PM
#2
Lurking on thread near U
Join Date: Dec 2008
Location: Huntsville, Alabama
Posts: 143
Likes: 0
Received 0 Likes
on
0 Posts
Hmm, as far as I can remember, I've never seen that plugged into anything on any of my cars. I'm thinking it might have something to do with the -SE harness? Not really sure. What is the car doing/not doing? I'm gonna be under the hood in the morning, I'll try to remember to see where those wires go on my street '84. But post back with any problems you are having.
05-06-09, 11:25 AM
#4
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,849
Received 2,610 Likes
on
1,852 Posts
yeah that looks normal, what are you trying to fix?
05-06-09, 05:49 PM
#5
Full Member
Thread Starter
iTrader: (4)
Join Date: Apr 2009
Location: Westfield, Indiana
Posts: 108
Likes: 0
Received 0 Likes
on
0 Posts
I got every thing working except the fuel gauge and windshield wipers Just seemed like i was missing something in those two plugs thought I would ask.
05-06-09, 08:00 PM
#6
Lurking on thread near U
Join Date: Dec 2008
Location: Huntsville, Alabama
Posts: 143
Likes: 0
Received 0 Likes
on
0 Posts
Well I checked 3 different cars and none of them have anything there, so I'd say you're good to go. Like I mentioned, I'm thinking it's something to do with the -se wiring for the 13B motor, as I havent seen that plug in pre-1984 cars. But no, that plug isnt needed for anything on your car as far as I know. Good luck bro.
