somebody have a pic of the mixture screw?
#1
somebody have a pic of the mixture screw?
like the title say, somebdoy can help me out and show me were the mixture screw on the 12a carbs are at?. i search a couple of threads athat had pics on them but the pics are not there. ill apreciate it. thanks
#7

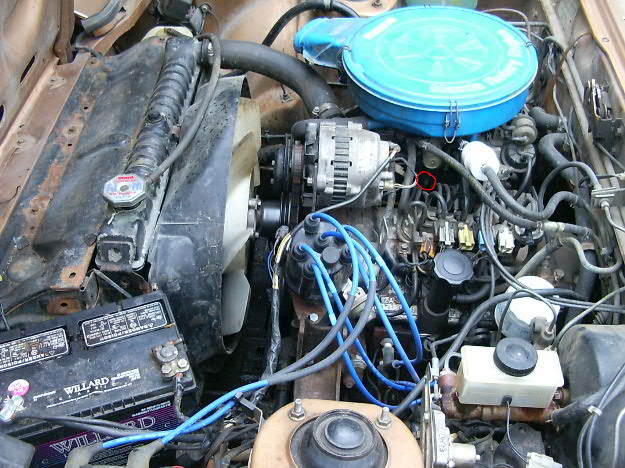

Ya, I think that is for california models, the idle screw is over to the right a bit. What year do you have? I think but could be wrong, that 79' and 80's they have there screws being one on top of eachother. Hope this helps.
Trending Topics
#8
Airflow is my life
Originally Posted by eddierotary

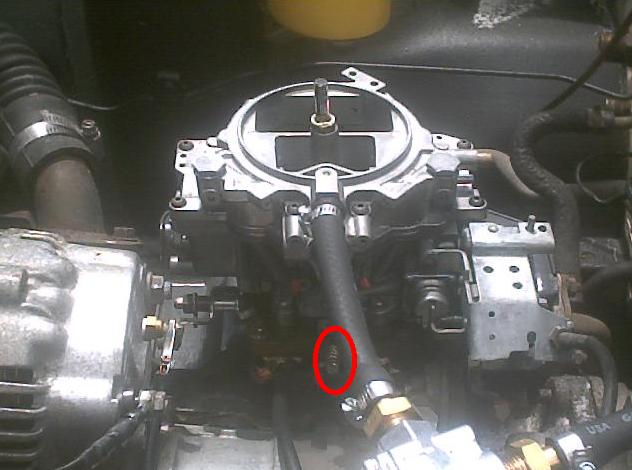

i thought that was the idle mixture screw? i was reading and it say is behind a silver cap but i cant find itin my friend carb.
True, but most of these 20 year old carbs have had the caps removed at some point. Yes thats the idle mixture screw.
#9
Originally Posted by Rx7carl
True, but most of these 20 year old carbs have had the caps removed at some point. Yes thats the idle mixture screw.
#11
RTFFAQ
Join Date: Jun 2003
Location: Olathe, KS USA
Posts: 1,049
Likes: 0
Received 0 Likes
on
0 Posts
Maybe this will help. The carb on my car *has* the cap on the set screw, but I can't take a pic because my camera batteries just died.

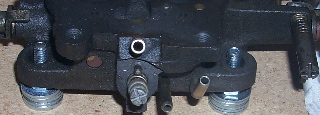

The screw in the center is the idle mix screw. It's immediately below a nipple. See, I bet I caught your attention with "nipple". The screw way to the right is the idle speed setter.
The screw in the center is the idle mix screw. It's immediately below a nipple. See, I bet I caught your attention with "nipple". The screw way to the right is the idle speed setter.
Last edited by slashdawg00110; 09-13-04 at 07:38 PM.
#13
Airflow is my life
Originally Posted by RotaryRyan
AHEMM!! Its rotaryRYAN. lol There's also a rotaryrevn on the forum.
Sorry, its fixed now. I was really tired last night. Long flight home.
