Side Seal Spring Markings
02-08-05, 07:45 PM
#1
Go Hawks!
Thread Starter
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Side Seal Spring Markings

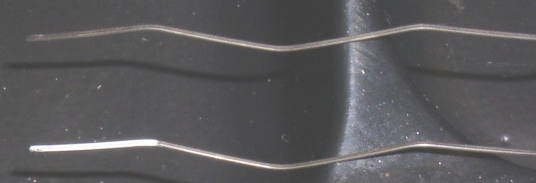

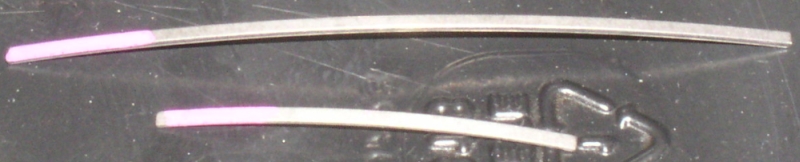

The new side seal springs I got in my Atkins rebuild kit (Mazda springs) each have a white marking at one end. Anyone have an idea what this mark means?
Thanks,
Rich
Thanks,
Rich
02-09-05, 06:37 PM
#3
Former Site Sponsor
Join Date: Aug 2003
Location: Tacoma WA
Posts: 4,368
Likes: 0
Received 0 Likes
on
0 Posts
the marks on the side seal spring face down when you put them into the rotor and on the ApeX springs thoes marks face towards the inside the rotor.
hope I eXplaned that right.....
Later
Dan
hope I eXplaned that right.....
Later
Dan
Last edited by Atkins Dan; 02-09-05 at 06:46 PM.
02-09-05, 06:50 PM
#5
Go Hawks!
Thread Starter
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Atkins Dan
the marks on the side seal spring face down when you put them into the rotor and on the ApeX springs thoes marks face towards the inside the rotor.
hope I eXplaned that right.....
Later
Dan
hope I eXplaned that right.....
Later
Dan
I appreciate the help!
Rich
