rx7 that hasnt ran in 12 years
12-30-10, 01:19 PM
#26
Rebuilding isn't very hard or scary if you've got the place, time, and tools to do it. That said, considering all of the other stuff you'll have to do to get this car running, if you can skip having to pull the engine, disassemble, clean, and reassemble it that will save you a LOT of work. It will also help you in troubleshooting later because you won't be saying "It won't start, I wonder if I screwed something up in the rebuild".
If you're "still pretty new to anything mechanical related" (as you said above) I would go with trying to get it turning by hand with ATF or another penetrating lubricant first before undertaking an engine rebuild.
Jon
If you're "still pretty new to anything mechanical related" (as you said above) I would go with trying to get it turning by hand with ATF or another penetrating lubricant first before undertaking an engine rebuild.
Jon
12-30-10, 06:38 PM
#27
Rebuilding isn't very hard or scary if you've got the place, time, and tools to do it. That said, considering all of the other stuff you'll have to do to get this car running, if you can skip having to pull the engine, disassemble, clean, and reassemble it that will save you a LOT of work. It will also help you in troubleshooting later because you won't be saying "It won't start, I wonder if I screwed something up in the rebuild".
If you're "still pretty new to anything mechanical related" (as you said above) I would go with trying to get it turning by hand with ATF or another penetrating lubricant first before undertaking an engine rebuild.
Jon
If you're "still pretty new to anything mechanical related" (as you said above) I would go with trying to get it turning by hand with ATF or another penetrating lubricant first before undertaking an engine rebuild.
Jon
12-31-10, 03:10 AM
#28
Agreed-
adding what fluid (seafoam is esp good for de-carbing) you can thru the upper plug holes AND same on carb side by using a screwdriver/etc to hold open throttle flaps to get same down into THAT side of the motor - and then let it SIT a few days at least. You'll need to pour fluid into the FRONT AND BACK venturis as one feeds the front housing, the other, the rear. The spark-plug side will NOT hold much fluid as there isn't much space on that side.
Several have suggested putting a wrench to the front pulley/e-shaft 19mm nut at the front to rotate the engine. This is OK to rotate CLOCKWISE (if facing motor from front), but be very careful about rotation the OTHER way! (we all try to "rock" the motor back and forth with this) My understanding is if the motor is seized up a bit and you somehow manage to _loosen_ the 19mm nut, you run the very real danger of allowing the front e-shaft thrust-plate needle bearings to DROP (the nut holds them correctly in place), which will damage/destroy the motor once you run it. help me here guys.... this is what I have heard.
If/when you do get the motor UNseized, be generous about making sure there is additional oil added into the block so you don't DRY spin it, since there may not be much useful lube in the combustion chambers for the initial start/crank over. I dump 5-6 oz of oil into the carb mouth for my spring start-ups, pull the ignition wires off the coils and spin it a few to get everything lathered up in there.
Assume the fuel tank is badly gunked, esp if it sat with a partial fill. Bad old gas/residue plus condensation from the air space inside will have done the tank no favors. All the carb/fuel pump/filter cleaning/replacing will be for nought the first time you run the grungy gas out of the tank! pull the tank and get it chemically cleaned at a pro rad shop. I'd then buy a tank re-lining kit (liquid you pour in, slosh around to seal the tank's inner walls) such as the one POR15 makes. Then your good to go- oh, you'll need to buy a new OEM gas gauge SENDER gasket ($4) from Mazda prior to reinstalling the tank-
best of luck-!
Post some pics of your treasure and let us know how it goes. Lots of good help here-
Stu Aull
80GS
Alaska
adding what fluid (seafoam is esp good for de-carbing) you can thru the upper plug holes AND same on carb side by using a screwdriver/etc to hold open throttle flaps to get same down into THAT side of the motor - and then let it SIT a few days at least. You'll need to pour fluid into the FRONT AND BACK venturis as one feeds the front housing, the other, the rear. The spark-plug side will NOT hold much fluid as there isn't much space on that side.
Several have suggested putting a wrench to the front pulley/e-shaft 19mm nut at the front to rotate the engine. This is OK to rotate CLOCKWISE (if facing motor from front), but be very careful about rotation the OTHER way! (we all try to "rock" the motor back and forth with this) My understanding is if the motor is seized up a bit and you somehow manage to _loosen_ the 19mm nut, you run the very real danger of allowing the front e-shaft thrust-plate needle bearings to DROP (the nut holds them correctly in place), which will damage/destroy the motor once you run it. help me here guys.... this is what I have heard.
If/when you do get the motor UNseized, be generous about making sure there is additional oil added into the block so you don't DRY spin it, since there may not be much useful lube in the combustion chambers for the initial start/crank over. I dump 5-6 oz of oil into the carb mouth for my spring start-ups, pull the ignition wires off the coils and spin it a few to get everything lathered up in there.
Assume the fuel tank is badly gunked, esp if it sat with a partial fill. Bad old gas/residue plus condensation from the air space inside will have done the tank no favors. All the carb/fuel pump/filter cleaning/replacing will be for nought the first time you run the grungy gas out of the tank! pull the tank and get it chemically cleaned at a pro rad shop. I'd then buy a tank re-lining kit (liquid you pour in, slosh around to seal the tank's inner walls) such as the one POR15 makes. Then your good to go- oh, you'll need to buy a new OEM gas gauge SENDER gasket ($4) from Mazda prior to reinstalling the tank-
best of luck-!
Post some pics of your treasure and let us know how it goes. Lots of good help here-
Stu Aull
80GS
Alaska
12-31-10, 12:28 PM
#29
Full Member
Thread Starter
iTrader: (2)
Join Date: May 2010
Location: madison,wi
Posts: 101
Likes: 0
Received 0 Likes
on
0 Posts
I was checking my new battery today to see if everything works today. When I turn the key I hear a clicking noise and I smelt fuel, there's a hole in a line that goes to the Carb.Is that gas or something else?
01-01-11, 12:57 PM
#34
yes its gas. if you are new to this whole thing and have the time on your hands. then tear down the car. new gas tank,new fuel lines, rebuild the carb, new brake lines, new suspension, new brake master cylinder,new clutch cylinder, new motor. its a old car better to replace everything new then piece it together as everything else starts to fail or break. it will save you tons of time and money in the long run. and headaches. trust me!
01-01-11, 10:54 PM
#35
yes its gas. if you are new to this whole thing and have the time on your hands. then tear down the car. new gas tank,new fuel lines, rebuild the carb, new brake lines, new suspension, new brake master cylinder,new clutch cylinder, new motor. its a old car better to replace everything new then piece it together as everything else starts to fail or break. it will save you tons of time and money in the long run. and headaches. trust me!
i doubt you need anything new, if its true that it has less then 50k on it, you just need to tear the engine down and clean it up.. head to the regional section and find someone that lives close to you to come and help you out possibly find the main cause of it not starting
01-03-11, 12:59 PM
#39
You really are doing a disservice to this engine by not tearing it down... to find a 12a with that kind of mileage on it is IMPOSSIBLE. You are running a very real chance of damaging then internals, and you will not find any replacement parts this kind of condition.. All of these other guys that are telling you to spray this or that in it have all done so with an engine that surely has well more than double the mileage of yours, who cares if the damage a rotor housing??
At the top of the 1st gen section is a sticky to download the Field Service Manual (FSM) for your car. There are detailed instructions on how to disassemble and re-assemble your engine. A soft kit can be bought from Atkins for around $115, JUST BUY A 12a gasket kit. If you really want to go all out them you can buy a rotor kit too which will have the oil control O-rings and front and rear seal.... etc. All said and done you're $500 in and will have a great running engine for years to come.
At the top of the 1st gen section is a sticky to download the Field Service Manual (FSM) for your car. There are detailed instructions on how to disassemble and re-assemble your engine. A soft kit can be bought from Atkins for around $115, JUST BUY A 12a gasket kit. If you really want to go all out them you can buy a rotor kit too which will have the oil control O-rings and front and rear seal.... etc. All said and done you're $500 in and will have a great running engine for years to come.
01-03-11, 01:19 PM
#40
Senior Member
iTrader: (3)
Join Date: Apr 2010
Location: San Diego, CA
Posts: 434
Likes: 0
Received 0 Likes
on
0 Posts
You really are doing a disservice to this engine by not tearing it down... to find a 12a with that kind of mileage on it is IMPOSSIBLE. You are running a very real chance of damaging then internals, and you will not find any replacement parts this kind of condition.. All of these other guys that are telling you to spray this or that in it have all done so with an engine that surely has well more than double the mileage of yours, who cares if the damage a rotor housing??
At the top of the 1st gen section is a sticky to download the Field Service Manual (FSM) for your car. There are detailed instructions on how to disassemble and re-assemble your engine. A soft kit can be bought from Atkins for around $115, JUST BUY A 12a gasket kit. If you really want to go all out them you can buy a rotor kit too which will have the oil control O-rings and front and rear seal.... etc. All said and done you're $500 in and will have a great running engine for years to come.
At the top of the 1st gen section is a sticky to download the Field Service Manual (FSM) for your car. There are detailed instructions on how to disassemble and re-assemble your engine. A soft kit can be bought from Atkins for around $115, JUST BUY A 12a gasket kit. If you really want to go all out them you can buy a rotor kit too which will have the oil control O-rings and front and rear seal.... etc. All said and done you're $500 in and will have a great running engine for years to come.
01-03-11, 01:53 PM
#41
Full Member
Thread Starter
iTrader: (2)
Join Date: May 2010
Location: madison,wi
Posts: 101
Likes: 0
Received 0 Likes
on
0 Posts
Well I didn't know it was rare I just got into rotarys when I bought my first car in may. I probably will just do a rebuild on it. I know the compression was still good when the lady stopped driving it over 110 I think. Is there a really good rebuild kit with upgraded parts like super seals?
01-03-11, 05:13 PM
#42
Well I didn't know it was rare I just got into rotarys when I bought my first car in may. I probably will just do a rebuild on it. I know the compression was still good when the lady stopped driving it over 110 I think. Is there a really good rebuild kit with upgraded parts like super seals?
Step one would be to pull the engine and tear it down... Bag and Tag everything for easy re-assembly. And then start the visual inspection of parts... anything that passes the visual inspection needs to be measured. Afterwards you will have a good idea of what's re-useable and what needs to be replaced. I've always had good results with Atkins kits, I'll be using their Cryo Seals on my 12a blowthrough turbo build. But everyone has there own opinions as to whose seals are the best.
I like atkins, because there prices are fair and they make it pretty simple to order everything you need by using one of their kits, which means less chance of forgetting to order something.
Would also be a good time to decide if you want to port her..... cheaper to do it now than to tear it down again...
01-03-11, 06:26 PM
#43
Full Member
Thread Starter
iTrader: (2)
Join Date: May 2010
Location: madison,wi
Posts: 101
Likes: 0
Received 0 Likes
on
0 Posts

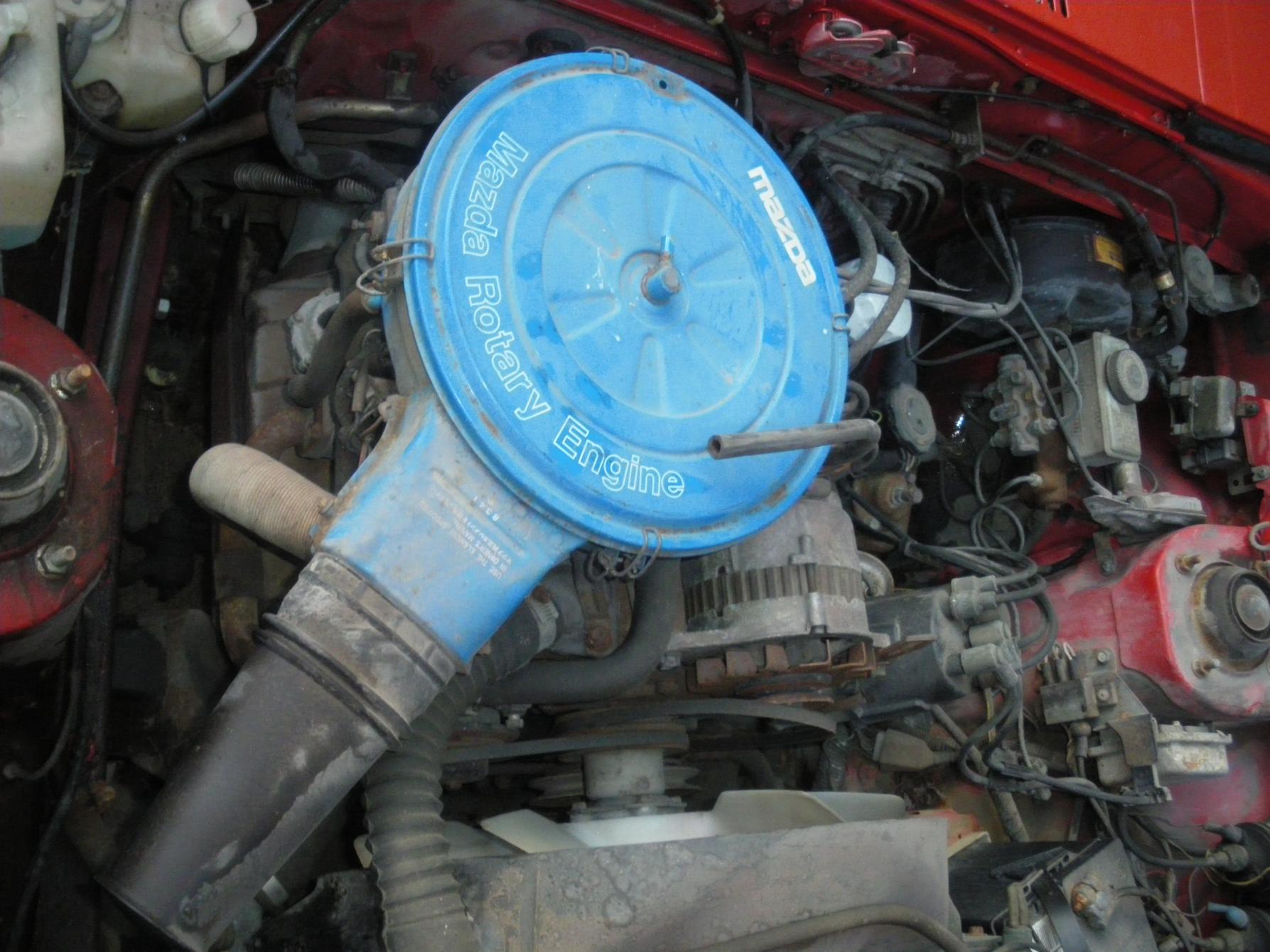

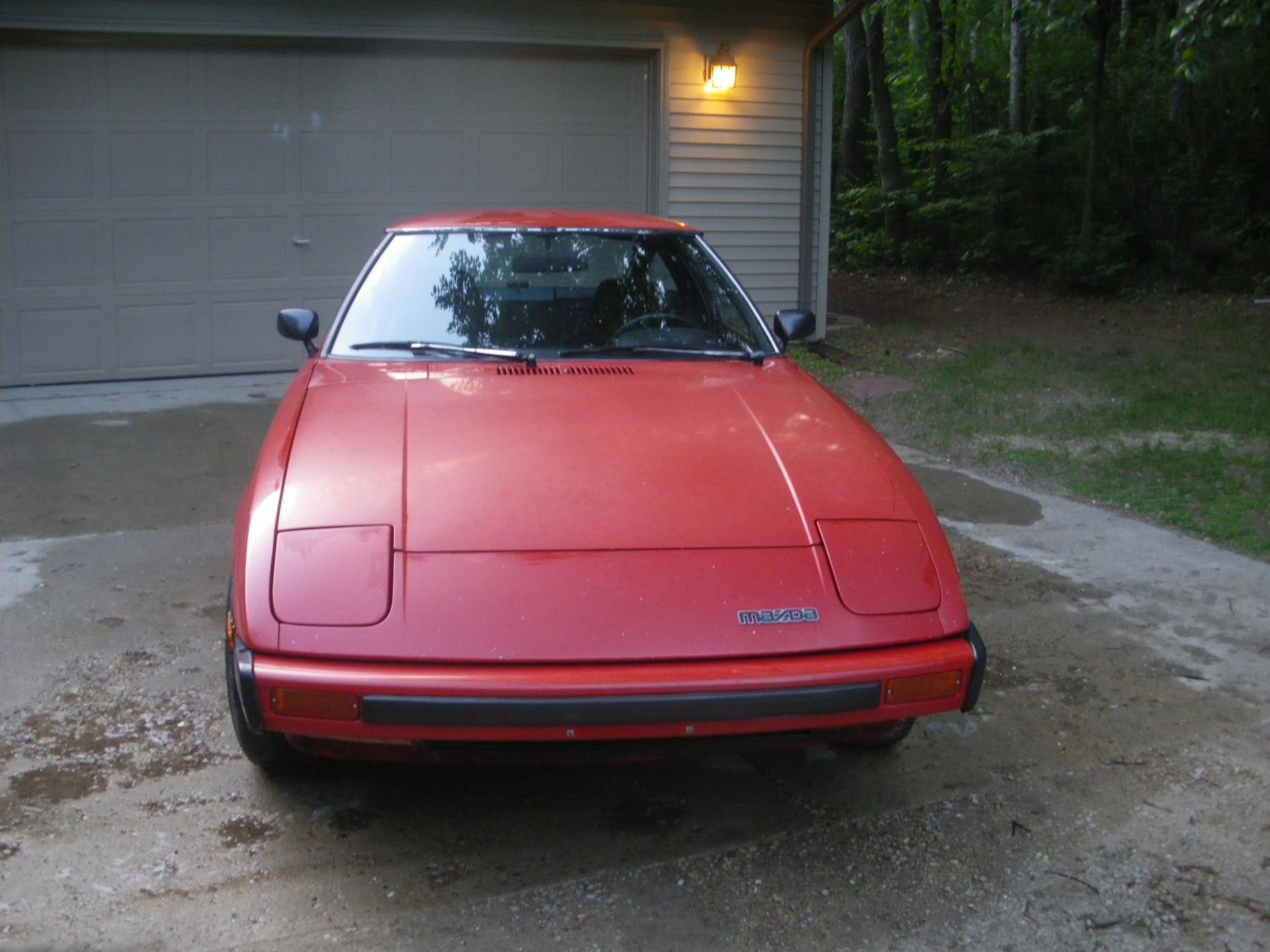

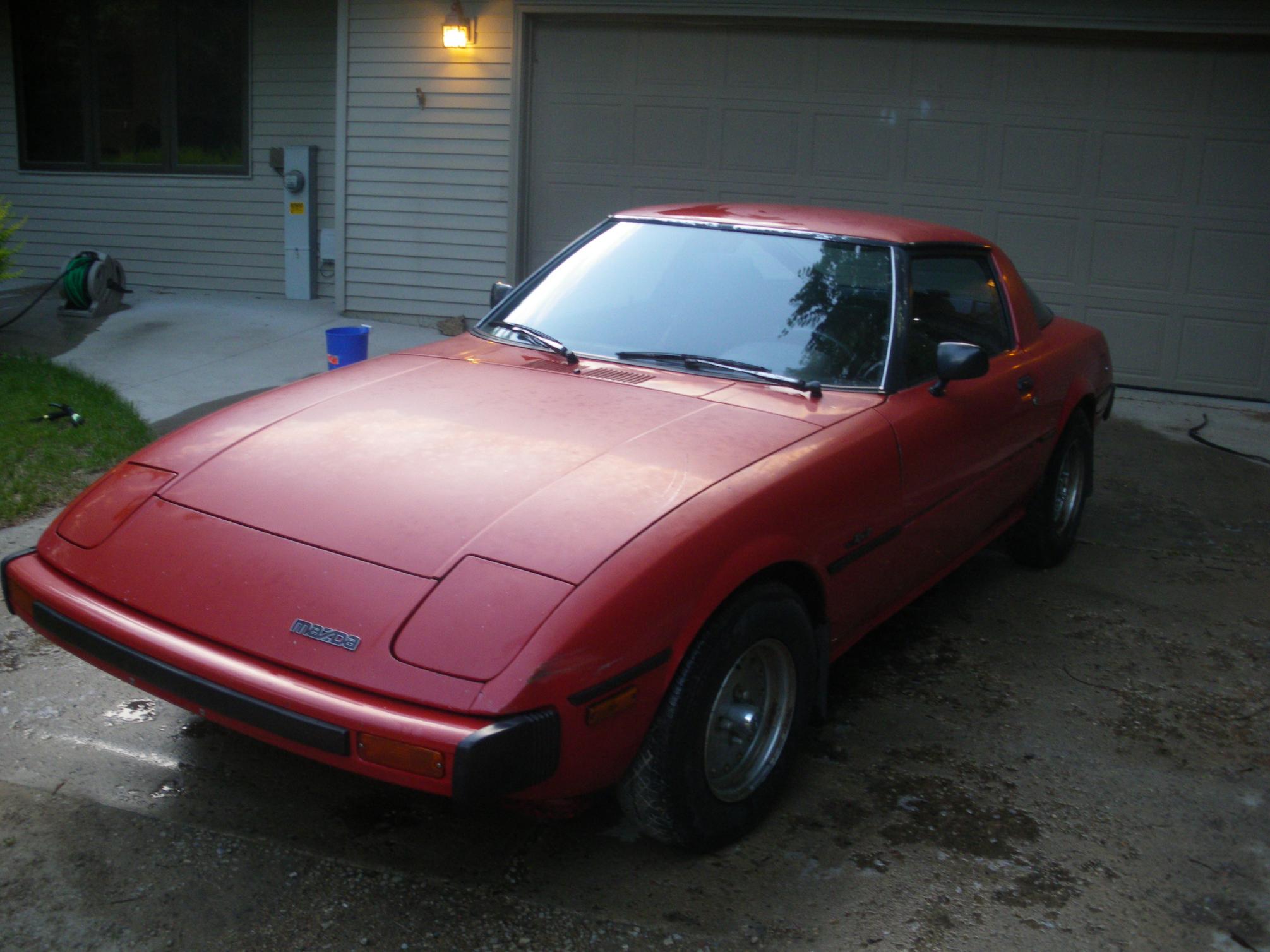

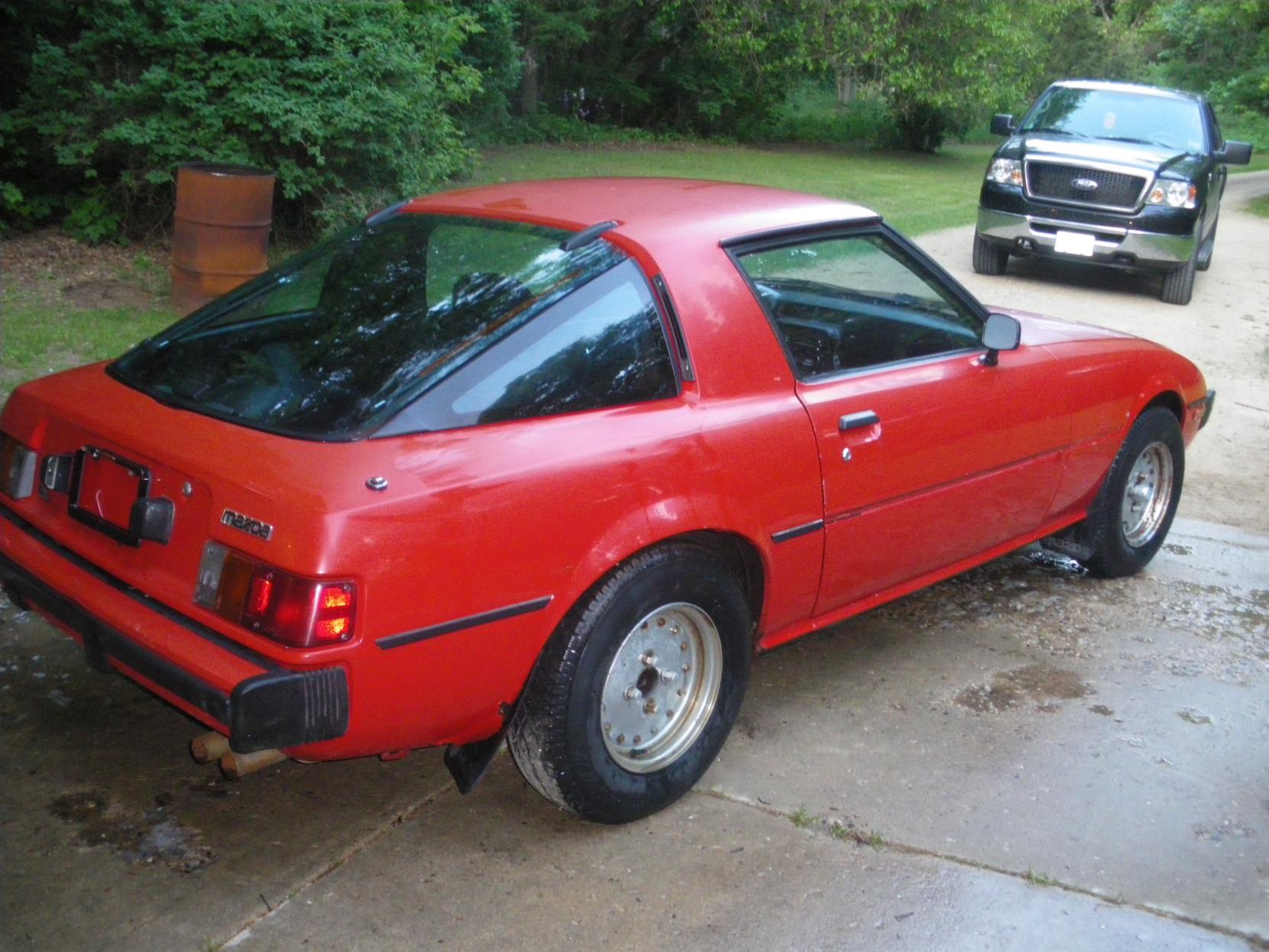

The cyro seals sound good what exactly are they? im thinking i will keep it stock port unless i can keep the gas mileage the same as stock. Here are some pictures of the car she isnt in the best condition but im basically going to do a restoration on it.
01-03-11, 08:24 PM
#45
Car looks great.... helluva find for an SA..... head over to atkin's website.... www.atkinsrotary.com to check out all the info on their rebuild kits.
Like I said.... tear the engine down and inspect it first, you may be able to re-use your apex seals.
As for porting.... you're driving the wrong car if you want gas mileage... But if you want, you could do a large streetport on the secondaries and keep the primaries stock.... if you run the stock nikki carb then you can have stock mileage when cruising and run like a scalded dog when you lay into it....
But you're kinda putting the cart before the horse.... start the tear down and then decide which direction you want to go.
Like I said.... tear the engine down and inspect it first, you may be able to re-use your apex seals.
As for porting.... you're driving the wrong car if you want gas mileage...
But if you want, you could do a large streetport on the secondaries and keep the primaries stock.... if you run the stock nikki carb then you can have stock mileage when cruising and run like a scalded dog when you lay into it.... But you're kinda putting the cart before the horse.... start the tear down and then decide which direction you want to go.
01-08-11, 05:15 PM
#49
Full Member
Thread Starter
iTrader: (2)
Join Date: May 2010
Location: madison,wi
Posts: 101
Likes: 0
Received 0 Likes
on
0 Posts
i had a rotary guy come take a look at the engine he checked and it actually isnt carbon locked. he said it freely moves and the apex seals are good, they spring freely. But there is a new problem that happened after he left, i had my new battery hooked up all night and when i turn the key it makes a click noise. on the dash a light that says brake,add coolant,add engine oil and gen stay on. The amp meter turns off when i turn the key also. What could this be now?
01-08-11, 05:55 PM
#50
Senior Member
iTrader: (3)
Join Date: Apr 2010
Location: San Diego, CA
Posts: 434
Likes: 0
Received 0 Likes
on
0 Posts
i had a rotary guy come take a look at the engine he checked and it actually isnt carbon locked. he said it freely moves and the apex seals are good, they spring freely. But there is a new problem that happened after he left, i had my new battery hooked up all night and when i turn the key it makes a click noise. on the dash a light that says brake,add coolant,add engine oil and gen stay on. The amp meter turns off when i turn the key also. What could this be now?
Anyways your going to need to give you new battery a charge. Trickle charging is best if I recall correctly.
