request - windscreen wiper assembly bushing order
Hi all,
I've done some searching, read through the FSM and spent a fair bit of time trying to get this right without much luck, so I'm hoping someone is able to provide the info I need (or point me in the right direction!).
I have a 83 series 2 JDM SA22. The wiper linkages on the car were stuffed when I got the car, the spindles were seized and the balljoints were worn and broken. I got a new linkage from mazdatrix and modified it to match the RHD style one, as I couldn't find a RHD one new.

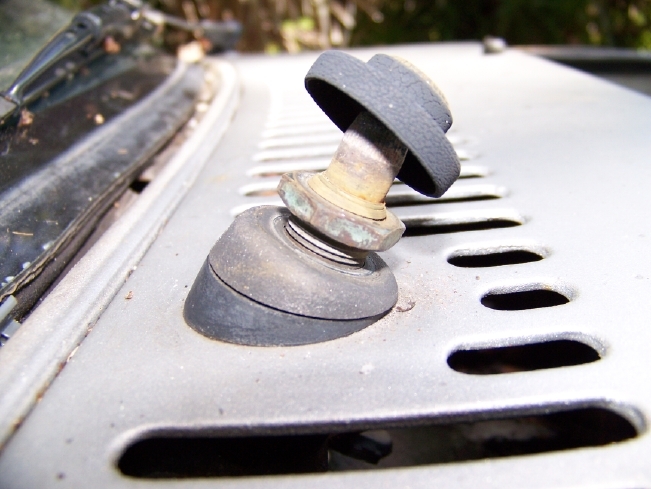

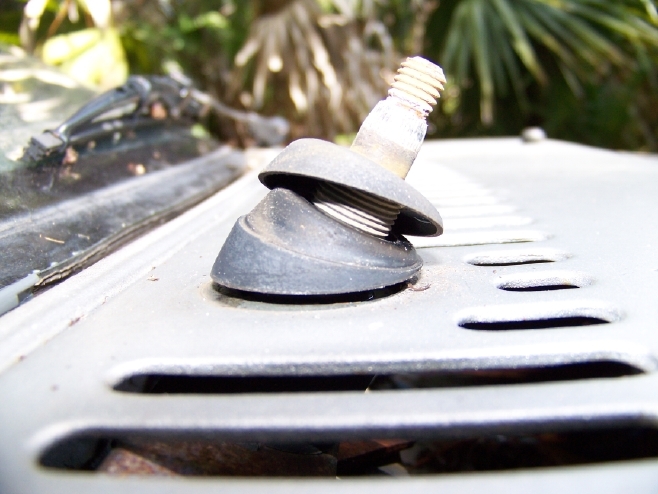

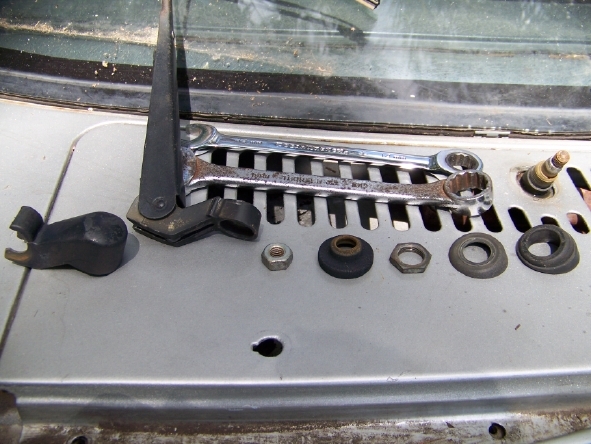

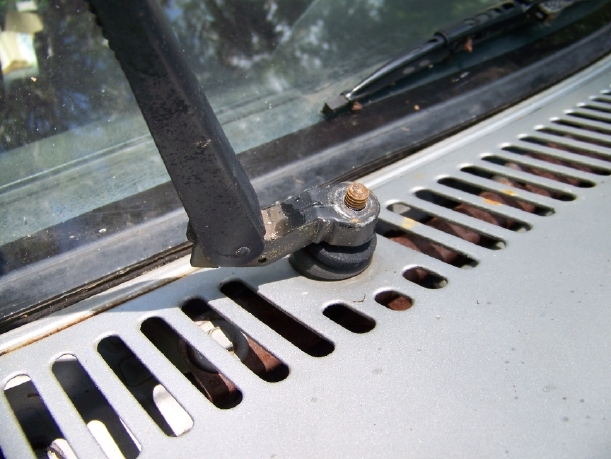

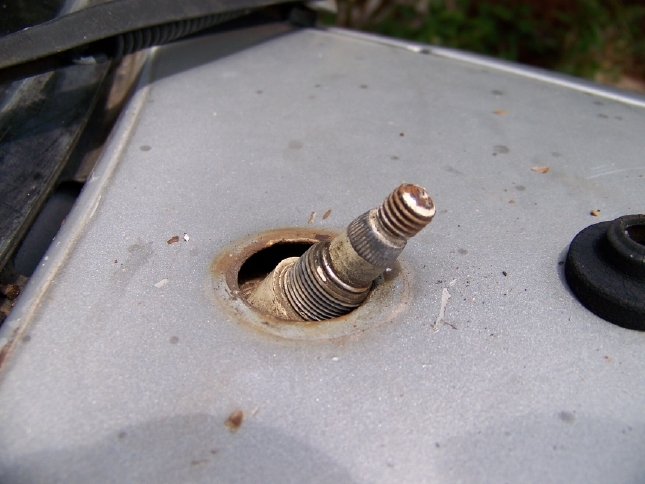

Now I'm putting it all back together, and I can't quite get the order of the nuts, bushings and spacers stacked on the spindles together correctly so that they sit flush on the panels!
Does somebody have a photo or can explain which order everything goes? I get the impression I may need to use the nuts to set a certain height for the spindles also.
Many thanks!
I've done some searching, read through the FSM and spent a fair bit of time trying to get this right without much luck, so I'm hoping someone is able to provide the info I need (or point me in the right direction!).
I have a 83 series 2 JDM SA22. The wiper linkages on the car were stuffed when I got the car, the spindles were seized and the balljoints were worn and broken. I got a new linkage from mazdatrix and modified it to match the RHD style one, as I couldn't find a RHD one new.
Now I'm putting it all back together, and I can't quite get the order of the nuts, bushings and spacers stacked on the spindles together correctly so that they sit flush on the panels!
Does somebody have a photo or can explain which order everything goes? I get the impression I may need to use the nuts to set a certain height for the spindles also.
Many thanks!
