Oil Pressure Mods
#1
djessence
Thread Starter
Oil Pressure Mods
K Background: I have an 85 GSL. Undergoing rebuild at the moment.
People recommended doing oil pressure mods if the bearings were being replaced which they are.
Searched. Found alot of threads saying mod the OPR but non actually saying how/what to do. I seem to recall you shim it with washers, but how many of how thick? I can't seem to find that thread anymore.
In one of the threads Wacky told someone to PM him to know about it.
As well, it was said that a GSLSE oil pump is better than the GSL. Why is it different?
If i just missed the right thread can someone point me in the direction of it?
Cheers
Jesse
People recommended doing oil pressure mods if the bearings were being replaced which they are.
Searched. Found alot of threads saying mod the OPR but non actually saying how/what to do. I seem to recall you shim it with washers, but how many of how thick? I can't seem to find that thread anymore.
In one of the threads Wacky told someone to PM him to know about it.
As well, it was said that a GSLSE oil pump is better than the GSL. Why is it different?
If i just missed the right thread can someone point me in the direction of it?
Cheers
Jesse
#2
djessence
Thread Starter
K well supposedly the SE oil pump pumps more oil but I think thats make believe because in the Mazda parts manual they are identical part numbers, and yet in the comp parts section it says that the comp rotors are 17.5mm; bigger than stock EXCEPT SE.
WTF is going on with mazda part numbers haha.
But still about the regulators.... From various sources, RB and Mazda it says I need to shim the Front regulator 1/8". How much do I shim the rear regulator/can I do that, or do I need a different regulator or do I just shim the front?
WTF is going on with mazda part numbers haha.
But still about the regulators.... From various sources, RB and Mazda it says I need to shim the Front regulator 1/8". How much do I shim the rear regulator/can I do that, or do I need a different regulator or do I just shim the front?
Last edited by djessence; 04-20-08 at 12:22 AM.
#5
djessence
Thread Starter
I'd be more comfortable shimming if the effect is the same/clearances are all fine.
It seems for the front needs to be shimmed 1/8"
What about the rear?
It seems for the front needs to be shimmed 1/8"
What about the rear?
#6
Stu-Tron Get Yo Groove On
iTrader: (4)
Oil pressure mods:
Remove the screen on the pick up tube and flair out/trumpet the end of the pick up. Just make sure you don't drop a nut in the oil pan or anything
Clean up the oil galleys sharp corners, and smooth the junctions from the drilled passages and ports below the stock pump land area. Practice before trying on a good engine.
Dry sump if you have the $$$$$
Baffle plate
Tacking on a big washer on the end of the pick-up tube to get rid of the vena contracta
Remove the screen on the pick up tube and flair out/trumpet the end of the pick up. Just make sure you don't drop a nut in the oil pan or anything
Clean up the oil galleys sharp corners, and smooth the junctions from the drilled passages and ports below the stock pump land area. Practice before trying on a good engine.
Dry sump if you have the $$$$$
Baffle plate
Tacking on a big washer on the end of the pick-up tube to get rid of the vena contracta
Trending Topics
#13
Go Hawks!
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
I just did this research myself...here is what I found:
http://www.rebuildingrotaryengines.c..._Oil_Regulator
Rich
http://www.rebuildingrotaryengines.c..._Oil_Regulator
Rich
#14
djessence
Thread Starter
Thanks for the link Rich.
I had another question that relates. I have access to second gen 6port 13B parts. Am I able to use either regulators from those engines/is there anything to be accomplished by doing so?
I had another question that relates. I have access to second gen 6port 13B parts. Am I able to use either regulators from those engines/is there anything to be accomplished by doing so?
#17
Go Hawks!
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Thanks,
Rich
#18
Super Moderator
iTrader: (3)
Check out Jeff's post:
https://www.rx7club.com/1st-generation-specific-1979-1985-18/same-year-12a-different-oil-pump-housings-should-i-use-711600/
I am pretty sure that he is right on and that the 83-85 12As have the same pump as the SE. I have seen other references that they are the same, too. I don't have a 83-85 12A pump to measure, but they show as the same part number, have the same wear limits in the FSM, and the FSM does not note a difference in size/capacity between the 2. I'm pretty sure that the SE pump being bigger/better than all 12A pumps is just a myth.
Anyway, the larger (17.5mm) pump will work in any '74-'85 12A and that is what you should run. Mazdatrix only carries the 17.5mm pump since it will work for all years.
https://www.rx7club.com/1st-generation-specific-1979-1985-18/same-year-12a-different-oil-pump-housings-should-i-use-711600/
I am pretty sure that he is right on and that the 83-85 12As have the same pump as the SE. I have seen other references that they are the same, too. I don't have a 83-85 12A pump to measure, but they show as the same part number, have the same wear limits in the FSM, and the FSM does not note a difference in size/capacity between the 2. I'm pretty sure that the SE pump being bigger/better than all 12A pumps is just a myth.
Anyway, the larger (17.5mm) pump will work in any '74-'85 12A and that is what you should run. Mazdatrix only carries the 17.5mm pump since it will work for all years.
#20
Go Hawks!
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
http://www.rebuildingrotaryengines.c..._Oil_Regulator
I smashed the end of the rear oil pressure regulator to effectively stiffen the spring, then shimmed the end cap on the front oil pressure regulator.
I have no reason to think my oil pressure is insufficient...I replaced the oil pump when I rebuilt the engine about 3 years ago. I just blindly followed the advice on that website: "This modification would be for street cars, or race cars". I have a blower on my car, and I replaced the bearings when I rebuilt the motor, so just want to make sure I have enough oil pressure.
Thanks,
Rich
#22
Go Hawks!
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
I don't remember which oil pump I got...don't even remember for sure if I got it from MazdaTrix or BlackDragon, but can probably find out tonight.
Thanks,
Rich
#23
Lapping = Fapping
iTrader: (13)

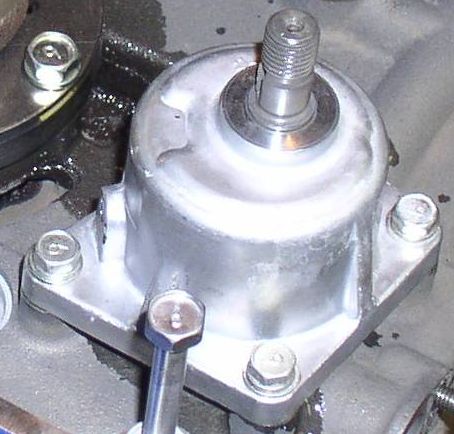

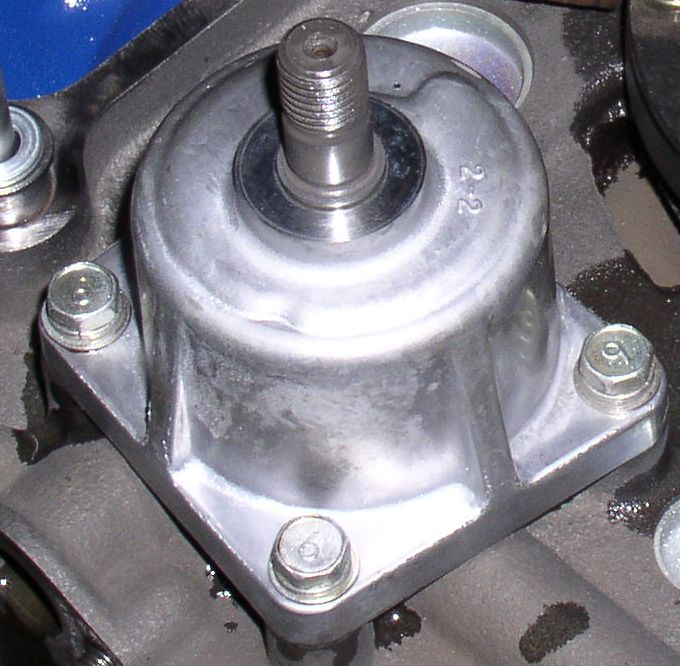

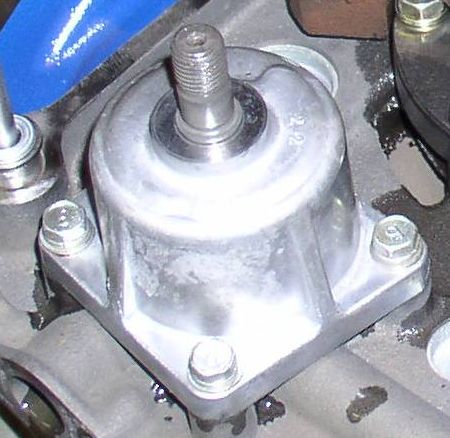

Look at the oil pump. Take pictures. Show us. Maybe I can tell you which one it is. The high volume one has a thicker housing.
The oil return line often will not leak because A. it's under no pressure and B. it's gravity fed into the sump. The SC 510 has a slightly loose return fitting because the owner originally cut the threads too deep and the fitting bottoms out before it gets tight. I tripple wrapped it with teflon tape and it doesn't leak. Your leak is probably from your OMP dripping down on things and making a mess.
Keep an eye on your oil pressure if it tops out past 100PSI when cold, kep the revs low until the engine warms up. Or use thinner oil like 10w30 or something.
The oil return line often will not leak because A. it's under no pressure and B. it's gravity fed into the sump. The SC 510 has a slightly loose return fitting because the owner originally cut the threads too deep and the fitting bottoms out before it gets tight. I tripple wrapped it with teflon tape and it doesn't leak. Your leak is probably from your OMP dripping down on things and making a mess.
Keep an eye on your oil pressure if it tops out past 100PSI when cold, kep the revs low until the engine warms up. Or use thinner oil like 10w30 or something.
#24
Go Hawks!
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Look at the oil pump. Take pictures. Show us. Maybe I can tell you which one it is. The high volume one has a thicker housing.
The oil return line often will not leak because A. it's under no pressure and B. it's gravity fed into the sump. The SC 510 has a slightly loose return fitting because the owner originally cut the threads too deep and the fitting bottoms out before it gets tight. I tripple wrapped it with teflon tape and it doesn't leak. Your leak is probably from your OMP dripping down on things and making a mess.
Keep an eye on your oil pressure if it tops out past 100PSI when cold, kep the revs low until the engine warms up. Or use thinner oil like 10w30 or something.
The oil return line often will not leak because A. it's under no pressure and B. it's gravity fed into the sump. The SC 510 has a slightly loose return fitting because the owner originally cut the threads too deep and the fitting bottoms out before it gets tight. I tripple wrapped it with teflon tape and it doesn't leak. Your leak is probably from your OMP dripping down on things and making a mess.
Keep an eye on your oil pressure if it tops out past 100PSI when cold, kep the revs low until the engine warms up. Or use thinner oil like 10w30 or something.
Yea, I couldn't tell for sure if the oil leak was from the OMP or the supercharger return line. I rebuilt the OMP so that should be taken car of now. I'll also do a better job of sealing the omp lines at both ends, where they connect to the OMP at one end and the "injectors" at the other end.
Rich
