nikki HELP! What's this part?

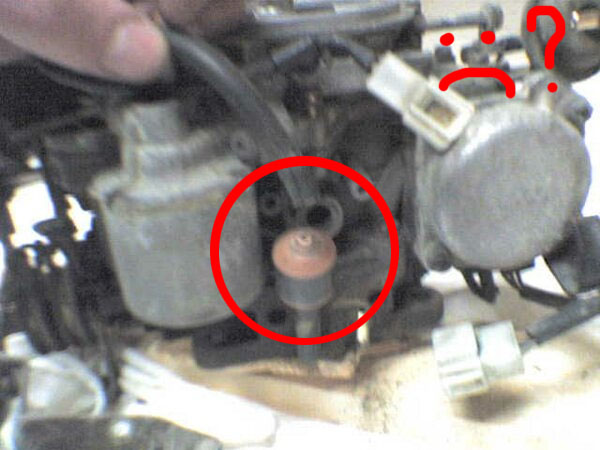

So, I'm rebuilding the carb and one of the hoses snapped, so I was being less careful and I underestimated the length/strength of the nipple attached to it and I broke the little plastic nipple.
Better yet it's not in my carb diagram so I have no idea what it is, I'm guessing an in-line filter or something? Anybody know what it is/what I can replace it with?
Thanks,
-josh
Better yet it's not in my carb diagram so I have no idea what it is, I'm guessing an in-line filter or something? Anybody know what it is/what I can replace it with?
Thanks,
-josh
#3
1st-Class Engine Janitor
iTrader: (15)
That was a vacuum delay valve.
If you still have both pieces (the hose barb is probably in the hose still) you can epoxy it back together if you're careful, or replace it. They came in a few different shapes over the years.
Mazda part number looks to be N231-13-980
If you still have both pieces (the hose barb is probably in the hose still) you can epoxy it back together if you're careful, or replace it. They came in a few different shapes over the years.
Mazda part number looks to be N231-13-980
#4
My 7 is my girlfriend.
iTrader: (5)
Join Date: Feb 2006
Location: London, Ontario, Canada
Posts: 3,162
Likes: 0
Received 1 Like
on
1 Post
Or you could pull all the emissions off it using the tutorial on www.mazspeed.com. It gets removed along with alot of other junk. Makes things neater and removes alot of possible points of failure.
#6
making paper cranes
Thread Starter
Join Date: Sep 2008
Location: Ottawa, ON, Canada
Posts: 189
Likes: 0
Received 0 Likes
on
0 Posts
Thanks, I was planning on taking off emissions anyway but I didn't see it when I skimmed through and got worried when I broke it. Thanks for the help guys!
