New engine in my baby... 12AT
Hey guys
Finally got the time to put in my new motor in my Series 1. Just thought id tell you the specs and ill get some pics up ASAP.
12a Turbo Motor
Rebuilt by myself with brand new Seals
Extend Ported
Series 5 Rx7 turbo - Hi-flowed
manual boost controller
custom exhaust manifold
3" exhaust from turbo back, 2 mufflers
Series 4 intake/throttle body
2x series 5 injectors 2x 880cc injectors
malpassi rising rate fuel reg
bosch 909 fuel pump
1L surge Tank
pieburg pre pump
3" Stainless intercooler piping
front mount i/c 450x300x76mm
Series 5 Turbo Gearbox
lightened flywheel
4 puck h/d clutch
Microtech MT4 ECU
locked dizzy
Ive run in the motor and currently only running 6psi of boost. Just waiting for some dyno time to get it tuned for more. I love it, so nice to cruise without surging all the time like in my old 12a Bridgeport.
Well tell me your thoughts/questions/remarks. Id love to hear some input from some people in other countries.
Will post up some pics soon
-James
Finally got the time to put in my new motor in my Series 1. Just thought id tell you the specs and ill get some pics up ASAP.
12a Turbo Motor
Rebuilt by myself with brand new Seals
Extend Ported
Series 5 Rx7 turbo - Hi-flowed
manual boost controller
custom exhaust manifold
3" exhaust from turbo back, 2 mufflers
Series 4 intake/throttle body
2x series 5 injectors 2x 880cc injectors
malpassi rising rate fuel reg
bosch 909 fuel pump
1L surge Tank
pieburg pre pump
3" Stainless intercooler piping
front mount i/c 450x300x76mm
Series 5 Turbo Gearbox
lightened flywheel
4 puck h/d clutch
Microtech MT4 ECU
locked dizzy
Ive run in the motor and currently only running 6psi of boost. Just waiting for some dyno time to get it tuned for more. I love it, so nice to cruise without surging all the time like in my old 12a Bridgeport.
Well tell me your thoughts/questions/remarks. Id love to hear some input from some people in other countries.
Will post up some pics soon
-James
Trending Topics
#8
Rotary Freak
Join Date: Sep 2004
Location: Kitchener, Ont. Canada
Posts: 1,901
Likes: 0
Received 0 Likes
on
0 Posts

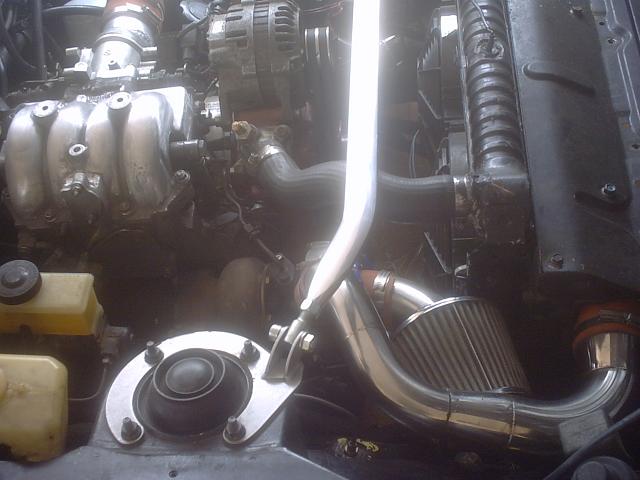

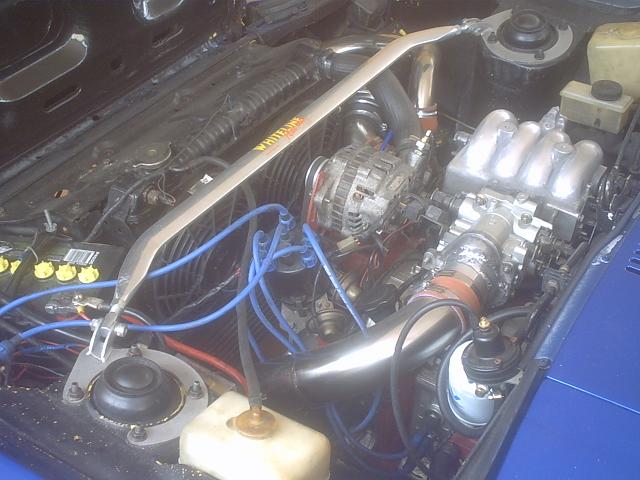

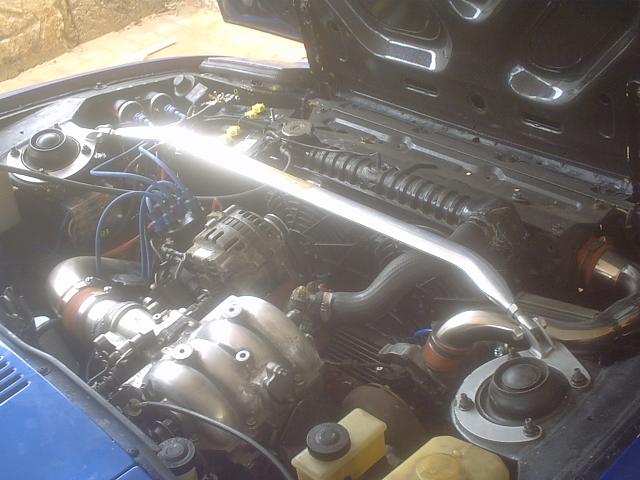

what type of strut brace is that? is it for an FC? it looks better than the FC ones, since it curves up, and sits higher, which i assume clears the blue carb intake box, and the alt. better. so where did you get it?
#12
Full Member
Thread Starter
Join Date: Jul 2002
Location: Perth, Western Australia
Posts: 177
Likes: 0
Received 0 Likes
on
0 Posts
the ecu i used is a fuel only one so a dizzy is still needed. When i save some mroe cash i will go the fuel and ign ecu but its quite a lot more expensive.
As for the strut brace, its made in Aus. by a company called whiteline suspensions and its for a FB cost me $200AUS straight off the shelf, no mods needed.
Thanks for the comments guys, keep em coming
-James
As for the strut brace, its made in Aus. by a company called whiteline suspensions and its for a FB cost me $200AUS straight off the shelf, no mods needed.
Thanks for the comments guys, keep em coming
-James
#13
Hunting Skylines
Join Date: Apr 2001
Location: Brisbane, Queensland, Australia.
Posts: 3,431
Likes: 0
Received 2 Likes
on
2 Posts
Originally Posted by WackyRotary
Whats the deal with the distrubuter?! Are you EFI? why use the stock 1st gen ignition? Just curious....
#24
"Expect Nothing"
iTrader: (4)
you wouldnt happen to have the factory computer for a 12at that you could sell? i know its a stupid question everyone says u cant find them but one day i will prove them wrong! i just got a 12at and i just want to get it running i just need the computer and harness i think... thanks. if u have it call me (828) 342-7590
