Need help identifying bolts/clips for front end of a series 1 rx7?
#1
Senior Member
Thread Starter
Join Date: Jul 2015
Location: Melbourne Australia
Posts: 302
Likes: 0
Received 0 Likes
on
0 Posts
Need help identifying bolts/clips for front end of a series 1 rx7?
I wanted to do a dummy fit of all the panels on the car before doing some bodywork but are missing some fittings and don't know where a few of them go.
i didn't bag and tag from the start when I first stripped wich I should have.

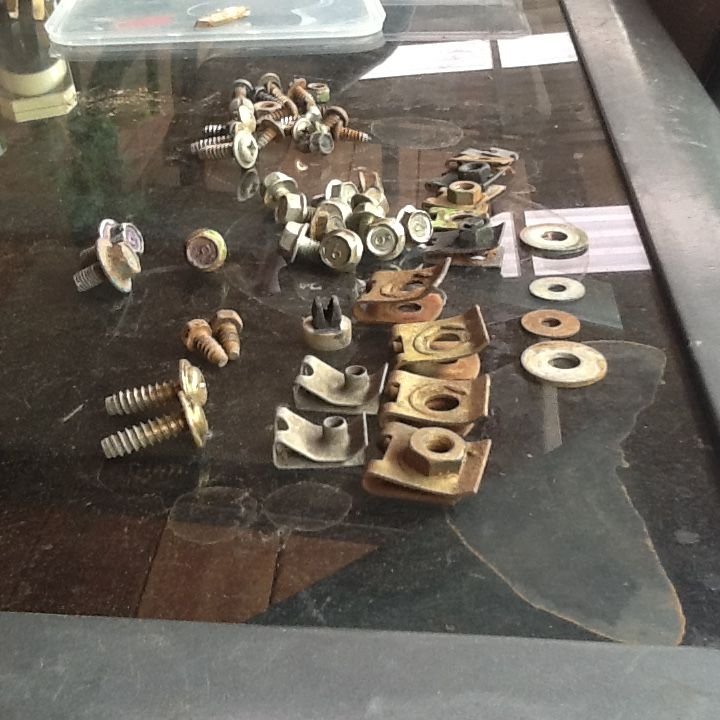

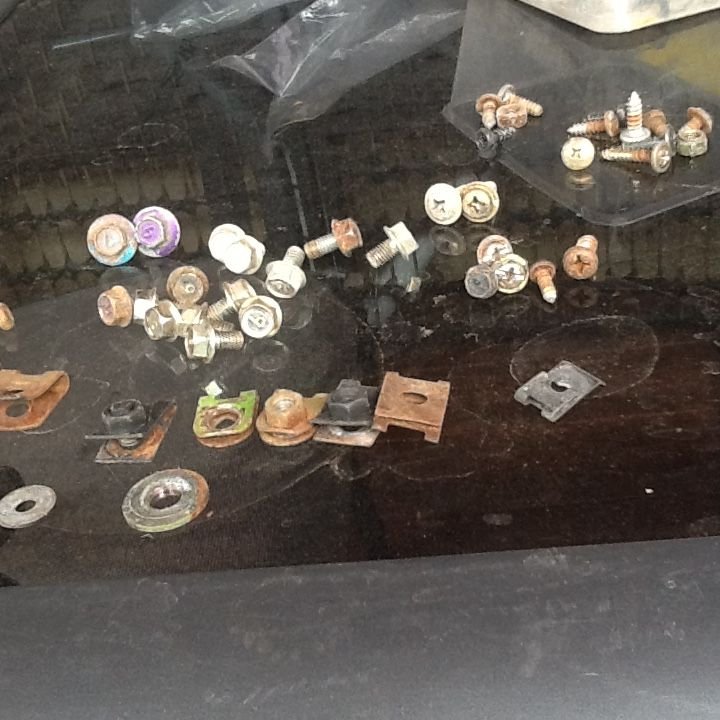

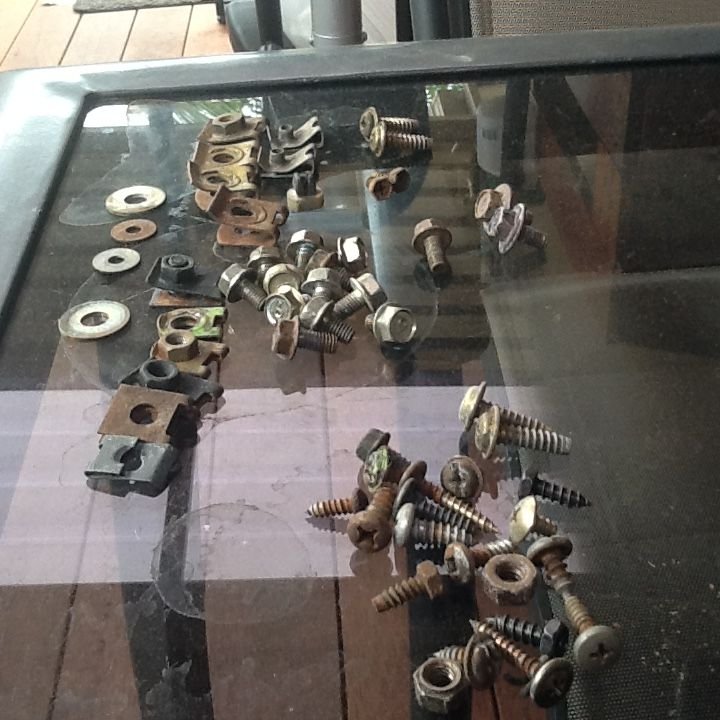

Here are some pics of the fittings I have, just want to know what I'm missing and what goes where? Iv got the bolts for the stone tray there not in the pictures.
i didn't bag and tag from the start when I first stripped wich I should have.
Here are some pics of the fittings I have, just want to know what I'm missing and what goes where? Iv got the bolts for the stone tray there not in the pictures.
#2
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,841
Received 2,605 Likes
on
1,848 Posts
if you can wait a bit, i'm working on a mazda part number to fastener style and size spread sheet.
that way you can look in the parts catalog, and figure out which goes where.
that way you can look in the parts catalog, and figure out which goes where.
#3
Senior Member
Thread Starter
Join Date: Jul 2015
Location: Melbourne Australia
Posts: 302
Likes: 0
Received 0 Likes
on
0 Posts
I tried matching up a couple of fittings from the parts catalog but its a bit of a headache.
I need to dummy fit my front end before priming and doing some body work just to see if the fit is nice and all the panel gaps line up.
I guess lesson learned if I ever do another car to bag and tag from the start lol
Thanks for replying
#4
Village Idiot
iTrader: (8)
That would be good J9FD3S whenever you get the chance.
I tried matching up a couple of fittings from the parts catalog but its a bit of a headache.
I need to dummy fit my front end before priming and doing some body work just to see if the fit is nice and all the panel gaps line up.
I guess lesson learned if I ever do another car to bag and tag from the start lol
Thanks for replying
I tried matching up a couple of fittings from the parts catalog but its a bit of a headache.
I need to dummy fit my front end before priming and doing some body work just to see if the fit is nice and all the panel gaps line up.
I guess lesson learned if I ever do another car to bag and tag from the start lol
Thanks for replying
The two bolts with a "6" and the larger flared head are fender bolts. They attach on the top of the fender (five of them do) and on the bottom (2 bolts there).
The same size bolts with a "6" and the smaller flared head are used to piece together the fenders to the upper nose valence (piece that goes between the headlights), bolt the upper nose valence to the upper cross member of the front structure (the piece that the hood hinges pass through), bolt the lower chin spoiler to the two lower valence pieces (I think you called them the "stone tray"?), and the two stone tray pieces to the fenders.
The flat clips (that look like money clips) with the nut welded to them slide onto the tabs for securing the fenders to the upper nose valence, and the two pieces of stone tray to black plastic grille. Two each go on the stone tray.
The smaller flat clips without the nuts (I think they're commonly called J-clips?) I think go on the back bumper, but I cannot remember exactly where.
The circular plastic piece with the split tangs goes on the stone trays. Each gets one.
The inner fender is held in place by some of the small screws you have. They screw into small square plastic pieces.
I have pictures in my build thread on some of the more recent pages of the stone trays, lower valence pieces, upper valence bolts in place without the valence (as I painted to keep paint out of the threaded holes), and of the rear bumper where the J-clips went a bit further back in the thread.
I don't know where the washers go, and I think that some of the other screws go to mount things inside the engine bay and on the firewall, like the hood latch mechanism and some of the relays. That might just be trial and error to see which one goes where.
Hope that helps.
