Codysv6rx7

He cars all together but the rear u joint has to much angle is there anyway I can adjust the rear end to bring that angle down? Thanks

13x

ummm which way is the angle now?

how is tranny mount?

Codysv6rx7

It's a motor and tranny swap and the angle it pointed more towards the floor pan and away from the floor

midnight mechanic

suppose you put some washers on the bolts that bolt the trans mount to the body?

I had all kinds of problems with the drive shaft hitting the body after this idiot of a transmission mechanic ( J and J transmission of green brook or plainfield new jersey on route 22 ) replaced the clutch. He didn't put all the washers back between the the trans mount and the body. Also send my car out with a c clamp on the exhaust pipe.

Codysv6rx7

Sounds like a great guy lol but I feel like the tranny would need to move up to get the angle better but there's no room it seems like the rear end needs to go downwards

Codysv6rx7

Does anyone one if there's any ajustment for the diff (rearend) stock?

KansasCityREPU

iTrader: (9)

There is no adjustment for this. If the angle of the drive shaft is wrong, then something isn't installed correctly with the engine/trans. Lets see some pictures. Did you use the transmission mount isolator? It's a hunk of rubber and tow inches thick. Without it, the back of the trans would be way off.

Codysv6rx7

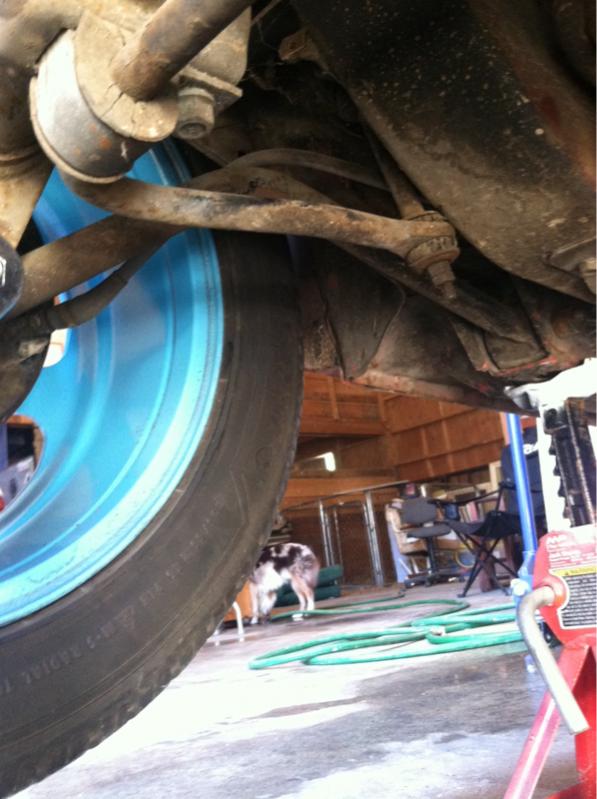

so after looking at a stock fb I saw that my lower end links are bent to S&@T I'm thinking that's where my problem is I'll post pics

Codysv6rx7

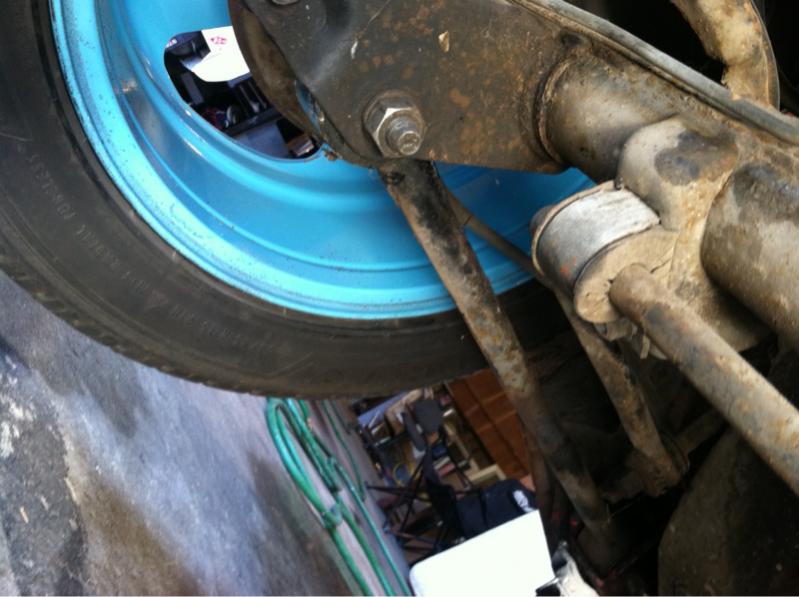

Bent

GySgtFrank

iTrader: (4)

That would definitely cause a few problems.

rwatson5651

iTrader: (5)

I have seen plenty of bent lower links, but never that bad!!!

Codysv6rx7

Fixing it the cheap way till new parts get here lol thanks for the help everyone! Follow my build thread if you wanna see more cheap ****

Codysv6rx7

All done lol

CyByrd

Cody. I'm liking yo style. I like cheap ****. Lol. Sounds like sum n I would say.

Sent from my iPad using RX7Club. how bout that!

craaaazzy

iTrader: (9)

Wow, what would case a bend like that? Someone try to jack up the car via the link?

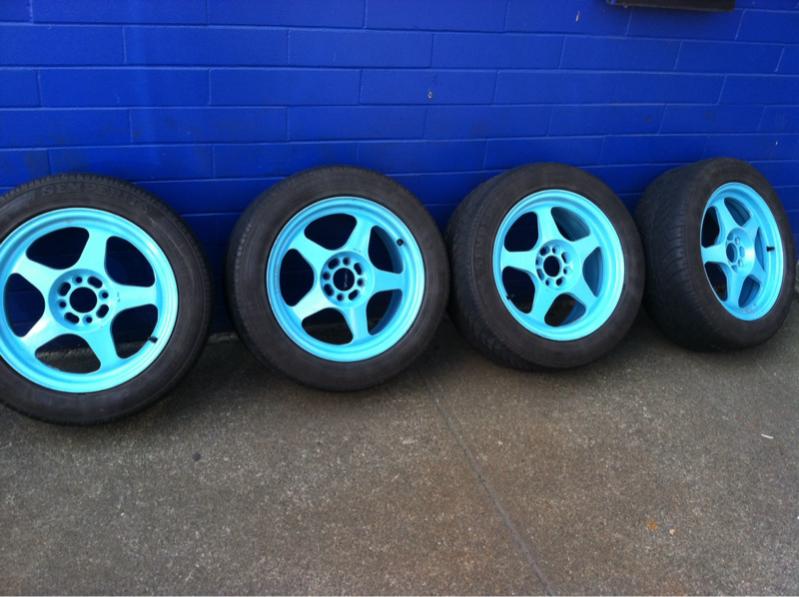

Also, what blue did u use to paint the interior of the wheel?

Codysv6rx7

my best guess it when I would drop the clutch and burnout or drift it twisted the rear end and all of it wasn't ment for the high torch but that's just a guess

And it's bomb can blue message me and I'll look at the can later

Sgt.Stinkfist

iTrader: (6)

You would need some non-rotary produced torque and sticky tires to bend the lowers like that, or some very hap-hazard person working on it. Regardless, by heating the arm and bending it back you have already annealed and fatigued the arm. The arm will now be much easier to re-bend

Codysv6rx7

ya there just re bent to move the car around my barn without harming my driveshaft I can't remember but I saw adjustable links online for $200 but my buddy gave me the idea of a sprint car steering rod as a solution

Codysv6rx7

P.S. The lip pulling out of my barn was enough gorse to bend one just a bit

Codysv6rx7

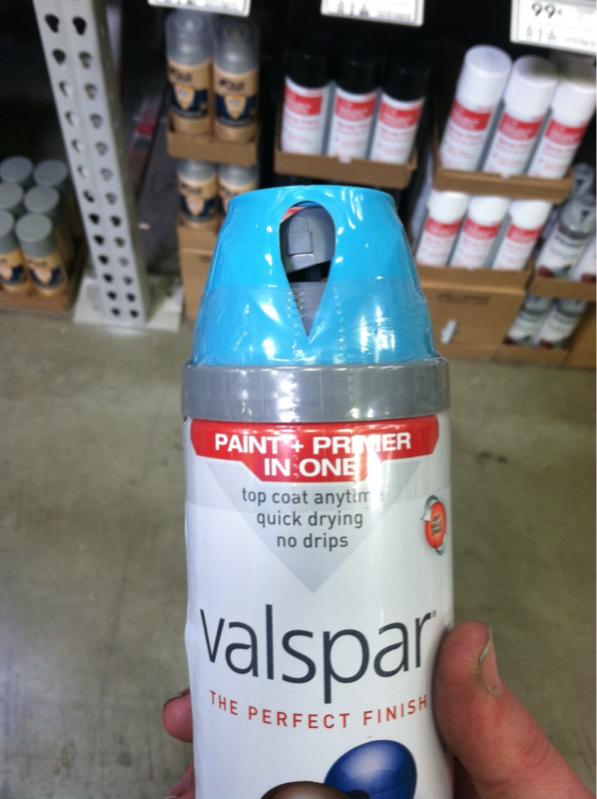

Here you go craaaaaaaazy

craaaazzy

iTrader: (9)

Thanks Cody
