My "New" Tail Lights
Tell me what you think of them!
The difference between S4 and S5 tails is that the S5 had 2 circle's that lit up for the braking instead of the S4's whole lamp lighting up. Someone a while back wanted to have S5-esk tail lights on the 1st gens. I was thinking about it at work a few days back and came up with my own design.

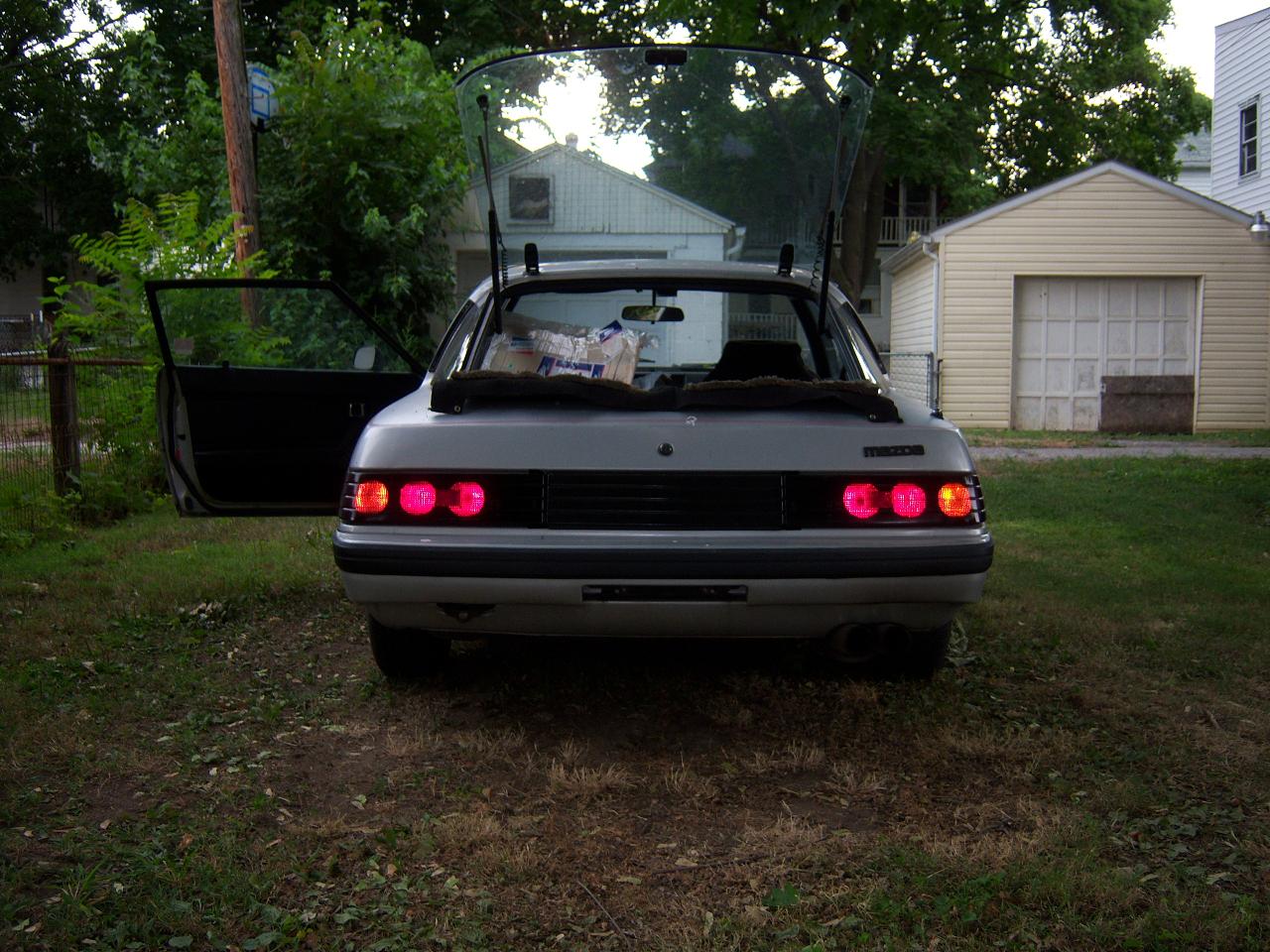

Left is modified, right is stock.

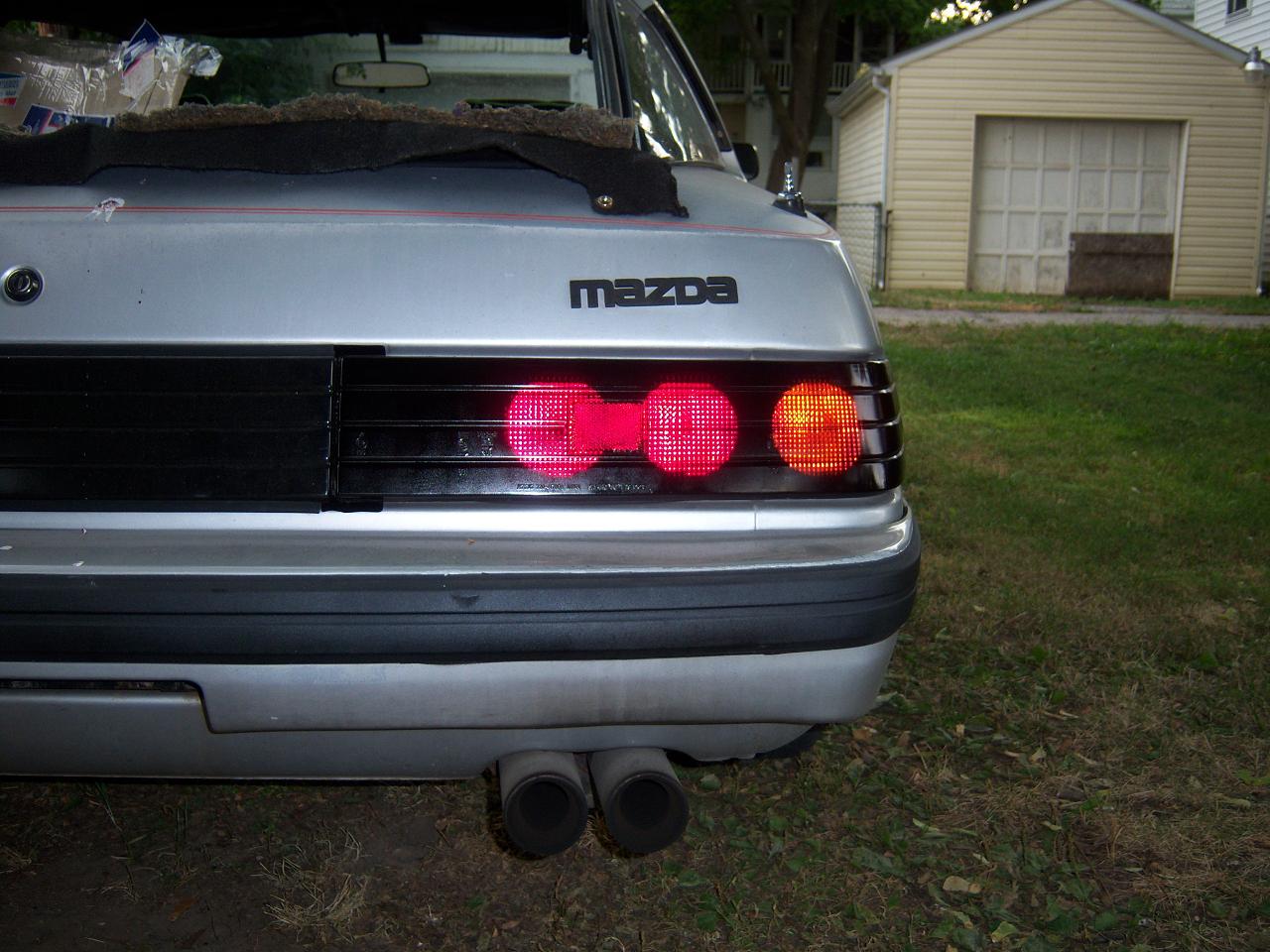

Here is the same set up but I am using the flash:
And last, here is a shot to show the difference between the originals and modified lens's.
Tomorrow I will take the left back out and trim it a little (the bottom lit-line is a little curvy, but not as bad as the picture makes it out to be) and start on the other side.
What do you guys think?
The difference between S4 and S5 tails is that the S5 had 2 circle's that lit up for the braking instead of the S4's whole lamp lighting up. Someone a while back wanted to have S5-esk tail lights on the 1st gens. I was thinking about it at work a few days back and came up with my own design.
Left is modified, right is stock.
Here is the same set up but I am using the flash:
And last, here is a shot to show the difference between the originals and modified lens's.
Tomorrow I will take the left back out and trim it a little (the bottom lit-line is a little curvy, but not as bad as the picture makes it out to be) and start on the other side.
What do you guys think?
