its a lil messy as i rushed it and had to rewire a couple times damn electrical **** is just plain picky

i just followed jeff20bs diagram and didnt read his long wirte up well a little

works good,revs stay in place not jumpy
i noticed with just a spark plug in the lead it sparks alot qwicker than the old system



Wow! That is a lot of wires! You could scrap that and get an easy 100 bucks lol



Awesome. That is great. Direct Fire ftw.



Glad you figured it out, I wouldn't be able to tell what is what in that wiring nightmare. LOL



lol but hey it works
but i really need to cover all that wiring up theres a fe other things there realy for my fan etc its a real clutter
at least i know whats goin on in that forest



lol they are all red wires....you better never be around me im going to unplug 2 of them you will be lost for days hahahahaha

FTW PaTricK



nope never its very simple
unless i get stoned then its a diff story



Did you just say what I think you said. lol

Awesome.



Ghetto Fabulous!!!!!!!!!!!



That sure looks like a lot of work compared to the mod using the 2nd gen coil pack. Glad it works for you...



yeah i have a 2gen coil but the positive terminal broke undoing the nut i was pissed off then i brought another and only one side went dam it!!!

i had all the stuff needed so i put it togethercost me 3bucks for some aluminum and i had some spare 2gen wires (the stock ones wouldnt reach)

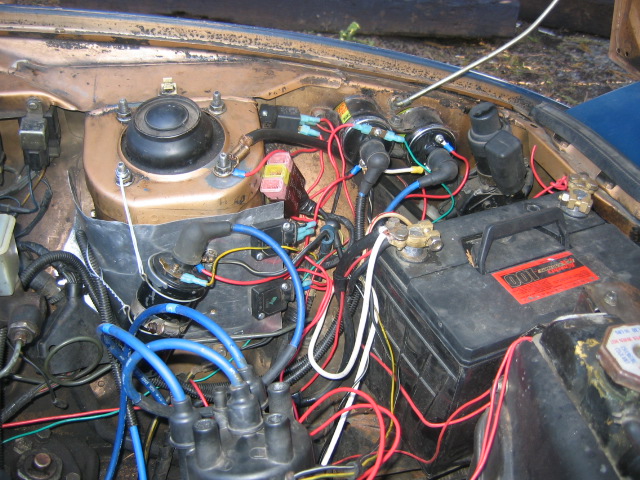

not very good pics but this is how i mounted mine:





*you will have to excuse the oil, i snapped a motor mount and the oil filter on the beehive cooler hit the brake master *

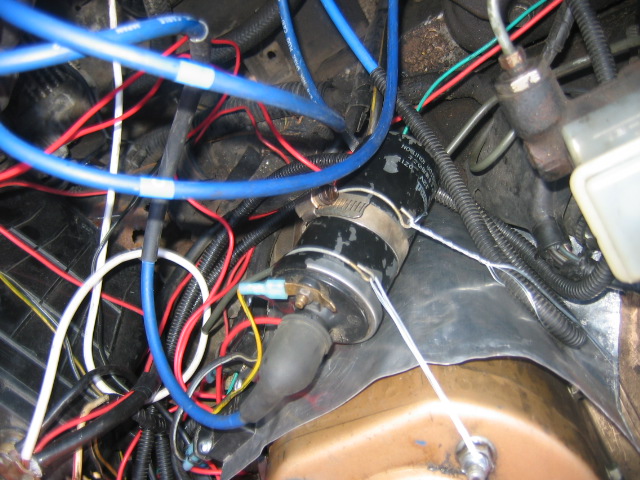

its angle aluminum(road sign to be specific), with [ign][ign](coil)(coil)(coil) on top, i used the stock mount holes for something that was there previously, i dont remember what it was.

isaac



Cool bud, now i've just got to teach you how to tidy up when you're done....lol



that looks like a good way to mount it theres a few signs down the road i feel like a midnight stroll



i got far worse problems now


question!

i was goin to the drags and somthin fell off the exhaust i dont see anything under there except the usall hole in my cat
there could be a bigger hole where i cant see on my cat.
had alot of back oil i guess but nothing else had oil smokin from it thats strange

it sounds like a v8 kinda but the thing thats worring me is the cars heating up bad
i had the heater on for saftey and it seemed to keep it down to save levels
but i have hardly any power when the secondays are kicked in
also the engine is rockin around heaps i have alll neccary things in order to run a rotary

had to travel really slow all the way home

my main question is could a holey exhaust cause alota heat,rob power
and would i be able to drive around with out damage if the temp keeps low



No, but loss of your leading ignition could....



well the thing i cant get it it was workin
there has been no change i have the same kinda spark as i had before
but i will hook it back to stock just to try and see the diff

hmm but i just relized when i took the plug off one coil it had a liquid of at least 10mls
maybe another coil died but still works on hopes and dreams



What exactly is oging on here? what does this do and where is the diagram???



its the direct fire using 3 coils two coils for l1,l2 and one for trailing spark plus

this has all the info read its intresting
http://www.geocities.com/cd23c/dlidfis.html



You say there's liquid in there? If I read your post correctly, the liquid is probably some of the cooling oil in which the primary and secondary coil windings are submerged. It must have a small leak allowing some of the oil to ooze up along the secondary wire inside the top of the coil when it heats up and expands.



these are junks



Wacky: how come you have so many trashed J109s? I've not lost one yet. Is it the consequence of racing?



yep i went back to the auto parts store and they have a liquid cooling oil inside the coil
the resistance is a lil lower than the good one
good is 13.1 leakey one 11.1

the dude reckons it should be good enough
i know them pretty well if it fails ill just get a replacement



note: he steals them from junk yards! shh dont tell no one



Wacky, I could use a couple of dead J109s if you plan on paring down your collection. Wire connectors too.
