more pix of the Organic Mechanic's machine
#1
more pix of the Organic Mechanic's machine
My turbo swap was moving along nicely the engine and tranny are mounted in the car and the shifter lines up perfect. Thanks go to setzep for his help with moding the shift linkage. I didnt get it "perfect" but it works fine.
#3
Heres the fuel cell, this thing was a pain. I had to have my friend to tighten the fitting. My arm is to big to reach through the filler neck.
But its done and in the car. I still need to fine tune its angle and hook up the fuel filler and pump.
But its done and in the car. I still need to fine tune its angle and hook up the fuel filler and pump.
#7

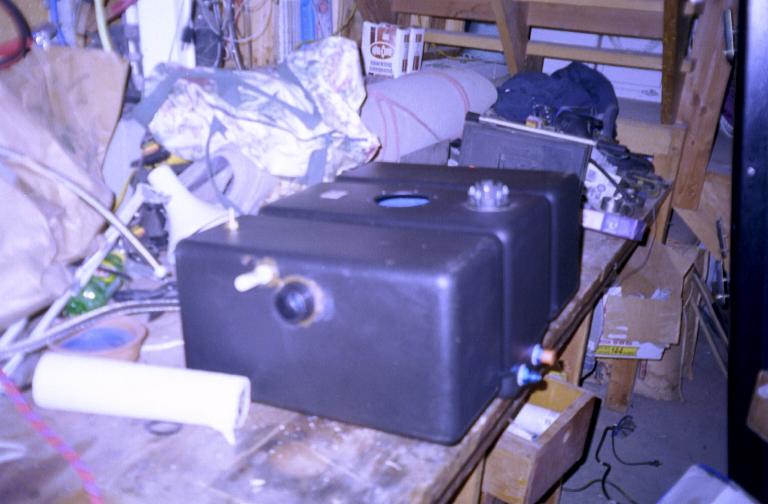

the whole and the alluminum peice in the middle of the cell is the original filler and vent fitting. They wouls hit the spare.
the large fittings in the sides are the filler and the filler vent using PVC. On the corner is the vent fitting. going to the evap canister. There all sealed with Permatex #2 hard setting sealant.
the large fittings in the sides are the filler and the filler vent using PVC. On the corner is the vent fitting. going to the evap canister. There all sealed with Permatex #2 hard setting sealant.
Trending Topics
#12
I checked the pvc.
I the that big black fitting in a little dish of gasoline for 4 days and nothing.
yes its a 16gal, i figured with the bigger engine and turbo i would want a little extra weight at the rear and some extra gas.
yeh, its a big intercooler. i wanted to be really reliable so ive been going extra big on everything,
i just ordered a 2row 22x19 chevy style aluminum radiator from summit. It should fit perfectly in front of the intercooler.
Heres the turbo, Hot side is a 1.15 p trim wheel with a divided housing. cool side is .60 ar but its a pretty small.
Im going to ad a 60-1 compressor wheel before i put it in the car.
I the that big black fitting in a little dish of gasoline for 4 days and nothing.
yes its a 16gal, i figured with the bigger engine and turbo i would want a little extra weight at the rear and some extra gas.
yeh, its a big intercooler. i wanted to be really reliable so ive been going extra big on everything,
i just ordered a 2row 22x19 chevy style aluminum radiator from summit. It should fit perfectly in front of the intercooler.
Heres the turbo, Hot side is a 1.15 p trim wheel with a divided housing. cool side is .60 ar but its a pretty small.
Im going to ad a 60-1 compressor wheel before i put it in the car.
#13
82 streetracer, if youve got some more pics of the fuel cell in the car id love to see them. Just curious, but why did you go with one, i changed my mind on doin one b/c of hakin up the back of the car so i just sumped the stock tank. anyway let us know how it works out.
#15
i didnt have to cut anything in the car. I just modded the tank.
I decided to go with a fuel cell because I thought it would give the best performace for the car.
The cell is foamed and sumped. so it works well for draga and road racing. Im more into road racing and I figured this would work the best.
Plus it looks badass on the street with a cell and nice aluminum fitting at the back.
I decided to go with a fuel cell because I thought it would give the best performace for the car.
The cell is foamed and sumped. so it works well for draga and road racing. Im more into road racing and I figured this would work the best.
Plus it looks badass on the street with a cell and nice aluminum fitting at the back.
#16
Lapping = Fapping
iTrader: (13)
Is this the radiator that you got? http://store.summitracing.com/partde...art=HRE%2D342B
I too have a 16 gallon fuel cell from summit. It's got the GM sender and is filled with safety foam. I've modified the sender to work with my stock guage.
I too have a 16 gallon fuel cell from summit. It's got the GM sender and is filled with safety foam. I've modified the sender to work with my stock guage.
#18
Got Boost?
How'd you modifiy the sender to work with the stock gauge? The stock gauge is a constant voltage bi-metalic strip type, whereas the GM sender is for a air coil. Just curious..... I plan on using a ford 70-10 ohm and modifying the stock gauge.
#19
Right near Malloy
iTrader: (28)
Join Date: Dec 1999
Location: Behind a workbench, repairing FC Electronics.
Posts: 7,841
Received 510 Likes
on
345 Posts
Originally posted by 82streetracer
i just ordered a 2row 22x19 chevy style aluminum radiator from summit. It should fit perfectly in front of the intercooler.
i just ordered a 2row 22x19 chevy style aluminum radiator from summit. It should fit perfectly in front of the intercooler.
#20
I think he just said that backwards is all.
I'm also intrested how you modded the gauge Jeff20b
Looks like you have some catching up to do there streetracer! Looks good so far!
I'm also intrested how you modded the gauge Jeff20b
Looks like you have some catching up to do there streetracer! Looks good so far!
#23
Lapping = Fapping
iTrader: (13)
I didn't mod the guage. I modde the sender. I measured the ohm from the stock sender at full and empty and realised how close the GM sender was. Onluy difference was a couple ohms and it read backwards.
I cut one of the wire traces on the circuit board of the sender and bypassed it. I went directly from the topmost resistor to one of the posts. It runs backwards and matches the ohm requirements of the guage. Now all it needs is a 2.5ohm resistor and it should be perfect. Otherwise I may just leave it because it's really close. The 2.5 ohm resistor could be added inline so it's really easy to add one at a later date.
Remember, this is on a stock GLC guage. RX-7s shared parts bins so there's a chance your guage is the same. I'll have guage specs in a while.
I cut one of the wire traces on the circuit board of the sender and bypassed it. I went directly from the topmost resistor to one of the posts. It runs backwards and matches the ohm requirements of the guage. Now all it needs is a 2.5ohm resistor and it should be perfect. Otherwise I may just leave it because it's really close. The 2.5 ohm resistor could be added inline so it's really easy to add one at a later date.
Remember, this is on a stock GLC guage. RX-7s shared parts bins so there's a chance your guage is the same. I'll have guage specs in a while.
