I'm swapping the FB m/c and prop valve in as part of the swap to LSD rear and FB front suspension into my SA. However, I negelcted to take a pic or make a diagram of where the hard lines went from the m/c and prop valve. I have the one attached to the m/c that runs to the driver's side strut tower. And I have the two that go from the prop valve to the m/c. That leaves me the one that runs to the rear and the one that runs over to the passenger side front. If the hard line arrangement for the FB is the same as the SA, then I'm cool. If not, I need some help. Can someone post a pic or diagram of how these things are arranged?



lets try this. hopefully someone can get a close up pix.

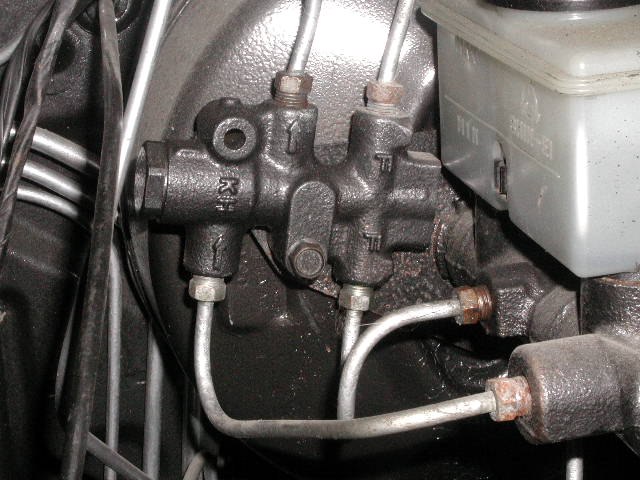

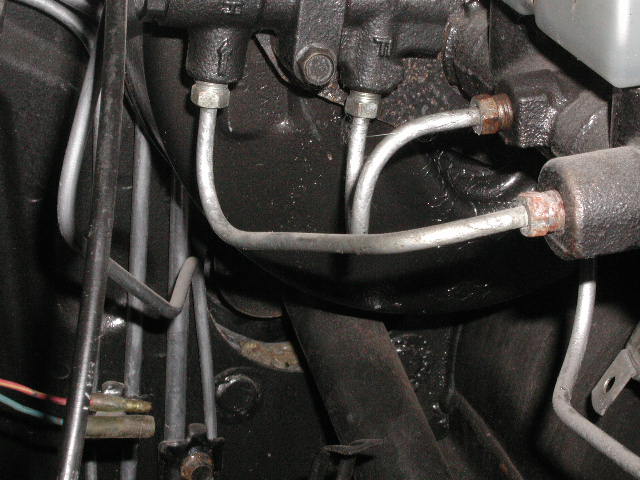

Try these, they may help. I was hoping to meet you at the Lawrence meet last week, if I did and it didn't register, my apoligies. If you want to fix the fender and door, PM me. The shop should be open this weekend if you want to bring it up.



Thanks, guys. I got it now. The line with the arrow pointing up goes to the rear and the "F" goes to the front passenger side.
