Just picked up an old skool 76 cosmo 13b
04-30-07, 08:35 PM
#1
Eats, Sleeps, Dreams Rotary
Thread Starter
Join Date: Jul 2004
Location: Allentown, PA - Paterson, NJ
Posts: 3,247
Likes: 0
Received 2 Likes
on
2 Posts
Just picked up an old skool 76 cosmo 13b
Like it says I picked an original 76-77 (not sure) cosmo 13b motor complete w/ carb and tranny. Its has the "MAZDA" on the housings w/ blue paint. It has 48k original miles and from the sound of the compressions after rotating and a few things here and there it does seem like a legit low mileage motor. I plan on porting it "1/2 bridge" and throwing my Edelbrock on there to put in my 83 gsl by June. Hopefully I wont run into any suprises when I crack her open.
Will post a few pics as soon as I can.
Will post a few pics as soon as I can.
04-30-07, 10:12 PM
#2
A member and I tried to rescue one out of the yards here in Ca. The only thing missing was the steering wheel. The white leather upholstery was still in great shape. The chrome on the bumpers was like new. The only dent it had was on the lower driverside under the door. She was just begging to be saved but the cards did not play out. :-(
04-30-07, 10:16 PM
#3
Rotary Enthusiast
iTrader: (4)
Join Date: Jan 2003
Location: Bryan, TX
Posts: 766
Likes: 0
Received 0 Likes
on
0 Posts
I know alot of people are looking for housings that say Mazda on them. You might be able to part out that engine if you don't care what it says and make some cash on them. Probably enough for you to buy another block and some other go fast parts!
05-01-07, 07:13 AM
#5
Eats, Sleeps, Dreams Rotary
Thread Starter
Join Date: Jul 2004
Location: Allentown, PA - Paterson, NJ
Posts: 3,247
Likes: 0
Received 2 Likes
on
2 Posts
Originally Posted by Jeff20B
MAZDA = '74-'75 RX-4 and REPU. It's not a Cosmo engine. I would know. I have a '76 with original engine and it has the later mazDa logo.
05-01-07, 10:50 AM
#6
I have to disagree. ALL pre-RX-7 housings are capitalized and italics lettering. In addition, the 76+ center plate (no matter if its RX-4 or the RX-5 Cosmo) didnt come with the rectangular smog port below center plate.
Last edited by Siraniko; 05-01-07 at 10:56 AM.
05-01-07, 10:58 AM
#7
Keep to the right.
iTrader: (10)
Join Date: Jul 2001
Location: Mascoutah, IL
Posts: 793
Likes: 0
Received 0 Likes
on
0 Posts
I could believe that a Cosmo would have the later blocky 80s Mazda script becuase that script came out in the late 70s. My Cosmo parts book has the blocky mazda logo on it and all the Cosmos I've seen have blocky script emblems not Italicized ones.
Trending Topics
05-01-07, 11:17 AM
#9
Eats, Sleeps, Dreams Rotary
Thread Starter
Join Date: Jul 2004
Location: Allentown, PA - Paterson, NJ
Posts: 3,247
Likes: 0
Received 2 Likes
on
2 Posts

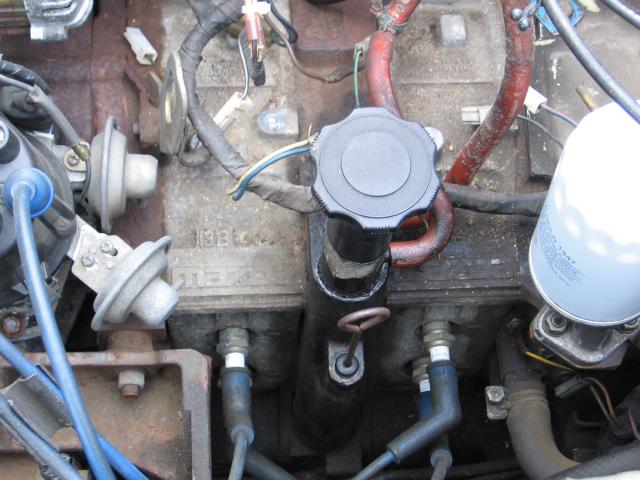

I just took off the intake and it does have the rectangular port. Hmmm, it has "automobiles" just above the "MAZDA" logo on the housings and and 13b stamped above that. I cant find my damn camera! Super strong compression and the clutch assembly looks real nice. Off to find that camera!
05-01-07, 12:00 PM
#13
Nah, wacky calls everthing "junks".

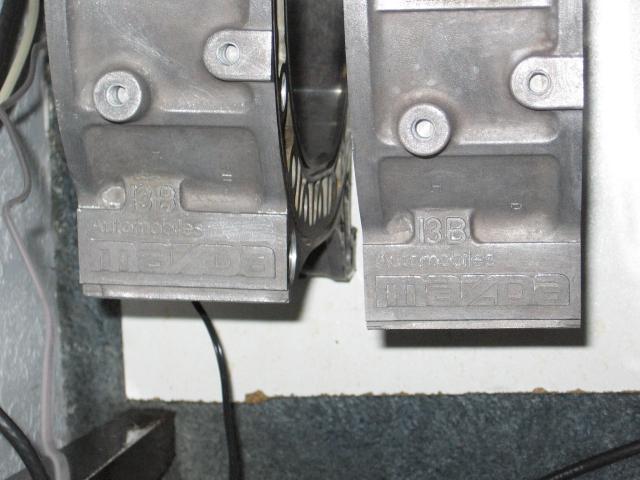

Hey, if the rotor housings say "Automobiles" it might be a cool J-spec engine. I have a set that came from either a delivery van or the AP bus (or whatever it was called). If I had to narrow the year down, it would probably be a '75 engine. Remember their home market got stuff before we did. The exhaust port timing is that of a US-spec GSL-SE where it opens later than US-spec old 13Bs and closes at T2 spec.
My Cosmo was built in late '75 as a '76 model and it has the mazDa logo. It also lacks the ACV port below the intermediate intake ports. It has had a reversed runner manifold like in Wacky's picture.
Hey, if the rotor housings say "Automobiles" it might be a cool J-spec engine. I have a set that came from either a delivery van or the AP bus (or whatever it was called). If I had to narrow the year down, it would probably be a '75 engine. Remember their home market got stuff before we did. The exhaust port timing is that of a US-spec GSL-SE where it opens later than US-spec old 13Bs and closes at T2 spec.
My Cosmo was built in late '75 as a '76 model and it has the mazDa logo. It also lacks the ACV port below the intermediate intake ports. It has had a reversed runner manifold like in Wacky's picture.
05-01-07, 12:04 PM
#14
Eats, Sleeps, Dreams Rotary
Thread Starter
Join Date: Jul 2004
Location: Allentown, PA - Paterson, NJ
Posts: 3,247
Likes: 0
Received 2 Likes
on
2 Posts
Originally Posted by wackyracer
LOL. "JUNK IT"
I have a feeling that our homeboy Latin picked up an old R5.
I have a feeling that our homeboy Latin picked up an old R5.
Last edited by Latin270; 05-01-07 at 12:09 PM.
05-01-07, 12:06 PM
#16
R5 has been around since the '76 Cosmo and RX-4. Only the REPU kept the earlier casting 3B plates and MAZDA logo until the end of their run in '77. It was easier for Mazda to get past emissions restrictions with the '74 spec ports of the 3B plate because it was in a truck. Only the cars got the smaller '76-'85 spec ports.
R5 ran from the '75 or '76 model year until the nitrided ones in the '80s with a high volume oil pump and other later upgrades. Then Mazda shifted their attention to the 6 port RE-EGI (GSL-SE) engines.
R5 ran from the '75 or '76 model year until the nitrided ones in the '80s with a high volume oil pump and other later upgrades. Then Mazda shifted their attention to the 6 port RE-EGI (GSL-SE) engines.
05-01-07, 12:35 PM
#21
You might need to. Have you seen how small the van/bus intermediate ports are? Yeesh!
Here is a series of pictures I posted a few months ago while trying to figure out the best combination of parts to build three nice engines. Enjoy.
All the short port plates I have easy access to. Note the delivery van/bus plate in the middle.
All three have the exact same port timing! (the flash messed with the R5's port)
Some moron built an REPU engine with the stupid NO plate so I had to correct it.
Comparing NO ports with standard '76-'85 12A ports. The picture speaks for itself.
A couple of Y plates with the NO and R5. Notice the offset casting?
Now a comparison of manifolds.
I modified the back of the Cosmo manifold so it would fit my MG. I also cut channels in the top. We'll see how well they work when I get it running in a week or two.
Here is a series of pictures I posted a few months ago while trying to figure out the best combination of parts to build three nice engines. Enjoy.
All the short port plates I have easy access to. Note the delivery van/bus plate in the middle.
All three have the exact same port timing! (the flash messed with the R5's port)
Some moron built an REPU engine with the stupid NO plate so I had to correct it.
Comparing NO ports with standard '76-'85 12A ports. The picture speaks for itself.
A couple of Y plates with the NO and R5. Notice the offset casting?
Now a comparison of manifolds.
I modified the back of the Cosmo manifold so it would fit my MG. I also cut channels in the top. We'll see how well they work when I get it running in a week or two.
