Intercooler for my TII swap
#1
Banned. I got OWNED!!!
Thread Starter
Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes
on
0 Posts
Intercooler for my TII swap
I only need two more things for my TII swap. Intercooler and a GT35R turbo. Is this intercooler a good choice? Can't find a large NPR around..
http://cgi.ebay.com/ebaymotors/HUGE-...QQcmdZViewItem
http://cgi.ebay.com/ebaymotors/HUGE-...QQcmdZViewItem
#7
I can has a Hemi? Yes...
iTrader: (2)
The Volvo one, while large - is too thin.
I'd look at the one Zbeater has, or the old faithful - the Isuzu NPR intercooler.
Currently mine is supporting well over 450+ to the wheels.
I am planning on putting TWO NPR intercoolers (cut and welded) on my car,
when I upgrade my Turbo.
I'd look at the one Zbeater has, or the old faithful - the Isuzu NPR intercooler.
Currently mine is supporting well over 450+ to the wheels.
I am planning on putting TWO NPR intercoolers (cut and welded) on my car,
when I upgrade my Turbo.
Trending Topics
#8
Senior Member
Join Date: Jul 2004
Location: Delhi, CA
Posts: 444
Likes: 0
Received 0 Likes
on
0 Posts
intercooler effeciency
For a given core volume the thinner intercooler will generally be more efficient in cooling.
A 24" wide by 6" tall by 4" thick core will be less efficient cooling than a 24" wide by 12" tall by 2" thickness core.
Pressure drop through the core will be less if the charge air flow runs in the short dimension. In the example above, if the flow runs in the 24" width direction there would be no difference in the pressure drop between the two, while if it was in the top to bottom direction the 6" would have less restriction than the 12". Choose the largest face area core that will fit and run the internal flow across the short dimension then pick the thickness that will have acceptable air flow restriction for the volume of air the application needs. Choose the inlet/outlet positions to get the most direct routing for the intercooler pipes. Try not to run the pipe from the intercooler to the engine behind the radiator to avoid reheating the charge air.
A 24" wide by 6" tall by 4" thick core will be less efficient cooling than a 24" wide by 12" tall by 2" thickness core.
Pressure drop through the core will be less if the charge air flow runs in the short dimension. In the example above, if the flow runs in the 24" width direction there would be no difference in the pressure drop between the two, while if it was in the top to bottom direction the 6" would have less restriction than the 12". Choose the largest face area core that will fit and run the internal flow across the short dimension then pick the thickness that will have acceptable air flow restriction for the volume of air the application needs. Choose the inlet/outlet positions to get the most direct routing for the intercooler pipes. Try not to run the pipe from the intercooler to the engine behind the radiator to avoid reheating the charge air.
#9
Banned. I got OWNED!!!
Thread Starter
Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes
on
0 Posts

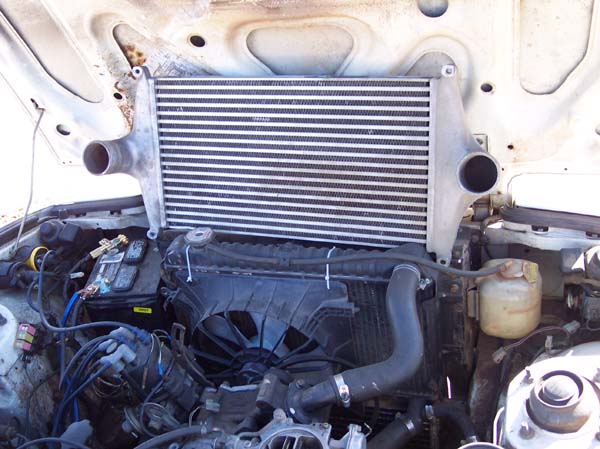

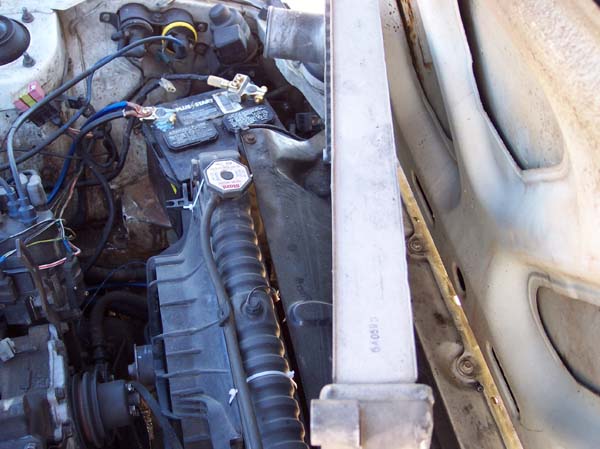

Just got a great deal on this NPR. What do you guys think? Going to relocate the battery anyways.. Can route the piping real easy on this I'm thinking..Any inputs?
#10
Originally Posted by Directfreak
I am planning on putting TWO NPR intercoolers (cut and welded) on my car,
when I upgrade my Turbo.
when I upgrade my Turbo.
That IC looks like it will fit nicely. Will it clear the rad supports?
#11
Banned. I got OWNED!!!
Thread Starter
Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by z-beater
Interesting. That is a cool idea.
That IC looks like it will fit nicely. Will it clear the rad supports?
That IC looks like it will fit nicely. Will it clear the rad supports?
