Originally Posted by $100T2
I was thinking I would break the nut while it's on the car (not all the way, just a little), then remove everything.
Find some one that has a 10-12 ton shop press for the bushings.
03-20-06, 04:56 PM
#27
---
Join Date: Sep 2005
Location: Minneapolis, MN
Posts: 568
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by dj55b
Thats when visa comes in ... buy all the equipment you need for a day or two and go in the next day and tell him the wife didn't want you blowing the money on stupid stuff like this. Lol
03-21-06, 11:24 AM
#29
That was me. Once the top nut and the 2 17mm strut bolts are out, wedge a large pry bar or similar between the frame and the sway bars, and slowly lower or put weight on the pry bar to release the spring tension. I've done it over 100 times especially at the junkyard.
Originally Posted by 64mgb
I must be confused. There was a thread here recently that discussed this, and I was told that you could just remove the nuts at the top, then slowly jack the car up to remove the strut assemblies. No spring compressor needed. What am I missing here?
Thanks,
Rich
Thanks,
Rich
03-21-06, 01:00 PM
#30
add to cart
Join Date: Jun 2002
Location: Saskatoon, SK & Montreal, PQ
Posts: 4,180
Likes: 0
Received 0 Likes
on
0 Posts
Be very careful compressing the front springs. Ensure the compressor is properly seated or better still use a bench compressor at a buddies house, if available. It's one of those "Small chance something will go wrong, but if it does, it's no small injury" sort of things.
03-21-06, 02:27 PM
#31
Rear springs and shocks are easy and like someone said before performance springs are shorter so are easier to get in/out than stock springs. Spring compressors arent required (I got them in my old car with some 2x4 chuncks and a 3' crowbar) but sure make the job easier and safer. Bushings on the other hand are a beeattch! I have replaced about 1/2 of mine so far and had to drill/dremel/recip saw/torch them out!! What a mess but well worth it.
03-21-06, 02:58 PM
#32
You've Been Punk'd
Join Date: Jun 2002
Location: Branson, Missouri
Posts: 4,727
Likes: 0
Received 0 Likes
on
0 Posts
spray all the nuts with wd40 a couple times before you take everything off (like the day before) so it will soak in there and not be such a pain in the ***.
03-21-06, 03:41 PM
#34
WD-40 works better as a maritial aid than a rust penetrant. P B Blaster is the best. I have found it works well as a cutting lube too. I now use it when cutting steel or aluminum with the jig saw and works great keeping carbide burs from clogging when grinding aluminum. Burs and cutting blades last longer too.
After doing a half dozen or so lowering spring replacements on 1st and 2nd gen front struts, I have not yet needed to use a spring compressor for the install, only removal of the oem springs.
After doing a half dozen or so lowering spring replacements on 1st and 2nd gen front struts, I have not yet needed to use a spring compressor for the install, only removal of the oem springs.
03-21-06, 04:28 PM
#35
You've Been Punk'd
Join Date: Jun 2002
Location: Branson, Missouri
Posts: 4,727
Likes: 0
Received 0 Likes
on
0 Posts
i always use it for rust, but thats because its usually the only thing i have handy. i use it for when i cut metal as well, and alot of it when i do porting. makes the porting much easier.
03-24-06, 12:38 AM
#36
Rotary Freak
Join Date: Sep 2004
Location: Kitchener, Ont. Canada
Posts: 1,901
Likes: 0
Received 0 Likes
on
0 Posts
i couldn't get the shocks off the rear to drop the rear end down enough to revmoe the springs to install the ground cntrols, so we just used a cutting wheel, and cut the springs in half (not safe) but it worked perfectly. the new springs slid into place no problem
03-24-06, 12:43 AM
#37
Next time, drop both ends of the sway bar at the frame rail. That will allow the rear axle to angle more. I can put a foot on the disc/drum, push down, and if the spring doesn't fall out by itself, I have a hook I can reach in with and pull the spring out.
03-24-06, 12:45 AM
#38
Originally Posted by razorback
i always use it for rust, but thats because its usually the only thing i have handy. i use it for when i cut metal as well, and alot of it when i do porting. makes the porting much easier.
03-24-06, 09:24 AM
#39
Burning Oil-Grinding 3rd
Originally Posted by trochoid
Try the PB. I used to use Liquid Wrench, after the 1st can of PB, I'll never go back.
Best stuff there is.
03-24-06, 11:33 AM
#40
On the prowl for an FB
Thread Starter
iTrader: (1)
Join Date: Sep 2002
Location: Surrounded by Sebey parts, Rhode Island
Posts: 2,932
Likes: 0
Received 6 Likes
on
4 Posts
Originally Posted by trochoid
Next time, drop both ends of the sway bar at the frame rail. That will allow the rear axle to angle more. I can put a foot on the disc/drum, push down, and if the spring doesn't fall out by itself, I have a hook I can reach in with and pull the spring out.
03-24-06, 11:34 AM
#41
On the prowl for an FB
Thread Starter
iTrader: (1)
Join Date: Sep 2002
Location: Surrounded by Sebey parts, Rhode Island
Posts: 2,932
Likes: 0
Received 6 Likes
on
4 Posts
Originally Posted by Manntis
Be very careful compressing the front springs. Ensure the compressor is properly seated or better still use a bench compressor at a buddies house, if available. It's one of those "Small chance something will go wrong, but if it does, it's no small injury" sort of things.
03-24-06, 11:56 AM
#42
Rotary Enthusiast
iTrader: (14)
Join Date: May 2004
Location: Drifting a Roundabout near you!
Posts: 1,366
Likes: 0
Received 10 Likes
on
10 Posts
I would loosen or remove the front top strut nut with it still installed in the car, then when you jack it up you will release the pressure thus foregoing the spring compressor.
The racing beat springs are shorter and have no compression when you reassemble your strut assembly...kinda weird when that happened to me, had to call RB to verfiy that I did the install correctly. I'm removing my rear RB springs today and installing the Eibach 200# springs with the deadcoils( you cut the dead coils to lower the rear) I'll take pics and post them.
The racing beat springs are shorter and have no compression when you reassemble your strut assembly...kinda weird when that happened to me, had to call RB to verfiy that I did the install correctly. I'm removing my rear RB springs today and installing the Eibach 200# springs with the deadcoils( you cut the dead coils to lower the rear) I'll take pics and post them.
03-24-06, 09:47 PM
#43
Rotary Enthusiast
iTrader: (14)
Join Date: May 2004
Location: Drifting a Roundabout near you!
Posts: 1,366
Likes: 0
Received 10 Likes
on
10 Posts
Rear spring installation.

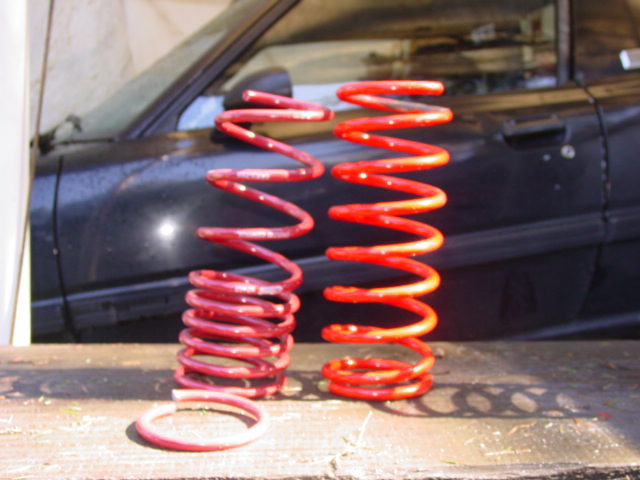

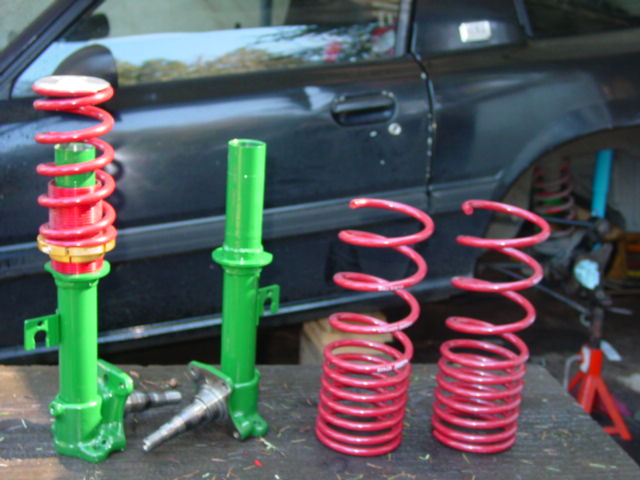

Here's the new coilovers and rear springs, notice the coils that are close together, those are the deadcoils that you cut to adjust your ride height.

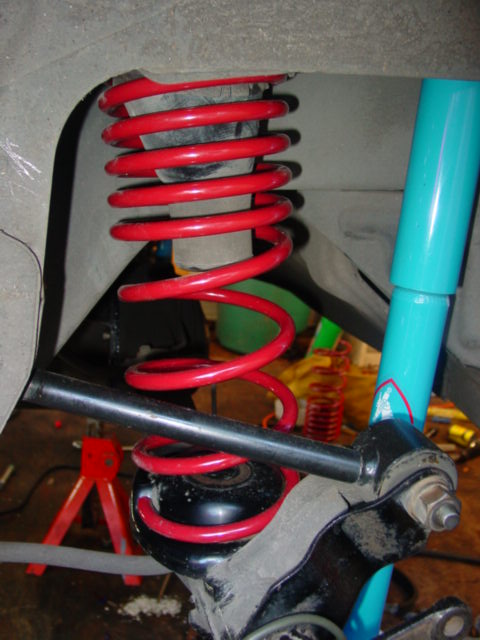

The other shots are of the bottom shock mount and the lower control arm disconnected so you can get the spring out and the new one in and the last shot is of the spring installed.
The other shots are of the bottom shock mount and the lower control arm disconnected so you can get the spring out and the new one in and the last shot is of the spring installed.
