I am in the middle of my TII project(just like everyone else) and I was wondering how big your fmic is and what piping kit you got or if you bent it ect. Thanks
Charlie

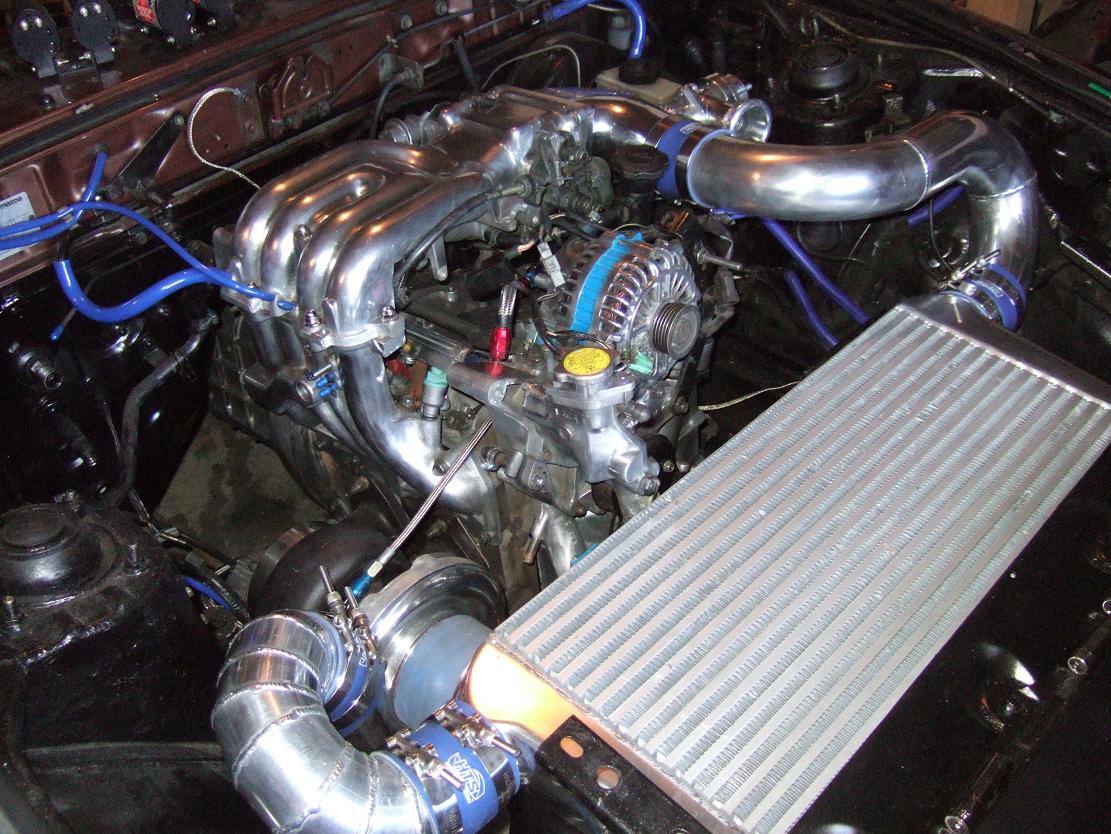

I'm running a 24" W X 12" T X 3" Thick. 3" inlet/outlet. 3" intercooler piping. Bought a 3" intercooler piping kit and had it cut and welded. A nice 50mm Tial BOV attached also



Geez gonzz, I have to get a ride in that some time.



I'm looking for the same size ic, any suggestion for sourcing. Nice fab work gonzz.



Ebay is your best bet..



I got over 10k in this with my own labor.. not cheap.. And i'm not done yet.. 8.8 rear going in real soon.. then i'm good



Yeah, I was looking at the SS Autochrome one, waitng for my cash tranfer to go though, then have a buying spree.



Spearco from Boostcoolers,mounted all the way up front and plumbed with a Greddy 60MM universal pipe kit.Roughly, 30"x10"x3".....it just fits between the bumper horns and slips into the airdam sides like a cassette.
I did this setup a few years ago,before mandrel bent aluminum IC pipe was common on Ebay.Im gonna go back and re-fab the whole thing with 2.5" pipe and TIG the whole thing,no couplers....



Steve what intake mani is that? I think it is the one i have and im not even positive what car it came off.... But if you used the cooresponding lower mani where did you put your other injectors?



It's just a S5 TII manifold. The primary injectors go in the centre plate of the engine.



Right but since I have a 12A center plate what do i do? Drill them into the mani?



I have a 24"x12"x3" 3" inlet 3" outlet.



Yea,youll have to get custom with the injector placing.
Or you can rebuild the engine with a GSL-SE center plate.That will gain you the primary injector holes and best replicate the stock setup.

My engine is a full S5 TII setup.I like to let the factory do all the engineering,simpler that way.....



This big...
