gsl-se oil meter pump check
Hi, 1985 GSL-SE
New car to me, I have about 400 miles on it. Not using any oil, which is my concern. I believe I have the oil meter pump adjusted, but how do I check it's ouput?
New car to me, I have about 400 miles on it. Not using any oil, which is my concern. I believe I have the oil meter pump adjusted, but how do I check it's ouput?
07-02-09, 03:46 PM
#2
Test proceedure is in the FSM. Download the online FSM from either site listed below. Test is in Sec. 2, p. 8. Download the entire FSM, you'll come to find it very handy.
http://www.wankel.net/~krwright/cars/rx7/manuals.html
http://foxed.ca/foxed/index.php?page=rx7manual
http://www.wankel.net/~krwright/cars/rx7/manuals.html
http://foxed.ca/foxed/index.php?page=rx7manual
07-02-09, 04:46 PM
#3
Kevin's site address has changed. It is now http://wright-here.net/cars/rx7/manuals.html

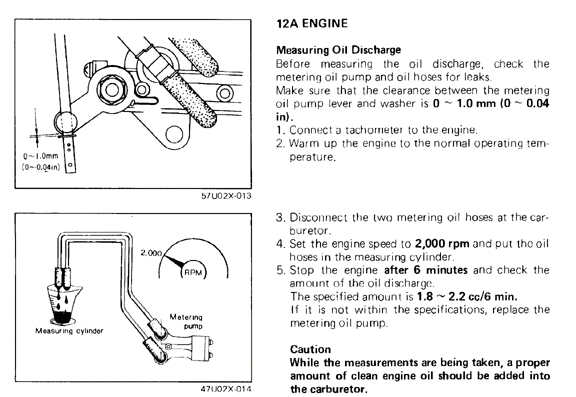

Like Trochoid said....FSM Section 2, page 8 for 12A engine.
Like Trochoid said....FSM Section 2, page 8 for 12A engine.
07-03-09, 09:16 PM
#6
Junior Member
Thread Starter
Join Date: Feb 2009
Location: Portland, OR
Posts: 23
Likes: 0
Received 0 Likes
on
0 Posts

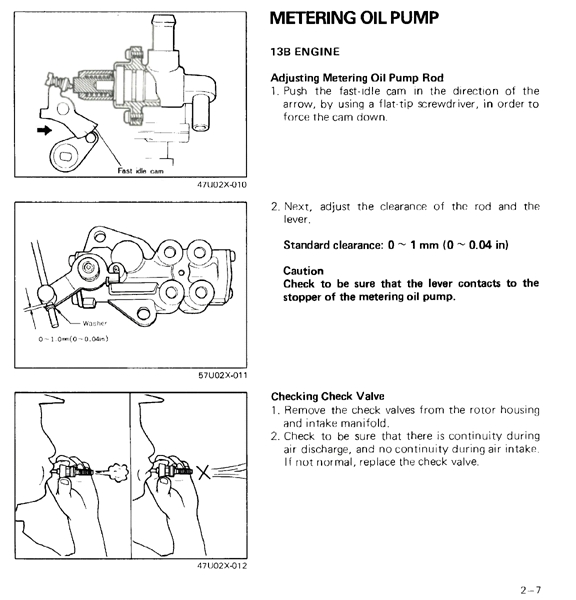

The manual check for a 12A is pretty straightforward. But for a 13B, the manual has no flow check procedure. Best I can tell I have to remove the intake plenum and then the oil injector. Put the plenum back on, start the car and measure. Then do the same thing again 3 more times for each injector, an all day procedure. Anybody come up with a better way?
