tallbozo

iTrader: (5)

Hi all,

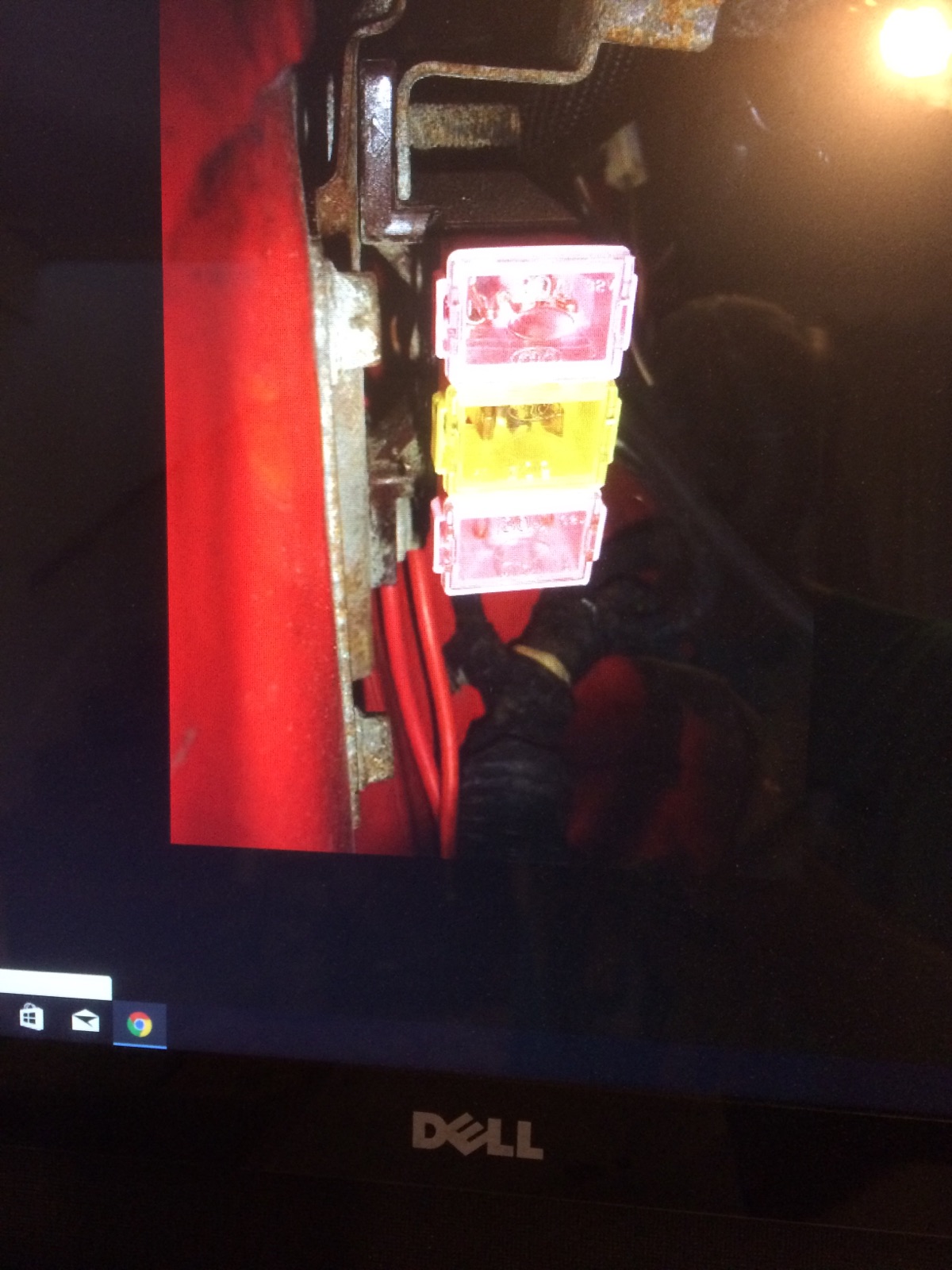

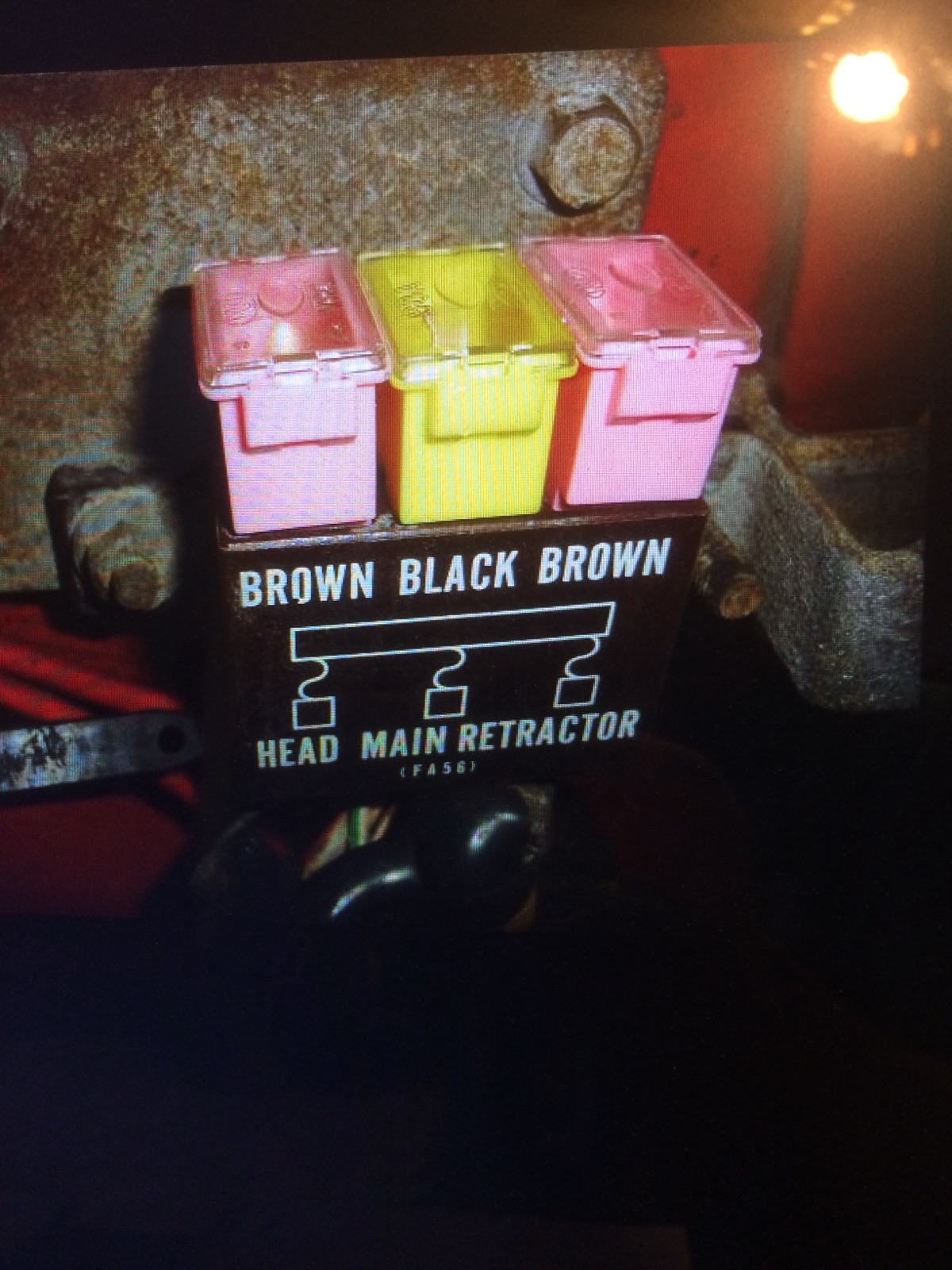

Anyone know which fuse to use on the injector fusing link (GSL-SE owners know this as the fuse to de-flood)). My green wire fuse broke and I want to replace with a newer style. I can't seem to find the amperage anywhere. I feel like it should be 30 but not absolutely sure. Thank You!

tallbozo

iTrader: (5)

Looks like the FC runs a 40 amp fuse
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/blowing-egi-inj-fuse-possible-causes-638621/

GSLSEforme

Use 30 amp fuse for that circuit,maybe replace them all...Main-60 amp,all others 30 amp

tallbozo

iTrader: (5)

So reading the specs on the green fuse, it's a 1.25sq which is a 45amp equivalent. So would running the 40 or 50amp fuse be better?

I got ahold of Rob at pineapple Racing and he said run the 50 amp as a replacement for the green wire fuse.

KansasCityREPU

iTrader: (9)

Generally you would go down in amps. This is to protect the wiring. Going up could cause the wires to overheat in the event of a large current drain.

tallbozo

iTrader: (5)

That makes sense I must have switched that concept. I'll use the 40amp then! Thanks for the confirmation

DreamInRotary

iTrader: (49)

I'd also go down in amperage, don't want to melt those old brittle wiring harnesses - they won't come back together after a ridiculous amount of heating!
