Sammymatik

Ok well I'm really really really bored, so my project now is making my fiberglass hood, or maybe CF, for the 79.

I would like to go ahead and put some type of hood scoop or vent into it while I'm at this begining stage. I'm not quite sure what type of thing to go with.

I'm thinking more along the lines of a turbo II hood scoop.


any opinons on this type of setup? Aerodynamics? Cooling? Styling?


Of course there is always this mariah type scoops, but I think I'm leaning more towards the raised scoop for the more agressive look.

Manntis

the TII hood scoop is a popular mod, though aerodynamically it's a dud many people think it looks good.

I'm working on a vented hood m'self as it's more practical for cooling and arguably reduces front end lift, but not everyone likes the look of a vent - scoops seem more 'aggressive', especially to those raised on muscle cars who also prefer dual exhaust

thorin

oooooh!!!! hoodscoop! myself, i dont much care for the mariah OR the TII style scoops.

something more raised and pronounced would be better.

like the hoodscoops on current mustangs

http://www.aapd.net/latemustang/imag...uct/M116HS.jpg

or some reverse large size louvers like these:
http://www.greenwoodvette.com/images/F-3.jpg

RotorMotorDriver

iTrader: (1)

Support a fellow RX-7 Club member who already makes them and buy one from 1st7Heaven . Hes a great guy, and completed my order just fine for my oil pressure/temperatue adapter block . Check out his site at www.rotarysutosports.com.

~T.J.

mar3

iTrader: (8)

Link is dead....

thorin

mar3

iTrader: (8)

Worked that time and no wonder..I can't believe i didn't see it the first time... ...

Manntis

thing is, 1stRX makes stock shaped hoods - this guy is talking about hoods with scoops...

djmickyg

yeahh the new mustang is the way to go!
and they will give u best air flow to ur air filter IMO if u had some sort of open top filter ....

Manntis

Have you SEEN the new Mustang scoops up close? They're just a bump on the hood with plastic trim filling in the front - My friend Loretta drives one and complains about the car wash wax sticking to the black plastic, showing off the fact that there's no opening.

Factory rice.

RotorMotorDriver

iTrader: (1)

Steve (1st7Heaven) plans on making vented hoods the last time I checked...

~T.J.

djmickyg

if Sammymatik were to make the replica mustang scoop for his bonet. im sure would be all out of fiberglass with no plastic so having wax and pollish fudging up the plastic shouldn't be an issue for this one.

and no i havent SEEN the mustang up close, we dont get to many down here in australia...

Sammymatik

Factory Rice! LOL thats comedy!

The louver idea is a possiblity for sure, I thought they would be more functional for venting air into the engine bay.

I completely agree with Mantis about the TII style scoops. I think they do look fairly nice but I'd rather not reduce my drag coefficent any more than necessary.

Well I got a little bit more time to figure it out cause I went to the hardware store and they were out of Melamine board which I'm gonna need to do the vacum bagging. I also still have to bust out the clay and do some sculpting and prep up the hood to be copied. I would like to make the scoop, if I go with a scoop, small as to not make too much drag... just big enough to suck some air inside the hood.

Anyone have some good pictures of hood scoops that might look good on a first gen?

Manntis

Why do you want to suck air into the underhood area? The radiator already lets plenty of air past. If anything, you want to use the negative pressure to evacuate air from under the hood, meaning less air going down under the car and lifting it, and less hot air trapped at the top of the engine bay.

Sammymatik

yeah... the more I think about it the more I'm thiking I should just do a stock replacement... then maybe making vents after the fact. Would be a hell of a lot easier that way. Besides the master mold is gonna be a lot easier to make with out the scoop or vents or whatever.

I've only got enough glass at the moment to lay up the mold... Maybe later I can just pick up some epoxy resin and CF to make a CF hood. hmm.... I can always make another mold.

Manntis

1stRX-7heaven is already making a fibreglass replacement for stock, and a race-only CF version

Sammymatik

How much is he charging?

I do have a fair amount of fiberglass still... I gota do something with it. Could always try to do a set of fenders.

Winnipeg85GSL

I wonder how a cowl hood would look? I could use one of those....

thorin

No kidding. I noticed that a while ago. i was talking on stangnet.com, and some tard made some comment about headlight conversions all being "rice".

--this coming from someone who drives an fox-body GT: a car with a MASSIVE cosmetic spoiler and 5 non funtional airscoops.

djmickyg

has anyone got a link to some online tutorial for working and making things with fiberglass.. ?

My first attempt with my dash didn’t turn out fantastic. There are a few cracks and it isn’t very smooth and I want to experiment more with it, maybe try and make a new head light cover with a vent?

thanks

1st7heaven

I am working out the "vented" hood now. My first vacuum bagged hood should be done next week, I have a customer that is using it on a tube framed road racer.

Here are a couple old threads.

https://www.rx7club.com/forum/showth...ht=vented+hood

https://www.rx7club.com/forum/showth...ht=carbon+hood

I think I am actually going to sell this carbon hood on ebay. This is the first one and it is rough around the edges.....any interest before I go to ebay??

Sammymatik

Nice hood!

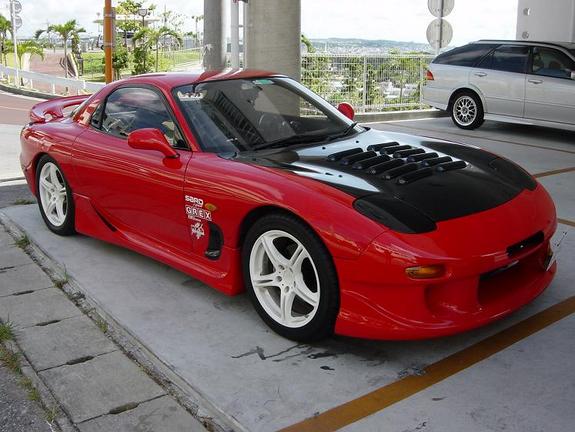

I'm thinking about going more along the lines of a raised type of vent...

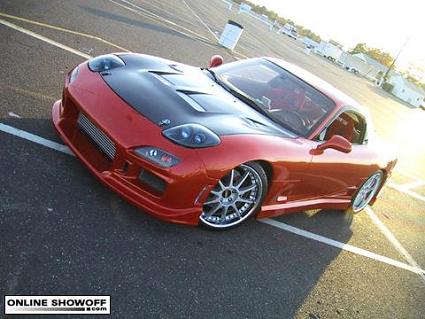

Of course this one is always nice... a little more than what I'm looking to attempt.


Looks like I need to do a bit more conceptualizing before I start sculpting.

1st7heaven

That first hood looks pretty bad! Look at the lines around the headlight?? I do like that type of vent for racing though.

MikeLMR

the headlights are in the raised position, thats why it looks like a bad fit

Hyper4mance2k

iTrader: (40)

your lucky i hate mudstains or mustakes however you pronounce it..
