gauge cluster wiring

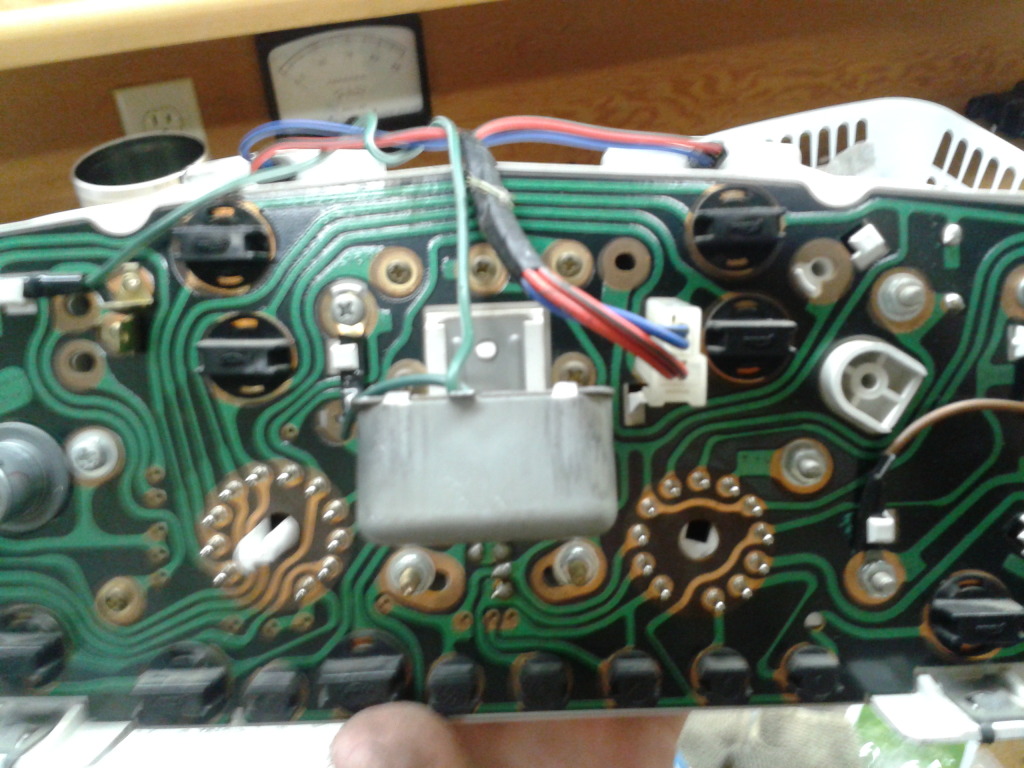

trying to wire in a gauge cluster in the rally rx7. basically, there is no harness, so im running wire to the plugs that should make the cluster work.
i have the green/yellow power wire, tach, fuel hooked up and all the grounds off the two plugs. But, when i kick power on, nothing happens. fuel gauge doesnt work, tach doesnt work with the car running, battery gauge shows nothing...
frankly, i have no idea why. is there a wire im missing? There is a two prong male connector that is just hanging out on the cluster. (not the other two prong that connects to the top lights). Grounds are good, i have 12vs to the green/yellow wire...
i have the green/yellow power wire, tach, fuel hooked up and all the grounds off the two plugs. But, when i kick power on, nothing happens. fuel gauge doesnt work, tach doesnt work with the car running, battery gauge shows nothing...
frankly, i have no idea why. is there a wire im missing? There is a two prong male connector that is just hanging out on the cluster. (not the other two prong that connects to the top lights). Grounds are good, i have 12vs to the green/yellow wire...
#3
i just ended up rebuilding 2 clusters and redoing the entire wiring harness, so its possible i might be able to help you, what year is it? mines an 81 but i have wiring diagrams for multiple years
