Fc rear axle to fb
02-08-07, 08:11 AM
#26
Full Member
Join Date: Apr 2004
Location: Central GA
Posts: 214
Likes: 0
Received 0 Likes
on
0 Posts
It is not a big deal to re drill the rear for any pattern but there has to be enough of a bolt circle to clear the larger axles of the 8.8 diff. You would have to measure. My guess would be that 108mm would be too small. The center hole of your wheels would also need to be large enough to clear the center fitting. IMHO I would look for the ford explorer axles that came stock with rear disc brakes, narrow it an extra inch more than usual and mount your wheels on 1/2" adapters with hardened studs to change the pattern from the 5 x 114 to the 4 x 108.
02-11-07, 03:44 PM
#27
NIKOCRX
Thread Starter
Join Date: Dec 2005
Location: greece
Posts: 616
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Rx Seven

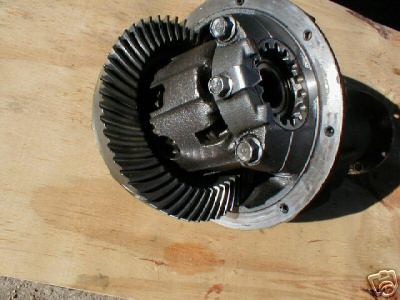

You can put in a torsen from a 1994+ Miata into the S3 84-85 rx7 large axel rear end. But you cannot do this to the S2 80-83 small axel rear end with out other modificaions.
Here some more info:
http://members.aol.com/solomiata/Drivetrain.html
If they still have any of these left I would get one, but I think they stopped making them but it would hurt to check. You still can only use this in the S3 84-85 rear end. You can also get a Kazz LSD for the S3 rear end.
Here some more info:
http://members.aol.com/solomiata/Drivetrain.html
If they still have any of these left I would get one, but I think they stopped making them but it would hurt to check. You still can only use this in the S3 84-85 rear end. You can also get a Kazz LSD for the S3 rear end.
02-11-07, 04:00 PM
#28
in 83' some of the cars have big axles and some have small axles. what i would recomend you do is buy some Moser axles from respeed. ask billy about getting them drilled to whatever pattern you want. im sure thats possible. id also find a kaaz or torsen diff from a miata, not sure what years, and throw that in as well.
if you wanted to stick with stock axles. im sure you could easily locate a set of stock SE axles in the states and have them shipped to you. actually, i may have an extra set of bare axles. im just not to sure how to go about shipping them and id have to check to make sure i have them.
http://www.mrcmfg.com/respeed/catalo...ebef1fe3feaaaf
if you wanted to stick with stock axles. im sure you could easily locate a set of stock SE axles in the states and have them shipped to you. actually, i may have an extra set of bare axles. im just not to sure how to go about shipping them and id have to check to make sure i have them.
http://www.mrcmfg.com/respeed/catalo...ebef1fe3feaaaf
02-11-07, 07:04 PM
#30
NIKOCRX
Thread Starter
Join Date: Dec 2005
Location: greece
Posts: 616
Likes: 0
Received 0 Likes
on
0 Posts
....i'm confused now....the seller asked me if i need the one for the GSL with 4x110 bolt pattern or the GSLSE with 4x4-1/2 bolt pattern? They are different.
they both have the ''big'' housing and only the bolt patern is different?
they both have the ''big'' housing and only the bolt patern is different?
02-11-07, 07:15 PM
#31
Originally Posted by ΝΙΚΟΣ
....i'm confused now....the seller asked me if i need the one for the GSL with 4x110 bolt pattern or the GSLSE with 4x4-1/2 bolt pattern? They are different.
they both have the ''big'' housing and only the bolt patern is different?
they both have the ''big'' housing and only the bolt patern is different?
