rotary84

iTrader: (4)

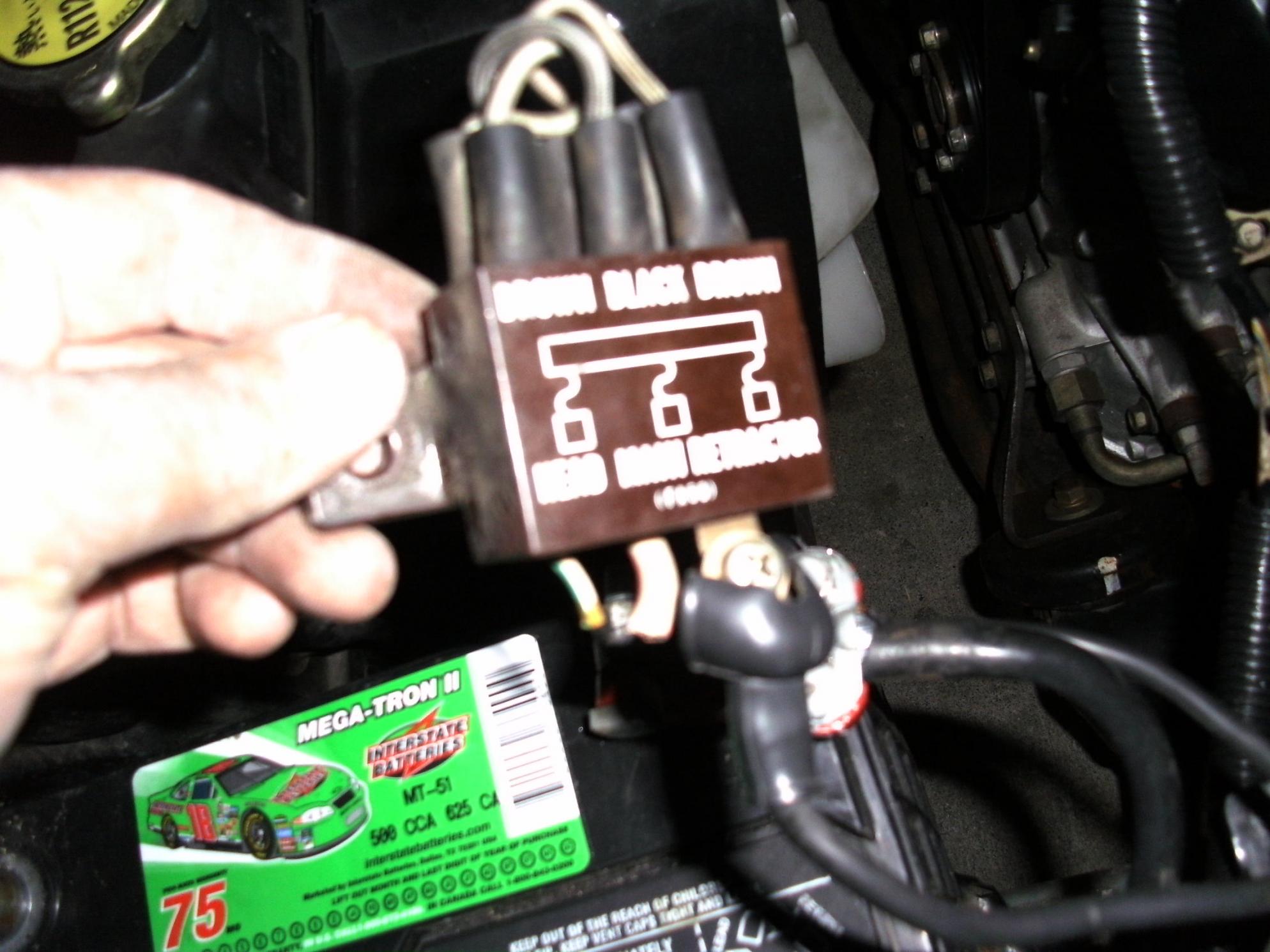

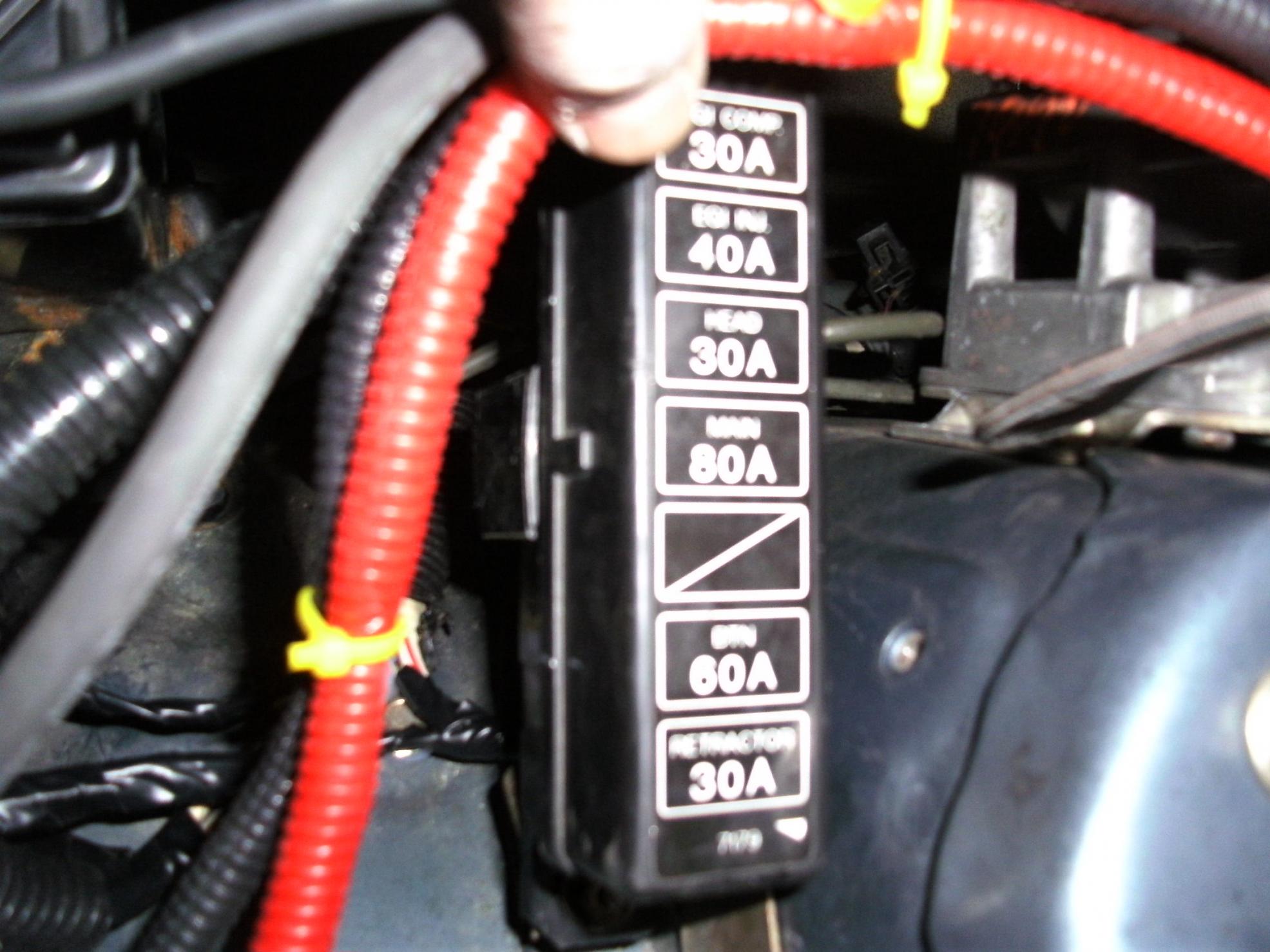

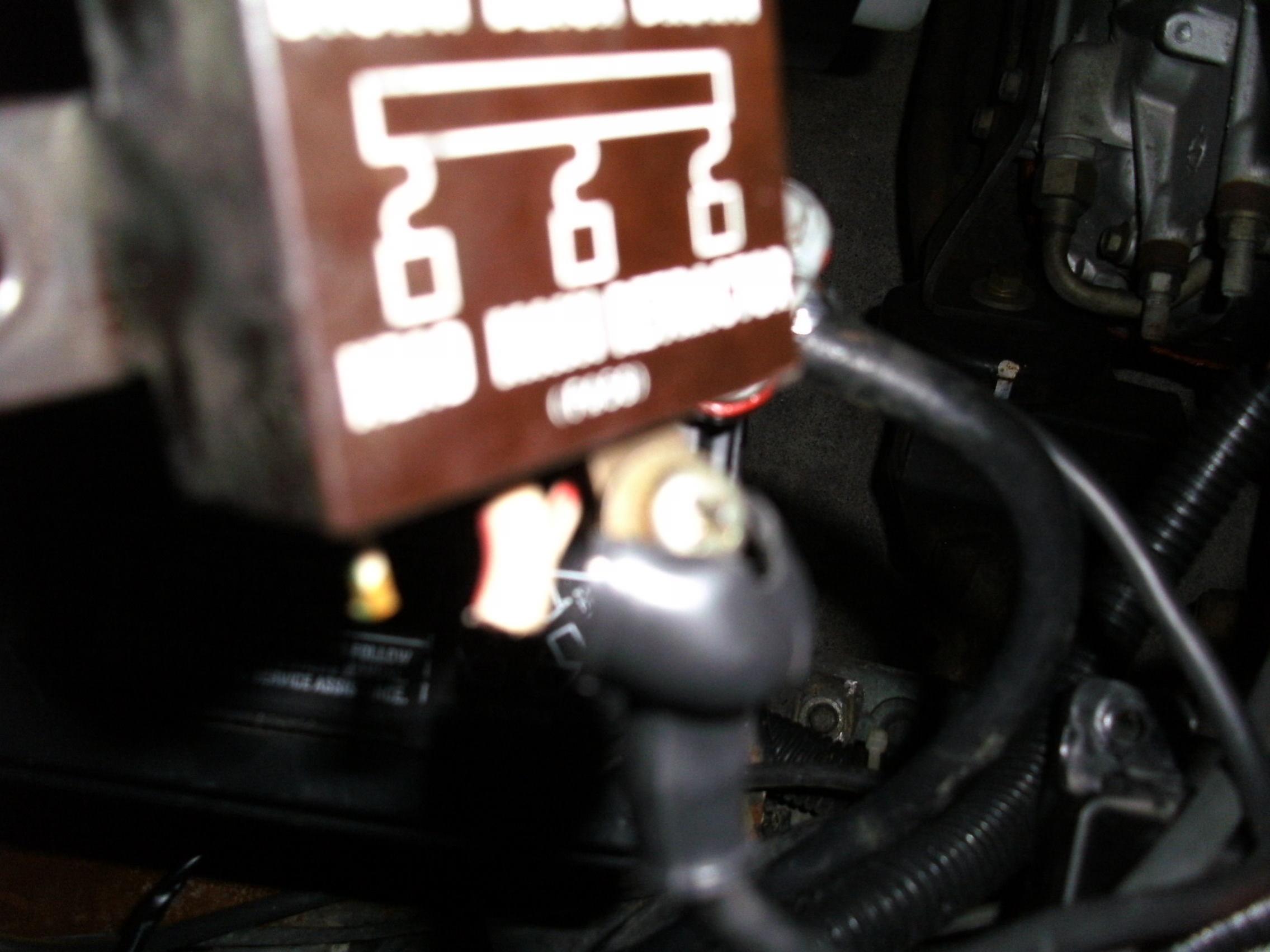

upgrading my old fuse link from my fb to a fc link. My question is where does this wire that connects to the old fb fuse link by a screw go to on the fc link. the wire hooks up to the positive terminal on the battery. here are pics to show what Iam talking about

gsl-se addict

iTrader: (3)

Connects to the main link (use ring terminal). If you look under the FC fuse box, it is the side where there is a copper bar that connects to all the fuses. This brings power in and powers all of the links. Then each individual link split off to the individual circuits.

rotary84

iTrader: (4)

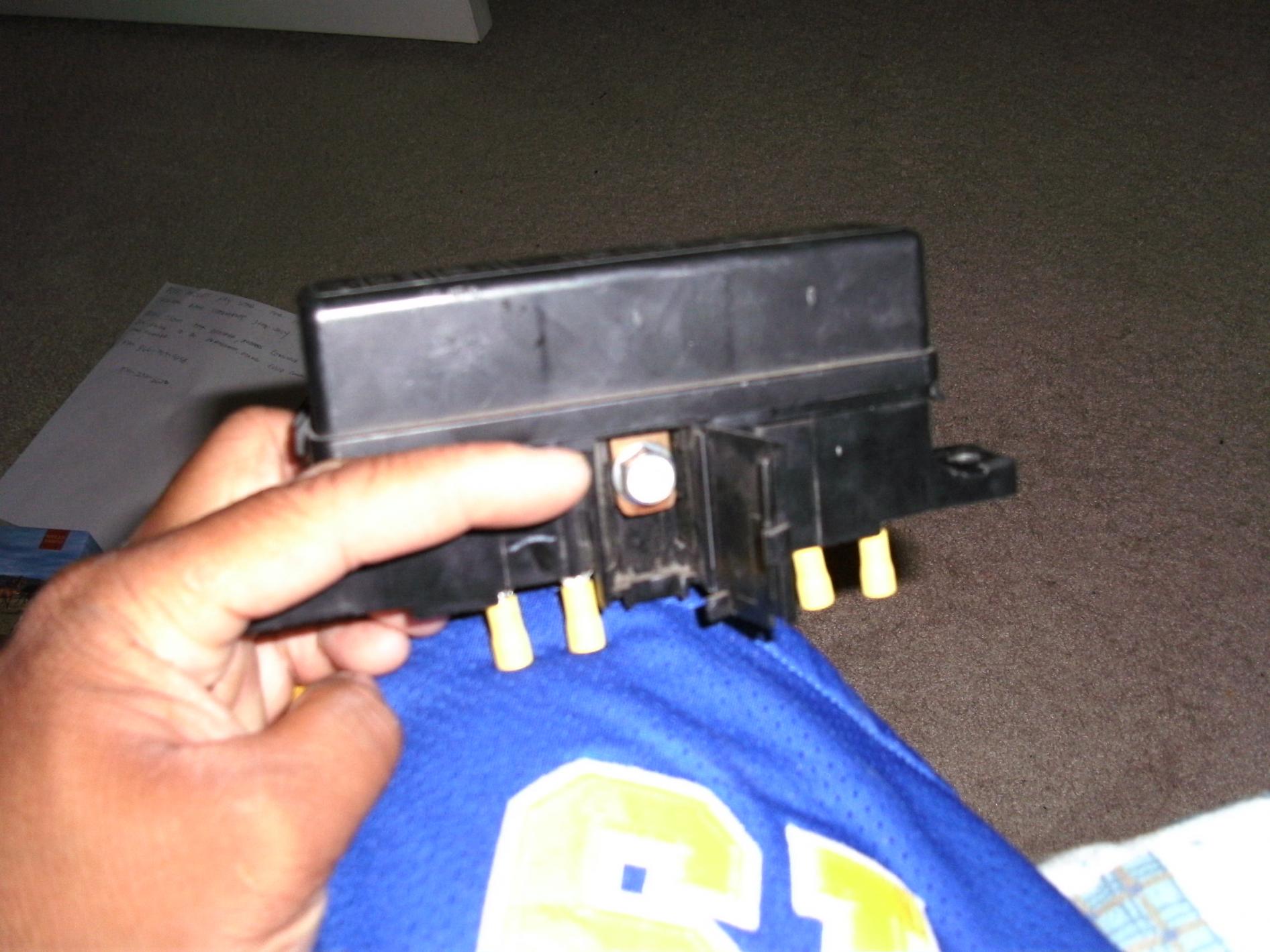

this is the side you are referring to right gsl-se addict? Im just cautious , I dont wanna blow any fuses or mess up my car while attempting this

gsl-se addict

iTrader: (3)

I need to see the underside of the block. You'll probably see what I mean when you look underneath.

Kent

rotary84

iTrader: (4)

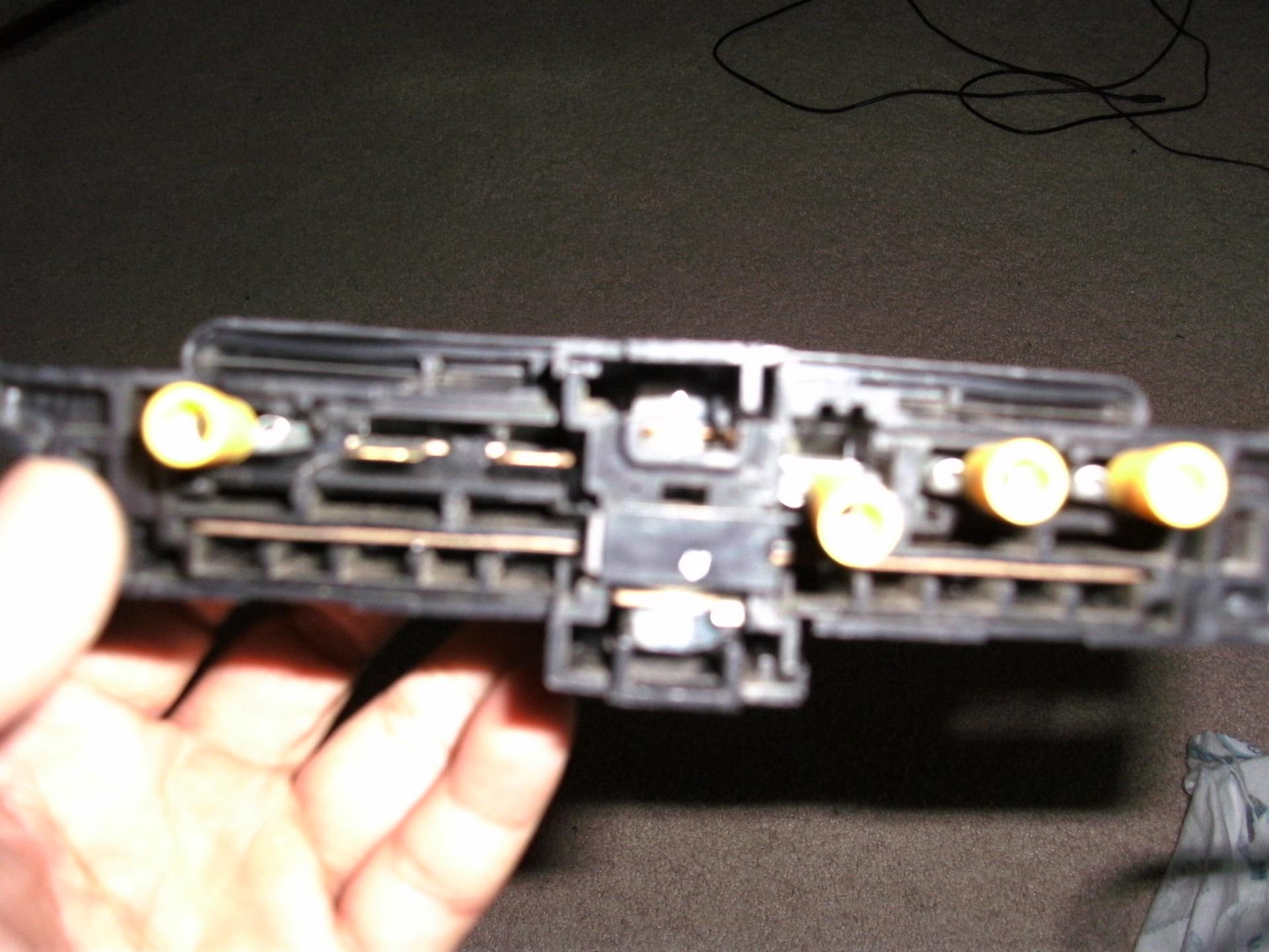

here is a pic underneath

gsl-se addict

iTrader: (3)

It's the bolt closest to your finger (one on the bottom). See the copper bar that goes all the way across?

rotary84

iTrader: (4)

sweet thanks bro
