Draw Through anyone?
#3
Senior Member
Join Date: Jul 2004
Location: Delhi, CA
Posts: 444
Likes: 0
Received 0 Likes
on
0 Posts
Holley
I am considering building a drawthrough for one of my '79's
A Garret TII from a Shelby Dodge with a 3310 Holley vac. secondaries.
If I do all the fabrication it should be quite low cost.
What are you running? Or are you in the planning stage like me?
A Garret TII from a Shelby Dodge with a 3310 Holley vac. secondaries.
If I do all the fabrication it should be quite low cost.
What are you running? Or are you in the planning stage like me?
#6
Banned. I got OWNED!!!
iTrader: (3)
When I picked up my Sa the PO had used a turbo from a 86 or so thunderbird. He made the intake manifold and used an old Rochester carb in draw though setup.
The intake manifold was basically a plenum box. The carb had a huge velocity stack on it and poked up out of the hood. He made some mad max hood scoop looking thing as well.
I pulled it all of as soon as I got home with the car. Even though you can find that same turbo on ebay for 25 bucks, I decided to go back NA with it.
Long story short, he had problems with the fuel puddling (sp?) in the intake manifold. from what I understand the problems with draw through are puddling of the fuel and not being able to run a intercooler.
I am not saying not to do it though.
-billy
The intake manifold was basically a plenum box. The carb had a huge velocity stack on it and poked up out of the hood. He made some mad max hood scoop looking thing as well.
I pulled it all of as soon as I got home with the car. Even though you can find that same turbo on ebay for 25 bucks, I decided to go back NA with it.
Long story short, he had problems with the fuel puddling (sp?) in the intake manifold. from what I understand the problems with draw through are puddling of the fuel and not being able to run a intercooler.
I am not saying not to do it though.
-billy
Trending Topics
#8
I like a draw through

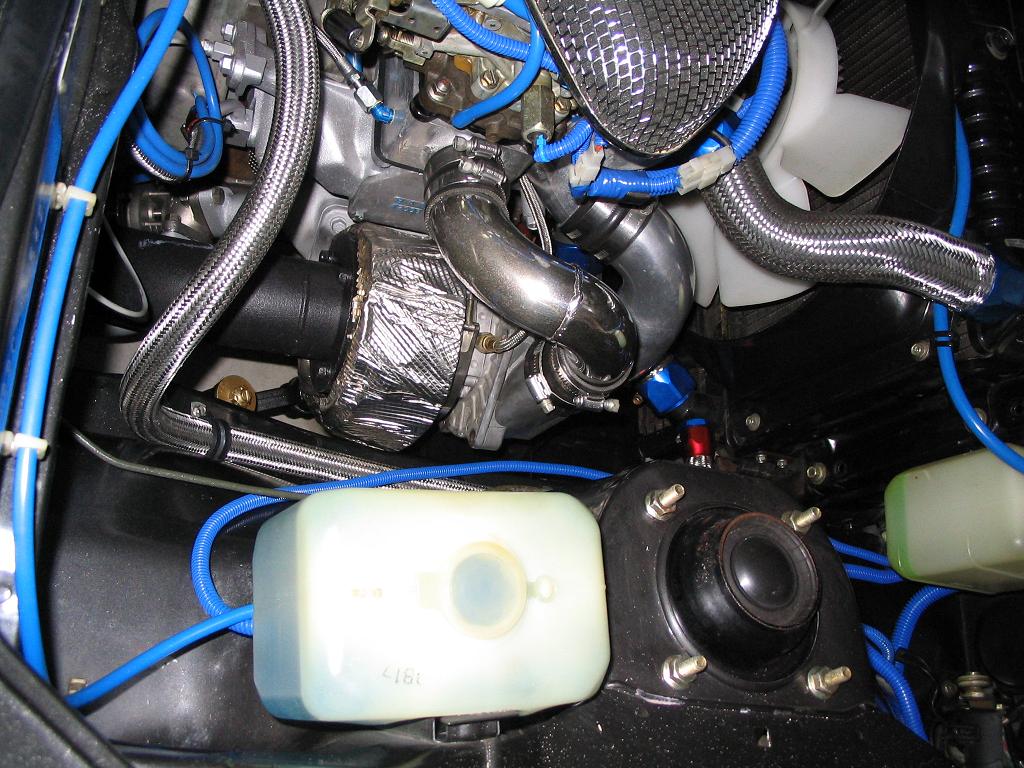

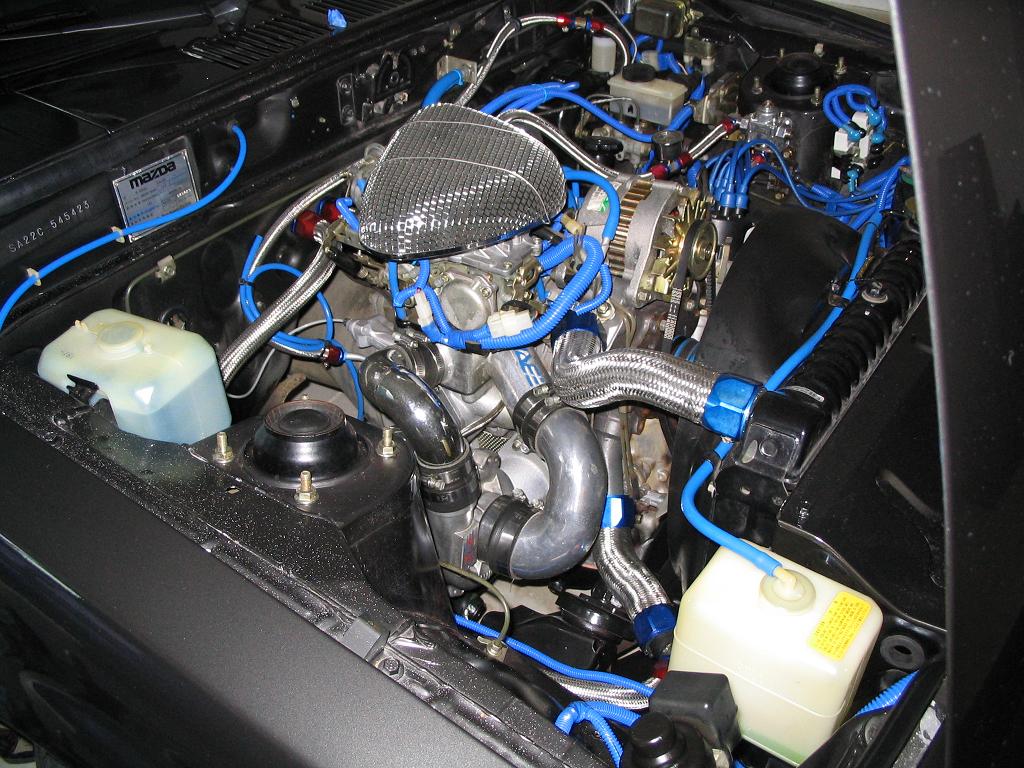

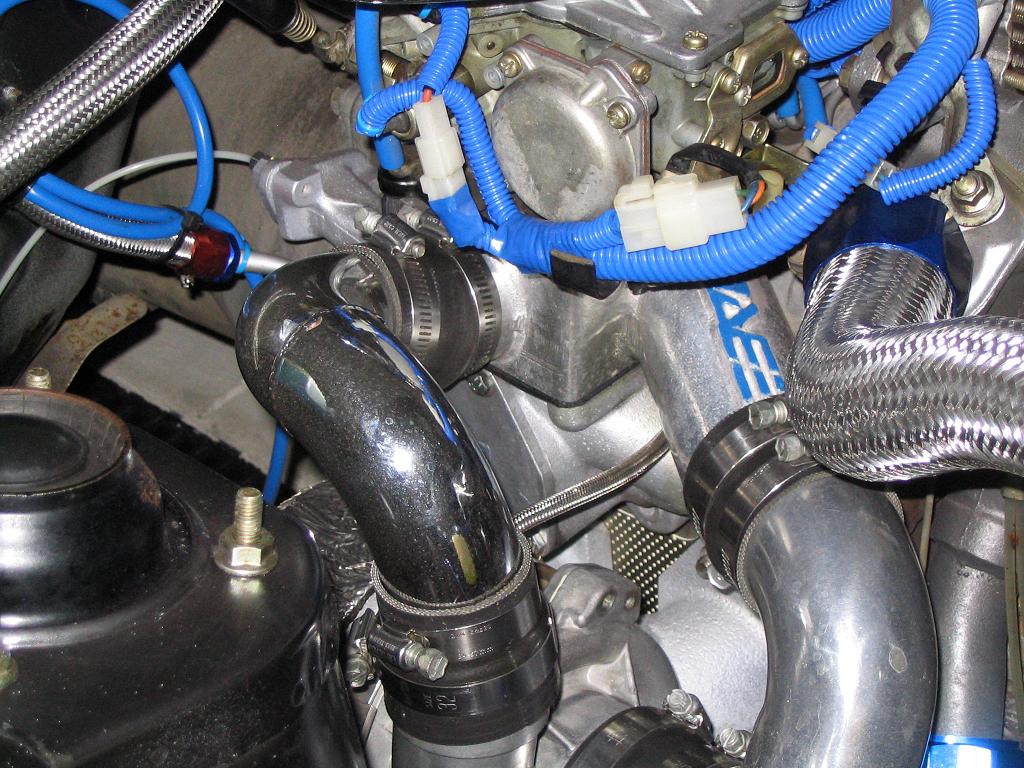

This is my setup. This years projects: I am replacing the black silicone sleeves with blue 4 layer silicone and switching to stainless steel t-bolt clamps. I am replacing the air cleaner with a turbonetics carb bonnet very low profile 2 ¾ inch and installing a cold air intake to it. Last I am in the planning stages of building a water methanol injection system I invision two jets one on the cold air intake before the carburetor the other in the carb box after the fuel has been pressurized through the turbo.
#9
Senior Member
Join Date: Jul 2004
Location: Delhi, CA
Posts: 444
Likes: 0
Received 0 Likes
on
0 Posts
Drawthrough VS Blowthrough
Advantages and disadvantages of blowing or drawing through the carburetor.
Many things are simpler with drawthrough and a carburetor.
Water injection can be used to cool the charge air. instead of an intercooler.
Blowthrough will handle higher boost better.
Blowthrough works well with EFI.
1 . Location of carburetor and linkage
Blow Through - No change
Draw Through - Must be moved
2. Fuel pump
Blow Through - Requires either extra pump or one compensated for compressor discharge pressure
Draw Through - No change
3. Positive crankcase ventilation
Blow Through - Must be moved to compressor inlet
Draw Through - No change
4. Fuel evaporation system
Blow Through - Must be equipped with check valve to prevent supercharging fuel tank
Draw Through - No change
5. Carburetor leakage
Blow Through - All holes and shafts must be sealed or complete carburetor boxed
Draw Through - No change
6. Distance from carburetor to cylinder
Blow Through - No change
Draw Through - Much longer
7. Carburetor float
Blow Through - Might collapse unless made of closed-cell plastic
Draw Through - No change
8. Turbocharger oil seal
Blow Through - Nothing special required
Draw Through - Must have positive seal on compressor end
9. Compressor surge
Blow Through - Can be a problem on deceleration
Draw Through - Not ordinarily a problem
10. Compressor size
Blow Through - Inlet pressure always atmospheric so maximum capacity always available
Draw Through - Inlet pressure below atmospheric so slightly larger physical size is required in some cases
11. Carburetor size
Blow through - No Change
Drawthrough - Size to match airflow at the boost level desired
12 . Carburetor inlet temperature
Blow Through - Low temperature at low load, high temperature at high load
Draw Through - Constant temperature, regardless of load
13. Vacuum source for brakes, air-conditioning, etc.
Blow Through - Sporadic, requires check valve
Draw Through - Must be picked up between carburetor and compressor inlet
Many things are simpler with drawthrough and a carburetor.
Water injection can be used to cool the charge air. instead of an intercooler.
Blowthrough will handle higher boost better.
Blowthrough works well with EFI.
1 . Location of carburetor and linkage
Blow Through - No change
Draw Through - Must be moved
2. Fuel pump
Blow Through - Requires either extra pump or one compensated for compressor discharge pressure
Draw Through - No change
3. Positive crankcase ventilation
Blow Through - Must be moved to compressor inlet
Draw Through - No change
4. Fuel evaporation system
Blow Through - Must be equipped with check valve to prevent supercharging fuel tank
Draw Through - No change
5. Carburetor leakage
Blow Through - All holes and shafts must be sealed or complete carburetor boxed
Draw Through - No change
6. Distance from carburetor to cylinder
Blow Through - No change
Draw Through - Much longer
7. Carburetor float
Blow Through - Might collapse unless made of closed-cell plastic
Draw Through - No change
8. Turbocharger oil seal
Blow Through - Nothing special required
Draw Through - Must have positive seal on compressor end
9. Compressor surge
Blow Through - Can be a problem on deceleration
Draw Through - Not ordinarily a problem
10. Compressor size
Blow Through - Inlet pressure always atmospheric so maximum capacity always available
Draw Through - Inlet pressure below atmospheric so slightly larger physical size is required in some cases
11. Carburetor size
Blow through - No Change
Drawthrough - Size to match airflow at the boost level desired
12 . Carburetor inlet temperature
Blow Through - Low temperature at low load, high temperature at high load
Draw Through - Constant temperature, regardless of load
13. Vacuum source for brakes, air-conditioning, etc.
Blow Through - Sporadic, requires check valve
Draw Through - Must be picked up between carburetor and compressor inlet
#10
and that aint all!
WECYCLE I have to disagree with you on several points in your post The stock fuel pump is not adequate for the blow trough setup a minimum of a least 5psi is required. I am using a Holley Red. The incline vapor valve also needs to be removed it is too restrictive. One of the secondary jets needs to be drilled out with a .076-.078 drill. Remove the secondary vacuum actuator that controls the secondary butterflies of the carburetor and stretch the spring ½ to ¾ inch longer and lower the float level .25mm lower than stock the carb. The carb spacer needs to to be reworked also.
#11
Junior Member
Thread Starter
Join Date: Nov 2004
Location: orlando
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
yeah i recently bought an 85 with a draw through setup. i wanted to make it blow through. but it looks like it has a lottttt of potential just as a draw through. so i'm going to keep it that way. i was wondering what kind of boost controllers can be put on them. also what kind of exhaust should i get to safely run higher boost
