Dizzy swap
Iv tr yd following the guide on Mazspeed's First Generation Rx-7 Club Page
but theirs just too much wires too wrap my head around and the guide jumps all over.

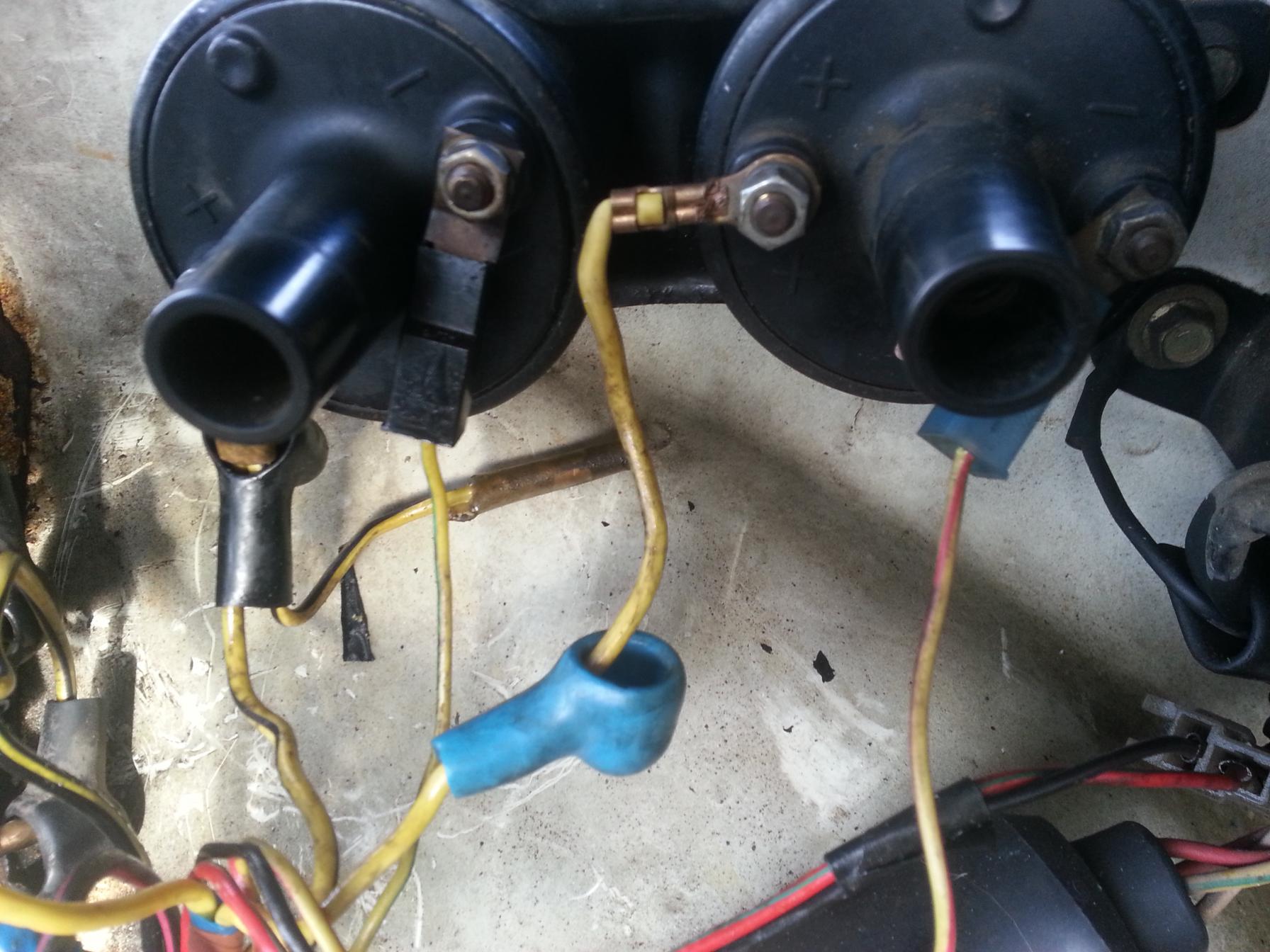

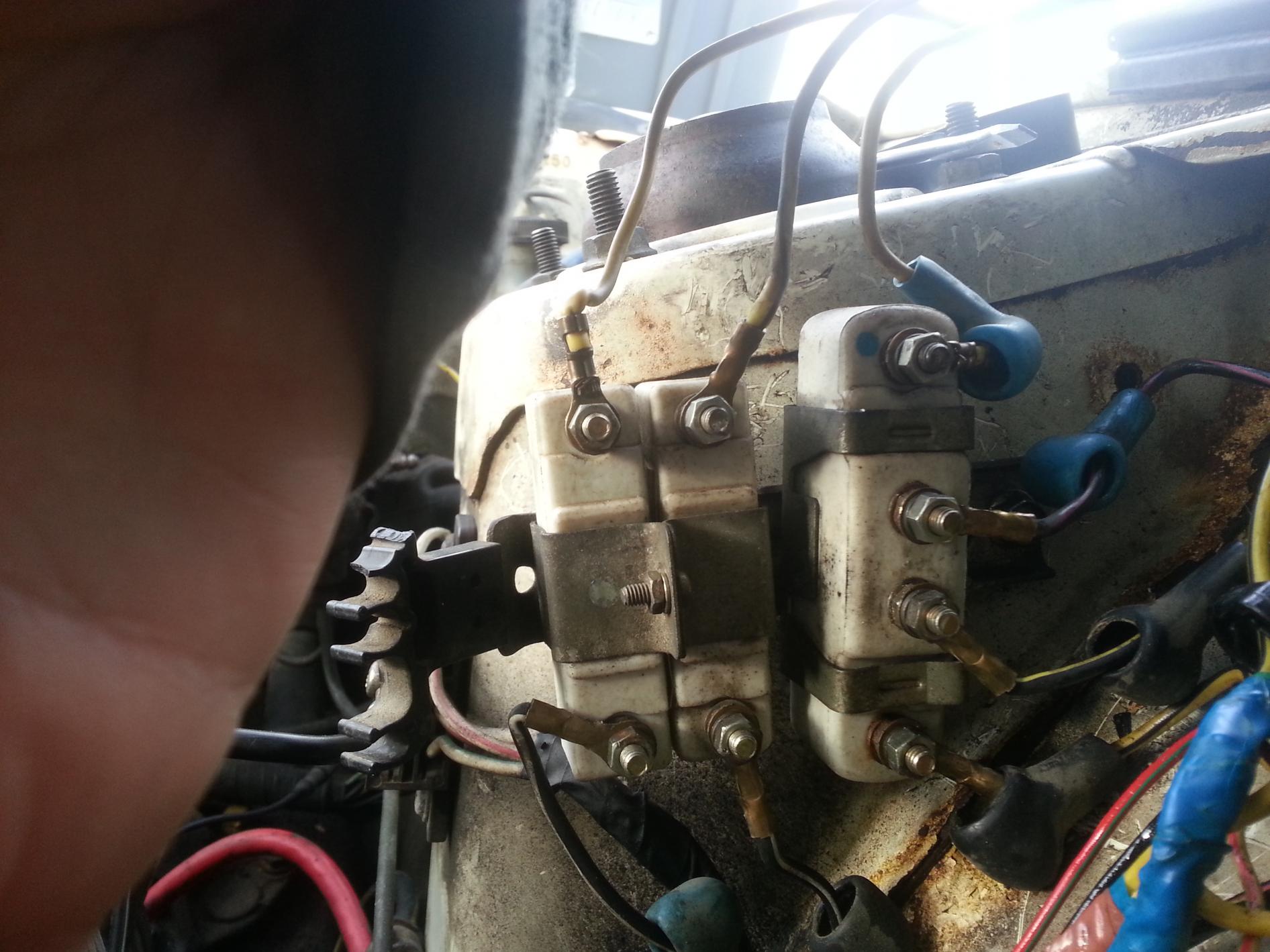

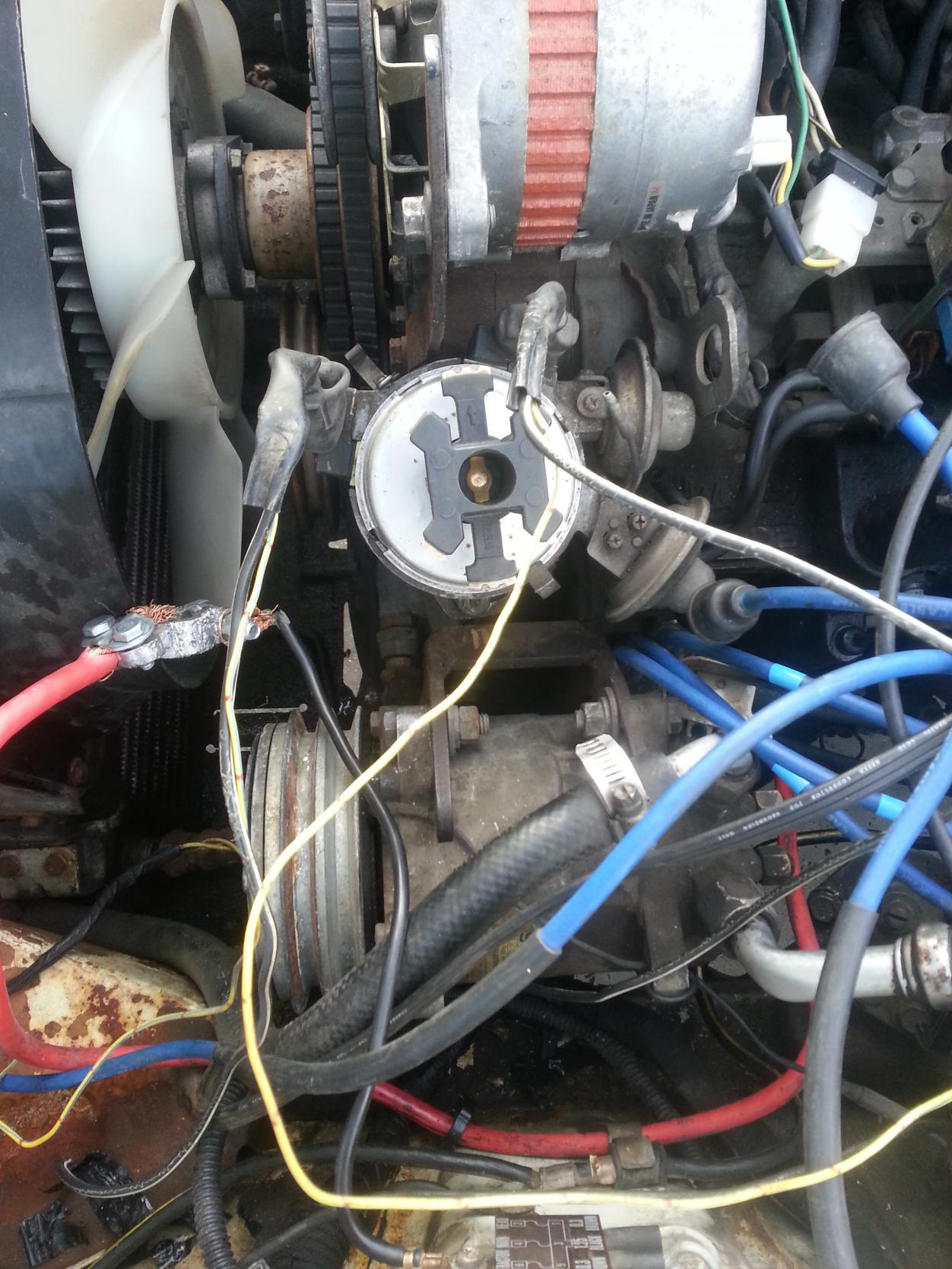

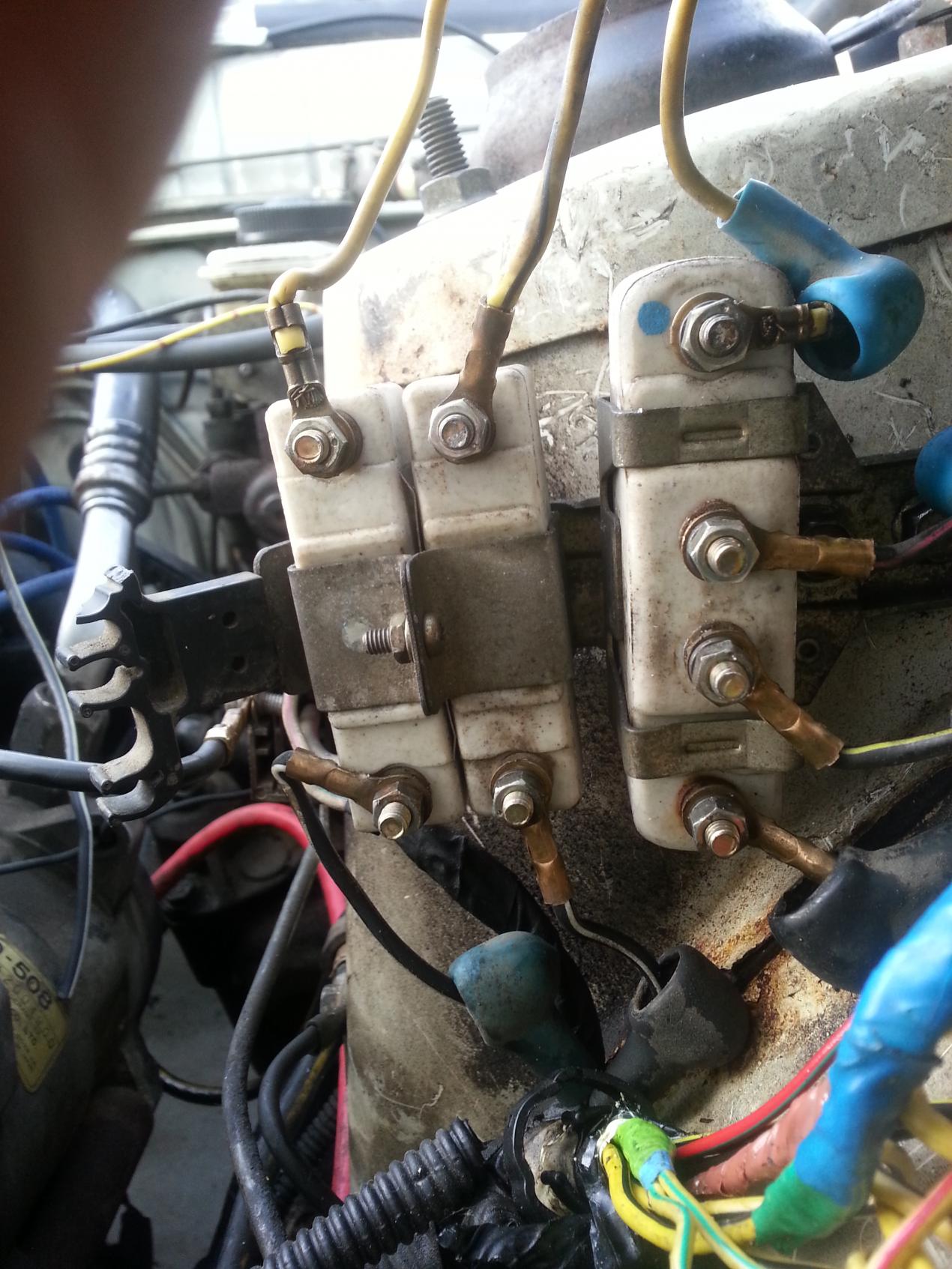

I was just wondering if someone cold tell me what wires goes were with the resistors i have pics and will post.
Also what wires do i leave or take of the coils?
If i have too take more pics just let me know please any help would be greatly appreciated.
but theirs just too much wires too wrap my head around and the guide jumps all over.
I was just wondering if someone cold tell me what wires goes were with the resistors i have pics and will post.
Also what wires do i leave or take of the coils?
If i have too take more pics just let me know please any help would be greatly appreciated.
#2
RX for fun
iTrader: (13)
Each coils and igniters need a 12v ignition. Ditch the resistors and use a test light to locate the wire with 12v when your key is on ON position. Connect this wire to trailing and leading coil's positive.
Igniter
Run a wire from B terminal to coil positive and C terminal to coils negative.
i cant remember the color code for factory tach and fuel pump wires but feel free to dowload the FSM. Connect the tach wire to trailing coil negative and fuel pump wire to leading coil negative. If f/p or tach fail to work, that is your indicator that you have a bad trailing or leading igniter.i
Igniter
Run a wire from B terminal to coil positive and C terminal to coils negative.
i cant remember the color code for factory tach and fuel pump wires but feel free to dowload the FSM. Connect the tach wire to trailing coil negative and fuel pump wire to leading coil negative. If f/p or tach fail to work, that is your indicator that you have a bad trailing or leading igniter.i
