1st Generation Specific (1979-1985) 1979-1985 Discussion including performance modifications and technical support sections

Clutch slave cylinder going out?

Thread Tools

Search this Thread

Old Jan 29, 2010 | 09:29 AM
  #1
vj226966's Avatar
Thread Starter
Banned. I got OWNED!!!

Joined: Nov 2009
Posts: 565
Likes: 0
From: Waycross Ga
GA Clutch slave cylinder going out?

I got my 79 in Dec of 09.It is not tagged so i dont drive it besides around the block or so.I was checking my fluids the other day and noticed my fluid for the clutch was about 1" low.The fluid was also real dirty.I topped it off and left it at that.Last night i took it for a spin.I came up to a stop,pushed in the clutch,it was in 1st,but it kept pulling.I had to ****** it out of gear.Then it would not go into gear.Well after pumping the pedal i was able to put it in gear.I got the car home and looked under the dash to look for a leak and found it had leaked,but nothing real bad.

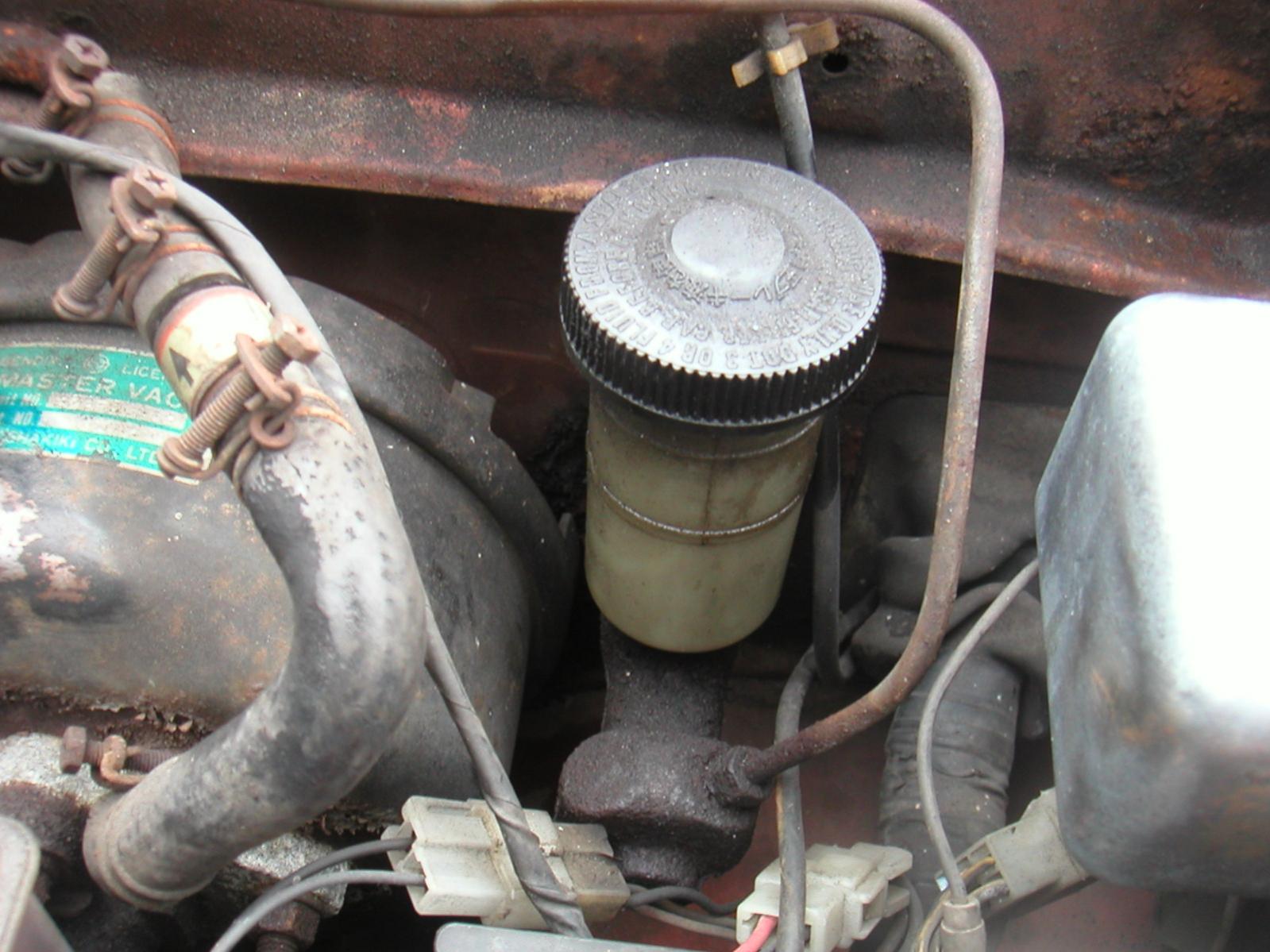

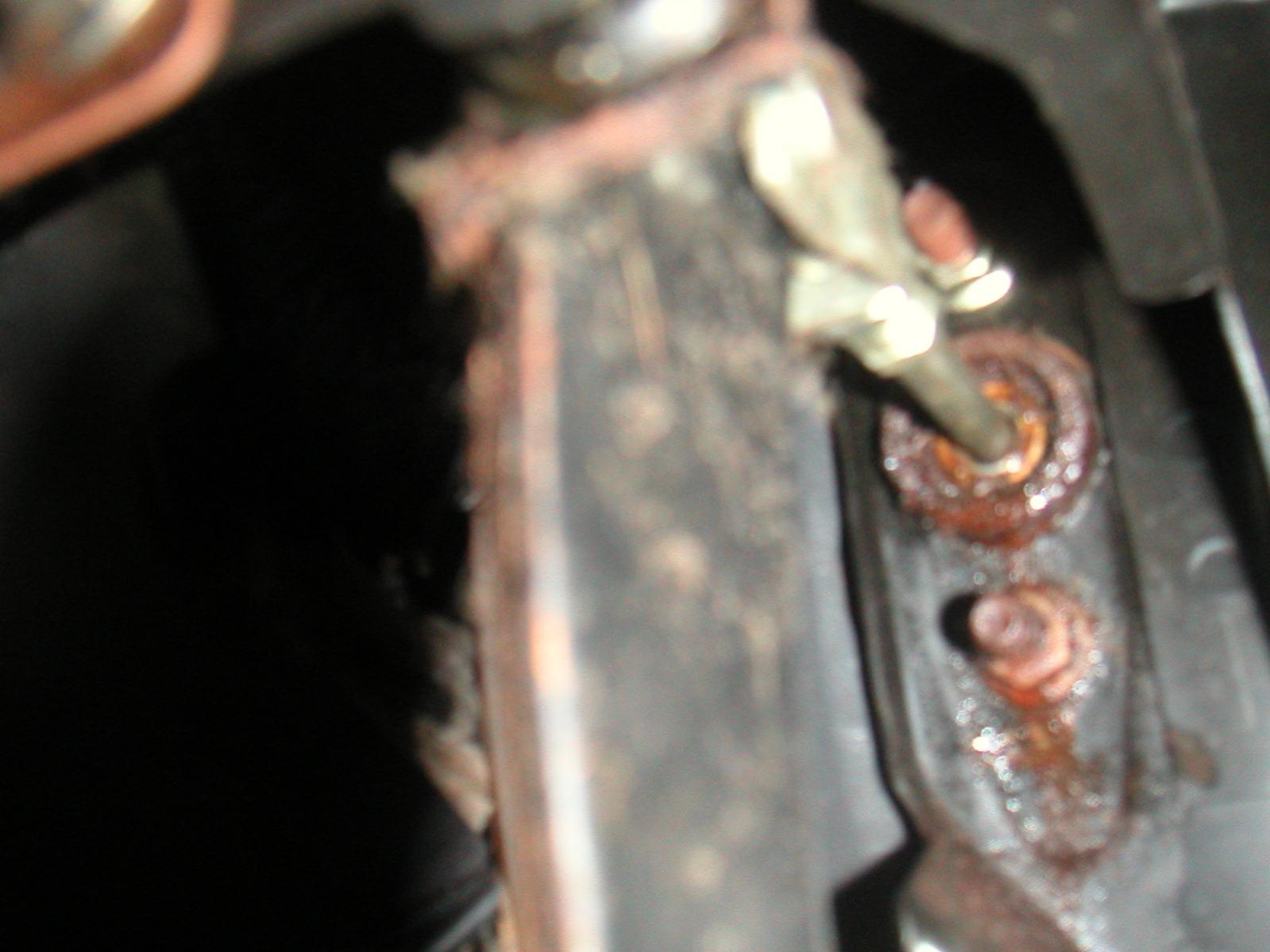

Attached Thumbnails Clutch slave cylinder going out?-pict0153.jpg   Clutch slave cylinder going out?-pict0154.jpg
Reply
Old Jan 29, 2010 | 10:06 AM
  #2
mazdamikes's Avatar
Full Member
Tenured Member 15 Years
iTrader: (8)

Joined: May 2004
Posts: 64
Likes: 0
From: Mansfield, OH
Clutch cylinder

Originally Posted by vj226966
I got my 79 in Dec of 09.It is not tagged so i dont drive it besides around the block or so.I was checking my fluids the other day and noticed my fluid for the clutch was about 1" low.The fluid was also real dirty.I topped it off and left it at that.Last night i took it for a spin.I came up to a stop,pushed in the clutch,it was in 1st,but it kept pulling.I had to ****** it out of gear.Then it would not go into gear.Well after pumping the pedal i was able to put it in gear.I got the car home and looked under the dash to look for a leak and found it had leaked,but nothing real bad.
I suggest you change both the master and slave cylinder.
Reply
Old Jan 29, 2010 | 10:27 AM
  #3
vj226966's Avatar
Thread Starter
Banned. I got OWNED!!!

Joined: Nov 2009
Posts: 565
Likes: 0
From: Waycross Ga
GA

Originally Posted by mazdamikes
I suggest you change both the master and slave cylinder.
I have a brand new slave cylinder,but do you think that could be the proablm?
Reply
Old Jan 29, 2010 | 11:09 AM
  #4
DarrenTRS's Avatar
Jolly Green Giant
Tenured Member 10 Years
iTrader: (1)

Joined: Feb 2008
Posts: 509
Likes: 0
From: San Antonio, TX
Originally Posted by vj226966
I have a brand new slave cylinder,but do you think that could be the proablm?
If its leaking out the back of the master then that is one of the cauese, remember these are supposed to be sealed and isolated systems. I suggested you get a new master cylinder and flex hose as well take out the slave and clean it good, flush the hardline well and put some fresh fluid in.
Reply
Old Jan 29, 2010 | 11:49 AM
  #5
vj226966's Avatar
Thread Starter
Banned. I got OWNED!!!

Joined: Nov 2009
Posts: 565
Likes: 0
From: Waycross Ga
GA

Originally Posted by DarrenTRS
If its leaking out the back of the master then that is one of the cauese, remember these are supposed to be sealed and isolated systems. I suggested you get a new master cylinder and flex hose as well take out the slave and clean it good, flush the hardline well and put some fresh fluid in.
Thanks i will try that.
Reply
Old Jan 29, 2010 | 12:11 PM
  #6
rxtasy3's Avatar
Moderator
Tenured Member: 20 Years
iTrader: (2)

Joined: Jun 2002
Posts: 9,579
Likes: 290
From: Spartanburg, SC
as already mentioned, u already have a new slave cyl. go get a master cyl too. clean out the hard line and replace the flex line. brake system probably isn't too far behind.
Reply
Old Jan 29, 2010 | 12:20 PM
  #7
vj226966's Avatar
Thread Starter
Banned. I got OWNED!!!

Joined: Nov 2009
Posts: 565
Likes: 0
From: Waycross Ga
GA

Originally Posted by rxtasy3
as already mentioned, u already have a new slave cyl. go get a master cyl too. clean out the hard line and replace the flex line. brake system probably isn't too far behind.
Thanks for the heads up.Is it possible mixing old fluid with new caused a problem?Because shortly after i added the new fluid i had the problem.
Reply
Old Jan 29, 2010 | 05:03 PM
  #8
trochoid's Avatar
Old Fart Young at Heart
Tenured Member 10 Years
iTrader: (6)

Joined: Apr 2004
Posts: 15,145
Likes: 8
From: St Joe MO
No, since you had to add fluid it was already on it's way out.
Reply
Old Jan 30, 2010 | 12:26 AM
  #9
"AXL"'s Avatar
Junior Member

Joined: Aug 2009
Posts: 26
Likes: 0
From: Barrie
I have this exact same problem. I have recently purchased both the master and slave for the clutch, but the only problem is now is that i dont know how to bleed or install it Im still learning
Reply
Old Jan 30, 2010 | 12:51 AM
  #10
Father Goose's Avatar
Junior Member
Tenured Member 05 Years

Joined: Feb 2006
Posts: 46
Likes: 0
From: Colorado Springs, CO
Remove and Replace

I had this same problem a couple of years ago and it really wasn't that much trouble. The worst part is having to crawl under the steering column to loosen the bolts that hold the master cylinder in place. I actually got my teenage son to crawl under there since his hands are smaller.

Upon inspection of the parts, the pistons were pretty corroded and that is why it was leaking as bad as it was.

Bleeding is not that difficult the valve should be on the clutch release sylinder. You'll need a bottle a vinyl tube and plenty of fluid. It's just like bleeding breaks.
Reply
Old Feb 16, 2010 | 07:16 PM
  #11
vj226966's Avatar
Thread Starter
Banned. I got OWNED!!!

Joined: Nov 2009
Posts: 565
Likes: 0
From: Waycross Ga
GA Brake fluid coming out of cluch master cylinder?

I have posted a thread on my clutch problem.I replaced the slave cylinder and tried to bleed it.It worked for a minute.So i figure i still have air in the lines.I get my wife to pump the pedal,tell her to hold it and while she is pumping it fluid is coming out of the **** hole on the cap and when i crack the bleeder screw it trickles out.What the heck is wrong?
Reply
Old Feb 16, 2010 | 08:16 PM
  #12
Crispin38's Avatar
o.O
Tenured Member 10 Years
iTrader: (3)

Joined: Jan 2010
Posts: 871
Likes: 2
From: 64865
I cant fully understand what you're saying, but if fluid is running out from where the clutch master is bolted to the fire wall replace it or i recommend rebuilding it.
Reply
Old Feb 16, 2010 | 08:19 PM
  #13
vj226966's Avatar
Thread Starter
Banned. I got OWNED!!!

Joined: Nov 2009
Posts: 565
Likes: 0
From: Waycross Ga
Originally Posted by Crispin38
I cant fully understand what you're saying, but if fluid is running out from where the clutch master is bolted to the fire wall replace it or i recommend rebuilding it.
When you pump the clutch pedal,fluid shoots out of the pee hole on the cap on the master cylinder.My batt is dead on my camera and it is night.I will post pic in the morning.
Reply
Old Feb 17, 2010 | 12:26 AM
  #14
Father Goose's Avatar
Junior Member
Tenured Member 05 Years

Joined: Feb 2006
Posts: 46
Likes: 0
From: Colorado Springs, CO
If you only replaced the slave cylinder you may still be leaking out of the Master. Also, when you bleed and you say that your wife pumps, you do mean that she presses the pedal down after you open up the pee hole, you close and she lets up on the pedal - repeat until no air bubbles are visible. If I remember correctly, it took about a dozen repetitions before I got all of the air out. I did replace the slave, master and the lines in and out.
Reply
Old Feb 17, 2010 | 07:19 AM
  #15
vj226966's Avatar
Thread Starter
Banned. I got OWNED!!!

Joined: Nov 2009
Posts: 565
Likes: 0
From: Waycross Ga
GA

Originally Posted by Father Goose
If you only replaced the slave cylinder you may still be leaking out of the Master. Also, when you bleed and you say that your wife pumps, you do mean that she presses the pedal down after you open up the pee hole, you close and she lets up on the pedal - repeat until no air bubbles are visible. If I remember correctly, it took about a dozen repetitions before I got all of the air out. I did replace the slave, master and the lines in and out.
yes pump then hold,open,close,pump some more.While she was pumping it was coming out of the hole.A stream.Up in the air.
Reply
Old Feb 17, 2010 | 07:56 AM
  #16
vj226966's Avatar
Thread Starter
Banned. I got OWNED!!!

Joined: Nov 2009
Posts: 565
Likes: 0
From: Waycross Ga
GA

Originally Posted by Father Goose
If you only replaced the slave cylinder you may still be leaking out of the Master. Also, when you bleed and you say that your wife pumps, you do mean that she presses the pedal down after you open up the pee hole, you close and she lets up on the pedal - repeat until no air bubbles are visible. If I remember correctly, it took about a dozen repetitions before I got all of the air out. I did replace the slave, master and the lines in and out.

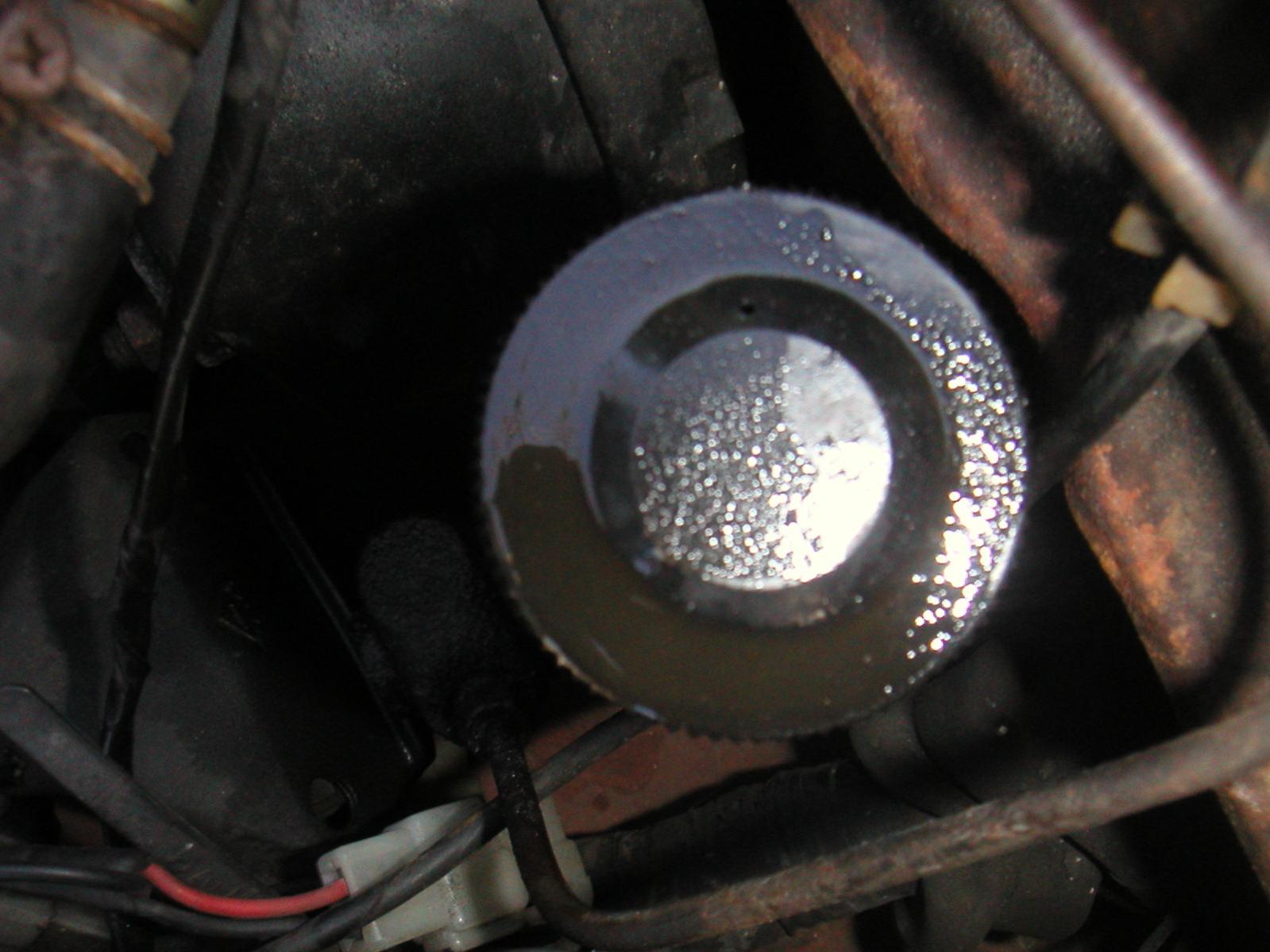

When she was "pumping" the pedal,the fluid was squirting out that little hole.
Attached Thumbnails Clutch slave cylinder going out?-pict0008.jpg
Reply
Old Feb 17, 2010 | 08:05 AM
  #17
rxtasy3's Avatar
Moderator
Tenured Member: 20 Years
iTrader: (2)

Joined: Jun 2002
Posts: 9,579
Likes: 290
From: Spartanburg, SC
never experienced that problem but maybe it's just too full. i'd replace it anyway and only fill it up to the "max" line.
Reply
Old Feb 17, 2010 | 08:39 AM
  #18
vj226966's Avatar
Thread Starter
Banned. I got OWNED!!!

Joined: Nov 2009
Posts: 565
Likes: 0
From: Waycross Ga
GA

Originally Posted by rxtasy3
never experienced that problem but maybe it's just too full. i'd replace it anyway and only fill it up to the "max" line.
The other weird thing is,when you pump and hold it is like there is no pressure building it trickles out the bleeder.
Reply
Old Feb 17, 2010 | 03:18 PM
  #19
DarrenTRS's Avatar
Jolly Green Giant
Tenured Member 10 Years
iTrader: (1)

Joined: Feb 2008
Posts: 509
Likes: 0
From: San Antonio, TX
Originally Posted by vj226966
The other weird thing is,when you pump and hold it is like there is no pressure building it trickles out the bleeder.
Yea it sounds like the master cylinder has finally crapped out and the seal around the piston that instead of keeping fluid infront of the piston as its pushed down is allowing it back through the vent ports and pressurizing the reservoir instead. So best bet is to buy a new clutch master.
Reply
Old Feb 17, 2010 | 03:33 PM
  #20
Rx-7Doctor's Avatar
Lives on the Forum
Tenured Member 10 Years
iTrader: (13)

Joined: Jul 2004
Posts: 10,584
Likes: 12
From: Oregon
When in doubt follow the first instructions that everyone has already given you. Replace the Clutch Master and be done with it!!!!!!
Reply
Old Feb 17, 2010 | 04:49 PM
  #21
vj226966's Avatar
Thread Starter
Banned. I got OWNED!!!

Joined: Nov 2009
Posts: 565
Likes: 0
From: Waycross Ga
Originally Posted by Rx-7Doctor
When in doubt follow the first instructions that everyone has already given you. Replace the Clutch Master and be done with it!!!!!!
Done deal ordered it
Reply
Old Feb 17, 2010 | 07:44 PM
  #22
mazdaverx713b's Avatar
Have RX-7, will restore
Veteran: Army
Tenured Member: 20 Years
Loved
Community Favorite
iTrader: (91)

Joined: Oct 2003
Posts: 22,577
Likes: 1,273
From: Ohio
replacing the clutch master cylinder (bolted to the firewall) and the slave cylinder (bolted to the trans bellhousing), and replacing the clutch hose is the only true way to fix the issue. fixing one without the other is like a bandaid. the pics you posted of the clutch master are no doubt a common failure. the seal around the piston in the clutch master has failed and fluid will seep past the seal causing a loss in fluid and pressure. you bleed from the slave cylinder and it is not always necessary to bench bleed the clutch master. if the fluid is squirting from the vent hole on the clutch master cylinder resivour, then you have a blockage in the system and an excess of built up pressure. my guess would be that if there's not a sediment blockage, the clutch hose has collapsed internally and is blocking fluid.
Reply
Old Feb 17, 2010 | 08:47 PM
  #23
vj226966's Avatar
Thread Starter
Banned. I got OWNED!!!

Joined: Nov 2009
Posts: 565
Likes: 0
From: Waycross Ga
Originally Posted by mazdaverx713b
replacing the clutch master cylinder (bolted to the firewall) and the slave cylinder (bolted to the trans bellhousing), and replacing the clutch hose is the only true way to fix the issue. fixing one without the other is like a bandaid. the pics you posted of the clutch master are no doubt a common failure. the seal around the piston in the clutch master has failed and fluid will seep past the seal causing a loss in fluid and pressure. you bleed from the slave cylinder and it is not always necessary to bench bleed the clutch master. if the fluid is squirting from the vent hole on the clutch master cylinder resivour, then you have a blockage in the system and an excess of built up pressure. my guess would be that if there's not a sediment blockage, the clutch hose has collapsed internally and is blocking fluid.
Thanks.I got the master on its way,now i need to get a new line for the slave.Then that should fix it.Thanks again.
Reply
Old Feb 19, 2010 | 12:07 AM
  #24
Father Goose's Avatar
Junior Member
Tenured Member 05 Years

Joined: Feb 2006
Posts: 46
Likes: 0
From: Colorado Springs, CO
When you go to bleed it again, hook up a small tube to the "pee hole" and the fluid won't squirt out all over the place, put the open end in a bottle or bag to catch the fluid.

As I mentioned in a previous entry, getting the Master is going to be a bit of a bear, especially the part under the dash. Good Luck - it's much easier if you have small hands.
Reply
Old Feb 19, 2010 | 04:56 AM
  #25
mazdaverx713b's Avatar
Have RX-7, will restore
Veteran: Army
Tenured Member: 20 Years
Loved
Community Favorite
iTrader: (91)

Joined: Oct 2003
Posts: 22,577
Likes: 1,273
From: Ohio
the tpee hole that Father Goose is talking about is the bleeder screw on the slave cylinder, not the breather on the master cylinder cap. there are two 12mm nuts that secure the clutch master cylinder to the firewall. be patient with them. one is easy, one requires patience. you must first disconnect the master's rod from the pedal (super easy) and remove the hard line from the master. you may beed some heat around the fitting on the master to avoid twisting the hard line when removing it.
Reply
